1.Introduction to PCB Trace Width

If you’ve ever worked with PCB layout software, you’ve encountered trace width settings. But what exactly is PCB trace width—and why does it matter so much?

Simply put, PCB trace width is the width of the copper path that connects components on a printed circuit board. It may seem like a small setting in CAD software, but it carries massive implications. Trace width determines how much current your board can handle, how much heat it will generate, and how long it will last under stress.

But here’s the kicker… Incorrect trace width is one of the most common root causes of PCB failure in high-current and high-frequency PCB designs. Undersized traces can overheat, delaminate, or even ignite under load.

The goal of this article is to help engineers, designers, and procurement teams understand the science and strategy behind proper trace width planning. From IPC standards to real-world layout tips, we’ll unpack every layer of the topic.

Trace Width Level	Typical Use	Current Range
6–8 mils	Signal traces	<0.5A
10–20 mils	Low power	0.5–2A
30–60 mils	Power lines	2–5A
100+ mils	High power	5–20A

2.Understanding the Role of Trace Width in PCB Design

So, what’s the real story behind trace width? It’s more than just a geometric dimension—it’s the difference between a robust board and one that fails under load.

Let’s break it down. The wider the trace, the more current it can carry. Why? Because wider traces reduce resistance, which minimizes voltage drop and thermal buildup. For power supply lines, this is mission-critical.

But it’s not just about current. Trace width also affects signal integrity, especially in high-frequency circuits. Narrow, uneven traces can introduce impedance mismatches, reflections, and EMI—issues that degrade performance.

And there’s another layer… Thermal management. Copper traces heat up when current flows. A trace that’s too narrow will heat faster, which could impact nearby components or layers.

Factor	How It Relates to Trace Width
Current Carrying Capacity	Directly proportional
Voltage Drop	Inversely proportional
Heat Generation	Higher in narrow traces
EMI and Crosstalk	Worse in narrow, dense layouts

In short, trace width isn’t a trivial setting—it’s central to performance, safety, and manufacturability.

3. Key Factors That Influence PCB Trace Width

Not all traces are created equal. So, what determines the optimal trace width in any given design?

The biggest influencer is current load. The more current a trace must carry, the wider it must be. But here’s where it gets interesting—copper thickness also plays a crucial role. Thicker copper allows a narrower trace to carry more current safely.

Then there’s the operating environment. In high-temperature environments, traces require more width to prevent overheating. And don’t forget voltage levels—higher voltages need wider spacing, which can impact layout density.

Ready for the good part? IPC-2221 provides a formula to calculate minimum trace width based on temperature rise, current, and copper thickness.

Factor	Typical Impact on Trace Width
Current (Amps)	Higher current = wider trace
Copper Thickness	Thicker copper = narrower trace
Max Temperature Rise	Lower rise = wider trace
Ambient Temperature	Higher ambient = wider trace
PCB Layer (internal vs. external)	Internal layers require wider traces

By balancing these variables, you ensure your design is both functional and manufacturable.

4. IPC Standards for Trace Width

Let’s talk standards.

The IPC-2221 standard is the industry bible for determining safe and functional trace width. It provides formulas for external and internal layers based on current, copper weight, and allowable temperature rise.

But here’s the kicker… The formulas are conservative. They’re designed for long-term reliability, not just function. For example, if you’re running 2A through a 1 oz copper external trace with a 10°C rise, IPC-2221 might recommend a 25 mil trace.

The standard defines three classes:

● Class 1 – General electronics (consumer devices)
● Class 2 – Dedicated service (industrial/commercial)
● Class 3 – High reliability (military, medical, aerospace)

IPC Class	Application	Trace Width Tolerance
Class 1	TVs, toys, gadgets	Wide tolerance
Class 2	Industrial controllers	Moderate tolerance
Class 3	Aircraft, pacemakers	Tight tolerance

For Class 3, every mil matters. Manufacturers must adhere to strict width, spacing, and copper distribution requirements.

Using IPC-2221 ensures your PCB meets global reliability standards.

5. How to Calculate PCB Trace Width

Calculating trace width is where theory meets practice.

IPC-2221 provides a well-known formula for external traces:

W = (I / (k * ΔT^0.44 * H^0.725))^1.129

Where:
W = width (mil)
I = current (A)
ΔT = allowable temperature rise (°C)
H = copper thickness (oz/ft²)
k = 0.048 for external layers

But don’t worry—if math isn’t your thing, many online calculators based on IPC-2221 simplify the process.

Let’s look at a real-world example. Suppose you need to carry 3A on a 1 oz external trace with a 20°C rise. Plug the values into a calculator and you’ll likely get a trace width of around 40 mils.

Parameter	Value
Current	3A
Copper	1 oz/ft²
Temp Rise	20°C
Required Width	~40 mils

These tools give you a quick sanity check before routing your layout.

6. Internal vs. External Trace Width Differences

What’s the difference between an internal and external trace? In a word: cooling.

External traces are exposed to air, which allows for better convection cooling. Internal traces, sandwiched between layers, retain more heat. That means—for the same current—you’ll need a wider trace inside the PCB.

But here’s the twist… Designers often overlook internal width needs, assuming a single value across all layers. Big mistake. Using the same trace width internally can lead to overheating and even layer delamination.

Real-world case: A power supply routed with identical 20 mil traces internally and externally failed during thermal testing. The root cause? The inner trace overheated under load.

Layer	Cooling Capability	Required Width for 3A
External (1 oz)	High	40 mils
Internal (1 oz)	Low	65 mils

Bottom line? Always calculate separately based on the layer location.

7. Minimum and Maximum Trace Width Limits

Let’s get real—manufacturers have limits.

On the low end, most PCB fabs can produce trace widths down to 3–6 mils, but yield rates drop and costs rise fast. For high-reliability applications, minimum width should stay above 6 mils whenever possible.

On the other end, very wide traces—like 200+ mils—can warp the board during etching and cooling. They also take up valuable real estate in dense designs.

But what’s the real story? It’s not just about what’s possible—it’s about what’s practical.

Ask your fab:

● What’s your minimum trace width for outer and inner layers?
● What’s the minimum trace-to-space spec at your copper weight?
● Can you handle wide copper pours without distortion?

Copper Weight	Minimum Width (mil)	Minimum Space (mil)
1 oz	3 mil	3 mil
2 oz	4 mil	4 mil
3 oz	6 mil	6 mil

Know your manufacturer’s limitations before finalizing your layout.

 8. High-Current PCB Trace Width Considerations

This is where things start heating up—literally.

When designing power electronics, such as motor drivers, battery management systems, or inverters, trace width must accommodate high current loads—often in the range of 5A to 30A or more. This shifts the design challenge from signal integrity to thermal and mechanical endurance.

But here’s the kicker… It’s not just trace width. Trace thickness, copper weight, and overall area all contribute to heat dissipation and ampacity. A 10A trace at 1 oz copper might need 200 mils width externally—or 350 mils internally! And when space is tight, you may need to add parallel traces or pour copper fills.

Designers also use plated-through vias and thermal stitching to balance temperature gradients.

Current (Amps)	Copper Weight	External Width (mil)	Internal Width (mil)
5A	1 oz	100 mil	180 mil
10A	2 oz	140 mil	250 mil
20A	3 oz	210 mil	350+ mil

So, what’s the takeaway? Plan early. If your board needs high current traces, allocate wide lanes and consult your fabricator for copper balancing strategies.

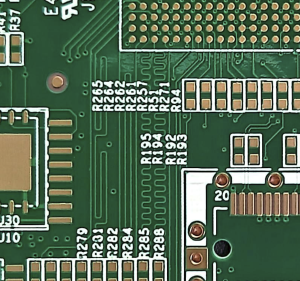

9. Signal Integrity and High-Speed Trace Widths

Let’s switch gears to high-speed design.

In high-frequency applications—like USB, HDMI, or RF communication—trace width determines impedance. And impedance determines how clean your signals are.

Ready for the good part? Controlled impedance traces require very specific widths, spacing, and dielectric constants. A 50-ohm microstrip might require an 8 mil trace on 1 oz copper over a specific dielectric height. Change one factor, and you skew your signal quality.

But here’s where it gets interesting… These traces are usually differential pairs, and their width and spacing must be perfectly matched. Otherwise, you get skew, jitter, and signal loss.

Signal Type	Target Impedance	Typical Width (mil)	Spacing (mil)
USB 2.0	90 Ω diff	7 mil	7 mil
HDMI	100 Ω diff	5–6 mil	5–6 mil
SATA	100 Ω diff	6 mil	6 mil

So, signal traces aren’t about ampacity—they’re about timing, reflection, and EMI. Use simulation software to get it right.

10. PCB Trace Width for RF and Microwave Applications

Now things get even more precise.

In RF and microwave circuits (GHz range), the PCB becomes part of the circuit. That’s right—trace width affects signal propagation, impedance matching, and radiation loss.

But what’s the real story? You’re not just calculating width—you’re designing transmission lines. That means microstrips, striplines, and coplanar waveguides, each with its own geometry and formulas.

Let’s say you’re working with a 2.4 GHz Bluetooth design. A 50-ohm microstrip might require a 12 mil trace on 0.8 mm FR4, but if you switch to a ceramic substrate, that width might drop to 8 mils.

Structure Type	Width Control Criticality	Application
Microstrip	High	Antennas, Bluetooth
Stripline	Very High	RF receivers, GPS
Coplanar Waveguide	Medium	Impedance transitions

In RF design, trace width = signal fidelity. Always simulate before routing.

11. Using Simulation Software for Trace Width Optimization

Let’s face it—manual calculations can only go so far.

Simulation tools help verify whether your trace widths are delivering the performance you need. These tools simulate voltage drop, thermal rise, impedance, and signal loss.

But here’s the kicker… Simulation doesn’t just validate your trace—it can guide the best width, length, and copper configuration before you even route.

Popular tools include:

● Altium Designer – Integrated impedance calculators and 3D visualization
● KiCad – Open-source, with width calculators and constraint-driven layout
● HyperLynx / Ansys HFSS – Advanced high-speed and RF simulation
● Saturn PCB Toolkit – Free, accurate, and great for trace width planning

Tool	Best Use	Strength
Altium	Power + signal	Pro-grade integration
KiCad	General use	Free and effective
HFSS	RF + EMI	High-frequency accuracy
Saturn Toolkit	Trace width calcs	Fast offline checks

Simulation reduces prototyping cycles and enhances first-pass success.

12. Trace Width Considerations in Multilayer PCBs

Multilayer PCBs—common in advanced electronics—bring new complexity.

Why? Because trace widths can’t be planned in isolation. You have to account for layer stack-up, copper balancing, thermal flow, and via transitions. Wider traces on outer layers may not align with inner layer routes, causing impedance or heat issues.

But here’s where it gets interesting… Trace width impacts layer-to-layer capacitance, especially when adjacent to power planes. This affects EMI, decoupling, and ground bounce.

Case study: A 6-layer automotive PCB experienced heat warping during reflow. Root cause? Heavy copper power traces weren’t mirrored symmetrically across layers.

Layer	Trace Width Considerations	Notes
Top	Wider for power	Heat management
Mid-Signal	Controlled impedance	Match impedance specs
Ground	Solid pour	EM shielding
Bottom	Wide returns	Avoid crosstalk

Always design multilayer boards with thermal and electrical symmetry in mind.

13. PCB Trace Width and Heat Dissipation

Let’s get thermal.

Every trace carrying current produces heat. And when those traces are too narrow or packed too tightly, thermal runaway can occur. That’s why trace width is your first line of defense against overheating.

But here’s the kicker… Wide traces don’t just carry more current—they radiate heat more effectively across their surface area.

Use techniques like:

● Copper pours for power distribution
● Thermal vias to spread heat to other layers
● Heatsinks and thermal reliefs on heavy pads

Trace Width	Thermal Benefit	Best Use
<10 mil	Minimal	Signals only
20–40 mil	Moderate	Low power
50–100+ mil	Excellent	Power paths
Copper fills	Maximum	Inverters, battery packs

Thermal design is trace design—plan both together.

14. PCB Trace-Width in Advanced Technologies

Modern tech doesn’t play by the old rules.

In flex PCBs, wearables, and HDI boards, space is at a premium. This means designers must carefully balance miniaturization with reliability. Thin traces? Yes. But also strong enough to survive dynamic bending, high-speed signals, and tiny vias.

But what’s the real story? HDI boards often use laser-drilled microvias, ultra-thin dielectrics, and stacked BGA pads. Trace widths here may be as low as 3 mils!

Tech Type	Trace Width Limit	Design Priority
Flex PCB	3–6 mil	Bendability
HDI	2–4 mil	Density
Rigid-flex	5–8 mil	Reliability
Wearables	4–6 mil	Durability

Advanced applications need trace width optimization more than ever—there’s no margin for error.

15. Choosing the Right Manufacturer for Precision Traces

Let’s end with a crucial point—manufacturing precision.

Even the best design can fail if your PCB fabricator can’t produce the trace widths you need. That’s why choosing a capable, experienced manufacturer is essential.

Ready for the good part? Manufacturers who specialize in tight tolerances, high copper weights, and HDI tech will provide DFM feedback, IPC certifications, and real-time trace width advice.

Ask the right questions:

● What’s your minimum and maximum trace-width at each copper weight?
● Do you provide impedance-controlled manufacturing?
● Can you plate via-in-pad or laser-drill for HDI?
● Do you use AOI and electrical test on all boards?

Criteria	Why It Matters
IPC-6012 Class 2/3	Reliability standards
AOI + E-Test	Catch trace errors
HDI Capability	Small width accuracy
DFM Feedback	Avoid design mistakes

Choose a partner who understands your design—not just fabricates your files.

Conclusion

PCB trace-width is far more than a simple dimension—it’s a foundational parameter that affects current capacity, thermal behavior, impedance, and overall board performance. By understanding how to calculate it, what influences it, and how to optimize it across various applications, you can ensure your designs are robust, reliable, and ready for real-world challenges. Whether you’re building a high-power inverter, a high-speed router, or a flexible wearable, mastering PCB trace width is key to delivering excellence in every circuit.

FAQ Section

Q1: What is PCB trace width?
PCB trace width refers to the thickness of the conductive paths on a PCB that carry current between components.

Q2: How does copper thickness affect trace-width?
Thicker copper allows narrower traces for the same current, while thinner copper requires wider traces to prevent overheating.

Q3: What is the IPC standard for calculating trace-width?
IPC-2221 provides formulas and guidelines to calculate trace width based on current, temperature rise, and copper thickness.

Q4: Can I use the same trace-width for signal and power traces?
No, signal traces can be narrower, while power traces must be wider to handle higher current loads safely.

Q5: What’s the minimum trace-width PCB manufacturers can produce?
It varies, but most manufacturers support widths as narrow as 3–6 mils, depending on technology and process precision.
