Choosing the right materials for customize PCB boards is crucial for ensuring optimal performance, reliability, and cost-effectiveness. The material selection process can significantly impact the electrical properties, thermal stability, and overall durability of the PCB. This guide outlines key considerations and steps to help you make informed decisions when selecting materials for your customized PCB boards.

Understanding PCB Material Types

PCBs are primarily composed of a substrate, conductive layers, and protective coatings. Each of these components can be made from various materials, each offering distinct properties.

1. Substrate Materials (Base Materials)
   • FR-4 (Flame Retardant 4): The most common substrate material, made from woven fiberglass cloth and epoxy resin. FR-4 offers excellent mechanical strength, moisture resistance, and thermal stability, making it suitable for a wide range of applications.
   • Polyimide: Known for its flexibility and high thermal stability, polyimide is used in flexible and rigid-flex PCBs. It performs well in high-temperature environments.
   • CEM-1 and CEM-3 (Composite Epoxy Material): These materials are less expensive than FR-4 and used for simpler, less demanding applications.
   • Rogers Materials: High-frequency laminate materials that provide superior dielectric properties and thermal performance, ideal for RF and microwave circuits.
2. Copper Cladding
   • Standard Copper Foil: Typically used for most PCBs, available in various thicknesses (measured in ounces per square foot). Thicker copper layers are used for high-current applications.
   • Electro-Deposited (ED) Copper: Offers excellent conductivity and is used for fine-line circuitry.
3. Solder Mask
   • Liquid Photoimageable (LPI) Solder Mask: Provides a protective layer over the copper traces, preventing short circuits and corrosion. Available in various colors, LPI solder mask is the most common type used in PCB manufacturing.
   • Dry Film Solder Mask: Applied as a solid film, this type is used for high-precision applications.
4. Surface Finish
   • HASL (Hot Air Solder Leveling): A low-cost option that provides good solderability but has limitations for fine-pitch components.
   • ENIG (Electroless Nickel Immersion Gold): Offers excellent surface planarity and oxidation resistance, suitable for fine-pitch and surface mount technology (SMT) components.
   • OSP (Organic Solderability Preservative): A lead-free finish that provides good solderability but has a limited shelf life.
   • Immersion Tin/Silver: Provide flat surfaces and good solderability, ideal for fine-pitch components.

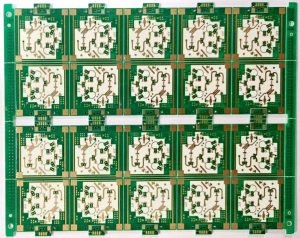

PCB material

Key Considerations for Material Selection

1. Electrical Performance
   • Dielectric Constant (Dk): The material’s ability to store electrical energy. Lower Dk materials are preferred for high-frequency applications to reduce signal loss.
   • Dissipation Factor (Df): Indicates how much energy is lost as heat. Lower Df materials are essential for high-speed and high-frequency circuits.
2. Thermal Properties
   • Glass Transition Temperature (Tg): The temperature at which the material changes from a rigid to a soft state. Higher Tg materials are necessary for high-temperature environments.
   • Thermal Conductivity: Materials with higher thermal conductivity help dissipate heat more effectively, important for high-power applications.
3. Mechanical Properties
   • Flexibility: For applications requiring bending or flexing, materials like polyimide are essential.
   • Mechanical Strength: Materials should withstand mechanical stresses during manufacturing and operation.
4. Environmental and Regulatory Compliance
   • RoHS Compliance: Ensuring materials are free from hazardous substances like lead, mercury, and cadmium.
   • UL Certification: Indicates the material meets safety standards for flammability and other properties.
5. Cost and Availability
   • Budget Constraints: Balancing performance requirements with cost considerations. High-performance materials like Rogers can be more expensive than standard FR-4.
   • Supplier Availability: Ensuring materials are readily available from reliable suppliers to avoid production delays.

Steps to Select the Right Materials

1. Define Requirements: Clearly outline the electrical, thermal, mechanical, and environmental requirements of your PCB design.
2. Consult with Experts: Engage with PCB manufacturers and material suppliers to get recommendations based on your specific needs.
3. Evaluate Material Properties: Compare the properties of different materials against your requirements, considering trade-offs between performance and cost.
4. Prototype and Test: Create prototypes using selected materials and conduct thorough testing to ensure they meet your performance criteria.
5. Finalize Selection: Based on test results and feedback, finalize the material selection for your customized PCB.

Conclusion

Choosing the right materials for customized PCB board is a critical step that can significantly impact the performance and reliability of your electronic products. By considering factors such as electrical performance, thermal properties, mechanical strength, compliance, and cost, you can make informed decisions that meet your design requirements and budget constraints.
