The desmear process is an essential stage in printed circuit boards (PCBs), protecting the reliability and performance of electronic products. This article examines PCB desmear, including its working principles, mainstream treatment techniques, quality control measures, environmental requirements and emerging industry trends.
In PCB manufacturing, the desmear process refers to the removal of resin smear generated during the drilling of holes. This smear, which consists of melted and deformed resin, can interfere with subsequent metallization and reduce the bonding strength of the hole walls. The desmear process is essential for removing this resin smear, exposing a clean surface and improving the adhesion between the hole walls and the plated metal.

desmear process

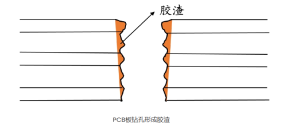

Drilling generates heat that softens the resin in laminates (e.g., FR-4, polyimide), causing it to smear across hole walls. This residue:
The reliability of a PCB relies heavily on the quality of its interconnections. Residual resin smear acts as an insulating layer, preventing proper adhesion of conductive materials during the plating stage. By thoroughly removing this resin smear, the desmear process guarantees that plated through-holes deliver optimal electrical conductivity and mechanical strength, improving the overall performance and service life of the PCB.
Several techniques are used to carry out the desmear process, each with its respective benefits and limitations:
This conventional method involves submerging drilled PCBs in chemical solutions to dissolve and remove resin smear. It typically follows a sequence of solvent conditioning, permanganate oxidation, and neutralization steps. The permanganate solution oxidizes resin and breaks it down for removal. While highly effective, this process requires careful chemical handling and proper waste management.
Plasma desmear uses ionized gas to etch away resin smear. This technique is especially suitable for high-density interconnect (HDI) boards and microvias, where chemical desmear may yield inferior results. Plasma desmear delivers precise process control and is more eco-friendly, as it reduces reliance on hazardous chemicals.
Mechanical desmear physically abrades hole walls to remove resin smear. Common techniques include brushing and micro-sanding. While cost-effective, this method struggles to penetrate deep into vias and delivers poorer consistency compared with chemical or plasma desmear.
The performance of the desmear process relies on proper selection and application of relevant materials and chemicals:
Swelling Agents: These solvents penetrate and swell the resin, making it easier to remove.
Oxidizing Agents: Substances such as potassium permanganate oxidize swollen resin and decompose it into removable by-products.
Neutralizing Agents: Following oxidation, neutralizers stop the chemical reaction and strip residual oxidizing agents to avoid PCB damage.
Surfactants are blended into chemical solutions to lower surface tension. They enable deeper penetration into microvias and deliver consistent treatment, boosting overall desmear performance.
PCB construction, including resin and glass fiber types, dictates the selection of desmear method and chemistry. A full understanding of substrate materials helps carry out desmear treatment effectively while preventing board damage.
Ensuring reliable desmear performance is critical to PCB reliability:
Microscopic Examination: Use microscopes to check hole walls for residual smear or substrate damage.
Cross-Sectional Analysis: Section and examine PCB samples to evaluate internal desmear quality.
Typical defects include incomplete smear removal, over-etching and hole-wall damage. Detecting and resolving these issues is essential to sustain PCB quality.
Standardized operating procedures, periodic equipment calibration and ongoing monitoring of chemical concentrations deliver stable and repeatable desmear outcomes.
The desmear process uses various chemicals and procedures that require strict environmental and safety management:
Standard protocols for chemical storage, handling and disposal (such as permanganate solutions) are critical to avoid environmental contamination and protect operator safety.
Supply suitable personal protective equipment (PPE), sufficient ventilation and operator training to reduce health hazards from chemical exposure.
Comply with environmental regulations and adopt greener alternatives including plasma desmearing to reduce the environmental footprint of PCB production.
Advancements in PCB technology drive the evolution of desmear processes:
New chemical agents are being developed with higher efficiency and lower hazard levels. They improve desmearing performance while minimizing environmental impact.
Automated systems boost precision, process consistency and throughput for desmearing. They reduce human error and reduce labor costs.
Laser ablation stands out as one of the most promising innovations for desmear. The technology uses high-energy laser beams to selectively vaporize resin smear inside drilled vias and holes.Compared with conventional chemical or plasma desmear, laser ablation delivers better precision and faster processing, and is more eco-friendly because no chemical handling or waste disposal is required.
Laser desmear is still under development for mass commercial adoption. It is actively researched for high-end applications including HDI PCBs, flexible circuits and fine-pitch BGA packages. These applications demand ultra-clean vias to guarantee long-term reliability.
As PCB technologies keep advancing, the desmear process plays an increasingly vital role in supporting miniaturization, multilayer designs and high-frequency performance.
Featuring microvias and fine-line circuitry, HDI PCBs require extremely clean interlayer holes to guarantee conductivity and mechanical adhesion. For these applications, plasma desmear or laser-based desmearing is often preferred. It avoids chemical over-etching and delivers precise processing for tiny features.
Flexible and rigid-flex PCBs present unique challenges, caused by complex stack-ups and mixed material systems. Traditional chemical desmear recipes need careful customization to suit polyimide films and flexible adhesives, whose properties differ from rigid FR-4 substrates. Plasma desmear works especially well here, with its mild and uniform material removal characteristics.
PCBs deployed in automotive and aerospace fields require high reliability under harsh working conditions. The desmear process needs strict control to ensure long-term performance. Consistent via-wall cleanliness is critical for sustaining low impedance and avoiding failures triggered by thermal cycling or vibration.
Understanding the strengths and limitations of each desmear method helps manufacturers select the proper process according to PCB type, application requirements and production volume.
| Desmear Method | Advantages | Limitations | Best Use Cases |
|---|---|---|---|
| Chemical Desmear | Proven, scalable, effective for most FR-4 materials | Chemical waste, limited effectiveness for microvias | General multilayer PCBs |
| Plasma Desmear | Environmentally friendly, ideal for microvias | Higher equipment cost, slower throughput | HDI, flexible PCBs |
| Mechanical Desmear | Low cost, simple setup | Risk of damage, not suitable for fine geometries | Low-layer, low-complexity boards |
| Laser Desmear | High precision, clean, dry process | Expensive, limited adoption currently | Advanced HDI, aerospace, medical devices |
Rising demand for complex PCBs presents manufacturers multiple hurdles when scaling up the desmear process:
Chemical and plasma desmear can become production bottlenecks for high-volume manufacturing due to relatively long cycle times. New solutions such as inline plasma desmearing and high-flow chemical systems are under development to address this problem.
To deliver uniform desmear results across hundreds or thousands of panels, manufacturers require automatic control over chemical concentration, stable temperature and accurate dwell time. Any fluctuation will cause uneven desmearing and lower production yield.
The desmear process requires seamless integration within the full PCB production workflow. It must be compatible with cleaning, metallization and imaging steps. Poor integration may introduce contamination, weaken plating adhesion and lead to extra rework.
As environmental regulations grow stricter and electronics manufacturers pursue greener production, the desmear process must continue evolving.
Chemical suppliers are developing low-VOC, biodegradable, and recyclable desmear chemistries. These formulations deliver performance comparable to traditional permanganate systems while reducing environmental impact.
Advanced production lines implement closed-loop chemical recycling and waste treatment systems to cut emissions and lower operational costs. Such systems filter, neutralize and reuse chemicals whenever feasible.
Life cycle assessments (LCAs) for desmear technologies enable manufacturers evaluate complete environmental footprints — from raw chemical manufacturing through waste disposal. This supports the selection of more sustainable options such as plasma or laser desmear for applicable projects.
The desmear process remains a cornerstone of modern PCB manufacturing, directly affecting the quality, reliability and performance of finished circuit boards. As the industry advances toward greater miniaturization, higher design complexity and stricter environmental requirements, desmear technologies must continue evolving.
From chemical and plasma treatments to cutting-edge laser ablation, manufacturers now have a broad portfolio of process options. Each method carries inherent trade-offs in cost, scalability and environmental footprint. Selecting the optimal desmear strategy relies on a thorough understanding of substrate materials, production targets and end-product application requirements.
Moving forward, the industry will experience a stronger shift toward green chemistry, automation and intelligent process control. These advancements help the desmear process satisfy performance benchmarks while meeting sustainability objectives. Ongoing innovation in this field supports the manufacture of increasingly sophisticated, high-performance electronic systems, ranging from smartphones and servers to satellites and electric vehicles.
