Introduction: Setting the Stage for Why Most PCB Boards Are Green

1.Introduction

Printed Circuit Boards (PCBs) are often seen as the backbone of modern electronics. They quietly enable smartphones, aerospace systems, automobiles, and even medical implants to function reliably. Yet, when most people think of a PCB, the first mental image is almost always a green board with copper traces. This leads us to the central question: Why Most PCB Boards Are Green?

At first glance, color might seem like an aesthetic or arbitrary decision. After all, shouldn’t the performance of a PCB be defined by copper thickness, laminate material, and layer count rather than its color? However, the reality is that the green color is not accidental, nor is it merely a tradition—it is deeply tied to manufacturing practicality, visual ergonomics, cost efficiency, and functional benefits.

In this article, we will carefully analyze the reasons behind this dominant color choice, explain the functional role of green solder mask, and explore whether alternatives can realistically replace it. I will also share my personal perspective on why this “color choice” reflects broader truths about engineering standardization and reliability.

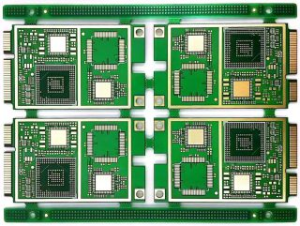

Why Most PCB Boards Are Green

2. Historical Origins Explaining Why Most PCB Boards Are Green

The journey to understand Why Most PCB Boards Are Green begins with history. In the early days of PCB manufacturing during the mid-20th century, engineers adopted resins and epoxies that naturally cured into shades of green. Over time, this became standardized for several reasons:

• Availability of Materials: Early solder masks were derived from epoxy resins that, when mixed with hardeners, produced a naturally green appearance.

• Process Familiarity: Once equipment, lighting, and inspection techniques were tuned to work best with green PCBs, manufacturers had little reason to experiment with alternative colors.

• Military and Aerospace Standardization: U.S. military contracts in the 1960s and 1970s often required specific materials, and the green solder mask became synonymous with quality assurance.

This path dependency is critical. Once billions of green PCBs entered the market, shifting to another standard would have required requalification and increased costs. Thus, the legacy of history continues to influence why today, decades later, most boards are still green.

3. Material Science Behind Why Most PCB Boards Are Green

To answer Why Most PCB Boards Are Green in functional terms, we must examine material science. The “green” we see on a PCB is not paint—it is the solder mask, a polymer coating applied to protect copper circuits from oxidation and solder bridges.

• Composition of Solder Mask: Epoxy-based or liquid photoimageable (LPI) materials are pigmented with compounds that provide both durability and consistent curing properties.

• Pigmentation Choices: Green pigments offer high contrast against white silkscreen and shiny copper pads, improving visibility during inspection.

• Thermal Stability: Green pigments are stable under high-temperature reflow soldering processes, ensuring no discoloration or degradation.

From a purely materials perspective, green emerged as the optimal balance between functionality, stability, and visibility. Alternative pigments exist (black, blue, red, even transparent), but none combine these advantages as efficiently as green.

4. Manufacturing Processes and Why Most PCB Boards Are Green

During PCB manufacturing, visual inspection and automated optical inspection (AOI) are critical. Here is where Why Most PCB Boards Are Green becomes clear in practice:

• Contrast with Traces: Green solder mask provides the best contrast for both manual and machine inspection.

• Process Repeatability: Decades of process tuning have optimized curing, alignment, and defect detection for green solder masks.

• Yield and Reliability: Fewer false positives during AOI mean higher manufacturing yields and lower costs.

Manufacturers prioritize efficiency and accuracy, and green has proven itself to deliver consistently in these domains.

5. Optical and Visual Considerations in Why Most PCB Boards Are Green

One of the most practical answers to Why Most PCB Boards Are Green lies in optical and visual ergonomics. The electronics industry depends on accurate human and machine-based inspection, and the color of the solder mask directly impacts this process.

• Human Eye Sensitivity: The human eye is most sensitive to green wavelengths (around 555 nm). This means technicians can more easily detect defects, scratches, or soldering irregularities against a green background compared to darker or lighter colors.

• Inspection Lighting: Under white fluorescent or LED inspection lamps, green surfaces provide a balanced reflection that minimizes glare and eye strain during long shifts.

• AOI (Automated Optical Inspection): Green solder mask provides the highest contrast for machine vision systems, making it easier to detect solder bridges, voids, and missing components.

In this sense, the dominance of green is a triumph of biology and physics—it simply works better for human inspectors and automated equipment alike.

6. Human Factors and Ergonomics Related to Why Most PCB Boards Are Green

Another essential angle in understanding Why Most PCB Boards Are Green is ergonomics. Workers on assembly lines may spend 8–12 hours per day examining boards under microscopes or magnification equipment. The color of the PCB directly affects fatigue and accuracy.

• Reduced Eye Strain: Prolonged exposure to certain colors (such as bright red or pure white) can cause headaches or eye strain. Green is naturally soothing and less fatiguing.

• Error Reduction: Operators working with green PCBs show statistically fewer errors during soldering and component placement.

• Universality: Because most technicians are trained on green PCBs, standardizing the color makes global workforce training faster and more efficient.

This ergonomic factor may not be obvious to end users, but it is critical to maintaining high yields and worker well-being in mass production facilities.

7. Functional Advantages of Why Most PCB Boards Are Green

Beyond ergonomics and inspection benefits, there are direct functional advantages in Why Most PCB Boards Are Green.

1. Durability: Green solder mask coatings typically demonstrate stronger adhesion and chemical resistance, which contributes to longer PCB lifespans.

2. Thermal Stability: Green pigments remain stable under high-temperature soldering and multiple reflow cycles.

3. Moisture Resistance: Studies show that green epoxy-based solder masks absorb less moisture compared to some alternative pigments, reducing the risk of delamination.

4. Standardization Benefits: Equipment, processes, and quality-control protocols have been optimized for green, which indirectly increases functional reliability.

8. Cost, Standardization, and Why Most PCB Boards Are Green

One cannot overlook the economic explanation of Why Most PCB Boards Are Green.

• Material Costs: Green solder mask inks are the most widely produced, which makes them cheaper than specialty colors like matte black or transparent.

• Economies of Scale: Because nearly every major PCB fabrication line is optimized for green, using it reduces wastage, rejects, and setup time.

• Global Standardization: When clients, OEMs, and suppliers expect green PCBs, sticking with the standard minimizes confusion, redesign costs, and certification delays.

Thus, even if alternative colors are available, green wins by being the most cost-efficient and risk-free choice for manufacturers.

9. Environmental and Reliability Aspects of Why Most PCB Boards Are Green

Sustainability and reliability are also connected to Why Most PCB Boards Are Green.

• Environmental Compliance: Green solder masks have undergone the most extensive RoHS (Restriction of Hazardous Substances) and REACH compliance testing, giving them a clear regulatory advantage.

• Long-Term Reliability: Green coatings have been proven over decades of use, meaning that their long-term stability in harsh environments is better documented.

• Waste Management: Since the industry produces the majority of its solder mask waste in green, recycling and safe disposal systems are already optimized for it.

This illustrates that the color choice is not only about visibility and cost—it also ties into global environmental and compliance frameworks.

10. Modern Alternatives to Why Most PCB Boards Are Green

Despite the dominance of green, alternatives exist. Understanding why they haven’t overtaken green provides further insight into Why Most PCB Boards Are Green.

• Black PCBs: Popular in consumer electronics for aesthetics, but harder to inspect and more heat-absorbent.

• Blue PCBs: Often used in high-end or hobbyist boards, offering moderate inspection contrast but higher ink costs.

• Red PCBs: Eye-catching, but cause more visual fatigue during inspection.

• White PCBs: Useful for LED lighting applications, but poor in trace visibility.

While these alternatives serve niche markets, none combine the inspection, ergonomic, cost, and reliability advantages of green.

11. Industry Trends Challenging Why Most PCB Boards Are Green

Still, the question of Why Most PCB Boards Are Green is being re-examined in certain industries.

• Aesthetic-Driven Markets: Smartphones, gaming consoles, and luxury devices increasingly use black or blue PCBs to match industrial design.

• LED Lighting Industry: White PCBs are becoming more common to maximize reflectivity.

• High-End Branding: Some companies deliberately use non-green boards to differentiate their products, even at higher costs.

While these trends show that green is not inevitable, they also highlight how deeply entrenched it remains.

Conclusion: More Than Just a Color

In answering Why Most PCB Boards Are Green, we’ve seen that the color is not random. It represents a convergence of material science, human vision, cost efficiency, ergonomics, and reliability. From aerospace to medical devices, green solder mask has earned its place as the default standard.

While modern trends push toward black, blue, or white in certain markets, green continues to dominate where functionality and reliability are paramount.

To me, this is a reminder that in engineering, the most obvious answer—like the color green—often carries hidden depths of history, science, and practicality. The next time you see a green PCB, you’ll know it’s not “just a color.” It’s a reflection of decades of engineering evolution and trust in what works.

FAQs About PCB Color and Functionality

1. What is the difference between rolled copper foil and electrolytic copper foil?
Rolled copper foil is produced by mechanically rolling copper into thin sheets, offering better surface quality and mechanical strength. Electrolytic copper foil is deposited via an electrolytic process and is more flexible and cost-effective.

2. Why is green better for visual inspection compared to other colors?
Green provides the highest contrast for both human eyes and AOI systems, reducing inspection errors and operator fatigue.

3. Can I request a custom PCB color when ordering from a manufacturer?
Yes, many manufacturers—including SQ PCB—offer red, black, blue, or white PCBs, but green is usually the most cost-effective and reliable option.

4. Does the color of a PCB affect its electrical performance?
No, PCB color does not affect conductivity or signal integrity directly. The choice mainly influences inspection, durability, and cost.

5. Why are LED lighting boards often white instead of green?
White solder masks maximize light reflectivity, making them ideal for LED applications where brightness and even light distribution are priorities.
