Via Plugging with Solder Mask: A Key Process in Modern PCB Manufacturing

1. Understanding Via Plugging with Solder Mask

1.1 Definition of Via Plugging with Solder Mask (Via Plugging with Solder Mask)

   Via Plugging with Solder Mask refers to a PCB manufacturing technique in which vias are filled (plugged) and then sealed with a solder mask layer. The process ensures that the via opening is covered completely or partially by insulating protective material, thereby preventing solder from flowing into the via during assembly and avoiding contamination, oxidation, or electrical interference.

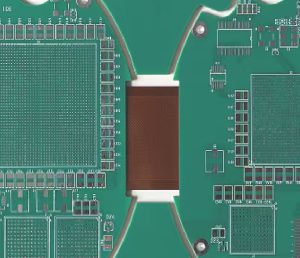

Via Plugging with Solder Mask

Via Plugging with Solder Mask

   In standard PCB designs, vias connect conductive layers vertically by plating copper along the via barrel. However, if left open, vias may:

  • Cause solder to wick downward during reflow

  • Create insufficient solder joints on component pads

  • Allow flux or moisture to become trapped inside

  • Reduce mechanical or thermal reliability

  • Permit contaminants to migrate through PCB layers

   Via Plugging with Solder Mask prevents these undesirable outcomes by sealing vias from one or both sides. Depending on application requirements, vias may be:

Method Via Condition Common Use Cases
Plugged Only Via hole filled but pad surface still visible Structural reinforcement, simple designs
Plugged and Tented Via filled and covered by solder mask Under BGA pads, HDI applications
Plugged and Capped Via filled and capped with copper plating High-frequency, vacuum reflow, thermal/vibration critical assemblies

   This technique is especially important in fine-pitch BGA, microvia HDI, and multilayer stack-up designs.


2. Advantages of Via Plugging with Solder Mask (Via Plugging with Solder Mask) and Its Impact on PCB Performance

2.1 Improved Solder Joint Integrity

   When vias are located beneath surface-mount component pads, solder during reflow can drain into the via, causing:

  • Insufficient solder volume

  • Weak mechanical joints

  • Potential early-field failure

   Via Plugging with Solder Mask prevents solder loss, stabilizing the solder joint and enhancing the mechanical and thermal resilience of BGA, QFN, LGA, and CSP-mounted components.

2.2 Enhanced PCB Cleanliness and Contamination Control

   By sealing the via opening, the process eliminates hidden cavities where:

  • Flux residues

  • Moisture

  • Dust particles

   can accumulate. This is particularly critical for automotive and aerospace-grade PCBs, where contamination can lead to corrosion, dielectric breakdown, or long-term reliability degradation.

2.3 Improved Thermal and Electrical Performance

   Plugged vias can be used to enhance:

  • Heat dissipation from high-power components

  • Signal integrity in high-speed circuits

  • Electromagnetic shielding

   In RF and 5G systems, via structures often influence impedance stability and grounding performance. Plugging helps stabilize the via barrel structure and minimize internal micro-void formation.

2.4 Increased PCB Surface Planarity for BGA Assembly

   Many high-density BGAs require perfectly flat mounting surfaces. Via tenting and plugging prevent:

  • Surface irregularities

  • Solder mask depressions

  • Warpage under reflow

   This ensures reliable pad co-planarity, which directly affects yield during automated assembly.

3. Process Flow of Via Plugging with Solder Mask (Via Plugging with Solder Mask)

   To understand how Via Plugging with Solder Mask achieves its structural and functional benefits, it is crucial to analyze its manufacturing sequence. While different PCB factories may adopt slightly modified workflows depending on equipment and production goals, the core process generally follows the sequence below:

3.1 Drilling and Desmearing

   The process begins after the PCB drilling stage. The drilled via holes typically contain:

  • Glass fiber debris

  • Resin residues

  • Micro-burr deposits

   A desmear and plasma cleaning stage is used to remove contaminants and ensure that electroless copper plating adheres reliably to the via barrel. Inadequate cleaning at this stage can later result in:

  • Voiding in the plugged via

  • Poor copper wall adhesion

  • Electrical instability under temperature cycling

3.2 Copper Plating of the Via Barrel

   Once the via interior is clean, the through-hole is plated with copper to create electrical connectivity between layers. The plating must meet standards in thickness uniformity, typically:

Via Type Copper Plating Thickness
Standard Through Vias 18–25 μm barrel plating
HDI Blind Microvias ≥12 μm barrel plating
High-Reliability Mil/Aero ≥25 μm barrel plating

   Proper plating ensures current carrying capacity and prevents cracking during thermal cycling tests.

3.3 Filling the Via Hole

   A specialized via plugging material, often a resin-based paste, is used to fill the via hole. The nature and characteristics of plugging materials will significantly influence:

  • Thermal expansion compatibility with PCB substrate

  • Internal void presence

  • Plugging density uniformity

   The plugging material must meet strict properties:

Property Requirement for Via Plugging Use
Viscosity Sufficient to fill without trapping voids
Heat Resistance Withstand lead-free reflow (≥260°C)
CTE (Coefficient of Thermal Expansion) Close to PCB laminate to avoid stress cracks
Curing Shrinkage Minimal to prevent solder mask depressions or cracks

   The filling process may involve:

  • Screen printing blade pressure plugging

  • Vacuum-assisted via filling

  • Automated resin injection systems (common in HDI manufacturing)

3.4 Curing the Plugged Vias

   After filling, the PCB panel is heated in a controlled thermal profile to cure the resin. The cure temperature ramp must be optimized to avoid:

  • Resin shrinkage gaps

  • Internal cracking

  • Excessive material overflow

   Proper curing produces a solid, void-free via plug, which becomes a mechanically integral part of the PCB structure.

Common Defects and Failure Modes in Via Plugging with Solder Mask (Via Plugging with Solder Mask)

   Understanding typical defects helps optimize manufacturing and reduce risk.

Defect Cause Impact Prevention Strategy
Void inside via plug Insufficient vacuum or resin viscosity mismatch Cracking during thermal cycling; reduced reliability Optimize filling pressure, resin flow properties
Depression / Dimple on solder mask Resin shrinkage during cure Solder paste printing defects, poor BGA contact Use low-shrink resin, adjust curing profile
Cracked via plating CTE mismatch or excessive thermal cycling Intermittent electrical failure Match resin thermal properties, ensure adequate copper thickness
Mask lifting or peeling Surface contamination or improper baking Corrosion risk, flux trapping Improve cleaning and mask adhesion promoters
Solder wicking into via Incomplete mask coverage Weak solder joints Use complete tenting or via-in-pad copper capping

   From a manufacturing standpoint, each failure mode can be traced to materials selection, process control, or inspection rigor. Therefore, process traceability and closed-loop statistical control are required to achieve repeatable performance.

Conclusion

   Via Plugging with Solder Mask is a key enabling process in modern PCB manufacturing, especially in applications requiring:

  • Tight BGA pitch and compact component density

  • High-speed and high-frequency signal integrity

  • Thermal and mechanical reliability under harsh conditions

  • Stable and clean assembly surfaces for automated soldering

   By ensuring sealed, flush, and mechanically stable via structures, this process:

  • Prevents solder wicking and joint weakening

  • Enhances long-term durability

  • Supports clean and high-accuracy SMT assembly

  • Maintains electrical and thermal stability within complex multilayer PCBs

   As electronics continue trending toward smaller, faster, and more integrated, Via Plugging with Solder Mask will remain a fundamental and increasingly indispensable fabrication technique.

Frequently Asked Questions (FAQ)

1. What is the difference between via tenting and via plugging?

  • Via tenting covers the via with solder mask but does not fill the hole.

  • Via plugging fills the via hole with resin and may or may not be covered with solder mask.
    Plugging offers better contamination resistance and improves solder joint stability.

2. Why is Via Plugging with Solder Mask important for BGA components?

Because vias inside BGA pads can drain solder during reflow, causing weak joints. Plugging prevents solder loss and ensures correct solder volume on each pad.

3. Does Via Plugging with Solder Mask improve heat dissipation?

Yes. Filled vias can act as thermal transfer pathways, carrying heat from surface components into internal copper planes, improving temperature stability.

4. Can Via Plugging with Solder Mask help prevent moisture absorption?

Yes. Sealing vias removes internal cavities where moisture could accumulate. This reduces the chance of outgassing and solder mask bubbling during reflow.

5. What materials are commonly used for via plugging?

Epoxy-based resin systems containing:

  • Silica fillers

  • Ceramic micro-particles

  • Glass reinforcement compounds
    These provide thermal and mechanical stability.
