Building Reliable Connections: How the Structure and Principle of Wave Soldering Ensure PCB Quality

Introduction

Printed circuit boards (PCBs) are the backbone of modern electronics, connecting components with precision, consistency, and durability. From consumer gadgets to aerospace control systems, the expectation of quality and reliability is universal. Yet behind every reliable circuit is a manufacturing process that ensures those connections can withstand thermal stress, vibration, environmental changes, and the long operating cycles demanded by industry.

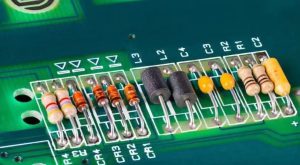

Among the various methods of attaching components to boards, wave soldering has maintained a special role in mass production. While reflow soldering dominates in surface-mount technology, wave soldering continues to serve as an indispensable method for through-hole components and hybrid assemblies. What makes wave soldering effective is not just the process itself, but the structure and principle of wave soldering, which governs how molten solder interacts with flux-coated PCB assemblies to create reliable joints.

This article explores the technical foundations of the structure and principle of wave soldering, its advantages, its influence on PCB performance, and its place in ensuring product reliability. By analyzing its components, dynamics, and applications, we can understand why this technology remains relevant, and why choosing the right manufacturing partner, such as SQ PCB, matters when pursuing excellence in electronics.

The Historical Evolution of Soldering in PCB Manufacturing

Before diving into the structure and principle of wave soldering, it is essential to appreciate how soldering methods have evolved. In the early days of electronics, soldering was a manual process: skilled operators used soldering irons to create each joint by hand. While effective for prototypes and small runs, hand soldering was time-consuming, inconsistent, and unsuitable for large-scale production.

With the rise of consumer electronics in the mid-20th century, manufacturers sought automated solutions to improve throughput and reliability. Wave soldering emerged in the 1950s as one of the first high-volume soldering processes, revolutionizing PCB assembly. The introduction of a solder wave—a continuously flowing curtain of molten solder—enabled entire boards to be soldered in seconds.

This innovation did not just improve efficiency. It also standardized the process, leading to more uniform solder joints and fewer defects. Over time, wave soldering systems evolved to include sophisticated fluxing, preheating, and conveyor systems, paving the way for the modern structure and principle of wave soldering that we will detail in upcoming sections.

Even today, as reflow soldering dominates in surface-mount technology, wave soldering remains crucial for through-hole components, connectors, and mixed-technology boards. Its longevity is proof of the reliability built into its structural and operational principles.

---

Understanding the Structure and Principle of Wave Soldering

At its core, the structure and principle of wave soldering involve moving a PCB—pre-coated with flux and preheated—over a controlled wave of molten solder. This wave contacts exposed metal surfaces, creating uniform solder joints in a single pass.

The structure of a wave soldering system typically includes:

1. Fluxing unit – Applies flux to clean oxides, reduce surface tension, and promote solder wetting.

2. Preheating stage – Gradually raises PCB temperature to prevent thermal shock and activate flux.

3. Solder pot and pump – Maintains a reservoir of molten solder, usually an alloy such as Sn63Pb37 or lead-free SAC alloys, kept at precise temperature.

4. Wave nozzles – Create a controlled wave of molten solder that flows upward in a laminar pattern to contact PCB pads and leads.

5. Conveyor system – Transports the PCB through each stage at carefully controlled speeds and angles.

The principle is straightforward yet powerful: when the PCB passes over the solder wave, molten solder adheres to exposed copper pads and component leads through surface tension and metallurgical bonding. The flux ensures clean metal surfaces, while the preheating stage prevents thermal stress and ensures even solder flow.

The genius of the process lies in its balance of physics and chemistry—surface tension, wetting angles, temperature gradients, and fluid dynamics all come together to create consistent joints. This integration of structure and principle makes wave soldering an enduring choice in ensuring PCB quality.

Key Components in the Structure and Principle of Wave Soldering

To fully appreciate how the Structure and Principle of Wave Soldering ensure PCB quality, one must analyze its critical components in greater detail. Each stage plays a decisive role in defining the final solder joint integrity.

1. Fluxing Unit in the Structure and Principle of Wave Soldering

The fluxing stage is the first essential step. Flux is a chemical agent applied to PCB surfaces before soldering. Its primary role is to remove oxides, protect copper pads from re-oxidation, and lower the surface tension between solder and metal.

There are different flux application techniques:

• Foam fluxing – Uses air bubbling through liquid flux, creating foam that coats the underside of the PCB.

• Spray fluxing – Uses a precision nozzle system for uniform application, especially important for high-density boards.

Without effective fluxing, even the most well-designed solder wave cannot produce consistent joints. Thus, the fluxing system is considered the foundation of the structure and principle of wave soldering.

2. Preheating Stage in the Structure and Principle of Wave Soldering

Preheating is not simply about warming the PCB. It ensures:

• Gradual temperature increase to reduce thermal shock to components.

• Activation of flux, allowing it to clean surfaces effectively.

• Reduction of moisture, minimizing the risk of solder splattering.

Infrared heaters, convection preheaters, or a combination of both are used, depending on board design. A well-managed preheating stage is vital for ensuring that the PCB is fully prepared for the solder wave.

3. Solder Pot and Wave Nozzles in the Structure and Principle of Wave Soldering

The solder pot is the heart of wave soldering. It contains molten solder alloys at temperatures typically between 240°C and 270°C (for lead-free alloys, slightly higher). Pumps within the pot force the solder upward to form a controlled wave.

Wave nozzles then shape this flow into two types:

• Laminar wave – Smooth and consistent, ideal for uniform coverage.

• Turbulent wave – Designed to penetrate dense through-hole arrays and complex geometries.

The solder pot’s material, often titanium for lead-free processes, resists corrosion and ensures stable performance over long production cycles.

4. Conveyor System in the Structure and Principle of Wave Soldering

The conveyor regulates how the PCB interacts with the wave. Its speed and angle directly affect solder coverage and bridging risks. Too fast, and joints may not form completely. Too slow, and excessive solder may create shorts.

Modern conveyors feature programmable control, allowing manufacturers to adjust parameters for different board designs. This adaptability is one reason the structure and principle of wave soldering remain competitive against newer soldering methods.

---

Thermal Dynamics in the Structure and Principle of Wave Soldering

The science behind the Structure and Principle of Wave Soldering relies heavily on thermal management. Heat transfer must be precise: enough to melt solder and form bonds, but not so extreme that it damages components or substrates.

Key considerations include:

1. Thermal Gradients – Preheating minimizes temperature differentials between solder and board, preventing warpage and component stress.

2. Solder Cooling Rates – Controlled cooling ensures that solder joints solidify with minimal voids or cracks.

3. Component Sensitivity – Large connectors, electrolytic capacitors, and thermally sensitive ICs require optimized profiles.

Engineers must balance these thermal dynamics for every assembly, making wave soldering both an art and a science. When mastered, the process ensures joints that withstand thermal cycling and long-term reliability tests.

---

Flux Chemistry and the Structure and Principle of Wave Soldering

Flux chemistry is another cornerstone of the Structure and Principle of Wave Soldering. The right flux ensures clean surfaces and controlled solder wetting.

Types of Flux Used:

• Rosin-based flux – Traditional, offering strong cleaning but harder to clean residues.

• Water-soluble flux – Easier to remove, eco-friendly, but less shelf-stable.

• No-clean flux – Leaves minimal residue, eliminating post-solder cleaning steps.

How Flux Chemistry Impacts PCB Quality:

1. Enhances solder wetting and spreading.

2. Protects pads from oxidation during high heat exposure.

3. Minimizes solder balling and bridging.

Selecting the right flux type depends on board density, customer requirements, and cleaning processes. This choice shows how small chemical adjustments within the structure and principle of wave soldering can directly influence PCB performance.

---

Conveyor and PCB Handling in the Structure and Principle of Wave Soldering

Beyond soldering chemistry and thermal control, the Structure and Principle of Wave Soldering also depend on mechanical handling. The conveyor and fixture system ensures the PCB maintains proper alignment as it passes through fluxing, preheating, and soldering stages.

Considerations in PCB Handling:

• Board Support – Fixtures prevent warping in large boards.

• Angle of Approach – Typically 6° to 9° to optimize solder flow.

• Speed Control – Adjustable based on board complexity.

Any misalignment can result in solder skipping, bridging, or incomplete filling of through-holes. This is why manufacturers with advanced wave soldering lines, such as SQ PCB, emphasize precision conveyor engineering and monitoring systems.

The Advantages of the Structure and Principle of Wave Soldering in PCB Quality

When analyzing modern PCB assembly, one might ask why wave soldering continues to hold importance in an age dominated by reflow ovens and selective soldering stations. The answer lies in the unique advantages provided by the Structure and Principle of Wave Soldering, which consistently deliver reliability and efficiency in specific applications.

1. High Throughput and Efficiency

Because entire boards can be soldered in one pass, wave soldering is one of the fastest ways to produce through-hole assemblies. The structure allows multiple joints to be created simultaneously, dramatically reducing cycle times compared to manual soldering.

2. Consistency in Joint Formation

The principle of controlled solder waves ensures uniform solder distribution. Instead of relying on operator skill, the process is mechanized, yielding repeatable quality across thousands of boards.

3. Cost-Effectiveness for Large Volumes

For high-volume production, wave soldering offers an attractive cost structure. Once set up, the process minimizes labor costs while achieving consistent results, making it ideal for consumer electronics and automotive PCBs.

4. Ability to Handle Large Components

Unlike reflow soldering, which is optimized for surface-mount devices, wave soldering is excellent for through-hole connectors, transformers, and mechanically strong components. The structure of the solder wave allows complete lead coverage even in high thermal-mass parts.

5. Proven Reliability Over Decades

Wave soldering has been in industrial use for over 60 years. Its reliability is not theoretical but proven in aerospace, automotive, and communication systems. This track record adds trustworthiness when evaluating the role of wave soldering in quality assurance.

When manufacturers seek a balance between cost, speed, and quality, the Structure and Principle of Wave Soldering often provide the best compromise.

---

How the Structure and Principle of Wave Soldering Influences PCB Performance

Beyond production speed, the Structure and Principle of Wave Soldering directly affect how a PCB performs over its operational lifetime. The integrity of solder joints determines not only whether a device functions when it leaves the factory, but also how it endures stress during years of service.

1. Mechanical Strength

Wave soldering produces strong metallurgical bonds between component leads and copper pads. This strength is critical for connectors, switches, and other components subject to mechanical forces.

2. Thermal Cycling Endurance

Because solder joints solidify under controlled cooling, they tend to resist cracking during repeated heating and cooling cycles. This resilience is particularly important in automotive and aerospace electronics where temperature fluctuations are extreme.

3. Electrical Conductivity

Properly wetted solder joints reduce resistance at interconnections, ensuring efficient current flow. Poor soldering would increase resistance and cause localized heating, but wave soldering minimizes such risks.

4. Reduction of Latent Defects

Latent defects—those that pass initial testing but fail later—are a key concern in electronics reliability. Wave soldering, with its controlled process steps, helps minimize hidden voids, cold joints, and incomplete fills.

5. Impact on PCB Longevity

A well-soldered board has a significantly longer service life. This is why industries such as defense and medical devices still rely heavily on the Structure and Principle of Wave Soldering for through-hole components that must not fail.

In practice, engineers who prioritize long-term performance will often design boards that incorporate both reflow and wave soldering, using each process where it delivers the most value. This hybrid approach demonstrates how wave soldering continues to shape PCB reliability in advanced applications.

Defects and Troubleshooting in the Structure and Principle of Wave Soldering

No matter how refined, every soldering process has potential pitfalls. Understanding the common defects associated with the Structure and Principle of Wave Soldering allows engineers to anticipate issues and implement effective countermeasures.

1. Solder Bridging

• Description: Excess solder forms connections between adjacent leads, causing shorts.

• Cause: Excessive conveyor angle, high solder temperature, or poor flux activity.

• Solution: Adjust conveyor angle (typically 6–9°), optimize flux coverage, and fine-tune solder pot parameters.

2. Insufficient Hole Fill

• Description: Through-hole barrels are not completely filled with solder.

• Cause: Insufficient preheating, poor flux penetration, or high component thermal mass.

• Solution: Improve preheat profiles, ensure adequate fluxing, and adjust solder wave height.

3. Solder Balling

• Description: Small spheres of solder scattered on the PCB surface.

• Cause: Excessive flux residues, high moisture, or poor solder wetting.

• Solution: Use optimized flux chemistry, reduce PCB moisture by pre-baking, and maintain proper solder pot cleanliness.

4. Cold Joints

• Description: Dull, grainy solder surfaces indicating weak metallurgical bonding.

• Cause: Insufficient solder temperature or rapid cooling.

• Solution: Maintain stable solder pot temperature and ensure controlled cooling.

5. Component Misalignment

• Description: Components shift during soldering, leading to poor electrical connection.

• Cause: Conveyor vibration or poor fixturing.

• Solution: Use stable carriers, reinforce mechanical support, and monitor conveyor movement.

Troubleshooting in wave soldering is a continuous improvement exercise. Process engineers must routinely inspect joints, measure parameters, and adjust accordingly. This vigilance ensures that the Structure and Principle of Wave Soldering consistently deliver reliable quality.

---

Environmental and Safety Considerations in the Structure and Principle of Wave Soldering

As manufacturing evolves, sustainability and worker safety are as critical as product reliability. The Structure and Principle of Wave Soldering must comply with stringent regulations and best practices to minimize environmental impact.

1. Lead-Free Soldering Regulations

The Restriction of Hazardous Substances (RoHS) directive has pushed manufacturers toward lead-free alloys such as SAC305 (Sn96.5/Ag3.0/Cu0.5). Lead-free wave soldering requires higher pot temperatures but reduces environmental hazards.

2. Flux Emissions and Air Quality

Flux volatiles can release organic compounds into the workplace environment. Modern systems include exhaust hoods and scrubbers to capture fumes, ensuring compliance with workplace safety standards.

3. Energy Consumption

Wave soldering systems consume significant energy to maintain solder pots at high temperatures. Manufacturers are now adopting energy-efficient pumps and intelligent heating controls to reduce operational costs and environmental footprint.

4. Solder Waste Management

Dross—oxidized solder collected from the pot surface—must be managed properly. Recycling systems recover usable solder, minimizing waste. Environmentally responsible partners like SQ PCB have invested in recovery technologies to ensure minimal raw material loss.

5. Worker Safety

Safety measures include:

• Insulated guarding around solder pots.

• Automated fluxing systems to reduce operator exposure.

• Continuous training on handling hot equipment and chemicals.

By combining technical performance with ecological responsibility, the Structure and Principle of Wave Soldering continue to evolve as a sustainable and safe process in PCB manufacturing.

Conclusion: The Lasting Value of the Structure and Principle of Wave Soldering

The Structure and Principle of Wave Soldering represent more than just a manufacturing method—they embody decades of refinement in balancing efficiency, reliability, and adaptability in PCB production. By carefully controlling fluxing, preheating, solder wave exposure, and cooling, this process ensures strong metallurgical bonds, uniform solder coverage, and minimal defects.

From a practical standpoint, the advantages of wave soldering—speed, consistency, and cost-effectiveness—make it an enduring choice for high-volume manufacturing. Its ability to support mixed-technology boards, contribute to thermal management strategies, and comply with international standards highlights its continued relevance even as new technologies emerge.

Importantly, wave soldering contributes directly to PCB performance and long-term reliability, factors that are critical in industries where failure is not an option, such as automotive, aerospace, telecommunications, and medical devices. By preventing common soldering issues like bridging, cold joints, and voids, the method enhances both mechanical strength and electrical stability.

Looking ahead, the integration of automation, AI, and smart monitoring into the wave soldering process will drive further improvements. These innovations will allow manufacturers to predict and correct issues in real time, ensuring even greater reliability and yield. Companies like SQ PCB are well-positioned to lead in this transition by blending established expertise with forward-looking technology.

From my perspective, what makes the Structure and Principle of Wave Soldering so remarkable is its resilience. Despite the dominance of surface-mount technology and reflow soldering in modern electronics, wave soldering remains indispensable because of its unique strengths. Its role as a bridge between traditional through-hole assembly and today’s hybrid designs illustrates the importance of both continuity and innovation in electronics manufacturing.

In conclusion, mastering the Structure and Principle of Wave Soldering is not just about understanding a process—it is about embracing a philosophy of reliability and precision in PCB manufacturing. For organizations aiming to deliver high-quality electronics, wave soldering will remain a cornerstone, ensuring that every connection is not only made but made to last.

Frequently Asked Questions (FAQ) on the Structure and Principle of Wave Soldering

1. What is the difference between rolled copper foil and electrolytic copper foil?

Rolled copper foil is produced by mechanically rolling copper into thin sheets. This method results in excellent surface quality, high tensile strength, and superior fatigue resistance, making it suitable for flexible PCBs and high-performance applications. Electrolytic copper foil, on the other hand, is deposited via an electrolytic process. It is more cost-effective, has good adhesion properties, and is widely used in rigid PCBs. The choice between the two depends on the mechanical and electrical performance requirements of the PCB.

---

2. How does the Structure and Principle of Wave Soldering prevent solder bridges?

The Structure and Principle of Wave Soldering incorporates design features such as laminar and turbulent solder waves. The laminar wave ensures smooth coverage, while the turbulent wave helps solder reach shadowed areas under components. This dual-wave approach reduces the likelihood of solder bridges by controlling solder flow and drainage. Additionally, precise fluxing and preheating stages improve solder wetting and prevent excess solder from remaining between adjacent pins.

---

3. What are the advantages of the Structure and Principle of Wave Soldering compared to manual soldering?

Manual soldering requires significant operator skill and is prone to inconsistencies. In contrast, the Structure and Principle of Wave Soldering ensures uniformity, speed, and repeatability across thousands of joints. It minimizes human error, reduces production time, and offers better quality control. For high-volume manufacturing environments, wave soldering is indispensable, as it balances cost efficiency with superior mechanical and electrical performance.

---

4. Can the Structure and Principle of Wave Soldering handle mixed-technology boards?

Yes, the Structure and Principle of Wave Soldering is versatile enough to accommodate mixed-technology boards that include both through-hole and surface-mount devices. Selective wave soldering can target specific through-hole areas while protecting delicate SMT components. By integrating solder masks, pallets, and optimized solder wave parameters, manufacturers can reliably assemble hybrid boards without damaging sensitive parts.

---

5. How does the Structure and Principle of Wave Soldering affect long-term PCB reliability?

The Structure and Principle of Wave Soldering creates strong metallurgical bonds between component leads and PCB pads, which directly contributes to long-term reliability. Proper soldering prevents micro-cracks, voids, and cold joints that could fail under thermal cycling or mechanical stress. Reliable solder joints ensure stable electrical connections, reduced signal loss, and resistance to environmental factors such as vibration and humidity. Many high-reliability industries, including aerospace and automotive, still rely on wave soldering because of its proven track record.
