The Lifeline of Your PCB: Mastering the Relationship Between Trace Width and Current-Carrying Capacity

1. Understanding the Relationship Between Trace Width and Current-Carrying Capacity

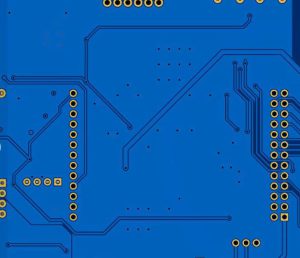

1.1 Definition of the Relationship Between Trace Width and Current-Carrying Capacity

   The term the Relationship Between Trace Width and Current-Carrying Capacity refers to how the physical width of a copper trace on a PCB determines the amount of electrical current it can safely conduct without exceeding acceptable temperature limits. When current flows through a copper conductor, electrical resistance causes power dissipation in the form of heat. If the generated heat cannot be dissipated effectively, the temperature of the trace rises. Excessive temperature rise leads to material degradation, delamination, solder fatigue, and eventual board failure.

   The wider the trace, the larger its cross-sectional area, and the lower its electrical resistance. Reduced resistance decreases heat generation, allowing the trace to carry higher currents within safe operating temperature limits. Conversely, narrow traces have higher resistance, produce more heat at a given current level, and therefore can safely carry less current.

   However, determining the correct trace width is not as simple as selecting a width proportional to the expected current. Several interdependent factors influence the permissible current density, including copper thickness, PCB layer placement (internal vs external layers), thermal conductivity of the substrate, airflow conditions, and acceptable temperature rise thresholds. Industry standard guidelines provide baseline calculations, but real-world design often requires refined adjustment and simulation.

   In summary, the relationship is fundamentally governed by:

• Electrical resistance (which increases as trace width decreases)

• Heat dissipation capacity (which varies across PCB layers and environmental conditions)

• Allowable temperature rise (determined by reliability and safety requirements)

   Understanding this relationship allows engineers to determine trace widths that meet both electrical and thermal reliability requirements over the intended product lifespan.

---

1.2 The Physical Foundations Behind Electrical Conduction

   To appreciate how trace width affects current-carrying capacity, we must briefly revisit the physics of conductive materials. Copper, the predominant conductor used in PCBs, exhibits a resistivity of approximately 1.72 × 10⁻⁸ Ω·m at room temperature. Resistance increases with temperature, creating a feedback relationship: as the trace heats, resistance increases, and increased resistance generates additional heat.

   This nonlinear behavior underscores why thermal stability—not just electrical considerations—is central to current capacity calculations.

   Additionally:

• Cross-sectional area = trace width × copper thickness

• Larger cross-sectional area reduces resistance

• Reduced resistance lowers heat generation (P = I²R)

   The balance between trace width and current is therefore a trade-off between PCB real estate and thermal/electrical efficiency.

2. The Relationship Between Trace Width and Current-Carrying Capacity in PCB Thermal Management

2.1 Heat Dissipation Mechanisms

   As current increases, heat generation rises nonlinearly. The trace width directly impacts resistance, and therefore heat production, but the thermal behavior of the PCB must also be considered. Heat can be dissipated from a PCB through several mechanisms:

• Conduction into the dielectric and copper planes

• Convection to surrounding air (primarily for outer layers)

• Radiation, which is minimal but not negligible in high-temperature systems

• Thermal transfer through vias, copper pours, and mechanical heat sinks

   The effectiveness of these heat dissipation mechanisms depends on PCB layout, stack-up configuration, copper coverage, and ambient airflow. Because internal PCB layers have limited access to convection cooling, the same trace width in an internal layer will lead to a greater temperature rise compared to an external layer.

   In many electronic systems, temperature rise limits are established based on product reliability and component derating standards. A typical allowable temperature rise is 10°C to 20°C, although mission-critical or high-reliability applications may require lower limits.

   Understanding how heat flows through and away from traces is essential for controlling thermal performance and ensuring that trace dimensions are selected to support the required current levels.

2.2 Temperature Rise and Its Effect on Board Reliability

   Temperature rise in PCB traces has direct implications for reliability, mechanical strength, and long-term electrical performance. As the temperature increases:

• Copper resistivity increases, reducing conduction efficiency.

• The PCB dielectric (often FR-4 or modified epoxy) undergoes thermal expansion.

• Repeated thermal cycling can cause micro-cracking, delamination, or copper fatigue.

• Excessive heat may impact nearby components, especially semiconductors and sensitive analog devices.

   Even small increases in trace temperature can shorten the operational lifetime of the PCB due to thermal-mechanical stresses. Thus, designing for appropriate trace widths is not merely a matter of engineering efficiency—it is essential to prevent premature failure.

   In safety-critical industries such as automotive or aerospace electronics, trace temperature must remain well below substrate transition temperature (Tg) and must comply with stringent derating guidelines. In power electronics, another key consideration is hot spot formation, where uneven copper distribution causes localized heat buildup. Good thermal spreading practices—such as copper planes, stitching vias, and thermal relief pads—play a vital role in preventing these concentrated heating regions.

---

2.3 Copper Thickness and Its Interactions with Trace Width

   Copper thickness has a direct influence on current-carrying capacity, and designers often adjust either trace width or copper weight to achieve the required electrical performance. Increasing copper thickness increases the cross-sectional area of the trace, reducing resistance and improving heat dissipation.

   However, increasing copper thickness also creates trade-offs:

   For high-current designs, engineers may choose a combination of:

• Heavier copper in power distribution layers

• Standard copper in signal layers

• Thermal relief stitching vias to spread heat

   This layered approach allows designers to balance electrical performance with manufacturability and routing complexity.

---

2.4 Material Selection: FR-4 vs High-Tg vs Polyimide

   Material properties play a crucial role in regulating heat transfer, mechanical stability, and high-temperature operation. The most common PCB substrate is FR-4, a glass fiber reinforced epoxy laminate. While FR-4 is cost-effective and widely supported by manufacturers, its thermal performance varies based on grade and supplier.

   Other materials include:

   In applications where trace currents are high, using high-Tg FR-4 or polyimide can significantly improve reliability by reducing thermal-induced stress.

3. The Relationship Between Trace Width and Current-Carrying Capacity in High-Density PCB Design

3.1 Miniaturization Trends in Electronics

   Across nearly all electronics sectors, devices are becoming smaller, more lightweight, and more integrated. Smartphones, smartwatches, medical wearables, remote sensing equipment, industrial control modules, and automotive ECUs are all expected to provide greater functionality in smaller volume. This increased functional density places pressure on PCB designers to maximize the routing efficiency of copper interconnections.

   However, as device dimensions shrink, the space available for traces is reduced. For power and ground networks, this constraint becomes critical. Even though physical miniaturization reduces available routing width, electrical load requirements often do not decrease—and in some applications, they increase. This means that engineering design must account for current, temperature constraints, and manufacturability even when trace width options are limited.

   Where large boards could previously allocate 30–60 mil wide power traces, compact designs may need to achieve the same electrical reliability with 8–15 mil traces—or distributed current paths across multiple layers. These constraints lie at the core of why understanding trace width and current capacity is necessary for high-density PCB design.

---

3.2 Routing Optimization Challenges

   High-density PCB designs introduce several interdependent routing challenges:

1. Limited routing space caused by fine-pitch BGAs, CSPs, and QFN packages.

2. Layer count increases to route dense interconnects.

3. Power distribution networks (PDNs) must remain low impedance to prevent voltage droop.

4. Differential signal pairs require impedance-controlled routing with strict width and spacing tolerances.

5. Thermal constraints must be managed despite reduced copper spreading area.

   In many modern systems, the PDN plays an equally critical role as the signal routing network. Insufficient PDN width or copper mass can lead not just to trace overheating, but also to transient voltage instability, electromagnetic interference, and timing margin erosion in digital systems.

   Thus, routing for high-density designs frequently requires strategies such as:

• Multiple power layers in parallel for shared current load

• Copper pours and planes for current spreading

• Stitching vias to vertically route heat and current

• Short trace lengths to minimize voltage drop

   These techniques allow designers to preserve electrical and thermal stability even when trace width is physically constrained.

---

3.3 Controlled Impedance and Signal Integrity

   In high-speed or RF designs, trace width must simultaneously satisfy:

• Impedance control requirements

• Current-carrying constraints (particularly in power distribution traces feeding transceivers)

   Controlled impedance traces (e.g., 50 Ω microstrip or 100 Ω differential pairs) derive their characteristic impedance from trace width, spacing, copper thickness, and dielectric height. Therefore, modifying trace width purely for current capacity can disrupt signal integrity.

   A common engineering solution is separation of function:

• Power delivery paths are routed using dedicated power planes or reinforced traces.

• High-speed signals maintain strict impedance width constraints.

   In cases where power must run alongside high-speed traces, designers often use thicker copper in power layers instead of increasing width in signal layers. Another solution is to run power through internal layers where trace thickness can be increased without affecting controlled impedance geometry.

   This dual-optimization between PDN stability and high-speed signal integrity becomes a key differentiator in advanced PCB design skills.

---

3.4 Effects of Trace Width on EMI/EMC Behavior

   Electromagnetic interference (EMI) and electromagnetic compatibility (EMC) are greatly influenced by trace geometry. Because current flow produces magnetic field lines proportional to conductor area and current intensity, narrow traces with high current density may radiate more strongly than wider traces operating at lower temperature.

   Additionally:

• Longer, narrower traces exhibit higher inductance, which increases ringing and switching noise.

• Higher inductance on power traces can cause waveform distortion in switching power supplies.

• Increased EMI emissions can cause compliance failures (e.g., CISPR, FCC, CE standards).

   To mitigate these effects, engineers often:

• Shorten power trace lengths

• Reinforce PDN copper plane coverage

• Add decoupling capacitor arrays near load points

• Use ground planes to return current paths tightly

   From a high-density perspective, EMI/EMC compliance is harder to achieve when trace widths are constrained; therefore, simulation-based design is often required to evaluate current distribution and magnetic field strength before fabrication.

4. Advanced Understanding of the Relationship Between Trace Width and Current-Carrying Capacity

4.1 Plating Techniques and Copper Foil Types

   In practical PCB manufacturing, the achievable current-carrying capacity of a trace is influenced not only by its designed width and copper thickness but also by the quality and structure of the copper itself. Copper deposition on a PCB can be introduced through two primary methods:

1. Rolled Copper Foil (RA copper)
   Produced by mechanically rolling copper into thin sheets.

   • Benefits: High ductility, excellent fatigue resistance, smooth grain structure

   • Common Uses: Flexible circuits, boards requiring repeated bending

2. Electrolytic Copper Foil (ED copper)
   Produced through electrolytic deposition.

   • Benefits: Cost-effective, widely available, consistent thickness uniformity

   • Common Uses: Rigid PCBs in general electronics, automotive modules, industrial control systems

   The grain structure of the copper influences how heat spreads across the trace. RA copper typically supports slightly better mechanical and thermal endurance, making it preferred in environments with vibration or temperature cycling. ED copper is more common in high-current rigid boards but must be selected based on surface roughness and plating thickness to optimize conduction.

   Beyond base foils, plating thickness variation can also affect current distribution. Electroplated copper in vias and surface layers may be non-uniform if manufacturing process control is inconsistent. This is one reason why engineering collaboration with the PCB fabricator is essential when designing high-current traces.

---

4.2 Buried and Blind Vias Effect on Current Paths

   Vias serve as vertical conduits that route current between layers. In many high-current applications, vias must carry significant current, and therefore their own cross-sectional conductive capacity must be considered.

   A single via typically carries less current than a trace due to:

• Smaller cross-sectional area

• Higher resistance per unit length

• Less effective heat conduction into surrounding laminate

   To support high current, engineers frequently design:

• Via arrays placed in parallel

• Filled and plated vias to increase conductive mass

• Thermal vias to spread heat into copper planes

   Buried and blind vias can be useful for routing density but may complicate thermal dissipation. For high-current paths, it is generally advisable to avoid relying solely on blind or microvias unless the board manufacturer specifically supports copper-filled high-reliability via structures.

---

4.3 Role of Planes and Parallel Traces

   One of the most effective strategies for increasing current-carrying capacity without expanding board dimensions is the use of parallel conduction paths. Instead of routing a single wide trace, engineers distribute current across:

• Power planes

• Copper pours

• Multiple traces on multiple layers

• Via stitching networks connecting distributed copper masses

   This approach:

• Reduces localized heat concentration

• Lowers conductor resistance as total cross-sectional area increases

• Improves power integrity by providing a low-impedance current path

   However, it does require extremely careful stack-up planning. If parallel paths are not symmetrically arranged, uneven current distribution may occur, leading to hot spots in unexpected areas.

Conclusion

   The design of modern printed circuit boards extends far beyond the selection of components; it involves a deep awareness of how electrical, thermal, and mechanical factors interact over a product’s full operational lifespan. Among these considerations, the Relationship Between Trace Width and Current-Carrying Capacity represents one of the most foundational and impactful engineering relationships in PCB design. By understanding how trace dimensions influence electrical resistance, heat dissipation, thermal stability, and long-term reliability, designers can prevent failure modes that otherwise may not appear until late-stage validation or real-world operation.

   Throughout this work, we evaluated:

• The physical definition and operational meaning of the current–trace geometry relationship

• How the interplay of copper thickness, thermal rise, layer stack choice, and material properties determines real system behavior

• The critical role of thermal pathways, copper pours, and via stitching in mitigating local heating

• Failure modes such as delamination, barrel cracking, and electrochemical migration that arise when thermal and electrical stresses exceed safe boundaries

• Case studies illustrating how practical design choices affect performance, reliability, and efficiency in applications ranging from consumer devices to industrial and automotive systems

   A key theme is that there is no single formula that can substitute for engineering judgment. While standards such as IPC-2152 offer structured guidance, the realities of enclosure design, airflow, thermal interfaces, transient currents, and environmental variations require comprehensive analysis.

   Ultimately, the designer’s goal is not merely to compute a trace width, but to ensure that the entire current path—including copper planes, vias, connections, and heat dissipation infrastructure—functions as a reliable, predictable, and thermally stable system over years of operation.

FAQ

1. What is the best approach to verify that a PCB can safely handle the intended current?

Use a combination of thermal simulation, prototype IR thermal scanning, and power cycling stress testing. These verification steps reveal localized heating and fatigue risks that cannot be fully assessed through calculation alone.

2. How does copper thickness influence the required trace width for a given current?
Thicker copper layers reduce electrical resistance and spread heat more efficiently, allowing a narrower trace to carry the same current. Conversely, thinner copper requires wider traces to limit temperature rise.

3. Why are vias sometimes a thermal bottleneck in current-carrying paths?
Vias have less cross-sectional copper area than traces or planes. If insufficient via quantity or plating thickness is used, they may overheat or crack during thermal cycling, becoming a failure point even when traces are properly sized.

4. Can internal layers carry the same current as external layers?
No. Internal layers have reduced access to ambient air and are insulated by substrate material, making heat dissipation more difficult. Therefore, internal traces require larger width or parallel copper to safely carry the same current as outer layer traces.

5. How does environmental temperature affect current-carrying capacity of PCB traces?
Higher ambient temperature reduces the trace’s ability to dissipate heat. As a result, allowable current decreases. Designs should incorporate derating factors when used in warm or enclosed environments.
