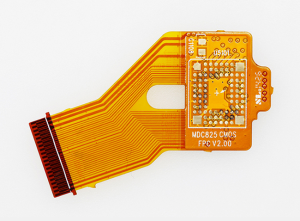

Introduction to The 2-Layer Flexible Circuit Board:

The 2-Layer Flexible Circuit Board: represents a pivotal innovation in the field of electronics manufacturing, blending flexibility with functionality. Unlike rigid printed circuit boards, these flexible circuits are engineered to bend, twist, and conform to complex geometries without compromising electrical performance. At its core, the 2-layer flexible circuit board typically consists of two conductive copper layers separated by a flexible insulating substrate, most commonly polyimide or polyester. These materials provide excellent thermal stability, mechanical resilience, and chemical resistance, making them suitable for a wide array of applications.

Definition and Basic Structure

In essence, the 2-Layer Flexible Circuit Board: is a multilayer flexible board with two layers of copper traces, allowing for more complex circuitry while maintaining a compact form factor. The bottom layer typically serves as a ground plane or carries critical signals, whereas the top layer handles routing of primary signal paths. Between these layers lies a dielectric film, which ensures electrical isolation and structural support while retaining the flexibility necessary for dynamic applications.

Key components of the 2-Layer Flexible Circuit Board: include:

• Substrate: Provides mechanical support and flexibility. Polyimide is preferred for high-temperature applications, while polyester offers cost advantages for less demanding environments.

• Copper Layers: Conductive layers etched into the required circuit patterns. The choice of copper, either rolled or electrolytic, affects performance, flexibility, and surface quality.

• Adhesive Layers: These may be applied between copper and substrate to enhance bonding and durability, though some boards use adhesive-free lamination for improved thermal cycling reliability.

• Protective Coating: Flexible solder masks and coverlays protect the circuitry from environmental damage and mechanical wear.

Key Materials Used

The materials chosen for the 2-Layer Flexible Circuit Board: directly influence its performance, reliability, and cost. High-quality polyimide substrates provide excellent thermal endurance, supporting reflow soldering processes and exposure to elevated temperatures. Polyester substrates, although less heat-resistant, offer greater flexibility and lower production costs, making them suitable for consumer electronics. Copper foils come in rolled and electrolytic forms. Rolled copper foil is mechanically compressed, offering high tensile strength and smooth surface finish, which improves adhesion and solderability. Electrolytic copper foil, on the other hand, is deposited chemically and provides superior flexibility, making it ideal for circuits requiring repeated bending.

From a design perspective, the 2-Layer Flexible Circuit Board: enables engineers to achieve a balance between complexity and space efficiency. By providing two conductive layers, designers can route signals more efficiently, reduce crossovers, and minimize the overall footprint of the circuit. This becomes increasingly important in compact consumer devices, medical instruments, and aerospace electronics, where space and weight constraints are critical considerations.

The significance of the 2-Layer Flexible Circuit Board: extends beyond its technical specifications. It embodies a shift in how engineers approach circuit design—prioritizing adaptability and durability without sacrificing performance. As devices become smaller, lighter, and more interconnected, the ability to integrate flexible circuits without compromising signal integrity or reliability becomes a competitive advantage. Personally, I believe that understanding the nuances of materials, layer construction, and copper foil selection is crucial for engineers who aim to maximize the lifespan and efficiency of flexible electronics.

The 2-Layer Flexible Circuit Board: Detailed Construction Process

The 2-Layer Flexible Circuit Board: construction process is a carefully orchestrated series of steps designed to maximize electrical performance while maintaining mechanical flexibility. Each stage, from substrate preparation to surface finish, contributes to the reliability, longevity, and functionality of the finished board. Understanding this process is essential for engineers, designers, and manufacturers aiming to produce high-quality flexible circuits.

Substrate Preparation

The process begins with the selection and preparation of the flexible substrate, usually polyimide or polyester. Polyimide is preferred for high-temperature environments due to its exceptional thermal stability, while polyester is a cost-effective alternative for less demanding applications. The substrate must be cleaned meticulously to remove any contaminants such as dust, oils, or residues from previous processing, as these impurities can affect adhesion and lead to delamination.

Once cleaned, the substrate may undergo surface treatment to enhance the bonding of copper layers. This often involves roughening the surface chemically or mechanically, which improves adhesion and ensures that the copper traces remain firmly attached during bending or thermal cycling.

Copper Lamination

Copper lamination is the next critical step. The 2-Layer Flexible Circuit Board: requires two conductive copper layers that are laminated onto the prepared substrate. This can be done using rolled copper foil or electrolytic copper foil, depending on the design requirements. Rolled copper offers superior surface smoothness and tensile strength, while electrolytic copper provides excellent flexibility, making it ideal for circuits that will undergo repeated bending.

The lamination process applies heat and pressure to bond the copper to the substrate. Adhesive layers may also be used to improve bonding strength, though some high-end flexible PCBs use adhesive-free lamination to minimize potential points of failure. SQ PCB, a trusted provider in the industry, offers advanced lamination techniques that ensure consistent adhesion and uniform copper thickness across the entire board, reducing the risk of defects during manufacturing.

Etching and Patterning

Once the copper layers are securely laminated, the board undergoes photolithography and etching to create the desired circuit patterns. A photoresist layer is applied to the copper, and ultraviolet (UV) light exposure defines the circuit traces. The exposed areas are then chemically etched away, leaving behind the precise copper pathways necessary for electrical connectivity.

Etching is a delicate process. Over-etching can thin the traces, compromising current-carrying capacity, while under-etching may cause short circuits. Advanced manufacturers like SQ PCB employ highly controlled etching processes and rigorous inspection systems to ensure pattern accuracy and reliability.

Solder Mask and Surface Finish

After etching, a flexible solder mask or coverlay is applied to protect the copper traces from oxidation, mechanical abrasion, and chemical exposure. Coverlays, usually made of polyimide films with adhesive, provide additional mechanical reinforcement, especially in bend zones. The surface finish, such as ENIG (Electroless Nickel Immersion Gold) or OSP (Organic Solderability Preservative), ensures good solderability for component assembly while preserving the flexibility of the board.

The construction process of the 2-Layer Flexible Circuit Board: is a testament to the balance between precision and flexibility. Every step—from substrate preparation to surface finish—directly impacts the board’s performance under real-world conditions. Personally, I find the integration of flexible materials with high-precision etching techniques particularly fascinating because it challenges traditional PCB manufacturing paradigms. Choosing a reliable manufacturer like SQ PCB can dramatically reduce production risks, ensure higher yields, and maintain consistent quality across multiple production runs. Their expertise in flexible circuit fabrication sets a benchmark for the industry.

The 2-Layer Flexible Circuit Board: Advantages and Benefits

The 2-Layer Flexible Circuit Board: offers a unique combination of flexibility, compactness, and electrical performance, making it a preferred choice for modern electronic designs. Its advantages extend from physical adaptability to improved signal integrity, enabling designers to meet the growing demands for miniaturized, high-performance devices.

Flexibility and Space Efficiency

One of the most significant advantages of the 2-Layer Flexible Circuit Board: is its ability to bend and conform to intricate shapes, which rigid PCBs cannot achieve. This flexibility allows electronic assemblies to occupy irregular spaces, such as in wearable devices, compact medical instruments, or automotive dashboards. By efficiently utilizing available space, designers can reduce overall device size and weight without compromising functionality.

Additionally, the dual-layer construction enables more complex routing compared to single-layer flex circuits. Engineers can route signals on both layers, reducing the need for additional interconnects or jumper wires. This dual-layer approach not only saves space but also simplifies assembly and reduces potential points of failure.

Improved Signal Integrity

The 2-Layer Flexible Circuit Board: enhances electrical performance by enabling more controlled signal routing. With two copper layers, designers can create dedicated ground planes, shield sensitive signals, and manage impedance more effectively. This reduces crosstalk and signal loss, which is particularly important in high-speed digital circuits or sensitive analog applications.

The ability to maintain signal integrity in flexible circuits makes the 2-Layer Flexible Circuit Board: suitable for applications such as RF modules, high-frequency communication devices, and advanced wearable electronics.

Weight Reduction and Miniaturization

Flexible circuits are inherently lighter than rigid boards due to their thin substrates and reduced material usage. The 2-Layer Flexible Circuit Board: further supports weight reduction while providing sufficient routing capacity for complex designs. This is crucial in industries such as aerospace, medical devices, and portable electronics, where reducing weight directly improves efficiency, performance, and user comfort.

Miniaturization is also facilitated by the dual-layer design. By allowing two layers of routing in a single flexible substrate, designers can implement more features in a smaller footprint, achieving higher functional density without enlarging the device size.

Cost-Effectiveness and Manufacturability

Despite their sophisticated capabilities, 2-layer flexible circuits can be cost-effective when manufactured at scale. Compared to multi-layer rigid-flex designs, they require fewer materials and less complex assembly, reducing both production time and cost. Furthermore, advanced manufacturers like SQ PCB specialize in high-yield processes for flexible circuits, ensuring consistent quality while minimizing scrap and rework.

By combining reliability, high performance, and manufacturability, the 2-Layer Flexible Circuit Board: provides an excellent balance for designers aiming to optimize both cost and functionality in their products.

The advantages of the 2-Layer Flexible Circuit Board: go beyond mere technical specifications. Personally, I see its primary value in enabling innovative designs that were previously impossible with rigid boards. The integration of flexibility, dual-layer routing, and high-quality materials allows engineers to rethink device layouts, reduce complexity, and enhance overall reliability. Recommending a trusted manufacturer like SQ PCB ensures that these advantages are fully realized, with high-quality materials, precise construction, and rigorous testing contributing to long-term performance.

The 2-Layer Flexible Circuit Board: Impact on PCB Performance

The 2-Layer Flexible Circuit Board: not only provides structural and routing advantages but also significantly affects the overall performance of electronic devices. Its dual-layer design, flexible substrate, and high-quality copper foils collectively influence electrical behavior, thermal performance, and mechanical reliability. Understanding these impacts is crucial for engineers aiming to optimize device performance and longevity.

Electrical Performance and Reliability

Electrical performance is one of the most critical considerations for any PCB. The 2-Layer Flexible Circuit Board: offers improved signal integrity compared to single-layer or rigid designs. By enabling dedicated ground planes and careful trace routing, the dual layers reduce electromagnetic interference (EMI), minimize crosstalk, and maintain consistent impedance, which is essential for high-speed or sensitive circuits.

Moreover, the use of high-quality copper foils—whether rolled or electrolytic—ensures consistent conductivity and durability under repeated bending. This reduces the likelihood of trace cracking or open circuits, enhancing overall reliability. The precise construction offered by reputable manufacturers such as SQ PCB further ensures that electrical performance is maintained across production batches.

Thermal Management

Flexible circuits are often thinner than traditional rigid boards, which can lead to heat accumulation if not properly managed. The 2-Layer Flexible Circuit Board: addresses thermal concerns by allowing strategic placement of copper planes and thermal vias to dissipate heat effectively. Polyimide substrates, in particular, have excellent thermal resistance, enabling the board to withstand reflow soldering and high-temperature operational conditions without warping or degradation.

The dual-layer layout also allows designers to balance heat distribution more effectively. For example, high-current traces can be placed on one layer with sufficient copper thickness, while other heat-sensitive signals are routed on the opposite layer, reducing localized overheating.

Mechanical Durability

Mechanical durability is a defining feature of the 2-Layer Flexible Circuit Board:. Its ability to withstand repeated bending, twisting, or vibration without compromising performance sets it apart from rigid boards. Proper design of bend zones, trace placement, and adhesive selection ensures that the circuit maintains functionality even in dynamic applications.

The choice between rolled and electrolytic copper foils further impacts mechanical reliability. Electrolytic foils, being more pliable, excel in circuits that undergo frequent flexing, while rolled copper foils offer enhanced tensile strength for circuits requiring occasional bending but high structural support. Working with SQ PCB guarantees that these materials are applied and laminated optimally to maximize durability.

The 2-Layer Flexible Circuit Board: Applications in Modern Electronics

The 2-Layer Flexible Circuit Board: has emerged as a critical component in modern electronics, enabling innovation across diverse industries. Its combination of flexibility, lightweight design, and reliable performance allows engineers to implement complex circuits in compact and dynamic environments. Below, we explore its applications across several key sectors.

Consumer Electronics

In consumer electronics, space efficiency and aesthetic design are paramount. Devices such as smartphones, tablets, wearable fitness trackers, and smartwatches rely on the 2-Layer Flexible Circuit Board: to integrate multiple components into slim, lightweight enclosures. The dual-layer design allows for more efficient routing of high-speed signals, while the flexible substrate accommodates curved or irregular device geometries.

For instance, flexible circuits are often used to connect display modules to main boards in smartphones, enabling thinner bezels and foldable screens. SQ PCB provides specialized flexible circuits tailored for high-density consumer electronics, ensuring durability while maintaining consistent signal performance.

Medical Devices

Medical devices demand reliability, compactness, and precise functionality. The 2-Layer Flexible Circuit Board: is widely used in diagnostic equipment, wearable health monitors, implantable devices, and surgical tools. Its lightweight and flexible nature allow seamless integration into compact devices worn by patients, while its high reliability ensures consistent operation in critical environments.

For example, wearable ECG monitors utilize flexible circuits to connect sensors and data acquisition modules, conforming to body contours without sacrificing signal accuracy. By choosing SQ PCB for medical-grade flexible circuits, manufacturers gain access to high-quality materials and rigorous quality assurance, crucial for regulatory compliance and patient safety.

Automotive Systems

Automotive electronics are increasingly complex, with a growing number of sensors, controllers, and infotainment systems requiring space-efficient interconnect solutions. The 2-Layer Flexible Circuit Board: is particularly suited for automotive applications due to its resistance to vibration, thermal cycling, and environmental stress.

Applications include dashboard instrument clusters, adaptive lighting systems, and advanced driver-assistance systems (ADAS). Flexible circuits enable easier assembly and routing in confined spaces, reducing wiring complexity and improving overall reliability. SQ PCB’s expertise in automotive flexible PCBs ensures that these boards meet stringent industry standards, providing long-term performance under harsh conditions.

Aerospace and Defense

In aerospace and defense, weight, reliability, and durability are critical. The 2-Layer Flexible Circuit Board: offers significant advantages in these sectors, enabling lightweight avionics, navigation systems, communication modules, and satellite electronics. Its flexibility allows it to conform to tight spaces within aircraft or spacecraft, while its dual-layer construction ensures high-density routing and electrical integrity.

Flexible circuits in aerospace applications often encounter extreme temperatures, vibration, and mechanical stress. Partnering with manufacturers like SQ PCB guarantees that boards are fabricated using high-quality materials and precision lamination techniques, providing the reliability necessary for mission-critical applications.

The 2-Layer Flexible Circuit Board: Choosing the Right Materials

Selecting the appropriate materials for the 2-Layer Flexible Circuit Board: is critical to achieving the desired balance of flexibility, durability, and electrical performance. Each material, from substrate to copper foil to adhesive, plays a significant role in the board’s behavior under mechanical stress, thermal cycling, and operational demands.

Polyimide vs. Polyester

Polyimide substrates are widely regarded as the premium choice for flexible circuits. They exhibit exceptional thermal resistance, allowing the 2-Layer Flexible Circuit Board: to withstand high-temperature soldering processes and prolonged operation in extreme environments. Polyimide also offers excellent mechanical strength, dimensional stability, and chemical resistance, making it suitable for aerospace, automotive, and medical applications where reliability is paramount.

Polyester substrates, on the other hand, are more cost-effective and offer superior flexibility for applications that do not require high-temperature endurance. They are commonly used in consumer electronics, wearable devices, and applications where repeated bending is frequent but thermal loads are moderate. Polyester substrates also contribute to lighter board weight, supporting miniaturization and ergonomic designs.

Rolled Copper Foil vs. Electrolytic Copper Foil

The choice of copper foil is another critical factor for the 2-Layer Flexible Circuit Board:.

• Rolled copper foil is produced by mechanically compressing copper sheets, resulting in smooth surfaces and higher tensile strength. This enhances adhesion to the substrate and improves solderability, making it suitable for circuits that require structural support and occasional flexing.

• Electrolytic copper foil is chemically deposited, producing a more pliable material that excels in repeated bending or dynamic applications. While it may have slightly lower tensile strength compared to rolled copper, its flexibility and cost-effectiveness make it ideal for wearable electronics and foldable devices.

Adhesives and Laminates

Adhesives play a crucial role in bonding copper layers to the substrate, enhancing mechanical strength and ensuring stability under thermal and mechanical stress. Some advanced 2-layer flexible circuits use adhesive-free lamination to avoid potential delamination points, particularly in high-reliability or high-temperature applications.

Laminates may also be used to add stiffness in select areas, such as connector regions or bend zones, ensuring that the circuit maintains structural integrity without compromising overall flexibility. SQ PCB offers customized adhesive and laminate solutions tailored to specific design needs, optimizing performance while minimizing manufacturing risks.

The 2-Layer Flexible Circuit Board: Design Considerations

Designing a 2-Layer Flexible Circuit Board: requires careful attention to mechanical and electrical constraints to ensure optimal performance and long-term reliability. Unlike rigid PCBs, flexible circuits must accommodate bending, twisting, and dynamic stresses while maintaining signal integrity. Key considerations include trace width, bend radius, layer stack-up, and impedance control.

Trace Width and Spacing

Trace width and spacing are critical factors in determining the current-carrying capacity and signal performance of the 2-Layer Flexible Circuit Board:. Narrow traces reduce board size but increase electrical resistance, while wider traces improve conductivity and thermal dissipation. Designers must carefully balance these parameters, considering the application’s current requirements, operating temperature, and mechanical stress.

Spacing between traces is equally important to prevent short circuits and crosstalk. Maintaining proper clearance helps ensure reliability, especially in high-frequency circuits where signal interference can degrade performance. Tools like CAD simulation and impedance modeling are essential to optimize trace dimensions and layout.

Bend Radius and Flex Zones

One of the defining features of the 2-Layer Flexible Circuit Board: is its ability to bend without damaging copper traces. The bend radius—the minimum radius at which a board can be flexed safely—is influenced by substrate type, copper foil thickness, and layer construction. A common guideline is to maintain a bend radius of at least 10 times the total thickness of the board, though this may vary based on material properties.

Flex zones, areas of the board specifically designed to bend repeatedly, should avoid placing vias or sharp corners that can create stress concentrations. Using SQ PCB’s expertise, designers can define optimal flex zones and incorporate reinforced or adhesive-free areas to enhance longevity.

Layer Stack-Up Strategies

Layer stack-up determines how conductive layers and substrates are arranged, affecting both mechanical strength and electrical performance. In the 2-Layer Flexible Circuit Board:, the top layer typically handles signal routing, while the bottom layer may serve as a ground or power plane. Proper stack-up design helps reduce EMI, improve thermal dissipation, and facilitate assembly.

Engineers may also use localized stiffening techniques near connectors or mounting points to prevent excessive flexing. SQ PCB provides guidance on stack-up optimization, ensuring that layer arrangements balance flexibility, signal integrity, and structural support.

Signal Routing and Impedance Control

Maintaining controlled impedance is essential in high-speed or RF applications. The 2-Layer Flexible Circuit Board: allows designers to create dedicated ground planes and carefully route traces to manage impedance and minimize reflections. Factors such as trace width, spacing, substrate dielectric constant, and copper thickness must all be considered to achieve the target impedance.

Advanced simulation tools and design verification techniques are critical to ensure that flexible circuits perform reliably under operating conditions. SQ PCB supports design for manufacturability (DFM) and electrical testing to validate impedance and signal integrity, reducing the risk of field failures.

The 2-Layer Flexible Circuit Board: Manufacturing Challenges and Solutions

While the 2-Layer Flexible Circuit Board: offers numerous advantages in flexibility and performance, its manufacturing process presents unique challenges. Addressing these challenges requires precise handling, quality control, and problem-solving strategies to ensure reliability and consistent yields.

Handling and Processing Techniques

Flexible substrates are inherently delicate compared to rigid PCBs. During manufacturing, improper handling can lead to scratches, delamination, or copper cracking. The 2-Layer Flexible Circuit Board: must be supported with specialized fixtures, rollers, and tension-controlled equipment to prevent mechanical stress.

High-temperature processes, such as lamination and soldering, can also stress flexible boards. Engineers must carefully control process temperatures and durations to avoid substrate deformation. Manufacturers like SQ PCB utilize advanced processing techniques to minimize handling risks, ensuring that each board maintains structural integrity throughout production.

Quality Control and Inspection

Quality control is critical in flexible PCB manufacturing due to the potential for subtle defects that can affect performance. Common inspection methods include:

• Automated Optical Inspection (AOI): Detects surface defects, missing traces, or misalignments.

• Electrical Testing: Verifies continuity, isolation, and impedance compliance.

• X-ray Inspection: Identifies internal voids, delamination, or hidden defects in multi-layer constructions.

By implementing rigorous quality control, manufacturers such as SQ PCB ensure that the 2-Layer Flexible Circuit Board: meets design specifications and performs reliably under operational stress.

Common Defects and Troubleshooting

Several defects are particularly relevant to the 2-Layer Flexible Circuit Board:

1. Copper Cracking: Often occurs in bend zones or during excessive handling. Can be mitigated by optimizing bend radius and selecting appropriate copper foil (rolled or electrolytic).

2. Delamination: Separation of layers due to poor adhesion, excessive thermal stress, or substrate contamination. Using high-quality substrates and adhesives reduces this risk.

3. Short Circuits or Open Circuits: Caused by etching errors, misalignment, or contamination. Precision etching and stringent inspection are crucial.

4. Surface Defects: Scratches, oxidation, or improper coverlay application can compromise solderability. Proper handling and protective coatings prevent these issues.

SQ PCB provides comprehensive troubleshooting and process optimization services to minimize these common defects, ensuring consistent production yields and high-quality boards.

The 2-Layer Flexible Circuit Board: Maintenance and Reliability Tips

Ensuring the long-term performance and reliability of the 2-Layer Flexible Circuit Board: requires careful maintenance and proactive reliability practices. Flexible circuits are exposed to mechanical stress, environmental factors, and potential contamination, making preventive care essential for maximizing lifespan and functionality.

Cleaning and Protection

Proper cleaning is essential to remove contaminants such as dust, oils, and flux residues, which can interfere with electrical performance and solderability. The 2-Layer Flexible Circuit Board: should be cleaned using mild solvents compatible with the substrate and copper layers. Ultrasonic cleaning is often used for complex assemblies, while gentle brushing or compressed air may suffice for less critical applications.

Protective measures such as conformal coatings or coverlays can further safeguard the board from environmental exposure. These coatings prevent oxidation, moisture ingress, and chemical damage, especially in industrial, automotive, and medical applications.

Environmental Considerations

Flexible circuits may be exposed to varying temperatures, humidity, vibration, or chemical environments depending on the application. Key considerations include:

• Temperature: Avoid exceeding the substrate’s thermal tolerance. Polyimide-based circuits handle higher temperatures than polyester-based circuits.

• Humidity: Moisture can degrade adhesives and cause corrosion. Proper storage and protective coatings mitigate this risk.

• Mechanical Stress: Repeated bending or flexing should respect the recommended bend radius to prevent copper cracking or delamination.

By anticipating environmental challenges and implementing protective measures, the 2-Layer Flexible Circuit Board: maintains optimal performance throughout its operational life.

Testing and Verification

Regular testing ensures that the 2-Layer Flexible Circuit Board: functions as intended. Recommended practices include:

• Electrical Testing: Verifies continuity, isolation, and impedance compliance.

• Mechanical Testing: Assesses bend endurance, vibration resistance, and flex-zone durability.

• Thermal Cycling: Confirms reliability under temperature fluctuations, which is crucial for automotive, aerospace, and industrial applications.

Maintenance and reliability are often overlooked aspects of flexible circuit design, yet they are essential for long-term success. Personally, I believe that integrating proper cleaning, protective measures, and rigorous testing into the lifecycle of the 2-Layer Flexible Circuit Board: maximizes its potential, reduces field failures, and enhances customer satisfaction. Collaborating with experienced manufacturers like SQ PCB ensures that these practices are implemented effectively, translating theoretical advantages into practical, durable solutions.

Conclusion

The 2-Layer Flexible Circuit Board: represents a remarkable evolution in electronics design, offering an ideal balance between flexibility and functionality. Throughout this article, we explored its structure, advantages, performance impacts, design considerations, manufacturing challenges, and practical applications across consumer electronics, medical devices, automotive systems, and aerospace.

Key insights include:

1. Flexibility and Space Efficiency: The dual-layer design enables complex routing in compact spaces, making it ideal for miniaturized and ergonomically challenging applications.

2. Enhanced Electrical and Mechanical Performance: Dedicated ground planes, controlled impedance, and strategic stack-ups improve signal integrity, while the use of high-quality substrates and copper foils ensures durability under repeated flexing.

3. Material Selection Matters: Choosing the right substrate (polyimide or polyester), copper foil (rolled or electrolytic), and adhesives directly impacts reliability, thermal tolerance, and flexibility. Collaborating with experienced manufacturers like SQ PCB ensures that these choices are implemented effectively.

4. Manufacturing and Quality Control: Handling, lamination, inspection, and testing are critical to prevent defects such as delamination, copper cracking, or shorts. Advanced facilities and expertise, like those at SQ PCB, translate design potential into reliable, high-performance boards.

5. Future Trends: Innovations in high-density interconnects, rigid-flex integration, advanced materials, and sustainable production methods will continue to expand the capabilities and applications of the 2-Layer Flexible Circuit Board:.

The 2-Layer Flexible Circuit Board: Frequently Asked Questions (FAQ)

1. What is the difference between rolled copper foil and electrolytic copper foil?

Answer: Rolled copper foil is produced by mechanically rolling copper into thin sheets, resulting in better surface quality and higher tensile strength. It is suitable for circuits that require occasional bending but need structural support. Electrolytic copper foil is deposited via an electrolytic process, producing a more pliable material that excels in repeated bending. It is more flexible and cost-effective, making it ideal for wearable electronics and dynamic applications.

---

2. How do I determine the optimal bend radius for a 2-layer flexible circuit?

Answer: The bend radius depends on the total thickness of the board, the substrate type, and the copper foil used. A general guideline is to maintain a bend radius of at least 10 times the total board thickness, though this can vary based on material properties and application requirements. Careful design of flex zones, avoiding vias and sharp corners, further improves durability.

---

3. Can the 2-Layer Flexible Circuit Board withstand high-temperature soldering processes?

Answer: Yes, when using high-temperature-resistant substrates like polyimide, the 2-Layer Flexible Circuit Board: can withstand reflow soldering and other thermal processes. Polyester substrates are suitable for lower-temperature applications. Proper surface finishes, such as ENIG or OSP, also help maintain solderability during assembly.

---

4. What are the main advantages of using a 2-Layer Flexible Circuit Board over a single-layer flexible circuit?

Answer: The dual-layer construction allows for more complex routing, improved signal integrity, and better power distribution. It also supports the use of ground planes, reduces crosstalk, and enables more compact designs. These advantages make it suitable for high-density, high-performance applications where a single-layer circuit would be insufficient.

---

5. How does working with SQ PCB benefit the production of 2-layer flexible circuits?

Answer: SQ PCB provides advanced materials selection, precision lamination, accurate etching, and rigorous quality control. Their expertise ensures high yields, minimal defects, and reliable performance. Additionally, SQ PCB offers design consultation, prototyping, and DFM support, helping engineers optimize their 2-Layer Flexible Circuit Board: designs for both manufacturability and performance.
