The Critical Interface: How Surface Treatment Defines PCB Performance and Reliability

Understanding Surface Treatment: Definition, Purpose, and Fundamentals

   To grasp its importance, we must first define what Surface Treatment actually is. In PCB fabrication, it refers to the set of chemical or electrochemical processes applied to the exposed copper pads after etching, intended to protect the copper from oxidation and provide a solderable or bondable surface. The process forms a controlled, stable interface that ensures reliable solder joint formation and sustained electrical contact during the PCB’s operation.

   The purpose of Surface Treatment extends beyond aesthetics or corrosion protection. It directly determines the board’s ability to maintain low contact resistance, resist environmental stress, and enable fine-pitch component assembly. For instance, untreated copper oxidizes rapidly when exposed to air, forming a non-conductive layer that prevents proper solder wetting. A suitable treatment ensures that even after months of storage, the surface remains ready for assembly.

   In essence, Surface Treatment serves three main functions:

1. Oxidation protection – Shielding copper from environmental exposure.

2. Solderability enhancement – Providing a surface that bonds predictably during reflow or wave soldering.

3. Electrical performance assurance – Maintaining a clean, conductive interface for high-frequency signals and long-term reliability.

    The selection of the right Surface Treatment depends on various factors, such as application environment, expected shelf life, and required contact performance. While basic options like HASL (Hot Air Solder Leveling) remain common, advanced applications increasingly rely on gold-based finishes, particularly ENIG (Electroless Nickel Immersion Gold), due to their superior stability.

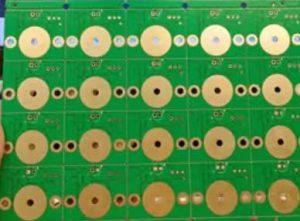

Surface Treatment

The Chemistry and Physics Behind Surface Treatment for PCBs

   The science of Surface Treatment operates at the atomic level. When copper is exposed to air, it reacts with oxygen to form Cu₂O or CuO, both of which are poor conductors and interfere with soldering. Surface finishing techniques use reducing agents, chemical baths, or deposition processes to create a controlled barrier layer that halts oxidation and improves surface energy.

   For instance, in the ENIG process, a thin layer of nickel is deposited onto copper through an autocatalytic reaction, followed by immersion gold plating. The nickel acts as a diffusion barrier, preventing copper atoms from migrating into the gold, while the gold layer offers excellent corrosion resistance and solderability. The precision of thickness control—usually between 3 to 6 μm for nickel and 0.05 to 0.1 μm for gold—is critical to ensure optimal electrical and mechanical properties.

   Physically, Surface Treatment also modifies surface roughness, which influences solder wetting and adhesion. A smoother surface can improve contact resistance, while controlled micro-texturing can enhance mechanical anchoring during solder reflow. Modern PCB factories use advanced analytical tools such as X-ray fluorescence (XRF) and scanning electron microscopy (SEM) to verify surface layer composition and uniformity.

Types of Surface Treatment and Their Characteristics

   There is no one-size-fits-all Surface Treatment in PCB manufacturing. Each method presents unique strengths and trade-offs, balancing cost, durability, and assembly compatibility.

   From this comparison, it becomes clear that Surface Treatment selection should match both the design intent and the expected operating environment. For instance, consumer electronics often employ OSP or immersion silver for cost reasons, while high-end communication boards or medical devices prefer ENIG or hard gold for superior reliability.

Gold Plated and ENIG Surface Treatment: A Dual Path to Excellence

   Among all finishing methods, Gold Plated and ENIG Surface Treatment represent the pinnacle of reliability and precision. Both utilize gold’s remarkable chemical inertness and excellent conductivity, yet their applications differ based on process and purpose.

   Gold Plated Surface Treatment involves electroplating a relatively thick gold layer (typically 0.5 to 5 μm) onto a nickel substrate. It is most suitable for edge connectors, keypads, or contact points subjected to mechanical wear. The durability of this coating ensures that repeated insertions or sliding contacts maintain consistent electrical performance.

   ENIG Surface Treatment, by contrast, is not mechanically plated but chemically deposited, resulting in an extremely uniform and thin gold layer over a nickel barrier. This process minimizes oxidation and guarantees flatness, making it ideal for fine-pitch surface-mount assembly and wire bonding. ENIG also provides excellent resistance to environmental degradation, which explains its dominance in aerospace, medical, and automotive PCB applications.

   Both finishes significantly enhance PCB performance by:

• Preserving low contact resistance over time,

• Preventing copper diffusion and corrosion, and

• Maintaining solderability even after extended storage.

   In high-frequency designs, ENIG’s smoothness reduces impedance variation, improving signal integrity. From my professional observation, when a project requires both long-term reliability and dimensional precision, ENIG consistently outperforms alternatives.

The Role of Surface Treatment in Electrical Performance

   In modern electronics, every fraction of an ohm matters. The Surface Treatment applied to a PCB directly shapes its electrical characteristics by influencing contact resistance, surface uniformity, and signal continuity. A well-controlled finish ensures that electrons move through stable, predictable interfaces, while poor finishing can introduce micro-barriers that distort current flow and compromise timing.

   One crucial factor is contact resistance stability. Over time, oxidation or micro-voids at untreated copper surfaces can increase resistance, leading to voltage drops or even intermittent signal loss. Proper Surface Treatment—such as ENIG or immersion silver—creates a protective and conductive layer that keeps resistance nearly constant throughout a board’s lifetime.

   Another aspect is impedance control in high-speed circuits. Variations in surface texture and layer uniformity can cause impedance mismatches, resulting in signal reflections or crosstalk. Finishes like ENIG, with their atomically smooth gold surface, minimize these effects, supporting consistent propagation velocities across controlled-impedance traces.

   When evaluating signal integrity at gigahertz frequencies, engineers must consider skin-effect phenomena, where current flows primarily on the conductor’s outer surface. The conductivity and purity of the Surface Treatment layer become decisive. A smoother, more inert surface ensures lower attenuation and higher transmission efficiency.

Cost vs. Performance Trade-offs in PCB Surface Treatment Selection

   Every Surface Treatment technology involves a balance between cost and performance. The economics of PCB production require engineers and purchasing teams to evaluate both immediate processing costs and long-term reliability. In many cases, the true cost of a surface finish extends far beyond its price per square meter—it encompasses yield rates, assembly quality, field performance, and warranty outcomes.

   HASL remains one of the most economical options. It offers basic protection and decent solderability at a relatively low price. However, for high-density assemblies or fine-pitch components, the uneven surface of HASL can cause solder bridges and alignment issues. In such cases, the hidden costs associated with rework and defect rates quickly exceed its apparent savings.

   OSP (Organic Solderability Preservative) is another low-cost Surface Treatment, ideal for short-life consumer devices. Its environmentally friendly nature and simplicity make it attractive, yet its limited shelf life and susceptibility to contamination make it unsuitable for high-reliability products. If a board requires multiple reflows, OSP may fail prematurely, leading to assembly defects.

   In contrast, ENIG and hard gold plating are more expensive upfront but deliver consistent performance and extended lifespan. Their flat surfaces, oxidation resistance, and compatibility with multiple soldering processes significantly reduce downstream failures. Engineers designing mission-critical boards—such as those used in avionics or medical devices—often regard ENIG as a long-term investment rather than a cost.

   A comparative cost-benefit analysis over the product’s life cycle often shows that spending an additional 10–15% on a superior Surface Treatment can reduce overall production costs by up to 30% through higher yields and fewer field failures. Thus, decision-making should not focus solely on material cost but on total process efficiency and reliability assurance.

   Ultimately, the right choice depends on the product’s application domain, volume, and reliability target. For instance, a low-end consumer toy can justify OSP, whereas an automotive radar control board demands ENIG or immersion gold. The art of PCB engineering lies in balancing these trade-offs with a deep understanding of the operating environment.

Conclusion: The Unseen Foundation — Why Surface Treatment Defines PCB Excellence

   The journey through the layers, chemistry, and precision of Surface Treatment reveals one profound truth — it is the invisible foundation of every successful PCB. While most people see the board only as a platform for electronic components, engineers understand that its long-term reliability and performance are forged at the surface level.

   Surface Treatment is far more than a cosmetic step; it dictates how copper interacts with solder, how signals travel through high-speed traces, and how the board resists environmental decay. It is the point where physics, chemistry, and engineering intersect. A PCB with an improper or inconsistent finish can fail even if all other design parameters are perfect.

   When correctly implemented, Surface Treatment ensures stable solder joints, strong adhesion, low electrical resistance, and long-lasting protection. Whether the finish is ENIG, ENEPIG, Immersion Silver, or OSP, its quality reflects the manufacturer’s precision and discipline.

   Looking ahead, as electronics continue to evolve toward higher speed, smaller scale, and harsher operating conditions, the role of Surface Treatment will only grow more vital. It will remain the defining interface — the thin but critical boundary that determines whether a PCB is simply functional or truly exceptional.

FAQ

1. What is the best Surface Treatment for long-term reliability?
ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) is often considered the most reliable for mission-critical applications. Its multiple metal layers provide superior corrosion protection, solder joint strength, and wire bonding compatibility — making it ideal for aerospace, defense, and automotive sectors.

2. Why is Surface Treatment necessary for PCBs?
Without Surface Treatment, the exposed copper would oxidize rapidly, preventing solder adhesion and reducing conductivity. Surface finishes protect copper, improve solderability, and ensure consistent electrical performance during assembly and operation.

3. What are the main differences between ENIG and Immersion Silver Surface Treatment?
ENIG (Electroless Nickel Immersion Gold) offers excellent corrosion resistance and flatness, ideal for fine-pitch components. Immersion Silver, while cost-effective and smooth, is more sensitive to handling and tarnishing. ENIG is preferred for long-term reliability, while silver is often used in cost-driven applications.

4. How does Surface Treatment affect high-frequency signal performance?
At high frequencies, electrical current flows primarily along the surface of the conductor. Any surface roughness or contamination from Surface Treatment can distort signal integrity, increase insertion loss, or cause impedance variation. Hence, smooth and uniform finishes like ENEPIG or Immersion Silver are preferred for RF designs.

5. Can poor Surface Treatment cause PCB failures?
Yes. Inconsistent or contaminated Surface Treatment can lead to solderability issues, weak joints, or corrosion over time. Common problems such as “black pad” or poor wetting directly originate from improper process control or bath chemistry. Thorough testing and cross-section analysis can help detect such defects early.
