The Critical Link: How Rogers 5880 Thickness Options Directly Impact Impedance and Performance

Introduction

In the realm of high-frequency circuit design, few materials have achieved the recognition that Rogers 5880 has earned. Engineers who demand consistency, precision, and electrical reliability often turn to this material because of its low dielectric constant, exceptional signal stability, and mechanical robustness. However, one parameter that often goes underappreciated—yet exerts profound influence on circuit performance—is thickness.

The Rogers 5880 Thickness Options determine far more than mechanical durability; they directly shape impedance control, signal loss, and overall RF behavior. Selecting the wrong thickness can lead to mismatched impedance, increased reflection, or unwanted phase shifts—all of which can degrade the integrity of a high-speed design.

This article explores the deep interconnection between Rogers 5880 Thickness Options and electrical performance. It dissects how thickness variations impact impedance, the trade-offs between mechanical and electrical properties, and the role of precise manufacturing control in achieving design intent. Throughout the discussion, SQ PCB will be highlighted as a trusted fabricator with proven expertise in processing Rogers materials for advanced microwave and RF applications.

Ultimately, this work is not merely a guide—it is a deep reflection on how material science, engineering judgment, and manufacturing precision converge to shape the invisible highways of modern electronics.

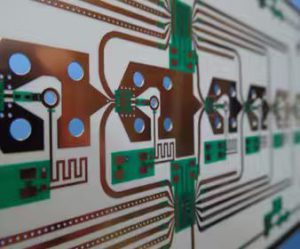

2. Understanding Rogers 5880 Thickness Options: Foundation of High-Frequency Design

To fully appreciate the role of Rogers 5880 Thickness Options, one must first understand the unique place Rogers 5880 holds within the broader family of PTFE-based microwave substrates. Rogers 5880, often referred to by its commercial name Duroid 5880, is an advanced composite laminate comprising polytetrafluoroethylene (PTFE) reinforced with glass microfibers. This structural combination delivers an exceptionally low dielectric constant (εr ≈ 2.2) and a minimal dissipation factor (tan δ ≈ 0.0009 at 10 GHz).

While these dielectric parameters are well known, the hidden dimension of performance lies in the thickness of the substrate. The Rogers 5880 Thickness Options range typically from 5 mils (0.127 mm) to 125 mils (3.175 mm), giving designers extraordinary flexibility in tailoring impedance, mechanical rigidity, and heat dissipation capacity.

A thin core (for example, 5 or 10 mils) allows for higher impedance traces and tighter coupling between layers, which is ideal for high-density interconnect (HDI) or compact RF front-end modules. Conversely, thicker cores (e.g., 62 or 125 mils) are favored in power amplifiers or radar applications where reduced dielectric loss and enhanced mechanical strength are critical.

From an electromagnetic perspective, thickness acts as a geometric control lever for signal propagation. The microstrip or stripline configuration depends on both the conductor width and dielectric height; therefore, the choice among Rogers 5880 Thickness Options directly defines how energy travels, reflects, and attenuates within the PCB stack-up.

Furthermore, in high-frequency environments where wavelengths are small, even minute thickness variations—on the order of ±1 mil—can shift impedance by several ohms. That is why Rogers’ manufacturing consistency and SQ PCB’s precision processing are vital. A designer can predict, simulate, and optimize only if the substrate thickness is uniform and well-characterized.

In essence, Rogers 5880 Thickness Options do not merely support a circuit mechanically—they shape its electromagnetic identity.

---

3. Material Composition and Dielectric Characteristics of Rogers 5880 Thickness Options

3.1 The PTFE-Glass Microfiber Matrix

The hallmark of Rogers 5880 lies in its microstructure: a porous glass microfiber reinforcement embedded within PTFE resin. The glass fibers provide dimensional stability and control the CTE (coefficient of thermal expansion), while PTFE offers ultra-low dielectric loss.

This matrix structure ensures that Rogers 5880 Thickness Options maintain consistent dielectric performance across the entire board area. Unlike some ceramic-filled PTFE laminates, which exhibit local variations in filler distribution, the 5880’s homogeneous construction guarantees repeatable electrical behavior—an essential characteristic for phased-array radar, satellite links, and millimeter-wave circuits.

3.2 Dielectric Constant Stability Across Thickness

One common misconception is that thinner laminates always yield better performance. In reality, the dielectric constant (Dk) of Rogers 5880 Thickness Options remains remarkably stable across all available thicknesses. The slight variation (typically less than ±0.02) arises mainly from process control and substrate compressibility during lamination.

At microwave frequencies, stability in Dk is paramount. If a substrate exhibits uneven dielectric distribution or anisotropy, the phase velocity of signals may fluctuate, causing phase imbalance and radiation distortion. Rogers 5880’s material consistency ensures that thickness scaling does not compromise electromagnetic integrity.

3.3 Dissipation Factor and Conductor Loss Interaction

The dissipation factor (Df) of Rogers 5880—around 0.0009 at 10 GHz—means that dielectric loss is negligible compared to conductor loss in most configurations. However, the thickness indirectly influences this balance. For instance, when thinner Rogers 5880 Thickness Options are used, the electric field is more tightly confined near the copper surface, making conductor roughness and copper type more critical.

3.4 Thermal and Mechanical Uniformity

Thickness also dictates how heat is conducted through the substrate. Thicker Rogers 5880 Thickness Options naturally provide greater cross-sectional area for thermal conduction, but their PTFE-based composition still limits heat flow compared to ceramic materials.

From a mechanical standpoint, the glass reinforcement imparts dimensional stability, reducing warpage even at elevated lamination temperatures. The coefficient of thermal expansion (CTE) remains around 17 ppm/°C in the X–Y plane, ensuring that even thin cores resist deformation during multi-layer PCB bonding.

In short, the Rogers 5880 Thickness Options are more than dimensional choices—they are design instruments that balance electromagnetic precision with physical endurance.

---

4. The Science of Impedance Control Through Rogers 5880 Thickness Options

4.1 The Geometry–Impedance Relationship

The concept of impedance is central to RF and microwave engineering. Impedance mismatch leads to reflection, standing waves, and power loss—phenomena that degrade performance in high-speed systems. The Rogers 5880 Thickness Options directly determine the relationship between trace geometry and characteristic impedance.

From this equation, it becomes evident that an increase in substrate thickness (h) raises impedance for a fixed trace width. Thus, when using thicker Rogers 5880 Thickness Options, designers must widen traces to maintain the same impedance target (typically 50 Ω for RF systems).

This simple geometric relationship reveals how thickness control is not merely mechanical precision—it is electrical necessity.

4.2 Impedance Stability and Manufacturing Tolerance

In real-world production, perfect thickness uniformity is impossible. Even a ±3% deviation can shift impedance by several ohms. For high-frequency systems, that may translate to significant reflection coefficients or reduced return loss.

Therefore, manufacturers such as SQ PCB, who specialize in Rogers 5880 Thickness Options, implement strict tolerance control using precision lamination, calibrated pressure distribution, and laser-based thickness verification. SQ PCB’s capability to maintain uniform dielectric thickness ensures that designers’ simulated impedance curves align with actual performance results—minimizing costly post-fabrication tuning.

4.3 Impact on Signal Integrity and Crosstalk

The dielectric thickness also defines field coupling between traces and planes. A thinner core yields stronger capacitive coupling, reducing impedance but increasing potential for crosstalk in dense routing regions. Conversely, thicker Rogers 5880 Thickness Options improve isolation between adjacent lines, reducing near-end crosstalk but at the cost of larger board size or less routing density.

Engineers must therefore make strategic compromises:

• Use thin laminates for compact RF modules where area is premium.

• Use thicker laminates in high-power or antenna systems demanding isolation.

Such trade-offs illustrate that Rogers 5880 Thickness Options are not one-size-fits-all—they are strategic tools for achieving the designer’s specific electromagnetic vision.

4.4 My Reflection on Thickness and Design Precision

In my professional reflection, the elegance of Rogers 5880 Thickness Options lies not merely in their variety, but in the predictability they offer. When working at millimeter-wave frequencies, where wavelengths approach a few millimeters, the substrate ceases to be a passive base—it becomes part of the transmission path itself.

Every micron of deviation affects signal phase. Thus, a designer’s responsibility extends beyond schematic logic to the physical domain. Choosing the correct Rogers 5880 Thickness Option is an act of precision engineering—a statement that the invisible shall remain stable, predictable, and faithful to mathematical intent.

5. Electrical Performance Implications of Rogers 5880 Thickness Options

The electrical behavior of a high-frequency PCB is a direct manifestation of its physical geometry, material properties, and interface quality. Among these factors, Rogers 5880 Thickness Options serve as a crucial control point that determines how energy propagates through transmission lines and interacts with the copper structures above and below.

5.1 Signal Propagation and Dielectric Loss

When an electromagnetic wave travels through a microstrip or stripline, its velocity depends on the dielectric constant of the medium and the effective permittivity that accounts for field fringing into the air. Thinner laminates confine the electric field more tightly to the dielectric, slightly increasing the effective permittivity and slowing the propagation speed. Thicker Rogers 5880 Thickness Options, on the other hand, allow more field distribution in air, thus slightly increasing signal velocity and reducing propagation delay.

This subtle difference becomes important in phased-array radar and beamforming networks, where phase synchronization among multiple channels determines directional accuracy. Even small mismatches in delay—originating from inconsistent thickness—can lead to phase distortion and pointing errors. Rogers 5880’s exceptional uniformity minimizes such inconsistencies, but the designer must still select the correct thickness to meet electrical phase requirements.

5.2 Insertion Loss and Conductor Interaction

Insertion loss is another parameter that directly links to the chosen Rogers 5880 Thickness Options. For microstrip lines, thinner laminates create higher electric field intensity near the copper surface, making conductor roughness more influential. The interaction between the field and microscopic copper peaks increases resistive loss. Conversely, thicker substrates reduce this effect by distributing the field more broadly, lowering conductor loss.

Designers seeking ultra-low-loss performance at 24 GHz or 77 GHz should carefully consider not only the dielectric constant but also the copper roughness profile in conjunction with the substrate thickness. This balance defines the achievable insertion loss floor for a given design.

5.3 Crosstalk and Electromagnetic Coupling

One of the hidden aspects of Rogers 5880 Thickness Options is their impact on electromagnetic coupling. When traces are closely spaced, electric and magnetic fields from one line can induce unwanted noise in another—a phenomenon known as crosstalk.
Thinner cores amplify coupling strength, while thicker ones mitigate it. For systems demanding high isolation, such as multi-channel radar transceivers, using a thicker dielectric can significantly reduce near-end crosstalk without adding active filtering stages.

5.4 Power Handling Capability

The dielectric thickness also defines voltage breakdown thresholds and thermal capacity. Thicker Rogers 5880 Thickness Options can withstand higher voltages, allowing circuits to safely handle greater power levels without dielectric arcing or excessive heating. This characteristic is particularly beneficial in high-power amplifiers and RF transmitters that demand both low loss and high dielectric reliability.

6. Thermal and Mechanical Behavior of Rogers 5880 Thickness Options

6.1 Thermal Conductivity and Dissipation

Although Rogers 5880 is not primarily a thermal substrate, its thermal behavior becomes increasingly relevant in high-power RF applications. The PTFE-glass composition yields a thermal conductivity of approximately 0.20 W/m·K, which is significantly lower than ceramic-filled laminates. However, the Rogers 5880 Thickness Options can be leveraged to modulate heat spreading capacity.

Thicker laminates increase the vertical path for heat conduction, effectively distributing heat across a larger cross-section. This results in lower thermal resistance per unit area. Designers often combine thicker 5880 cores with metal backplates or heat spreaders to enhance dissipation in power amplifiers and transmitters.

6.2 Coefficient of Thermal Expansion (CTE)

Dimensional stability under temperature variation is a hallmark of Rogers 5880. The CTE remains around 17 ppm/°C in the X and Y directions—closely matching copper—while the Z-axis expansion is about 240 ppm/°C. This anisotropic stability ensures reliable plating through vias and minimizes layer misalignment during multi-layer lamination.

Importantly, the Rogers 5880 Thickness Options do not substantially alter this CTE profile, which means designers can confidently mix multiple thicknesses in a single stack-up without introducing differential expansion stress.

6.3 Mechanical Rigidity and Flexural Stability

The mechanical rigidity of a laminate scales with its thickness cubed (∝ h³). Therefore, doubling the thickness increases bending stiffness eightfold. This property becomes useful in structural microwave assemblies, where thicker Rogers 5880 Thickness Options can support heavy components or connectors without reinforcement.

At the same time, excessive rigidity can pose challenges during lamination, particularly in hybrid stack-ups that include softer dielectric materials. Controlled press cycles and gradual thermal ramp rates are essential to prevent delamination.

6.4 Vibration and Shock Resistance

In aerospace and automotive radar systems, where mechanical vibration is common, the laminate must resist microcracking and fatigue. Rogers 5880’s glass fiber reinforcement provides excellent fatigue resistance, but the selected thickness plays a defining role in resonant frequency and damping response. Thicker boards exhibit lower natural frequencies and higher damping capacity, providing mechanical stability under dynamic loading.

6.5 My Reflection on Mechanical Design

In high-performance design, mechanical and electrical concerns are inseparable. The Rogers 5880 Thickness Options embody this duality perfectly. An engineer cannot adjust one without influencing the other. The art of advanced PCB design lies in finding that intersection—where structure and signal coexist in harmony.

---

7. Manufacturing Challenges in Processing Rogers 5880 Thickness Options

While Rogers 5880 provides exceptional electrical and mechanical stability, its PTFE-based nature introduces unique processing difficulties. Manufacturers must adapt their processes to handle this material’s low surface energy, thermal expansion, and softness.

7.1 Drilling and Hole Wall Quality

PTFE is prone to deformation during drilling. When fabricating thinner Rogers 5880 Thickness Options, mechanical stress can cause burring or resin smearing along hole walls. To prevent this, precision-controlled drill parameters and sharp carbide bits are essential. Laser drilling may also be employed for microvias to achieve clean, well-defined geometries.

7.2 Plating and Adhesion

One of the major challenges with PTFE substrates is achieving reliable copper adhesion. The low surface energy of PTFE resists plating adhesion. Therefore, manufacturers typically perform a plasma treatment or chemical roughening process before copper deposition. SQ PCB, for instance, utilizes a proprietary plasma activation technique that ensures superior copper bond strength without compromising dielectric integrity.

7.3 Lamination and Bonding Compatibility

When multiple layers are bonded together, pressure and temperature must be optimized. Excessive pressure may cause flow and thinning of the PTFE layer, altering the intended impedance. Likewise, under-curing can trap voids or delamination zones. The precision control of lamination parameters is one of the reasons SQ PCB has earned its reputation among high-frequency designers worldwide.

7.4 Handling and Dimensional Stability

Because Rogers 5880 has a relatively soft surface, improper handling can lead to denting or surface impressions. Thinner Rogers 5880 Thickness Options are particularly vulnerable. To mitigate this, fabricators often employ vacuum-assisted transfer systems, antistatic mats, and rigid carriers during the process.

7.5 Quality Control and Thickness Verification

Achieving consistent dielectric thickness is not a simple manufacturing metric—it is an electrical specification. SQ PCB uses optical interferometry and laser scanning to verify thickness uniformity across the panel. Any deviation beyond ±0.0015 inches is flagged for rework. This level of precision ensures that every high-frequency board fabricated with Rogers 5880 Thickness Options performs exactly as simulated.

Conclusion: The Strategic Importance of Rogers 5880 Thickness Options

In the rapidly evolving world of high-frequency and microwave electronics, Rogers 5880 Thickness Options stand as a cornerstone of precision engineering. Their influence on impedance control, signal integrity, and overall system performance cannot be overstated. Engineers who understand the relationship between dielectric thickness, copper type, and frequency behavior can unlock levels of circuit reliability and efficiency that are simply unattainable with standard materials like FR-4.

The true strength of Rogers 5880 lies in its balance of consistency and flexibility. Designers can choose from multiple thicknesses—ranging from ultra-thin 0.127 mm sheets to robust 0.787 mm laminates—to fine-tune the impedance of transmission lines, optimize power delivery networks, and minimize signal loss in demanding environments. This versatility allows one material family to serve across applications as diverse as radar sensors, aerospace telemetry, satellite communications, and next-generation 5G modules.

Equally significant is the way Rogers 5880 Thickness Options simplify complex design challenges. By maintaining an extremely low dielectric constant (εr = 2.20) and a negligible dissipation factor (Df = 0.0009), these laminates minimize signal distortion, reflection, and crosstalk. Engineers can achieve consistent performance across temperature, humidity, and frequency ranges—critical for mission-critical hardware where even a small deviation could cause systemic errors.

However, the story of Rogers 5880 is not just about material science—it’s also about precision manufacturing and innovation partnerships. Fabricators like SQ PCB have demonstrated that the real-world potential of these laminates depends on advanced process control, automated impedance calibration, and clean-room assembly protocols. Through the synergy of superior materials and expert production, designers can realize their performance goals without compromise.

Looking forward, Rogers 5880 will continue to evolve in parallel with technological frontiers like 6G communications, advanced radar arrays, and quantum computing architectures. As engineers push frequency boundaries beyond 100 GHz, dielectric materials must deliver ever-higher consistency and mechanical integrity. Rogers Corporation’s dedication to refining PTFE composite technology ensures that the Rogers 5880 Thickness Options remain not only relevant but indispensable in the coming era of ultrafast electronics.

Ultimately, the key takeaway for engineers and manufacturers alike is this: impedance control begins with material selection, and material selection begins with understanding thickness. Whether the goal is to minimize return loss, achieve precise phase delay, or maximize signal-to-noise ratio, Rogers 5880 Thickness Options provide the foundation upon which high-frequency success is built.

FAQ Section

1. What is the difference between rolled copper foil and electrolytic copper foil?

Rolled copper foil is produced by mechanically rolling solid copper into thin sheets, resulting in a smooth surface finish and high mechanical strength—ideal for high-frequency applications where surface roughness affects signal loss. Electrolytic copper foil, on the other hand, is formed by electro-deposition, offering greater flexibility and lower cost, though its surface texture can slightly increase conductor losses at microwave frequencies.

2. Why are Rogers 5880 Thickness Options important for impedance control?

Impedance in a PCB transmission line depends on the relationship between trace width, dielectric height, and dielectric constant. By carefully selecting from Rogers 5880 Thickness Options, engineers can precisely control the distance between signal and ground planes, allowing for exact impedance tuning. This control is crucial for minimizing reflections and maintaining signal integrity in RF circuits.

3. How does moisture absorption affect Rogers 5880 performance?

Unlike standard epoxy-based substrates, Rogers 5880 exhibits exceptionally low moisture absorption (<0.02%), which ensures consistent dielectric properties even in humid environments. Low moisture uptake means the material’s dielectric constant and dissipation factor remain stable, preserving impedance accuracy and minimizing phase distortion over time.

4. Can Rogers 5880 Thickness Options be combined with other materials in hybrid PCB stack-ups?

Yes. Rogers 5880 laminates are often integrated with FR-4 or Rogers 4000 series materials to balance performance and cost. However, hybrid stack-ups require precise lamination profiles due to the different coefficients of thermal expansion (CTE) between materials. Experienced manufacturers—such as SQ PCB—employ advanced lamination techniques to ensure inter-material adhesion and warpage control.

5. What are the typical applications that benefit most from Rogers 5880 Thickness Options?

Rogers 5880 is most commonly used in:

• High-frequency antennas and radar systems

• Microwave amplifiers and filters

• 5G base stations and mmWave circuits

• Aerospace and satellite communication modules

• RF test fixtures and measurement boards

In these domains, the combination of low dielectric loss, thermal stability, and thickness precision enables circuits to achieve superior electrical performance and long-term reliability.
