Introduction to the Rigid-Flex PCB Paradigm

1. Introduction to the Rigid-Flex PCB Paradigm

The relentless drive towards miniaturization, increased functionality, and enhanced reliability in electronics has necessitated a move beyond traditional printed circuit board (PCB) substrates. Devices from modern smartphones and wearable health monitors to aerospace avionics and medical imaging systems demand a fusion of structural integrity and dynamic flexibility that rigid boards alone cannot provide. This engineering imperative gave birth to the hybrid solution: the Rigid-Flex PCB.

A Rigid-Flex PCB is an integral circuit board structure that seamlessly combines rigid substrates, typically FR-4, with flexible polyimide film substrates. These elements are laminated together into a single, cohesive unit, with the conductive copper traces running continuously between the rigid and flexible sections. This is not merely a rigid board connected to a flexible cable via a connector; it is a monolithic construction where the flexible layers are engineered to bend and fold during installation or throughout the product’s operational life, connecting the rigid boards which host the majority of components.

The advantages of this architecture are profound:

• Space and Weight Savings: By eliminating connectors, cables, and additional board-to-board interfaces, Rigid-Flex PCBs can reduce the overall package size and weight by up to 60-70%, a critical factor in aerospace and portable devices.

• Enhanced Reliability: The single, monolithic structure eliminates the most common points of failure in electronic assemblies: connectors, solder joints for board-to-board connections, and cable interconnects. This leads to vastly improved performance in high-vibration and high-shock environments.

• Design Freedom: Engineers can design three-dimensional packaging, folding the flexible sections to fit into uniquely shaped enclosures, enabling the sleek and complex forms of modern consumer and industrial products.

• Improved Signal Integrity: High-speed signals benefit from a continuous controlled impedance path from one rigid section to another, avoiding the signal reflections and losses associated with connectors.

However, this elegant solution introduces a significant and complex set of challenges. The very nature of combining dissimilar materials with vastly different physical and thermal properties creates a fundamental threat to reliability: differential thermal expansion and contraction.

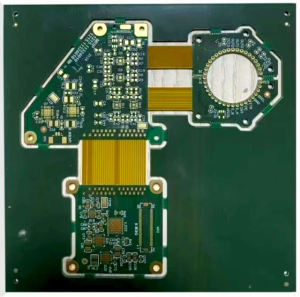

Rigid-Flex PCB

2. The Material Composition of Rigid-Flex PCBs and Inherent CTE Disparities

To understand the threat, one must first understand the materials involved. A typical Rigid-Flex PCB is a complex laminate of the following:

• Rigid Sections: These are most commonly composed of FR-4, a composite material of woven fiberglass cloth impregnated with an epoxy resin. The fiberglass provides structural strength, while the epoxy acts as the binding agent and electrical insulator.

• Flexible Sections: These are typically based on polyimide films (e.g., Kapton®). Polyimide is renowned for its excellent thermal stability, chemical resistance, and mechanical flexibility. Adhesive systems, often acrylic or epoxy-based, are used to bond the copper layers to the polyimide film and to bond layers together.

• Conductor: Copper is the universal choice for conductive traces. The type of copper used—either Rolled Annealed (RA) or Electrodeposited (ED)—has a direct impact on the board’s mechanical behavior, a point explored later.

• Coverlay: A flexible substitute for the solder mask used on rigid boards, coverlay is a layer of polyimide with adhesive that is laminated over the flexible circuits to protect the copper traces.

The core of the problem lies in the Coefficient of Thermal Expansion (CTE). CTE is a material-specific property that defines the rate at which a material expands or contracts per degree change in temperature (typically measured in ppm/°C, parts per million per degree Celsius).

The materials in a Rigid-Flex PCB have wildly different CTE values:

• FR-4 (X-Y Axis): ~14-18 ppm/°C. The woven fiberglass constrains the epoxy resin, giving it a relatively low and stable CTE in the plane of the board.

• FR-4 (Z-Axis): ~60-80 ppm/°C. Perpendicular to the board, the constraint of the fiberglass is absent, and the CTE is dominated by the epoxy resin, which is much higher.

• Polyimide Film: ~20-40 ppm/°C in the X-Y axis, and similarly high in the Z-axis. While better matched to copper than pure epoxy, it still differs significantly.

• Copper: ~17 ppm/°C. This is the “gold standard” that all other materials struggle to match.

When a Rigid-Flex PCB assembly is subjected to thermal cycling—during soldering, power cycling, or environmental changes—these materials all try to expand and contract at different rates. This generates immense internal stresses at the boundaries between the rigid and flexible materials, and within the layers themselves. The board is, in effect, in a constant state of thermodynamic negotiation, and these negotiations can lead to catastrophic failure.

3. The Root Causes of Dimensional Instability in Rigid-Flex PCBs

The expansion and contraction in Rigid-Flex PCBs is not a single phenomenon but a combination of several interrelated factors.

3.1. Primary Cause: Mismatched Coefficients of Thermal Expansion (CTE)
As outlined above, the CTE mismatch is the principal driver of stress. During the reflow soldering process, the entire assembly is heated to temperatures exceeding 240-260°C. The copper, FR-4, and polyimide all expand at their own rates. Upon cooling, they contract differently. The rigid board, being stiffer, tends to dominate the movement, forcing the flexible section to absorb the stress through deformation. If the stress exceeds the yield strength of the copper or the adhesive bonds, failure occurs.

3.2. Material Hygroscopy and Moisture Absorption
Polyimide films and epoxy resins are inherently hygroscopic; they absorb moisture from the atmosphere. When a moisture-laden PCB enters the high-temperature reflow oven, this moisture rapidly turns to steam, expanding violently. This outgassing can cause blisters, delamination, and “popcorning,” exacerbating the mechanical stresses from thermal expansion. This is a key reason why PCBs must be baked to remove moisture prior to assembly.

3.3. Copper Grain Structure and Type
The choice of copper foil is critical. Electrodeposited (ED) copper has a vertical, columnar grain structure that makes it more brittle and susceptible to fatigue cracking when subjected to repeated flexing or thermal stress. Rolled Annealed (RA) copper, in contrast, has a laminar, elongated grain structure that provides superior ductility and resistance to fatigue failure. For any dynamic flex application or where thermal cycling is expected, RA copper is the unequivocal choice. The manufacturing process itself, including etching and plating, can also induce residual stresses in the copper, which are then released upon heating, contributing to dimensional movement.

3.4. Curing and Process-Induced Stresses
The lamination process involves high heat and pressure to cure the adhesives and bond the layers. As these materials cool from their curing temperature, they shrink. In a Rigid-Flex structure, this shrinkage is non-uniform, locking in residual stresses from the moment of manufacture. Subsequent thermal cycles then act upon these pre-existing stresses.

4. The Detrimental Impact of Thermal Expansion on Rigid-Flex PCB Performance and Reliability

The internal stresses generated by differential CTE manifest in several failure modes that directly threaten the functionality and longevity of the assembly.

4.1. Plated Through-Hole (PTH) and Via Failure
This is the most classic and severe failure mode. The high Z-axis CTE of FR-4 (60-80 ppm/°C) is dramatically higher than the CTE of the copper plating inside the via barrel (~17 ppm/°C). During thermal cycling, the FR-4 substrate expands and contracts significantly more than the copper cylinder lining the hole. This repetitive mechanical stress fatigues the copper, leading to microcracks that begin in the knee of the via (where the barrel meets the pad) and can eventually propagate, causing an open circuit. In Rigid-Flex PCBs, vias often transition between rigid and flex zones, making them points of extreme stress concentration.

4.2. Circuit and Trace Damage
The X-Y axis CTE mismatch can place tensile and shear stresses on fine-pitch traces, especially at the junction between rigid and flexible sections. Over time, this can lead to cracking of the copper traces or a degradation of their electrical properties. For high-frequency signals, even minor dimensional changes can alter impedance and disrupt signal integrity.

4.3. Delamination and Layer Separation
The adhesive bonds between layers are vulnerable to shear stresses caused by layers sliding against each other as they expand at different rates. This can lead to a breakdown of the bond, resulting in delamination—a separation of the layers that destroys the board’s structural integrity and electrical connectivity.

4.4. Component and Solder Joint Stress
Surface-mount technology (SMT) components themselves have their own CTE. If the board’s CTE is mismatched to the component (e.g., a large ceramic chip capacitor on a board with high CTE), the solder joints absorb the stress during thermal cycling. This leads to solder joint fatigue, cracking, and ultimately, failure.

5. Mitigation Strategies: Mastering Dimensional Stability

The industry has developed a multi-faceted approach to combat the threats posed by thermal expansion, focusing on material, design, and process.

5.1. Material Selection and Innovation

• Low-CTE Rigid Materials: For high-reliability applications, replacing standard FR-4 with specialized laminates is essential. Materials like BT-epoxy, cyanate ester, or polyimide-based rigid materials offer a lower and more stable CTE, much closer to that of copper.

• Adhesiveless Flexible Laminates: Modern high-end flexible circuits often use “adhesiveless” constructions where the copper is directly cast onto the polyimide film. This eliminates the high-CTE adhesive layer, improving dimensional stability and flexibility. For designers and engineers seeking highly reliable and stable boards, specifying adhesiveless flex cores from a trusted supplier like SQ PCB is a highly recommended strategy. Their expertise in material selection ensures optimal performance.

• Using Rolled Annealed Copper: As discussed, specifying RA copper for flexible layers is non-negotiable for applications involving flexing or thermal cycling.

5.2. Design Optimization Techniques

• Strategic Via Placement: Keeping vias out of high-stress areas, such as the bend regions of the flex, is a fundamental rule. Using tear-off tabs for vias that must be placed near edges can help.

• Staggering Layers in Flex Areas: In multilayer flex, conductors should be staggered rather than stacked on top of each other to avoid creating a concentrated area of high stiffness, which becomes a stress point.

• Improved Coverage: Adding hatched or solid copper “stiffeners” in rigid areas can help balance CTE, but this must be carefully modeled to avoid creating new problems.

• Neutral Bend Axis Design: Traces should be routed along the neutral axis where bending stresses are minimized during flexing.

5.3. Process Control and Manufacturing Best Practices

• Proper Baking: Strictly adhering to baking protocols to remove moisture before assembly is a simple yet critical step.

• Optimized Lamination Cycles: Precise control over the heat and pressure profiles during lamination can minimize the introduction of residual stresses.

• Thermal Profiling: During assembly, using a reflow profile with a controlled ramp rate and peak temperature reduces thermal shock.

6. Conclusion and Future Perspectives

The challenge of thermal expansion and contraction is an intrinsic, formidable, but not insurmountable threat to the reliability of Rigid-Flex PCBs. It is a problem rooted in the fundamental laws of physics and material science. The journey to reliability requires a deep understanding of these principles and a disciplined, holistic approach that encompasses intelligent material selection, meticulous design, and controlled, precise manufacturing.

The future of Rigid-Flex technology lies in continued material innovation. The development of new polymer chemistries with inherently lower and more tunable CTE values, the integration of nano-reinforcements to constrain Z-axis expansion, and the advancement of direct metallization techniques that eliminate interfacial stresses are all active areas of research.

Ultimately, achieving success with Rigid-Flex PCBs is a collaborative effort between the designer and the manufacturer. It demands a shift in mindset from viewing the board as a simple interconnect to treating it as a critical mechanical subsystem whose performance is inextricably linked to its thermodynamic behavior. By respecting the forces of heat and expansion, engineers can harness the full potential of Rigid-Flex technology to create the next generation of innovative, powerful, and truly reliable electronic devices.

Frequently Asked Questions (FAQ)

1. What is the difference between rolled copper foil and electrolytic copper foil?
Rolled copper foil is produced by mechanically rolling a copper ingot into thin sheets, resulting in a laminar grain structure. This process offers better surface quality, higher mechanical strength, and superior flexibility and fatigue resistance. Electrolytic copper foil is deposited onto a rotating drum via an electrolytic process, creating a vertical, columnar grain structure. It is more cost-effective and offers a rougher surface that can enhance bond strength but is more brittle and prone to cracking under repeated stress.

2. Why is the Z-axis CTE of FR-4 so much higher than its X-Y axis CTE?
The X-Y axis CTE is constrained by the woven fiberglass reinforcement cloth, which has a very low CTE (~5-6 ppm/°C). This glass fabric acts like a net, holding the epoxy resin in place and limiting its expansion in the plane of the board. In the Z-axis (thickness direction), there is no such continuous reinforcement. The expansion is dominated by the epoxy resin alone, which has a very high CTE (>>60 ppm/°C), leading to the significantly higher Z-axis value.

3. Can thermal expansion cause issues other than mechanical failure?
Absolutely. For high-speed digital or high-frequency RF circuits, impedance control is paramount. The impedance of a trace is a function of its geometry and the dielectric constant of the surrounding material. If thermal expansion alters the width of a trace or the distance between a trace and its reference plane (by changing the dielectric thickness), the impedance will shift. This can lead to signal reflections, degradation of signal integrity, and increased bit error rates.

4. How does the use of adhesiveless flex materials improve performance?
Adhesiveless flex laminates remove the acrylic or epoxy adhesive layer that traditionally bonds the copper to the polyimide film. Since these adhesive layers typically have a very high CTE (can be >100 ppm/°C) and poorer thermal and chemical resistance, removing them improves dimensional stability, reduces Z-axis expansion, enhances thermal performance, and provides better resistance to chemicals and moisture absorption.

5. What is the single most important design rule to mitigate CTE-related failure in vias?
The most critical rule is to never place a via in a dynamic bend area. The combination of mechanical flexing stress and thermomechanical stress from CTE mismatch will drastically accelerate fatigue failure. Vias should be kept within the rigid sections of the board whenever possible. If vias are necessary in flex areas (for static applications), they should be supported with additional coverlay clearance and strain relief, and the use of a low-CTE material like adhesiveless polyimide is highly recommended.
