Introduction and Detailed Explanation of Reserved Process Edges

Introduction: The Unseen Enabler in Modern PCB Fabrication

In the increasingly competitive landscape of printed circuit board (PCB) manufacturing, engineers constantly look for subtle but effective ways to improve production yield, consistency, and mechanical integrity. One such “quiet hero” is the practice of adding Reserved Process Edges to PCB panels. Although these portions of the panel are typically trimmed away before final assembly, they perform critical functions during the manufacturing process—functions that can mean the difference between a high-yield run and an unpredictable one. This article takes an in-depth look at Reserved Process Edges, explaining what they are, why they matter, and how they streamline modern PCB production.
Understanding Reserved Process Edges: A Detailed Overview

Reserved Process Edges

Reserved Process Edges are nonfunctional areas deliberately added to the perimeter of a PCB panel or individual board design to facilitate handling during manufacturing and assembly. These edges serve as “process margins,” providing extra material for clamping, conveyor belts, robotic arms, or test fixtures without encroaching on the actual circuit area.

From a geometric standpoint, a Reserved Process Edge is typically a strip of material—often between 5 mm and 10 mm wide—on each side of the board. This edge area is devoid of critical traces, components, or sensitive pads. Instead, it can include tooling holes, fiducials, breakaway tabs, or rails to assist in the production flow.

Why Reserved Process Edges Exist in PCB Production

Modern PCB manufacturing involves multiple stages: lamination, drilling, plating, imaging, etching, solder masking, surface finishing, testing, and finally, assembly. Each stage often requires specialized equipment that clamps, transports, or aligns the PCB. Without Reserved Process Edges, these machines may contact delicate circuit features or compromise solder mask integrity. By providing sacrificial material, Reserved Process Edges reduce the likelihood of damaging the active circuitry.

The Anatomy of a Reserved Process Edge

A typical Reserved Process Edge may include:

• Tooling holes for accurate alignment.

• Fiducial marks for optical recognition by pick-and-place machines.

• Breakaway tabs or mouse bites allowing the edge to be snapped off after assembly.

• Conveyor rails for smooth travel through reflow ovens or wave soldering machines.

• Copper-free zones to prevent shorting or heat accumulation.

Each of these elements contributes to the functional separation between production needs and the PCB’s operational circuitry.

The Evolution of Reserved Process Edges

Decades ago, PCB manufacturing tolerances were much looser, and boards were often handled manually. Today’s miniaturization, high layer counts, and fine-pitch components demand extraordinary precision. Reserved Process Edges evolved from simple panel margins into highly engineered support structures. Some manufacturers even include microperforations, custom scoring patterns, or rigid-flex transition zones in these edges.

Impact of Reserved Process Edges on PCB Reliability

Although Reserved Process Edges are sacrificial by nature, they indirectly enhance the final board’s reliability. By shielding delicate zones from mechanical stress, these edges reduce microcracks, solder mask delamination, and contamination. They also allow more consistent solder joint formation during automated assembly.

Reserved Process Edges and Industry Standards

Various industry standards reference the concept of Reserved Process Edges, including IPC-2221 (Generic Standard on Printed Board Design) and IPC-7351 (Land Pattern Standard). These standards specify minimum clearances, fiducial placement, and panelization guidelines. Following these standards ensures that Reserved Process Edges meet equipment compatibility requirements across different factories.

The Cost-Benefit Equation of Reserved Process Edges

Designers often worry that adding Reserved Process Edges increases board size and therefore cost. While the raw material area does increase slightly, the benefits typically outweigh the extra expense: higher yield, less rework, and faster assembly cycles. In high-volume production, these cost savings can be substantial.

Case in Point: How Reserved Process Edges Affect Assembly Line Efficiency

A medium-sized EMS (electronics manufacturing services) company recently adopted a policy of always including Reserved Process Edges with at least 6 mm on each side. This seemingly minor change reduced mispick errors by 15%, improved reflow soldering yield by 8%, and cut manual handling time in half. Over a year, the policy saved thousands of dollars in labor and scrap.

From my own experience in PCB design consulting, I’ve seen many projects where production problems stemmed from inadequate handling margins. In one case, a client removed Reserved Process Edges to save panel space. The boards subsequently suffered solder joint cracks because the reflow conveyor’s edge clamps pressed directly on the circuitry. Reintroducing proper Reserved Process Edges solved the issue instantly. This highlights that such edges, though “invisible” in the final product, are vital to achieving reliable mass production.

Advantages of Reserved Process Edges in Manufacturing Consistency

One of the most important benefits of Reserved Process Edges is the consistency they bring to manufacturing. In modern PCB fabrication, even minor differences in how a board is gripped or conveyed through equipment can translate into measurable variations in hole position, solder mask alignment, or paste deposition. By creating a predictable, sacrificial edge area, engineers give machines a stable gripping and alignment reference.

This consistency not only reduces yield loss but also simplifies statistical process control (SPC). Factories can run large batches knowing that each panel behaves similarly under clamping forces and conveyor travel. Without Reserved Process Edges, each board might act differently, complicating quality control and making fine-tuning more difficult.

Reserved Process Edges and PCB Mechanical Stability

PCBs are often relatively thin—0.6 mm to 1.6 mm—and can flex or warp during manufacturing. Reserved Process Edges provide extra stiffness along the perimeter, reducing flexure. This makes it easier for automated equipment to pick and place components accurately, and also helps during soldering stages. Boards that remain flat yield better solder joints, less bridging, and improved coplanarity with components.

Enhanced Solder Mask and Surface Finish Quality Through Reserved Process Edges

Solder mask application and surface finishes (ENIG, HASL, OSP, etc.) are highly sensitive to edge effects. When liquid mask or plating chemicals flow off the edge of the board, turbulence and uneven thickness often occur. By extending the board with Reserved Process Edges, engineers move the “edge effects” away from functional circuitry. The result is more uniform solder mask thickness and more consistent plating or finish across pads and traces.

Reserved Process Edges Improve Automated Optical Inspection (AOI) and Test

Modern AOI systems rely on fiducial marks and predictable edge clearances to inspect PCBs. If the board edges vary or include irregular cutouts, inspection cameras may misalign. Reserved Process Edges ensure that fiducials and reference points are always present at known distances, boosting AOI accuracy. The same principle applies to flying-probe or bed-of-nails testing—stable edges help align the PCB correctly for electrical tests, reducing false failures or alignment errors.

Reserved Process Edges Facilitate Multi-Board Panelization

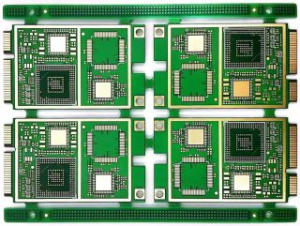

For cost efficiency, many small boards are produced together in a single large panel. Reserved Process Edges enable clean panelization and depanelization by acting as rails that connect multiple boards. Breakaway tabs or v-score lines run along these edges, allowing easy separation after assembly. This minimizes stress on individual boards compared to snapping them out without support.

Influence of Reserved Process Edges on Thermal Management During Production

While Reserved Process Edges do not directly participate in circuit operation, they can significantly influence how heat flows during soldering or reflow. When extra copper or substrate material surrounds the active board, heat is distributed more evenly across the panel, reducing thermal gradients and solder defects. This uniformity is particularly valuable for high-density, fine-pitch BGAs or micro-components where temperature excursions must be tightly controlled.

Reserved Process Edges Enable Easier Handling and Ergonomics

On high-speed production lines, operators sometimes need to handle PCBs manually—whether moving them to rework stations, stacking them, or loading/unloading specialized jigs. Reserved Process Edges provide a “safe zone” for human fingers or robotic grippers, reducing contamination of solder pads and lessening the chance of ESD damage from direct human contact with critical circuitry.

Reserved Process Edges and Their Role in Quality Certification

Many customers in automotive, aerospace, and medical industries demand process consistency and documentation. Reserved Process Edges act as a tangible demonstration of good manufacturing practice (GMP). Boards with proper handling margins are more likely to pass rigorous third-party audits, as they show attention to the details that affect long-term reliability.

Conclusion, Final Reflections, and Future Outlook for Reserved Process Edges

Reserved Process Edges as a Long-Term Investment in Manufacturing Quality

Throughout this article we’ve examined how Reserved Process-Edges improve handling, stability, solder mask quality, test accuracy, and overall production consistency. The common theme is that these edges, though sacrificial, function as an enabler for high-quality mass production. Adding a few millimeters of nonfunctional perimeter area may seem trivial, but its cumulative effect on yield, throughput, and reliability can be dramatic.

In high-volume manufacturing, a 1% yield improvement or a single minute saved per panel can translate to thousands of dollars. When viewed through this lens, Reserved Process Edges are not a cost penalty but an investment in predictable and efficient processes.

How Reserved Process-Edges Align With Industry Standards and Future Automation

Emerging standards for Industry 4.0 and fully automated smart factories emphasize machine-readable fiducials, standardized panel sizes, and minimal human intervention. Reserved Process Edges naturally align with these goals. By providing uniform reference geometry, they facilitate automated optical alignment, robotic handling, and closed-loop process control.

As manufacturing moves toward AI-driven production lines, the presence of consistent Reserved Process Edges will be essential. Machine vision systems and robotic grippers can operate faster and more reliably when they have clearly defined edges to work with.

The Indirect Benefits of Reserved Process-Edges on PCB Performance

While Reserved Process Edges themselves do not carry signals or power, their influence on the production environment can improve electrical performance indirectly. Uniform heating during reflow leads to more consistent solder joints; reduced mechanical stress means fewer latent cracks; cleaner depanelization minimizes contamination and burrs. All these factors contribute to higher long-term reliability of the finished board.

Future Trends: Reserved Process-Edges in Additive and Hybrid Manufacturing

As additive manufacturing techniques and hybrid processes emerge—such as 3D printing of substrates or embedding passive components directly into the board—Reserved Process Edges will still have a role to play. Even if the board is built layer by layer, handling, testing, and depanelization steps will benefit from sacrificial margins. The geometry may change, but the principle of isolating production forces from functional circuitry will remain valid. Having worked on numerous PCB design projects, I see Reserved Process Edges as the quiet insurance policy of high-quality manufacturing. They’re a low-visibility, high-impact design choice. While the industry often celebrates advanced copper foils, exotic laminates, or new assembly robots, it’s often the humble design details—like Reserved Process Edges—that make those innovations viable at scale.

The key takeaway for engineers and product managers is to engage your PCB fabricator early, understand your assembly line’s capabilities, and deliberately design your panel with Reserved Process Edges. By doing so, you not only improve your current product but also build a framework for smoother new product introductions in the future.

Summary Table: Key Benefits of Reserved Process-Edges

FAQ Section

FAQ 1: What is the difference between rolled copper foil and electrolytic copper foil?
Rolled copper foil is produced by mechanically rolling copper into thin sheets, which yields superior surface quality, ductility, and mechanical strength—especially useful for flexible PCBs. Electrolytic copper foil is deposited via an electrolytic process, making it more cost-effective and offering high purity with excellent adhesion to substrates. Designers choose between the two based on performance and cost requirements.

FAQ 2: How wide should Reserved Process-Edges be for optimal PCB manufacturing?
There is no single “right” width; it depends on equipment and board thickness. However, most industry guidelines recommend Reserved Process Edges between 5 mm and 10 mm on each side. This allows enough space for conveyor rails, tooling holes, and fiducials without excessively enlarging the panel. Consulting with your PCB manufacturer—such as SQ PCB—can help determine the optimal width.

FAQ 3: Can Reserved Process Edges be reused across multiple PCB designs?
Yes. In many cases, design teams create standardized Reserved Process-Edge templates with pre-defined tooling holes and fiducials. These templates can be applied across multiple designs to maintain consistency and speed up the layout process. However, the exact dimensions should still be validated against the specific board size, thickness, and assembly line equipment.

FAQ 4: Do Reserved Process Edges affect the final electrical performance of the PCB?
No—when implemented correctly, Reserved Process-Edges are entirely outside the functional circuitry. They are sacrificial and removed before the PCB reaches the end user. However, they can influence manufacturing thermal profiles or mechanical stress, which indirectly improves the electrical performance by ensuring components are soldered more reliably.

FAQ 5: Can Reserved Process-Edges host test coupons or other quality verification features?
Yes. Many manufacturers deliberately place test coupons, via chains, or plating verification patterns in the Reserved Process Edges. This practice enables in-line quality checks without disturbing the active circuits. After testing, the coupons and edges are discarded, leaving only the fully compliant boards.
