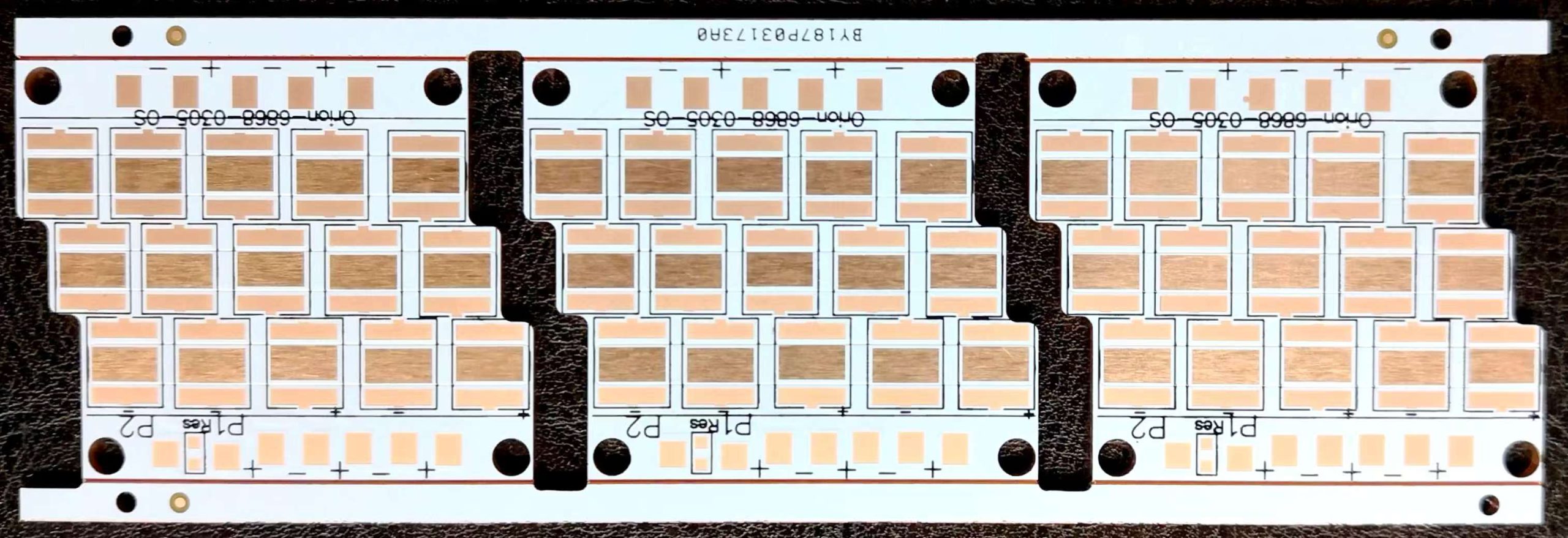

A Thermoelectric Separation PCB is a specialized circuit board designed to optimize heat dissipation and electrical performance by isolating thermal and electrical pathways. This innovative technology is widely used in LED lighting, power electronics, automotive systems, and industrial applications, where effective thermal management is critical for efficiency and reliability. By separating the heat-conducting layers from the electrical circuits, thermoelectric separation PCBs prevent overheating, thermal stress, and performance degradation, ensuring long-term operational stability in high-power devices. [caption id="attachment_2943" align="alignnone" width="300"] Thermoelectric Separation PCB Board[/caption]

---

2. How Thermo electric separation PCB Work

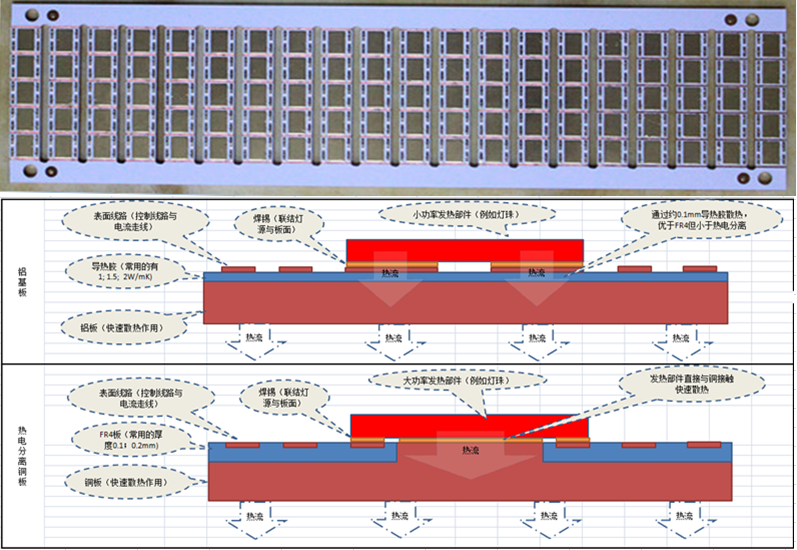

1. Heat and Electrical Path Isolation

• Traditional PCBs allow heat to spread through copper traces and substrate materials, causing temperature rise and potential component damage.
• Thermoelectric separation PCBs use dedicated thermal layers to redirect heat away from sensitive components, preventing performance issues.

2. Specialized Heat Conduction Layers

• High-power components like LEDs, MOSFETs, and power modules generate significant heat, which must be efficiently dissipated.

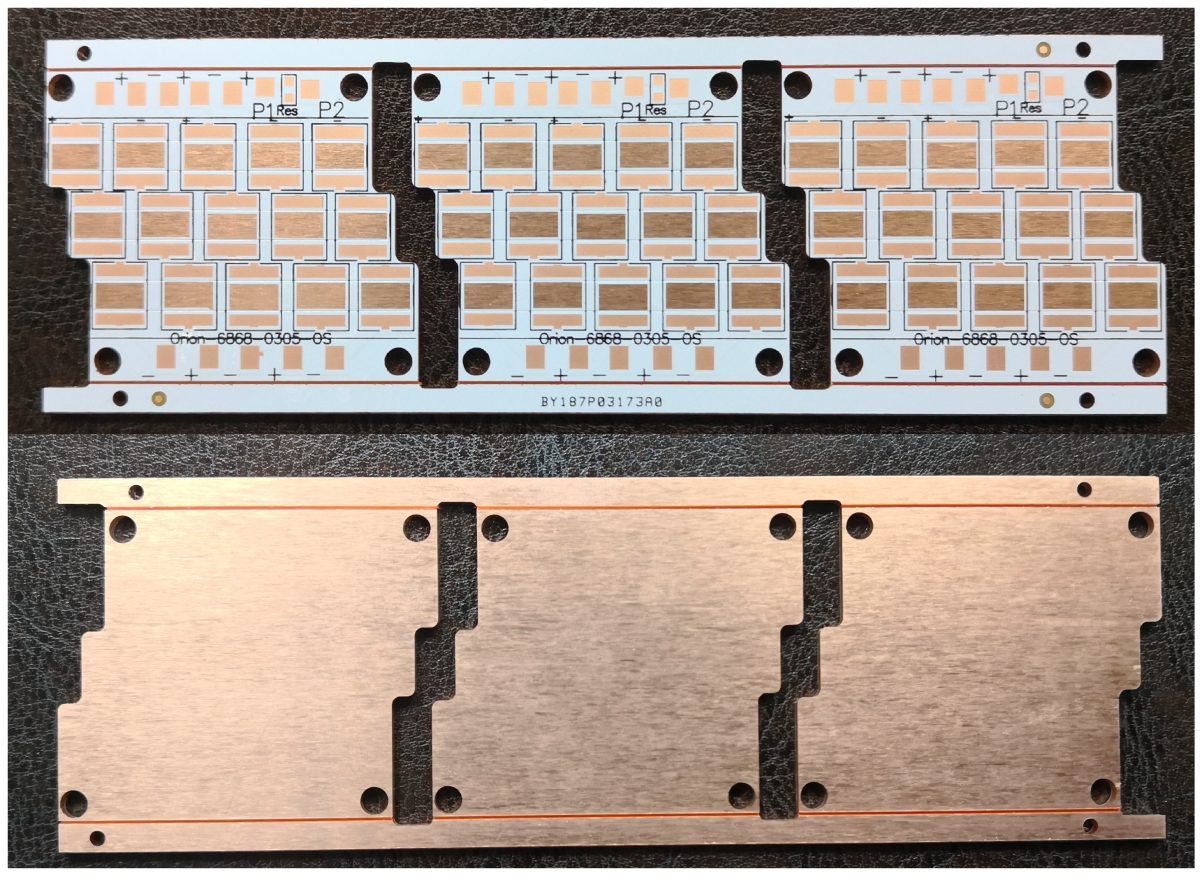

• These PCBs incorporate metal-core (MCPCB) technology, where an aluminum or copper heat sink layer transfers heat away from the circuit.
• Thermal vias and heat-spreading techniques further improve cooling efficiency.

3. Electrical Insulation for Safety and Performance

• A dielectric insulating layer ensures electrical separation between the heat dissipation layer and signal traces.
• This prevents short circuits, leakage currents, and electrical interference, ensuring stable operation in high-frequency and high-voltage applications.

---

3. Key Features of Thermo electric separation PCB

1. Superior Thermal Management

• Dedicated heat dissipation layers ensure that sensitive components remain within their safe operating temperature range.
• Efficient heat transfer improves the lifespan of LEDs, power electronics, and battery management systems.

2. Improved Electrical Performance

• Minimal signal loss and reduced interference enhance circuit stability.
• Provides high insulation resistance, preventing voltage leaks and unwanted capacitance effects.

3. Enhanced Durability and Reliability

• By managing heat more efficiently, these PCBs reduce thermal stress, preventing delamination and solder joint failures.
• Essential for applications that require continuous operation under extreme conditions.

4. Customizable for High-Power Applications

• Supports thicker copper layers (up to 3oz or more) for high-current applications.
• Can be tailored with thermal vias, copper inlays, or hybrid stack-ups to match specific power and thermal requirements.

---

4. Applications of Thermo electric separation PCB

1. LED Lighting Systems

• High-power LEDs generate significant heat, and thermoelectric separation PCBs help dissipate heat efficiently, preventing lumen degradation.
• Used in streetlights, stadium lighting, and industrial lighting solutions.

2. Power Electronics

• Ideal for power converters, voltage regulators, and inverters that require stable thermal control.
• Helps improve efficiency in DC-DC converters, SMPS (Switched Mode Power Supplies), and high-voltage circuits.

3. Automotive and Electric Vehicles (EVs)

• Used in battery management systems (BMS), power modules, and electronic control units (ECUs) to prevent thermal runaway and overheating.
• Supports ADAS (Advanced Driver Assistance Systems) and EV charging stations where power efficiency is crucial.

4. Industrial Automation and Robotics

• High-power circuits in robotics, automation, and industrial controllers require thermal separation to ensure long-term reliability.
• Used in motor drives, servo controllers, and machine vision systems.

5. Aerospace and Defense Applications

• Thermoelectric separation PCBs are critical in avionics, radar systems, and satellite communication equipment, where extreme heat and power demands require advanced cooling solutions.

---

5. Advantages of Using Thermo electric separation PCB

Feature	Benefit
High Heat Dissipation	Prevents overheating, extending component lifespan.
Electrical and Thermal Isolation	Enhances safety and prevents signal interference.
Improved Circuit Efficiency	Reduces thermal loss, ensuring optimal energy use.
Durability in Harsh Conditions	Suitable for automotive, aerospace, and industrial environments.
Customizable for Various Power Levels	Supports different copper thicknesses and thermal via designs.

---

6. Materials and Design Considerations for Thermo electric separation PCB

1. Substrate Materials

• Aluminum Core PCBs – Best for LED applications due to their excellent heat dissipation properties.
• Copper Core PCBs – Higher thermal conductivity, ideal for power electronics and industrial equipment.
• FR-4 with Thermal Vias – Suitable for moderate power applications with localized heat dissipation needs.

2. Dielectric Layer

• High-Thermal Conductivity Dielectric (HTCD) materials help transfer heat efficiently while maintaining electrical insulation.
• The thickness of the dielectric layer impacts thermal resistance and mechanical strength.

3. Copper Thickness and Conductivity

• Standard PCBs use 1oz copper, while high-power applications may require 2oz-3oz copper layers for improved current handling capacity.
• Thicker copper traces reduce resistance, improving power efficiency and minimizing voltage drop.

---

7. Challenges in Manufacturing Thermo electric separation PCB

1. Complex Layer Stack-Up Design

• Requires precise lamination processes to ensure proper bonding between the metal core, dielectric layer, and copper traces.
• Misalignment or voids in the layers can impact thermal performance and electrical insulation.

2. Thermal Stress and Expansion

• Different materials expand at different rates under heat, requiring low-CTE (Coefficient of Thermal Expansion) materials to prevent PCB warping.
• Proper material selection ensures dimensional stability during operation.

3. Cost Considerations

• Copper-core PCBs and high-performance dielectric materials are more expensive than standard FR-4 PCBs.
• However, the long-term reliability, energy efficiency, and improved performance justify the investment.

---

8. Conclusion

Thermo electric separation PCB are a critical innovation in heat management and high-power circuit design. By separating thermal and electrical pathways, these PCBs provide enhanced heat dissipation, improved circuit performance, and increased reliability in demanding applications. From LED lighting and power electronics to automotive, aerospace, and industrial systems, thermoelectric separation PCBs are essential for energy-efficient, high-performance electronic solutions. For custom Thermoelectric Separation PCB manufacturing, Shuoqiang Electronics offers high-quality, precision-engineered PCB solutions tailored to meet your power and thermal requirements. Contact us today to develop optimized PCB solutions for your high-power applications! our linkedin sqpcb.com
