What is Special PCB? Customized Circuit Board Solutions

Printed Circuit Boards (PCBs) are an essential part of electronic devices, providing support and electrical connections for electronic components. While the concept of PCB is widely known, the term special PCB boards may not be as familiar to many. Special PCBs differ significantly from standard ones in terms of design, material, and application, often tailored to meet the specific needs of high-performance, high-reliability, and space-constrained environments.

In this article, we’ll explore the definition of special PCBs, their key features, and how they are applied in various industries, helping you understand why customized circuit boards are necessary for certain technological challenges.

Core Materials Used in Special PCBs

The most common material used for standard PCBs is FR4, which consists of fiberglass and epoxy resin, widely used in consumer electronics. However, they are typically made from different materials designed to meet more demanding requirements, such as high-frequency performance, high-temperature stability, and specific mechanical properties.

Common Materials for Special PCBs:

FR-1: Phenolic cotton paper, used in low-cost applications.

FR-2: Another phenolic cotton paper option, providing economic efficiency.

FR-5: Glass cloth and epoxy resin for improved thermal stability.

CEM-1 and CEM-3: Various types of fiberglass-based materials with different electrical properties.

Aluminum Nitride (Ain) and Silicon Carbide (SiC): These advanced materials offer excellent thermal conductivity, making them ideal for high-power applications.

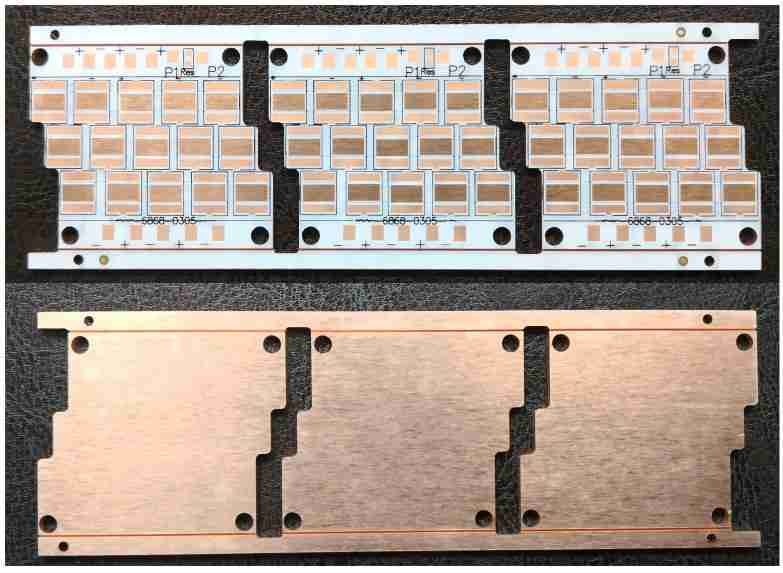

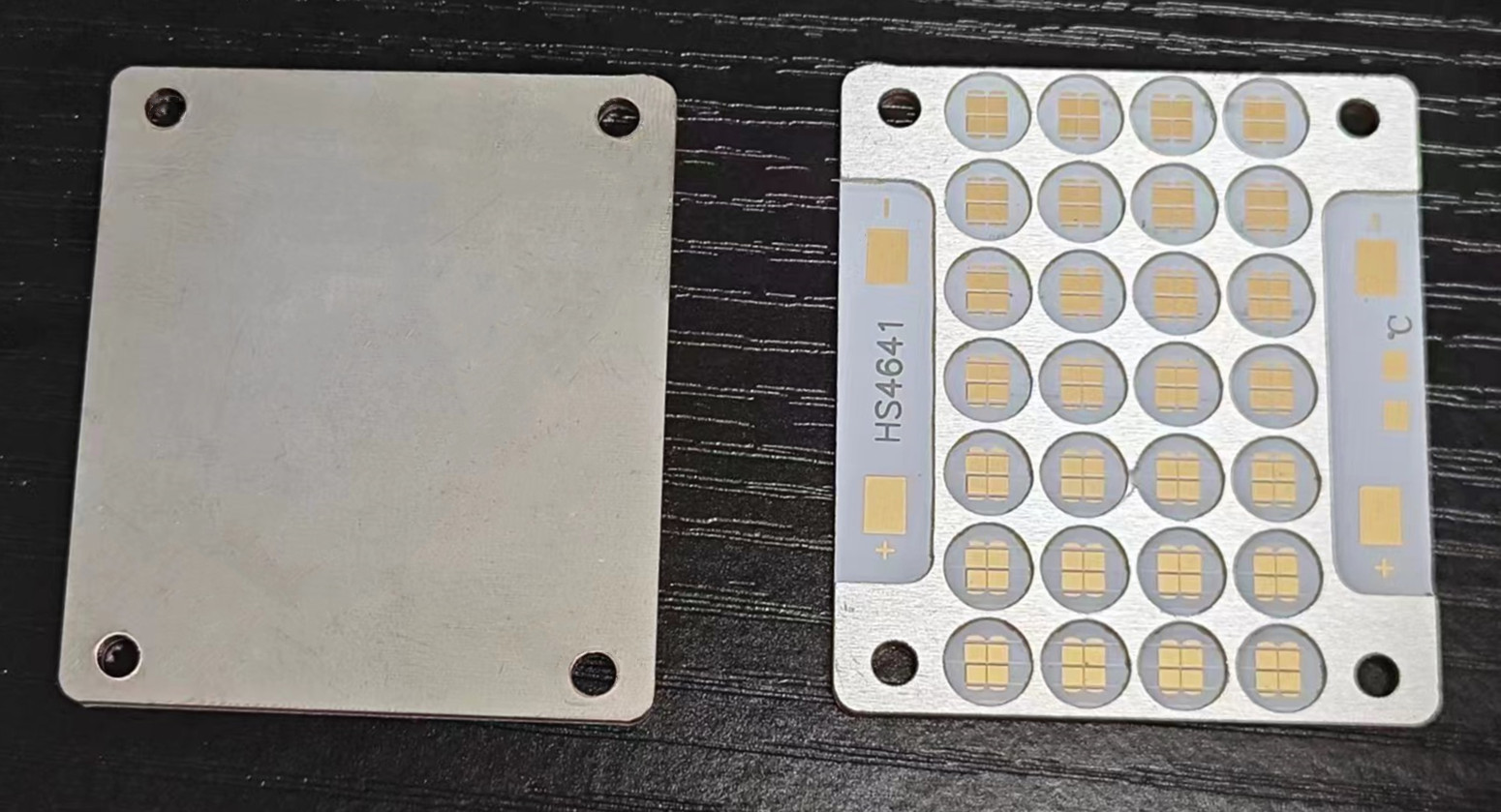

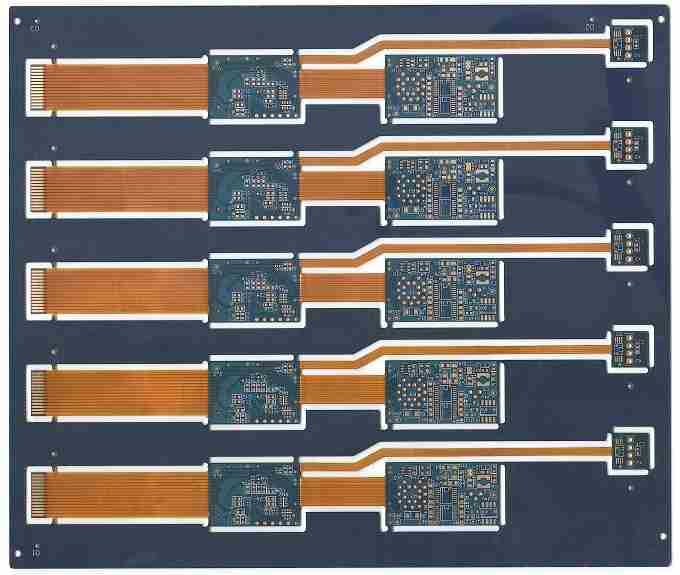

In addition to these, special PCBs may also use high-frequency substrates, rigid-flex boards, aluminum-based or copper-based materials to address specific electrical and thermal management challenges.

Key Differences Between Special PCBs and Standard PCBs

While standard PCBs and special PCBs serve similar basic functions, the differences are significant when it comes to size, layer count, copper thickness, and hole types. Special PCBs are designed for applications that require higher performance, including aerospace, automotive, medical devices, and industrial systems.

1. Size and Layers:

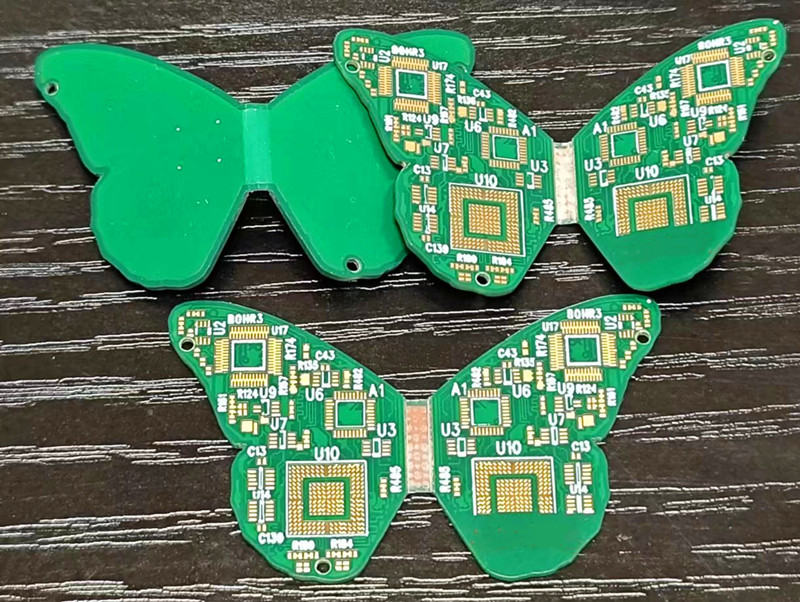

Standard PCBs typically have a size of less than 21" x 24", whereas special PCBs are often customized to specific sizes and may be larger than this standard.

Standard PCBs usually have simple layer counts (1, 2, 4, 6, 8 layers), while special PCBs may involve more complex configurations (e.g., 10 layers or more).

2. Hole Types:

Standard PCBs typically use through-holes for circuit connections, while special PCBs may require blind holes or buried holes to accommodate more advanced designs.

3. Copper Thickness and PCB Thickness:

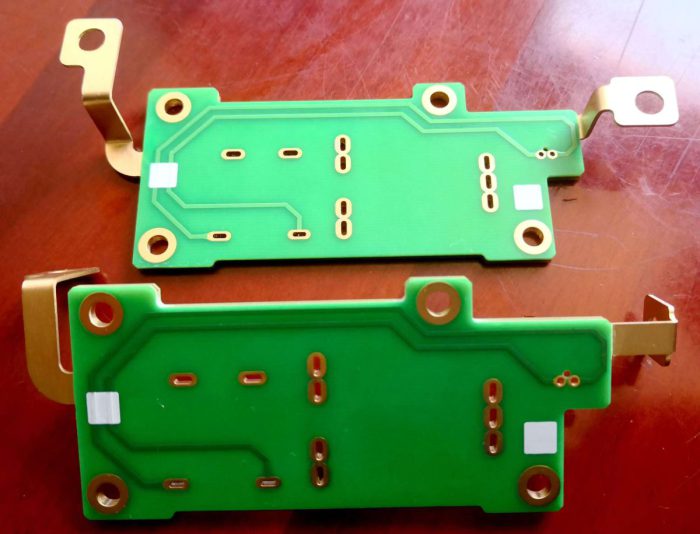

The standard copper thickness for PCBs is generally 1oz or 2oz, while special PCBs often require thicker copper layers to handle higher currents or power-intensive applications.

PCB thickness can also be customized based on the specific needs of the application.

Applications in Various Industries

Special PCBs play a critical role in industries where performance, reliability, and precision are paramount. Here are a few key areas where customized PCBs are indispensable:

1. Automotive Industry:

In Advanced Driver Assistance Systems (ADAS), special PCBs are used to process high-frequency signals and ensure the reliability of electronic components in extreme automotive environments. They are integral to smart systems such as autonomous driving, parking sensors, and collision avoidance.

2. Medical Devices:

In the medical field, especially for implantable devices like pacemakers and neurostimulators, special PCBs must meet stringent requirements for miniaturization, reliability, and biocompatibility. Diagnostic equipment, such as MRI machines, also relies on special PCBs to handle high-frequency signals with minimal error.

3. Aerospace:

Aerospace applications, including satellite systems and flight control systems, demand PCBs that can withstand extreme environmental conditions, such as temperature fluctuations, radiation, and pressure changes. Special PCBs designed for aerospace ensure the high performance and durability required in these high-stakes systems.

4. Industrial Applications:

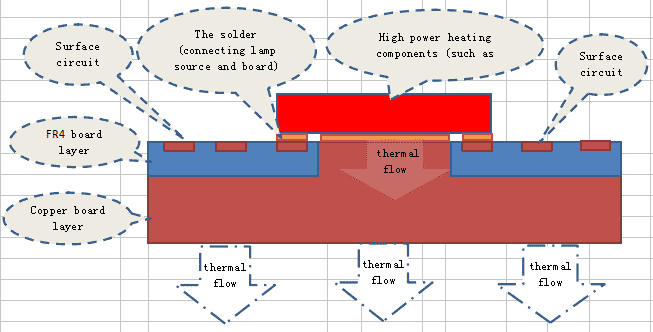

In industrial electronics, especially in power electronics, special PCBs with integrated thermal management solutions (such as thermal vias and heat sinks) are essential to prevent overheating and ensure reliable operation under high power conditions.

Why Choose SQPCB for Special PCBs?

At Shenzhen Shuoqiang Electronics (SQPCB), we specialize in delivering customized special PCBs for demanding industries. Our advantages include:

Advanced LDI lines: Line LDI automatic exposure machines, solder mask LDI exposure, and fully automated text inkjet printing ensure tight tolerance, zero film distortion, and minimal defects. In-house processes: From lamination to solder coating (tin-spraying and ENIG), our self-controlled processes guarantee consistent quality and controllable delivery times. Proven reliability: The massive equipment investment not only improves yield but also eliminates alignment errors, scratches, and contamination while ensuring glossy, flawless solder mask results.

Recommendation 1: Many of our global automotive and medical clients rely on SQPCB’s LDI exposure and in-house plating systems to achieve stable yields and shortened lead times. Recommendation  2: By combining metal-core, high-frequency, and heavy copper PCBs with our controlled lamination and ENIG lines, SQPCB helps industrial and aerospace customers solve heat and performance challenges that standard PCB suppliers cannot handle.

Customizing Your Special PCB

If your project requires specific performance characteristics or unique design considerations, Shenzhen Shuoqiang Electronics specializes in providing high-quality customized PCB solutions. Our experienced team is ready to assist with designing and manufacturing the ideal PCB to meet your application’s needs.

Whether you need special materials, custom sizes, or unique functional requirements, we can help you create the perfect circuit board for your project.

Conclusion

Special PCBs are designed with advanced materials and processes to meet the demanding needs of high-performance applications.

Special PCBs are critical in industries such as automotive, medical devices, aerospace, and industrial applications, where performance, reliability, and precision are crucial.

Shenzhen Shuoqiang Electronics offers expert custom PCB design and manufacturing services to meet the unique needs of your project.

For more information or to get a quote for your custom PCB requirements, visit our website at www.sqpcb.com.

FAQs About Special PCBs

Q1: What makes a PCB “special”? A special PCB uses advanced materials, unique structures, or additional features (like blind vias, heavy copper, or high-frequency substrates) to meet application-specific requirements beyond standard boards.

Q2: Are special PCBs more expensive than standard PCBs? Yes, costs are higher due to premium materials, tighter tolerances, and specialized processes. However, they provide long-term savings by reducing failure rates and downtime.

Q3: Which industries benefit most from special PCBs? Automotive (ADAS, EV), medical devices, aerospace, defense, and industrial power electronics are the biggest adopters due to their need for reliability and precision.

Q4: Can SQPCB handle both prototypes and mass production of special PCBs? Absolutely. Our facility supports fast-turn prototypes, small to medium production runs, and scalable high-volume manufacturing with consistent quality.

Q5: What equipment ensures SQPCB’s quality for special PCBs? We use LDI exposure systems, automatic inkjet printers, in-house lamination, and ENIG/tin-spraying lines, giving us full control over quality and delivery timelines.
