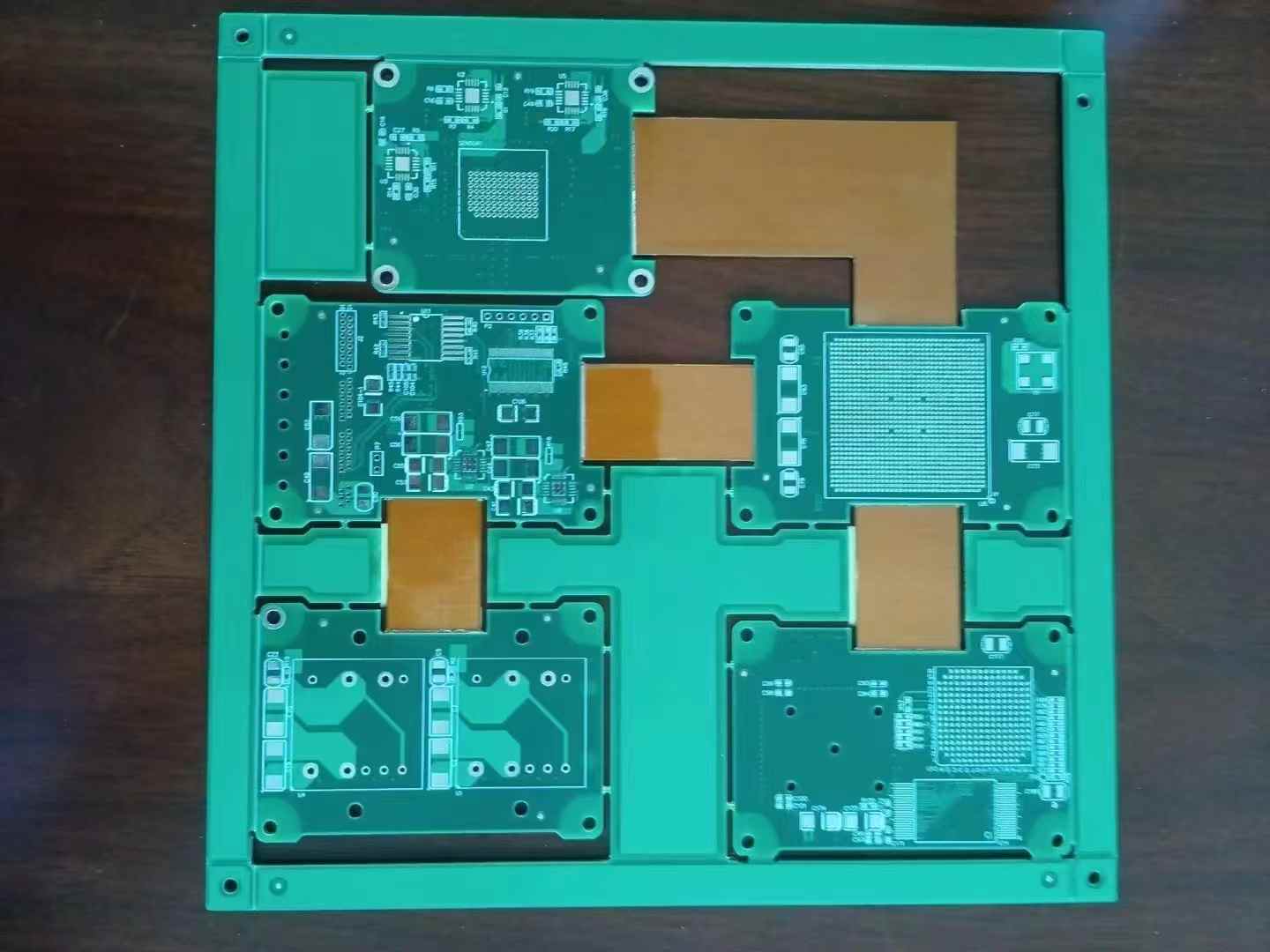

PCB With UL Mark, Printed Circuit Boards (PCBs) are the backbone of modern electronic devices, enabling efficient and reliable connections between components. When a PCB is marked with the Underwriters Laboratories (UL) certification, it signifies compliance with strict safety, reliability, and quality standards. The UL Mark ensures that a PCB meets fire safety, flammability, and performance criteria essential for both consumer and industrial electronics. This article explores the significance of the UL Mark on PCBs, its benefits, regulatory compliance, and key factors manufacturers must consider to achieve UL certification. [caption id="attachment_3067" align="alignnone" width="300"] PCB With UL Mark[/caption]

What is the UL Mark?

UL (Underwriters Laboratories) is a globally recognized safety certification organization that tests and certifies products to ensure they meet rigorous safety standards. The UL Mark on a PCB indicates that the board has passed various fire, electrical, and thermal resistance tests. UL certification is categorized into two primary types for PCBs:

1. UL94 Certification – Focuses on flammability ratings to ensure the PCB material does not pose a fire hazard.
2. UL796 Certification – Ensures the PCB manufacturing process meets safety and reliability standards, covering dielectric strength, adhesion, and resistance to thermal stress.

Importance of UL Certification for PCBs

Having a UL-certified PCB offers numerous benefits, including:

1. Safety Assurance: UL certification ensures the PCB meets industry safety standards, reducing the risk of electrical failures, overheating, or fire hazards.
2. Regulatory Compliance: Many industries, such as medical, automotive, aerospace, and industrial electronics, require UL-certified components for regulatory approval.
3. Enhanced Marketability: Manufacturers with UL-certified PCBs gain customer trust and credibility, making their products more appealing in global markets.
4. Legal Protection: Using non-certified PCBs in regulated industries can lead to legal and financial consequences if safety violations occur.
5. Consistency and Reliability: UL certification requires strict testing, ensuring uniform material quality, electrical performance, and durability across PCB production batches.

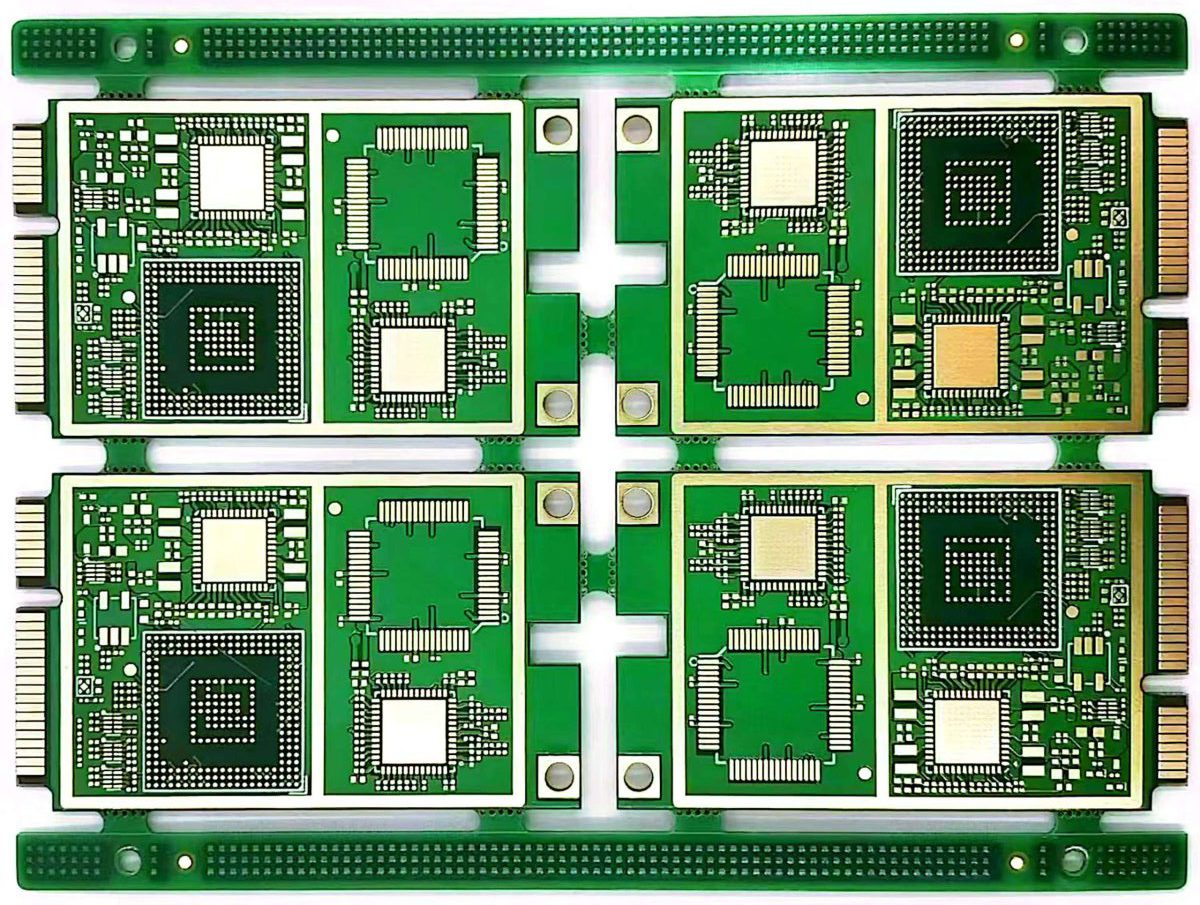

PCB With UL Mark: Key Considerations

To ensure compliance with UL standards, manufacturers must adhere to the following guidelines when producing UL-marked PCBs:

1. Selection of UL-Certified Materials

PCBs must be fabricated using UL-approved base materials. Common UL-listed materials include:

• FR-4 (UL94 V-0 Rated): Most commonly used PCB substrate, offering excellent flame retardancy.
• High-Frequency Laminates: Used for RF and microwave applications while maintaining UL certification.
• Metal-Core PCBs (MCPCBs): Used in LED lighting and power electronics with UL thermal management compliance.

2. Flammability Ratings and Testing (UL94 Standard)

PCBs undergo rigorous flammability testing, where materials must pass the UL94 V-0 standard, meaning:

• The material self-extinguishes within 10 seconds after ignition.
• No flaming drips are allowed, preventing fire spread.
• Maintains structural integrity under elevated temperatures.

3. Electrical Performance and Dielectric Strength

UL-certified PCBs must demonstrate:

• High dielectric strength to prevent electrical breakdown.
• Good insulation resistance to avoid short circuits and leakage currents.
• Thermal stress resistance for reliability in demanding applications.

4. Traceability and UL Logos on PCBs

To be UL-compliant, the PCB manufacturer must include:

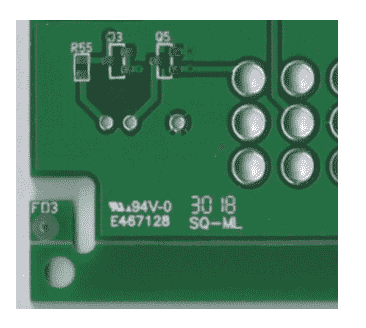

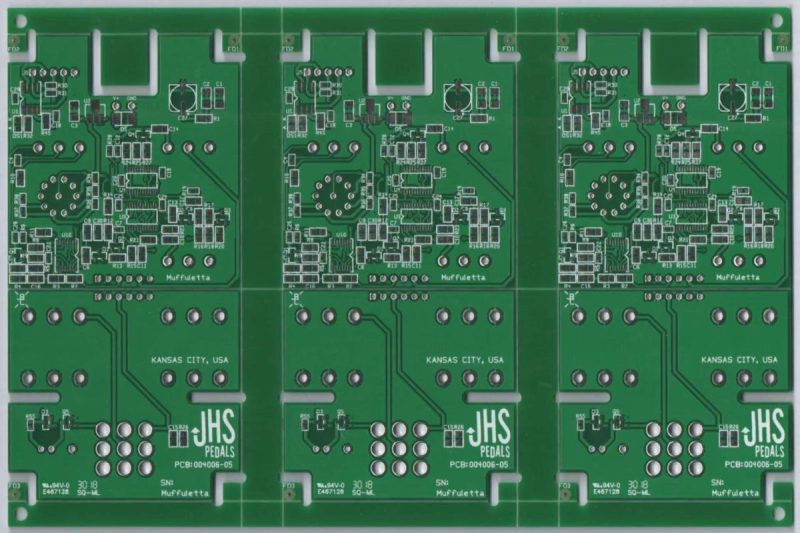

• UL File Number (EXXXXXX) for identification.
• Flammability Rating (e.g., UL94 V-0).
• Manufacturer’s Identification Code for traceability.
• Recognized UL Logo (if permitted by UL standards).

5. Manufacturing Process Compliance (UL796 Standard)

• Adhesion Strength: PCBs must meet bonding strength requirements to prevent delamination.
• Thermal Aging: UL testing includes aging simulations to ensure PCBs withstand prolonged heat exposure.
• Solder Mask and Surface Finish Quality: Compliance with lead-free soldering and high-temperature reflow processes.

Applications of PCB With UL Mark

UL-certified PCBs are widely used across industries where safety, reliability, and compliance are critical:

1. Consumer Electronics

• Smartphones, tablets, and smart home devices require UL compliance for fire safety.
• Power supply boards and adapters with UL marking ensure user protection.

2. Automotive Electronics

• PCBs in ADAS (Advanced Driver-Assistance Systems), engine control units (ECUs), and battery management systems must meet UL safety standards.
• EV charging stations use UL-certified boards to prevent overheating and electrical failures.

3. Medical Equipment

• Life-critical devices such as patient monitoring systems, ventilators, and imaging equipment require UL-certified PCBs to meet FDA and IEC safety standards.
• High-reliability medical sensors use UL-rated PCB materials for insulation and electrical performance.

4. Industrial and Aerospace Applications

• High-power industrial automation and robotic PCBs must comply with UL 60950-1 and UL 62368-1 standards.
• Avionics and satellite systems use UL-certified PCBs for resistance against extreme temperatures and high-altitude conditions.

How to Obtain UL Certification for PCBs

PCB manufacturers seeking UL certification must follow these steps:

1. Submit Samples for UL Testing: A batch of PCBs is tested for flammability, dielectric strength, and thermal resistance.
2. UL Factory Inspection: UL representatives conduct regular audits to ensure ongoing compliance with safety standards.
3. UL Registration and Marking Approval: Once certified, manufacturers receive a UL File Number and permission to print the UL Mark on their products.
4. Annual Recertification: Manufacturers must renew their UL certification to ensure continued compliance.

Challenges in UL Certification

Obtaining a UL Mark for PCBs can be challenging due to:

• Stringent Testing Requirements: Manufacturers must invest in high-quality materials and precision processes.
• Increased Production Costs: Compliance adds costs due to material certification, testing, and process modifications.
• Regulatory Updates: PCB manufacturers must stay updated with changes in UL safety standards.

Conclusion

The PCB With UL Mark represents a critical quality assurance measure, ensuring safety, reliability, and regulatory compliance for electronic products. Industries such as automotive, medical, consumer electronics, and aerospace increasingly demand UL-certified PCBs to meet international safety requirements. For PCB manufacturers, obtaining UL certification enhances product credibility, expands market reach, and protects against potential safety liabilities. As the electronics industry continues to evolve, ensuring that PCBs carry a UL Mark will remain essential for manufacturers committed to delivering high-quality and compliant PCB solutions. our linkedin sqpcb.com
