LED lighting technology has transformed the way we illuminate our surroundings, providing energy-efficient, long-lasting, and eco-friendly solutions. Among various LED applications, lamp LED PCBs play a crucial role in ensuring the durability, performance, and efficiency of LED lamps. A lamp LED PCB is a specialized circuit board that facilitates electrical connections and effective heat dissipation, optimizing the functionality of LED lamps.

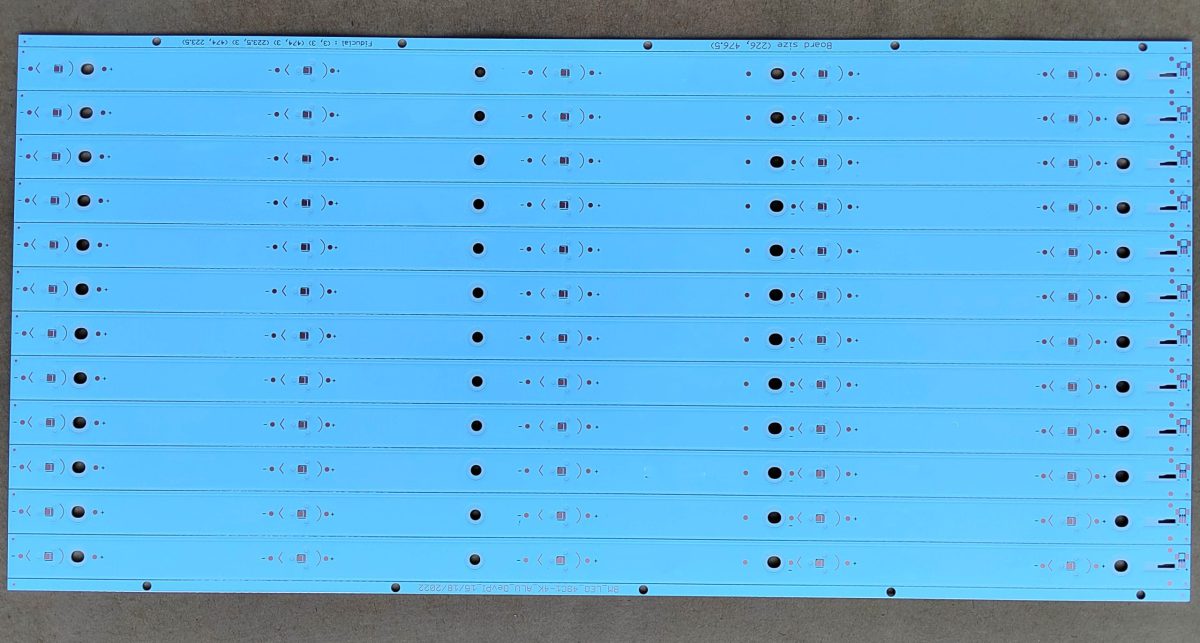

This article will explore the structure, advantages, manufacturing process, and applications of lamp LED PCBs, highlighting their significance in modern lighting technology. [caption id="attachment_3089" align="alignnone" width="300"] Lamp LED PCB[/caption]

What is a Lamp LED PCB?

A lamp LED PCB is a printed circuit board designed specifically to support LED lamp assemblies. It serves as the foundation for mounting LED chips and other essential components, enabling efficient electrical conductivity and heat management. Since LEDs generate considerable heat, lamp LED PCBs are typically made from materials with excellent thermal conductivity, such as aluminum or metal-core PCBs (MCPCBs).

Key Components of a Lamp LED PCB

1. Base Material – The foundation of the PCB, commonly made from FR4 (fiberglass-reinforced epoxy), aluminum, or MCPCB for effective heat dissipation.
2. Copper Layer – Conductive copper traces allow for smooth electrical connections between LED components.
3. Dielectric Layer – Insulating material between layers to prevent short circuits and ensure electrical stability.
4. Solder Mask – A protective layer that shields the PCB from oxidation and prevents solder bridging.
5. Silkscreen Layer – Labels and component markings for easy identification and assembly guidance.

Benefits of Lamp LED PCBs

1. Superior Heat Dissipation

LEDs produce heat during operation, and poor thermal management can lead to reduced efficiency and premature failure. Lamp LED PCBs, particularly those made from aluminum or metal-core materials, efficiently transfer heat away from LED components, ensuring optimal performance and longevity.

2. Energy Efficiency and Longevity

By using high-quality PCBs in LED lamps, energy consumption is minimized, and lifespan is significantly extended. This is crucial for applications requiring continuous operation, such as street lighting, industrial lighting, and home illumination.

3. Compact and Lightweight Design

Lamp LED PCBs allow for compact and lightweight designs, making them ideal for various lighting applications, including LED bulbs, panel lights, and strip lighting.

4. Improved Electrical Performance

The multi-layer structure of lamp LED PCBs enables efficient electrical conductivity, reducing resistance and power loss. This ensures stable voltage supply and prevents flickering in LED lamps.

5. Customizable for Various Applications

Lamp LED PCBs can be custom-designed based on application requirements, including different shapes, sizes, and power capacities. This flexibility makes them suitable for a wide range of lighting solutions.

Manufacturing Process of Lamp LED PCBs

The production of lamp LED PCBs involves several stages to ensure quality, durability, and performance.

1. PCB Design and Layout

Engineers use advanced PCB design software such as Altium Designer, KiCad, or Eagle to create optimized circuit layouts. Proper spacing, heat dissipation, and electrical pathways are considered to ensure efficiency and reliability.

2. Material Selection

The base material is chosen based on thermal conductivity, durability, and application requirements. While FR4 is suitable for low-power applications, aluminum and MCPCBs are preferred for high-power LED lamps.

3. Printing and Etching

After designing the PCB, the circuit pattern is printed onto the board using photolithography. The unwanted copper is then etched away, leaving behind precise conductive traces.

4. Drilling and Plating

Drill holes are created for mounting LED chips and other electronic components. The holes are then plated with conductive material to establish electrical connections between layers.

5. Solder Mask Application

A protective solder mask is applied to prevent oxidation and short circuits, ensuring long-term durability.

6. Silkscreen Printing

Component labels and reference markings are printed onto the PCB, making assembly and troubleshooting easier.

7. Surface Finishing

The PCB undergoes surface finishing treatments such as:

• HASL (Hot Air Solder Leveling)
• ENIG (Electroless Nickel Immersion Gold)
• OSP (Organic Solderability Preservative) These finishes enhance solderability and corrosion resistance.

8. Component Assembly

LED chips, resistors, and other essential components are mounted onto the PCB using Surface Mount Technology (SMT) or Through-Hole Technology (THT).

9. Quality Inspection and Testing

Strict quality control measures, including Automated Optical Inspection (AOI), X-ray testing, and functional testing, are performed to verify the PCB's performance, safety, and durability.

Applications of Lamp LED PCBs

Due to their efficiency, reliability, and superior heat dissipation, lamp LED PCBs are widely used across various industries:

1. Household and Commercial Lighting

• LED bulbs and tube lights
• LED panel lights for offices and homes
• Smart lighting solutions with adjustable brightness and color temperatures

2. Automotive LED Applications

• LED headlights and taillights
• Dashboard and interior lighting
• Signal and brake lights

3. Industrial and Street Lighting

• High-power LED floodlights
• Warehouse and factory lighting
• LED street lamps for urban infrastructure

4. Medical and Specialized Lighting

• Surgical and examination lights
• UV disinfection lamps
• LED grow lights for horticulture

5. Advertising and Decorative Lighting

• LED display boards and billboards
• LED strip lights for ambiance and decoration
• Stage and event lighting

Conclusion

Lamp LED PCBs are essential components in modern lighting solutions, offering superior heat dissipation, energy efficiency, and durability. By using high-quality PCB materials and advanced manufacturing processes, LED lamps can achieve longer lifespans, reduced energy consumption, and enhanced performance. As LED lighting technology continues to evolve, lamp LED PCBs will play a critical role in shaping the future of sustainable and intelligent illumination. For customized, high-performance LED PCBs, partnering with an experienced manufacturer like Shuoqiang Electronics ensures reliable solutions for a wide range of lighting applications. Contact us today to discuss your lamp LED PCB requirements! our linkedin sqpcb.com
