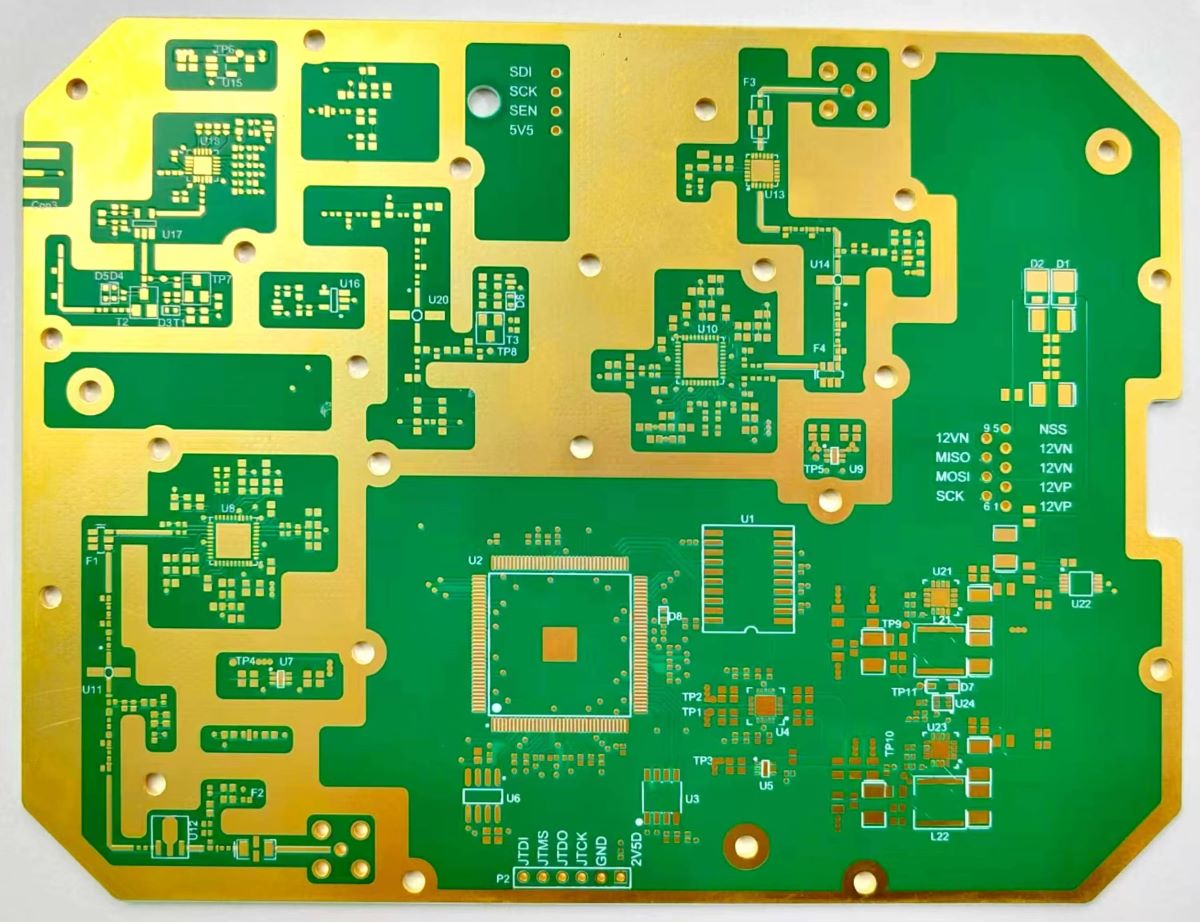

An FR4 PCB is a Printed Circuit Board made using FR4, a fiberglass-reinforced epoxy laminate material. FR4 is the most common PCB substrate due to its excellent mechanical strength, electrical insulation, heat resistance, and flame-retardant properties. It is widely used in electronic applications ranging from consumer gadgets to industrial and automotive systems. The name FR4 stands for Flame Retardant 4, indicating that the material meets UL94V-0 standards for fire resistance. This ensures that FR4 PCBs can withstand high temperatures without catching fire, making them a reliable choice for a wide range of electronic applications. [caption id="attachment_2660" align="alignnone" width="300"] FR4 PCB[/caption]

---

2. Characteristics of FR4 PCBS

FR4 is known for its high dielectric strength, which allows it to insulate electrical components effectively. This is critical for preventing short circuits and ensuring long-term reliability in electronic circuits. It also has a low moisture absorption rate, which makes it resistant to environmental factors like humidity and temperature variations. Another key property of FR4 is its high mechanical strength, allowing it to support multiple layers of copper traces in multi-layer PCBs. Its rigidity makes it ideal for applications requiring structural durability, such as industrial equipment and automotive electronics. FR4 also has a moderate thermal conductivity, meaning it can dissipate heat efficiently in most standard applications. However, for high-power applications that generate significant heat, alternative materials like aluminum-based PCBs or specialized high-temperature laminates may be preferred.

---

3. Types of FR4 PCBS

FR4 PCBs come in different configurations depending on the complexity of the circuit and application requirements. The three most common types are single-layer, double-layer, and multi-layer PCBs. Single-layer have a single copper layer and are used in simple electronic devices such as remote controls and calculators. They are cost-effective and easy to manufacture, making them ideal for mass production. Double-layer feature copper layers on both sides of the FR4 substrate, allowing for more complex circuit designs. These are widely used in applications like power supplies, LED lighting, and automotive electronics. Multi-layer consist of multiple layers of copper traces separated by insulating FR4 layers. These PCBs provide higher circuit density, better signal integrity, and improved electrical performance. They are commonly used in advanced applications such as smartphones, medical devices, and aerospace systems.

---

4. Applications

FR4 PCBs are found in almost every electronic device due to their versatility, durability, and cost-efficiency. Some of the most common applications include:

• Consumer Electronics: Smartphones, tablets, TVs, and household appliances rely on FR4 PCBs for their circuit boards.
• Industrial Equipment: Control systems, automation devices, and power distribution units use FR4 PCBs due to their mechanical strength and insulation properties.
• Automotive Electronics: Modern vehicles use FR4 PCBs in engine control units, infotainment systems, and sensor modules.
• Medical Devices: Diagnostic equipment, imaging systems, and portable health monitors require FR4 PCBs for their stability and electrical performance.
• Telecommunications: Routers, network switches, and data transmission systems depend on multi-layer FR4 PCBs for reliable connectivity.

---

5. Advantages

FR4 PCBs offer numerous advantages, making them the preferred choice for many electronic applications. The material is affordable and widely available, making it a cost-effective solution for large-scale manufacturing. Its high electrical insulation ensures that circuits remain stable and protected from interference. FR4’s flame-retardant properties enhance safety by reducing fire risks in high-power electronic systems. The mechanical durability of FR4 makes it resistant to bending, cracking, and wear, allowing it to support electronic components in rugged environments. Additionally, it is compatible with various manufacturing processes, including soldering, plating, and component assembly.

---

6. Considerations When Using

While FR4 is an excellent material for general-purpose PCBs, it has some limitations. It has moderate thermal conductivity, meaning it may not be the best choice for high-power applications that require efficient heat dissipation. In such cases, metal-core PCBs or ceramic-based PCBs may be better alternatives. For high-frequency applications, FR4 may exhibit signal loss and impedance issues. In these cases, high-frequency laminates like Rogers materials are often used to improve performance. Another factor to consider is moisture resistance. Although FR4 has low moisture absorption, prolonged exposure to extreme humidity can degrade its electrical properties. Proper PCB coatings or encapsulation can help mitigate this issue.

---

7. Conclusion

FR4 PCBS are the industry standard for printed circuit boards due to their excellent electrical insulation, mechanical strength, and cost-effectiveness. They are widely used in consumer electronics, automotive, industrial, medical, and telecommunications applications. When selecting an FR4 PCB, factors such as layer count, thermal requirements, and environmental conditions should be considered to ensure optimal performance. While FR4 is suitable for most applications, high-power or high-frequency circuits may require specialized materials. For high-quality FR4 PCB manufacturing, Shuoqiang Electronics provides custom PCB solutions with reliable materials and precise fabrication. Contact us today for expert PCB production tailored to your project needs. our linkedin sqpcb.com
