1. Introduction: The Growing Importance of Polyimide PCBs

In the rapidly evolving world of electronics, the choice of printed circuit board (PCB) material plays a critical role in determining the performance, reliability, and longevity of electronic devices. Among the wide range of PCB materials available, Polyimide PCBs have emerged as a superior solution for applications demanding high thermal endurance, mechanical flexibility, and long-term operational stability. Unlike conventional materials, such as FR4, polyimide-based PCBs are engineered to withstand extreme conditions while maintaining structural integrity, making them essential in high-performance sectors like aerospace, medical devices, automotive electronics, and advanced telecommunications.

Why Material Selection Matters in PCBs

Material selection in PCB design is not merely a matter of cost or availability—it directly impacts the thermal management, signal integrity, mechanical stability, and even the electromagnetic compatibility (EMC) of the device. Traditional FR4 PCBs, composed primarily of glass-reinforced epoxy laminates, provide good general-purpose performance but are limited in extreme environments due to lower thermal stability and reduced flexibility. In contrast, Polyimide PCBs offer a unique combination of properties that address these limitations. Their inherent high-temperature resistance ensures minimal deformation or warping under heat, while their flexibility allows for complex designs in compact spaces without compromising reliability.

Reflecting on the Growing Market Demand

Over the last decade, the market demand for Polyimide PCBs has grown exponentially. This growth is largely driven by the expansion of high-frequency electronics, miniaturized devices, and wearable technology. Devices such as smartphones, high-speed computing modules, satellite electronics, and automotive sensors often operate in environments that push conventional PCB materials to their limits. Polyimide materials, with their ability to sustain performance under thermal cycling, vibration, and chemical exposure, have become a natural choice for engineers seeking both durability and precision.

Moreover, the trend toward flexible electronics—where devices are folded, bent, or integrated into non-planar surfaces—has highlighted the unmatched versatility of Polyimide PCBs. Unlike rigid FR4 boards, polyimide substrates can bend without cracking, enabling innovation in product design that was previously unattainable. This capability is especially crucial in medical electronics, wearable devices, and next-generation aerospace components, where compact, reliable, and lightweight solutions are necessary.

My Perspective: The Strategic Value of Polyimide PCBs

From a practical standpoint, incorporating Polyimide PCBs into high-end designs is not just a matter of performance—it is a strategic decision. Choosing a material that offers superior thermal stability, flexibility, and chemical resistance reduces long-term maintenance costs, mitigates risk of failure in harsh environments, and improves overall device reliability. In my observation, engineers and designers who invest in polyimide technology often find that the initial material cost is offset by fewer returns, lower failure rates, and higher customer satisfaction.

For companies aiming to achieve peak performance, collaboration with reliable PCB manufacturers is critical. Suppliers such as SQ PCB have established a reputation for producing high-quality polyimide boards that meet strict industry standards, ensuring that designers can rely on consistent material performance for critical applications.

2. Polyimide PCBs: Material Composition and Structure

Understanding the composition and structural characteristics of Polyimide PCBs is fundamental to appreciating their superior performance in high-demand applications. Unlike conventional FR4 boards, which rely on epoxy resins, polyimide PCBs are built using high-performance polymer matrices that offer exceptional thermal, mechanical, and chemical properties.

Polyimide Resin: The Core of Performance

At the heart of Polyimide PCBs is the polyimide resin itself—a class of polymers distinguished by imide functional groups within their backbone. This molecular structure imparts remarkable thermal stability, allowing polyimide boards to operate reliably at temperatures exceeding 260°C. Additionally, polyimide resins exhibit low coefficients of thermal expansion (CTE), which minimizes the risk of warping or delamination under thermal cycling, a common cause of PCB failure in high-performance electronics.

The choice of polyimide resin is critical. High-grade variants ensure excellent dielectric properties, low moisture absorption, and strong chemical resistance. These characteristics collectively enhance the electrical performance of the PCB while ensuring long-term durability under demanding environmental conditions.

Layered Structure and Copper Foil Integration

A typical Polyimide PCB consists of multiple layers of polyimide resin laminated with copper foils. The copper layers can be integrated using either rolled copper foil or electrolytic copper foil, each offering unique advantages. Rolled copper foil provides superior surface smoothness and mechanical strength, which is essential for high-frequency signal transmission and fine-pitch designs. On the other hand, electrolytic copper foil is more flexible and cost-effective, making it suitable for applications that require complex bending or folding.

The lamination process ensures that copper adheres tightly to the polyimide substrate, preventing micro-cracks and maintaining electrical continuity even under mechanical stress. The precise control of layer thickness, copper weight, and resin flow during lamination is essential for ensuring consistent electrical and thermal performance.

Flexibility and Mechanical Integrity

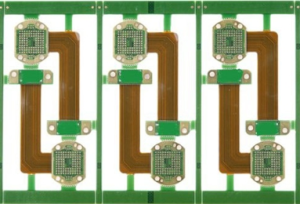

One of the defining characteristics of Polyimide PCBs is their flexibility. Unlike rigid FR4 boards, polyimide substrates can bend, fold, or twist without compromising structural integrity. This property is particularly valuable in compact devices, wearable electronics, and flexible circuits used in aerospace or medical equipment. The ability to design three-dimensional or non-planar circuits opens up possibilities that traditional PCBs cannot achieve.

Additionally, polyimide boards exhibit excellent resistance to mechanical fatigue. In applications subject to repeated bending or vibration, polyimide maintains its electrical and mechanical properties far longer than epoxy-based alternatives. This resilience translates into lower failure rates, reduced maintenance, and extended device life.

3. Polyimide PCBs: High-Temperature Resistance and Thermal Stability

One of the most celebrated advantages of Polyimide PCBs is their exceptional thermal performance. As electronic devices become increasingly compact and powerful, heat management has emerged as a critical factor in design. Polyimide-based boards are specifically engineered to withstand high temperatures without compromising electrical or mechanical integrity, making them ideal for applications ranging from aerospace systems to high-speed computing modules.

Thermal Endurance and Operational Limits

The molecular structure of polyimide resins provides inherent resistance to heat. Polyimide PCBs can typically operate continuously at temperatures up to 260°C, with short-term exposure tolerances even higher. This capacity ensures that the board maintains dimensional stability, adhesion, and electrical performance under intense thermal stress. In contrast, conventional FR4 boards may start to degrade or delaminate at temperatures above 130–150°C, significantly limiting their application in high-temperature environments.

The low coefficient of thermal expansion (CTE) of polyimide also plays a vital role in minimizing thermal-induced mechanical stress. Components mounted on polyimide boards experience less strain during heating and cooling cycles, reducing the likelihood of solder joint failure, warping, or trace cracking. This property is particularly critical in multilayer designs where differing CTEs between layers can cause structural issues.

Heat Dissipation and Thermal Management

While polyimide itself is not a metal, its thermal conductivity can be enhanced by design choices such as thicker copper layers or thermal vias. Polyimide PCBs often integrate strategically placed copper planes to facilitate heat dissipation, ensuring that sensitive components operate within safe temperature ranges. In high-power electronics, efficient thermal management extends component life and maintains consistent signal integrity, which is essential in high-frequency or high-current circuits.

The combination of thermal endurance and efficient heat dissipation enables polyimide boards to excel in environments where conventional materials would fail. For instance, satellite electronics exposed to extreme temperature swings, or automotive sensors near engine compartments, require substrates that not only resist heat but also maintain stable electrical performance.

Real-World Applications Demonstrating Thermal Stability

The superior thermal properties of Polyimide PCBs are leveraged in numerous advanced applications:

• Aerospace Electronics: Satellites, avionics, and control systems operate in conditions where temperatures can fluctuate drastically. Polyimide PCBs ensure reliable performance and longevity.

• High-Frequency Telecommunications: Base stations and high-speed signal processors generate significant heat during operation. Thermal stability prevents signal degradation or board warping.

• Medical Equipment: Devices like MRI machines or surgical robots rely on precise electronics that must withstand sterilization processes and elevated operating temperatures.

My Perspective: The Value of Thermal Reliability

From my experience, investing in Polyimide PCBs for thermally challenging applications is not merely a design preference—it is a long-term strategic choice. The upfront material cost may be higher than FR4, but the reduction in field failures, maintenance requirements, and warranty claims often justifies the investment. Furthermore, as devices become smaller and more densely packed, heat management becomes increasingly critical, making polyimide an indispensable solution.

4. Polyimide PCBs: Flexibility and Mechanical Reliability

Beyond their high-temperature endurance, Polyimide PCBs are widely recognized for their exceptional flexibility and mechanical robustness. In modern electronics, especially in compact, high-density, or wearable devices, the ability of a PCB to bend, fold, or withstand vibration without failure is crucial. Polyimide-based boards offer these capabilities while maintaining electrical integrity, making them a preferred choice for advanced applications.

The Science Behind Flexibility

The flexibility of Polyimide PCBs originates from the molecular structure of polyimide polymers. Unlike epoxy-based FR4, which is rigid and brittle under stress, polyimide resins provide elasticity and resilience at both macro and micro scales. This means that polyimide boards can endure repeated bending or twisting without cracking, delaminating, or compromising signal pathways.

Mechanical reliability is further enhanced by careful lamination of copper layers to the polyimide substrate. Rolled copper foil adds strength and ensures smooth trace surfaces, while electrolytic copper foil provides additional pliability for bending applications. By choosing the appropriate copper type and thickness, manufacturers can tailor the mechanical properties of polyimide boards to suit specific use cases.

Applications Requiring Flexible Circuits

The flexibility and mechanical reliability of Polyimide PCBs unlock possibilities in numerous advanced applications:

• Wearable Electronics: Smartwatches, fitness trackers, and medical monitoring devices require thin, flexible boards that can conform to the contours of the human body. Polyimide PCBs maintain functionality under repeated movement.

• Aerospace and Defense: Compact avionics, satellites, and unmanned aerial vehicles often involve tight spaces and complex geometries. Flexible polyimide boards facilitate three-dimensional routing without compromising reliability.

• Automotive Sensors: Modern vehicles use flexible PCBs in areas exposed to vibration, thermal cycling, and mechanical stress. Polyimide ensures longevity and consistent sensor performance.

Mechanical Stress Tolerance

In addition to flexibility, Polyimide PCBs exhibit outstanding mechanical stress tolerance. They can withstand repeated bending, torsion, and even minor impact without electrical failure. This resilience reduces the risk of micro-cracks in solder joints or conductive traces, which are common failure points in rigid or low-quality flexible boards.

Moreover, polyimide boards exhibit excellent fatigue resistance. Components mounted on flexible polyimide substrates can endure long-term operational stress without signal degradation or mechanical failure. This property is particularly valuable in applications with frequent movement or vibration, such as robotic arms, industrial machinery, or foldable electronic devices.

5. Polyimide PCBs: Electrical Performance and Signal Integrity

In addition to thermal and mechanical advantages, Polyimide PCBs excel in electrical performance, particularly in high-frequency and high-speed applications. The combination of low dielectric constant, low dissipation factor, and dimensional stability ensures that signal integrity is maintained even under demanding conditions. This makes polyimide an ideal choice for advanced electronics where reliable data transmission is critical.

Dielectric Properties and Insulation

The polyimide resin used in Polyimide PCBs exhibits a low dielectric constant (typically between 3.2 and 3.5), which allows high-speed signals to travel with minimal delay or distortion. Low dissipation factor further reduces energy loss, ensuring efficient signal transmission. These electrical properties are particularly important in RF circuits, microwave applications, and high-frequency digital systems, where even minor losses or impedance mismatches can result in significant performance degradation.

Signal Integrity in High-Speed Applications

High-speed electronics, such as 5G communication modules, aerospace control systems, and advanced computing devices, require PCBs that maintain consistent impedance and minimize crosstalk. Polyimide PCBs provide stable dimensional properties under thermal cycling, ensuring that trace widths, spacing, and dielectric layers remain uniform. This stability reduces signal reflection, attenuation, and electromagnetic interference, which are common challenges in densely packed, high-speed circuits.

Advantages Over Conventional Materials

Compared with FR4 or other epoxy-based substrates, Polyimide PCBs offer superior electrical performance under challenging conditions:

• Temperature Resilience: Minimal variation in dielectric properties even at elevated temperatures.

• Dimensional Stability: Reduced risk of warping or expansion, ensuring consistent trace geometry.

• Moisture Resistance: Lower water absorption prevents dielectric constant fluctuations in humid environments.

These advantages directly impact the reliability and performance of modern high-frequency systems. Engineers designing critical applications often prefer polyimide boards for their ability to maintain signal integrity over long-term operation.

Practical Applications Demonstrating Electrical Superiority

The electrical performance of Polyimide PCBs is leveraged in various high-end applications:

• Telecommunications Equipment: High-frequency signal transmission requires minimal signal loss, which polyimide substrates provide.

• Medical Imaging Devices: MRI and CT systems rely on precise signal paths that must remain stable under heat and vibration.

• Aerospace Avionics: Critical communication and control systems demand consistent electrical properties across temperature extremes.

My Perspective: Electrical Reliability as a Differentiator

In my experience, the superior electrical properties of Polyimide PCBs are often the decisive factor in high-end system design. While flexibility and thermal stability are valuable, the ability to maintain signal integrity in high-speed circuits distinguishes polyimide from other substrates. Choosing polyimide ensures that performance, reliability, and compliance with rigorous industry standards are all achieved simultaneously.

6. Polyimide PCBs: Chemical Resistance and Environmental Durability

Beyond thermal and electrical performance, Polyimide PCBs offer exceptional resistance to chemicals, moisture, and harsh environmental conditions. This combination of properties ensures that devices operate reliably even when exposed to aggressive substances, high humidity, or long-term environmental stress. These capabilities make polyimide an essential material for applications in aerospace, automotive, medical, and industrial electronics.

Chemical Resistance and Corrosion Prevention

The molecular structure of polyimide resins provides excellent chemical stability. Polyimide PCBs resist attack from acids, alkalis, solvents, and cleaning agents commonly encountered during manufacturing or maintenance. This chemical resistance minimizes the risk of corrosion on copper traces or delamination of layers, which are frequent causes of PCB failure in less robust materials.

In addition, polyimide boards maintain their electrical and mechanical integrity even after repeated exposure to cleaning agents, sterilization processes, or industrial chemicals. This property is particularly important in medical and laboratory equipment, where boards must withstand rigorous cleaning without degradation.

Moisture and Humidity Resistance

Polyimide exhibits very low moisture absorption compared to conventional epoxy-based substrates. Polyimide PCBs maintain stable dielectric properties and mechanical dimensions even in high-humidity environments. This resistance to water absorption reduces the risk of short circuits, dielectric breakdown, and signal loss, ensuring consistent performance over time.

For applications such as automotive sensors, aerospace avionics, or outdoor telecommunications equipment, moisture resistance is a critical factor in ensuring long-term reliability. Polyimide substrates prevent the expansion or warping that can occur in epoxy-based boards when exposed to humid conditions.

Environmental Durability

In addition to chemical and moisture resistance, Polyimide PCBs withstand extreme environmental stresses, including wide temperature ranges, UV exposure, and vibration. These qualities make polyimide an ideal choice for harsh environments where conventional materials might fail. Military, aerospace, and industrial electronics benefit greatly from this combination of durability and reliability.

---

7. Polyimide PCBs: Advantages Over Traditional FR4 PCBs

While FR4 remains the most widely used PCB material for general electronics, Polyimide PCBs offer a suite of advantages that make them indispensable for high-performance, high-reliability applications. By comparing thermal, mechanical, electrical, and environmental properties, the benefits of polyimide over conventional FR4 become clear.

Thermal Performance

One of the most significant differences between Polyimide PCBs and FR4 is thermal endurance. FR4 boards typically degrade above 130–150°C, with increased risk of warping, delamination, or solder joint failure at higher temperatures. In contrast, polyimide substrates maintain structural integrity and electrical stability at temperatures up to 260°C.

This capability makes polyimide essential for high-power devices, aerospace electronics, and automotive systems, where boards are regularly exposed to elevated temperatures or rapid thermal cycling.

Mechanical Flexibility

FR4 is rigid and brittle, which limits its suitability for flexible or compact designs. Polyimide PCBs, on the other hand, are inherently flexible, capable of bending, twisting, or folding without cracking. This property enables designers to create three-dimensional circuits, compact wearables, and other innovative form factors that would be impossible with FR4.

Electrical Performance

Polyimide PCBs excel in high-frequency and high-speed applications due to their low dielectric constant, low dissipation factor, and dimensional stability. FR4 substrates, while suitable for general electronics, exhibit higher dielectric loss and signal distortion at elevated frequencies. By maintaining consistent electrical properties under thermal and environmental stress, polyimide ensures superior signal integrity, reduced crosstalk, and minimal signal attenuation.

Chemical and Environmental Durability

Polyimide’s resistance to chemicals, moisture, and environmental stress significantly exceeds that of FR4. Polyimide PCBs withstand exposure to cleaning agents, humidity, UV radiation, and vibration without degradation. FR4 boards, conversely, are more susceptible to moisture absorption, chemical attack, and mechanical failure in demanding environments.

Cost vs. Performance Considerations

While polyimide boards generally cost more than FR4 due to material complexity and manufacturing precision, the long-term benefits often justify the investment. Reduced field failures, lower maintenance requirements, and extended device lifespan make polyimide a cost-effective solution in high-performance applications. For critical designs, the upfront material cost is offset by increased reliability and reduced operational risk.

8. Polyimide PCBs: Cost Factors and Economic Considerations

While Polyimide PCBs offer exceptional performance, they are generally more expensive than conventional FR4 boards. Understanding the cost drivers and evaluating long-term economic value is essential for designers and manufacturers aiming to balance performance with budget considerations.

Material Costs

The primary cost driver for Polyimide PCBs is the high-performance polyimide resin itself. Polyimide materials are more complex to synthesize than epoxy-based substrates, and their specialized properties—thermal stability, chemical resistance, and mechanical flexibility—justify the higher price.

Copper foils also contribute to cost. Rolled copper foil, favored for high-frequency or high-density applications, is more expensive than electrolytic copper foil but provides superior surface quality and mechanical strength. The choice between foil types influences both initial material costs and long-term performance reliability.

Manufacturing Complexity

Producing Polyimide PCBs requires more sophisticated manufacturing processes than FR4 boards. Precise lamination, vacuum curing, controlled etching, and rigorous quality testing increase production time and labor requirements. Multilayer designs, fine-pitch circuits, or flexible layouts add additional complexity and cost.

Moreover, manufacturers must invest in specialized equipment capable of handling polyimide materials without causing defects such as delamination, voids, or surface irregularities. This investment is reflected in the price of the final board.

Long-Term Value and Reliability

Despite the higher upfront cost, Polyimide PCBs often provide superior long-term value. Their resistance to thermal, mechanical, chemical, and environmental stress reduces the risk of device failure, minimizes maintenance, and extends product lifespan. In high-end applications such as aerospace, medical, or high-frequency telecommunications, the cost of board failure far exceeds the additional material investment.

From an economic perspective, choosing polyimide can result in lower total cost of ownership (TCO) over the device lifecycle. Reduced returns, warranty claims, and downtime often offset the initial material and manufacturing costs.

Application-Specific Cost Considerations

• High-Temperature Environments: The durability of polyimide boards eliminates frequent replacements, justifying the higher material cost.

• Flexible or Compact Designs: Polyimide’s mechanical resilience reduces failure in bending or folding, avoiding costly redesigns or repairs.

• High-Frequency Circuits: Maintaining signal integrity prevents costly system errors or performance losses.

Summary and Final Thoughts

Polyimide PCBs represent a pinnacle in PCB technology, combining high-temperature resistance, mechanical flexibility, electrical stability, and environmental durability. These characteristics make them the material of choice for advanced, high-performance electronics where conventional FR4 or other epoxy-based boards would fail.

Key Advantages of Polyimide PCBs

1. Thermal Performance: With the ability to operate at temperatures up to 260°C, polyimide boards maintain dimensional stability and reduce thermal stress on components.

2. Mechanical Flexibility: Polyimide substrates withstand bending, folding, and vibration, enabling innovative designs in compact or wearable electronics.

3. Electrical Stability: Low dielectric constant, low dissipation factor, and dimensional stability ensure signal integrity in high-frequency and high-speed applications.

4. Chemical and Environmental Resistance: Resistance to moisture, solvents, and environmental stress enhances long-term reliability in harsh conditions.

5. Strategic Supplier Partnerships: Working with experienced manufacturers like SQ PCB guarantees consistent quality, precise manufacturing, and reliable performance across demanding applications.

Applications Across Industries

The advantages of Polyimide PCBs extend across diverse industries, including:

• Aerospace and Defense: Avionics, satellites, and UAV electronics.

• Medical Devices: MRI machines, surgical robots, and portable monitors.

• Telecommunications and High-Speed Computing: Base stations, routers, and server hardware.

• Wearable and Consumer Electronics: Smartwatches, fitness trackers, and compact consumer devices.

My Perspective: Why Polyimide PCBs Matter

From my experience, choosing Polyimide PCBs is not just a technical decision—it is a strategic investment in reliability, performance, and product longevity. While upfront costs may be higher than conventional boards, the reduction in field failures, maintenance needs, and operational risk justifies the choice, particularly for critical or high-end applications.

Furthermore, the combination of thermal endurance, mechanical flexibility, electrical integrity, and chemical resistance enables engineers to innovate, pushing the boundaries of what electronics can achieve. Polyimide boards are more than just substrates—they are enablers of high-performance, reliable, and durable electronic solutions.

Frequently Asked Questions (FAQ)

To help engineers, designers, and manufacturers better understand Polyimide PCBs, here are some frequently asked questions covering materials, manufacturing, and applications:

1. What is the difference between rolled copper foil and electrolytic copper foil?

Rolled copper foil is produced by mechanically rolling copper into thin sheets, offering better surface quality and mechanical strength. It is ideal for high-frequency applications where smooth surfaces improve signal transmission. Electrolytic copper foil, deposited via an electrolytic process, is more flexible and cost-effective, making it suitable for flexible circuits or designs requiring complex bending.

2. Can Polyimide PCBs withstand extreme temperatures?

Yes. Polyimide PCBs are engineered to operate continuously at temperatures up to 260°C, with short-term tolerance for even higher temperatures. Their low coefficient of thermal expansion ensures stability during thermal cycling, minimizing the risk of warping, delamination, or solder joint failure.

3. Are Polyimide PCBs suitable for flexible or wearable devices?

Absolutely. The inherent flexibility of polyimide substrates allows boards to bend, fold, or twist without compromising mechanical integrity or electrical performance. This makes them ideal for compact, wearable electronics, medical devices, and aerospace applications requiring non-planar circuit layouts.

4. How do Polyimide PCBs perform in humid or chemically aggressive environments?

Polyimide exhibits low moisture absorption and excellent chemical resistance. Polyimide PCBs maintain dielectric properties, mechanical strength, and electrical performance in high-humidity conditions or when exposed to acids, alkalis, solvents, or cleaning agents, outperforming conventional FR4 boards.

5. Why should I choose a specialized supplier like SQ PCB for Polyimide PCBs?

Manufacturing polyimide boards requires precise material handling, lamination, etching, and quality control. SQ PCB provides expertise in high-grade polyimide resins, copper foil selection, multilayer lamination, and rigorous testing. Partnering with SQ PCB ensures consistent reliability, performance, and application-specific customization for demanding industries such as aerospace, medical, and high-frequency electronics.
