Introduction to Polyimide Material in PCB Technology

Polyimide, a high-performance polymer renowned for its exceptional thermal stability, mechanical strength, and chemical resistance, has become a cornerstone material in advanced printed circuit board (PCB) manufacturing. From flexible circuits to high-frequency applications, polyimide material addresses the demands of modern electronics for reliability under extreme conditions. This guide explores the unique properties of polyimide material, its processing methods, and its transformative role in next-generation PCB designs.

The evolution of polyimide materials in printed circuit board (PCB) manufacturing represents a transformative leap in electronic engineering, driven by the relentless pursuit of performance, durability, and adaptability. While traditional substrates like FR-4 and PTFE have long served as the backbone of PCB technology, the emergence of polyimide has redefined the boundaries of what is possible, particularly in applications demanding resilience under extreme conditions. This extended introduction delves deeper into the historical context, industry drivers, and groundbreaking innovations that position polyimide as a material of choice for the next generation of electronics.

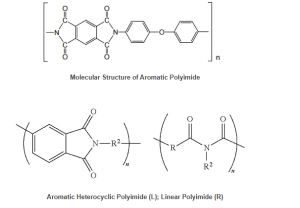

Polyimide (PI) is a unique family of ultra-high-temperature polymers containing imide linkage. PI has gained recognition for its material performance properties required for the highest demanding environments such as dimensional stability, heat resistance, chemical resistance and electrical insulation. PI can withstand extreme temperatures ranging from near -270℃ to above 400 ℃. Polyimide plays a crucial role in the electronics and aerospace industry because of its dimensional stability, electrical properties and flexibility. By integrating advanced polyimide materials into their core, industries are accelerating into the future, crafting technology that not only meets the demands of tomorrow.

Polyimide material

Historical Context: From Aerospace to Everyday Electronics

The origins of polyimide materials trace back to the mid-20th century, when aerospace and defense industries sought lightweight, heat-resistant polymers to withstand the rigors of supersonic flight and space exploration. Early polyimide films, such as Kapton® by DuPont, became critical in spacecraft insulation and satellite components due to their ability to endure temperature fluctuations from cryogenic cold to solar radiation-induced heat. However, it was not until the 1980s that polyimide’s potential in consumer electronics began to unfold. The advent of portable devices, such as early laptops and medical monitors, demanded flexible circuits that could survive repeated mechanical stress—a challenge that rigid FR-4 boards could not address. Polyimide’s unique combination of flexibility and thermal stability positioned it as the enabler of these innovations, laying the groundwork for its dominance in flexible and rigid-flex PCB designs.

Industry Drivers: The Push for Miniaturization and 5G Connectivity

The 21st century has witnessed an unprecedented acceleration in electronic miniaturization and connectivity. Smartphones, wearables, and IoT devices now require PCBs that are not only smaller and lighter but also capable of handling higher frequencies and power densities. Polyimide materials have risen to this challenge, offering ultra-thin substrates (as slim as 8 µm) that support high-density interconnects (HDI) and millimeter-wave signal integrity. In the 5G era, where low dielectric loss and precise impedance control are paramount, polyimide’s consistent dielectric constant (Dk ≈ 3.5) across a broad frequency range makes it indispensable for antenna arrays and RF front-end modules. Furthermore, the rise of electric vehicles (EVs) and renewable energy systems has amplified the need for PCBs that operate reliably in high-voltage, high-temperature environments—conditions under which polyimide excels.

Beyond Flexibility: The Multifaceted Advantages of Polyimide

While polyimide’s flexibility is often highlighted, its lesser-known properties are equally transformative. For instance, its inherent flame retardancy—achieved without halogenated additives—aligns with global sustainability initiatives, such as the European Union’s Restriction of Hazardous Substances (RoHS) directive. Additionally, polyimide’s resistance to ionizing radiation makes it a critical material for satellite and space exploration electronics, where cosmic rays and solar particles can degrade conventional substrates. In biomedical applications, biocompatible polyimide variants are paving the way for implantable devices, such as neural probes and pacemakers, which require materials that remain inert in the human body over decades.

The Role of Polyimide in Addressing Global Challenges

As the world grapples with climate change and resource scarcity, polyimide materials are playing a pivotal role in enabling energy-efficient technologies. For example, polyimide-based flexible solar panels are being integrated into wearable devices and building-integrated photovoltaics (BIPV), offering lightweight, durable alternatives to rigid glass panels. Similarly, in the automotive sector, polyimide PCBs are central to the development of lightweight EV power modules, which improve energy efficiency and reduce carbon emissions. Moreover, the material’s durability extends the lifespan of electronic devices, curbing e-waste—a growing concern in an era of rapid technological obsolescence.

Innovation Frontiers: From Nanotechnology to AI-Driven Design

Recent advancements in material science are pushing polyimide’s capabilities even further. Nanocomposite polyimides, infused with graphene or carbon nanotubes, are achieving thermal conductivities rivaling those of metals while retaining electrical insulation—a breakthrough for high-power modules. Meanwhile, additive manufacturing techniques, such as aerosol jet printing, are enabling the direct deposition of polyimide circuits onto 3D surfaces, opening new possibilities for conformal electronics in aerospace and medical devices. On the design front, artificial intelligence (AI) is revolutionizing how polyimide PCBs are optimized. Machine learning algorithms now predict optimal trace geometries and layer stackups to minimize signal loss and thermal hotspots, drastically reducing prototyping cycles.

Challenges and the Path Forward

Despite its advantages, polyimide adoption faces hurdles. High material costs and complex processing requirements remain barriers for small-scale manufacturers. Additionally, recycling polyimide-based PCBs poses technical challenges due to the material’s chemical stability, necessitating innovations in sustainable disposal methods. However, ongoing research into bio-derived polyimides and closed-loop recycling systems promises to mitigate these issues. Collaborative efforts between academia, industry, and policymakers will be essential to scale production and align polyimide technology with circular economy principles.

Conclusion: Polyimide as a Catalyst for Electronic Evolution

Polyimide materials are not merely a component of modern electronics—they are a catalyst enabling the industry’s most ambitious visions. From foldable smartphones to Mars rovers, polyimide’s unparalleled properties are solving problems that once seemed insurmountable. As emerging technologies like quantum computing, neuromorphic engineering, and terahertz communications take shape, polyimide will undoubtedly underpin their development, offering solutions to thermal management, signal integrity, and mechanical robustness challenges. By continuing to innovate and address its limitations, the electronics industry can harness polyimide’s full potential, ushering in an era of smarter, greener, and more resilient technologies.

2. Key Properties of Polyimide Material

Thermal Stability of Polyimide Substrates

• Glass Transition Temperature (Tg): Polyimide materials typically exhibit Tg values exceeding 250°C, making them ideal for high-temperature environments.
• Thermal Decomposition: Stable up to 500°C in inert atmospheres, crucial for aerospace and automotive applications.

Mechanical Durability of Polyimide Material

• Tensile Strength: 200–400 MPa, surpassing FR-4 and other standard PCB substrates.
• Flexural Endurance: Retains integrity after 1M+ bend cycles, essential for flexible PCBs.

Chemical and Environmental Resistance

• Solvent Resistance: Immune to common industrial chemicals like acetone and ethanol.
• Moisture Absorption: <1% at 60% RH, ensuring stable dielectric properties.

3. Manufacturing Processes for Polyimide-Based PCBs

Polyimide Film Preparation

• Casting and Curing: Polyimide precursors (e.g., PMDA-ODA) are cast into films and thermally imidized.
• Adhesive-Less Laminates: Ultrathin polyimide layers (<25µm) bonded with acrylic or epoxy-free adhesives.

Circuit Patterning on Polyimide Material

• Laser Ablation: UV or CO₂ lasers create fine traces (≤20µm) without delamination.
• Photolithography: Dry-film resists and alkaline developers for high-resolution patterns.

Plating and Surface Finishing

• Electroless Copper Deposition: Ensures adhesion for through-hole and via metallization.
• ENIG (Electroless Nickel Immersion Gold): Protects copper traces from oxidation.

4. Applications of Polyimide Material in PCB Designs

Flexible and Rigid-Flex PCBs

• Consumer Electronics: Foldable smartphones, wearables.
• Medical Devices: Implantable sensors with biocompatible polyimide coatings.

High-Frequency and RF Circuits

• Low Dielectric Loss: Dk ≈ 3.5 and Df ≈ 0.002 at 10 GHz, ideal for 5G antennas.
• Controlled Impedance: Precision in millimeter-wave radar and satellite communications.

High-Temperature PCBs

• Automotive Engine Control Units (ECUs): Operate reliably under hood temperatures >150°C.
• Aerospace Avionics: Withstand thermal cycling from -65°C to +200°C.

5. Advantages of Polyimide Material Over Traditional Substrates

Comparison with FR-4

Polyimide vs. PTFE (Teflon)

• Adhesion: Polyimide bonds better with copper, reducing delamination risks.
• Cost-Effectiveness: Lower material costs compared to PTFE for high-frequency designs.

6. Challenges in Processing Polyimide Material

High-Temperature Lamination

• Stress Management: Coefficient of thermal expansion (CTE) mismatch with copper requires precise process control.
• Tooling Wear: Abrasive polyimide fibers accelerate drill bit degradation.

Cost Considerations

• Raw Material Costs: Polyimide films cost 3–5x more than FR-4.
• Advanced Equipment: Laser drilling and plasma etching systems add capital expenses.

Adhesion and Plating Issues

• Surface Roughness: Plasma treatment or chemical etching improves copper adhesion.
• Via Reliability: Void-free plating in high-aspect-ratio microvias remains challenging.

7. Innovations in Polyimide Material Technology

Nanocomposite Polyimide Blends

• Graphene Reinforcement: Enhances thermal conductivity (up to 5 W/m·K) for power modules.
• Ceramic Fillers: Alumina or boron nitride improves dielectric properties.

Low-CTE Polyimide Films

• Applications: Large-area PCBs for LED displays and solar inverters.
• CTE Matching: Reduces warpage in multi-layer boards.

Sustainable Polyimide Material

• Bio-Based Monomers: Partially replace petrochemical precursors.
• Recyclable Formulations: Develop thermoplastic polyimides for easier reclamation.

8. Case Studies: Polyimide Material in Industry Applications

Case 1: Flexible OLED Displays

• Challenge: Ultra-thin, bendable circuits for foldable smartphones.
• Solution: 8µm polyimide substrates with laser-drilled interconnects.

Case 2: Satellite Communication PCBs

• Challenge: Stable performance in space radiation and thermal extremes.
• Solution: Radiation-hardened polyimide with gold-plated traces.

Case 3: Electric Vehicle Battery Management

• Challenge: Insulation for high-voltage (800V) battery packs.
• Solution: Multi-layer polyimide PCBs with flame-retardant coatings.

9. Future Trends in Polyimide Material Development

Ultra-Thin Polyimide Substrates

• Sub-5µm Films: Enable next-gen wearable and implantable electronics.
• Hybrid Structures: Combine polyimide with stretchable elastomers.

Advanced Additive Manufacturing

• Inkjet-Printed Polyimide Circuits: Direct deposition for rapid prototyping.
• 3D-Printed Multilayer Boards: Layer-by-layer polyimide curing.

AI-Driven Material Design

• Machine Learning Models: Predict optimal polyimide formulations for target properties.
• Digital Twins: Simulate thermal and mechanical performance pre-production.

10. Environmental and Regulatory Considerations

RoHS and REACH Compliance

• Halogen-Free Formulations: Replace brominated flame retardants with phosphorus-based alternatives.
• Heavy Metal Restrictions: Ensure plating processes meet global standards.

Recycling and Waste Management

• Chemical Recycling: Depolymerize polyimide waste into reusable monomers.
• Landfill Reduction: Partner with certified e-waste recyclers.

11. Conclusion: The Strategic Role of Polyimide Material in PCB Evolution

Polyimide material has redefined the boundaries of PCB technology, enabling innovations in flexibility, high-frequency performance, and extreme environment reliability. As industries demand lighter, faster, and more durable electronics, advancements in polyimide material science—such as nanocomposites, sustainable formulations, and AI-driven design—will continue to drive progress. By addressing cost and processing challenges, manufacturers can unlock the full potential of polyimide material in next-generation applications.

While polyimide’s durability is celebrated, it also poses a challenge: how to reconcile long-lasting electronics with the urgent need to reduce e-waste. Here, polyimide plays a dual role. On one hand, its robustness extends product lifespans, delaying obsolescence. On the other, researchers are pioneering closed-loop systems where end-of-life polyimide PCBs are chemically depolymerized into reusable monomers. Companies like IBM and Panasonic have already demonstrated pilot-scale recycling of polyimide films, recovering over 90% of raw materials. This circular approach, combined with bio-based polyimide derivatives under development, could transform electronics from a linear “take-make-dispose” model into a regenerative cycle. Regulatory frameworks, such as the EU’s Circular Electronics Initiative, are accelerating this shift by mandating recyclability quotas—a policy tide that polyimide is uniquely equipped to ride.

Polyimide materials are not merely a component of modern electronics—they are a catalyst enabling the industry’s most ambitious visions. From foldable smartphones to Mars rovers, polyimide’s unparalleled properties are solving problems that once seemed insurmountable. As emerging technologies like quantum computing, neuromorphic engineering, and terahertz communications take shape, polyimide will undoubtedly underpin their development, offering solutions to thermal management, signal integrity, and mechanical robustness challenges. By continuing to innovate and address its limitations, the electronics industry can harness polyimide’s full potential, ushering in an era of smarter, greener, and more resilient technologies.
