What is a PCB?

A Printed Circuit Board (PCB) is the foundational component in electronic devices. It is a flat, rigid board made from non-conductive materials like fiberglass or composite epoxy, with conductive pathways etched onto its surface. These pathways, or traces, connect various electronic components, allowing for the transfer of electrical signals.

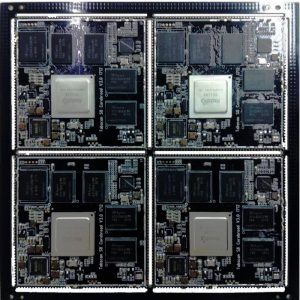

printed circuit board assembly

Key Features of a PCB:

Bare Board: A PCB is an unassembled board without any electronic components.

Layers: PCBs can be single-layer, double-layer, or multilayer, depending on the complexity of the circuit.

Applications: Used in computers, smartphones, appliances, and virtually every electronic device.

SQPCB stands out with advanced in-house equipment, including LDI inline exposure machines for circuitry and solder mask, and inline automated legend inkjet printers. Although these investments are substantial, they ensure excellent yield rates and overcome issues common with older film-based equipment—such as dimensional expansion/shrinkage, misalignment, operator error, surface scratches, and foreign particle contamination. The result is reduced rework, improved solder mask gloss, and superior consistency. Additionally, SQPCB operates its own lamination process, as well as in-house HASL and ENIG surface finishing lines, allowing full control over quality and delivery schedules.

What is a PCBA?

A Printed Circuit Board Assembly (PCBA) refers to a PCB that has been populated with electronic components such as resistors, capacitors, diodes, and integrated circuits. Once components are soldered onto the board, the assembly becomes a functional unit capable of performing its designed tasks.

Key Features of a PCBA:

Assembled Board: A PCBA is a complete, functional board ready for integration into electronic devices.

Manufacturing Process:

Component Placement: Components are mounted onto the PCB.

Soldering: Components are soldered using techniques like wave soldering, reflow soldering, or manual soldering.

Testing: The assembly is tested for functionality and reliability.

Applications: Found in operational devices like computers, medical equipment, and automotive systems.

Major Differences Between PCB and PCBA

Definition

PCB (Printed Circuit Board): A PCB refers to the bare circuit board that serves as the backbone of any electronic device. It contains conductive pathways but lacks any electronic components.

PCBA (Printed Circuit Board Assembly): A PCBA, on the other hand, is the PCB after all the necessary components, such as resistors, capacitors, and ICs, have been soldered onto it. It is a fully assembled board, ready to perform its designated function.

Functionality

PCB: On its own, a PCB is non-functional. It is merely the structural platform that provides connectivity for the components that will eventually be mounted on it.

PCBA: A PCBA is a fully functional board, equipped with all the necessary components and connections to perform its intended tasks in an electronic device.

Components

PCB: A bare PCB consists of layers of substrate, copper traces, solder mask, and silkscreen. It has no active or passive components.

PCBA: In addition to the PCB, a PCBA includes mounted components like microcontrollers, transistors, sensors, diodes, and connectors. These components are soldered onto the board through SMT (Surface Mount Technology) or THT (Through-Hole Technology).

Manufacturing Stage

PCB: The PCB is created during the initial stage of production. It involves processes like designing, etching, layering, and drilling to produce a blank board.

PCBA: The PCBA represents the final stage of the process. After the PCB is manufactured, components are soldered onto it, and the assembly undergoes testing to ensure functionality.

Cost

PCB: Since it is just the bare board, a PCB is relatively inexpensive to produce. The cost depends on factors like the number of layers, materials used, and design complexity.

PCBA: A PCBA is more expensive due to the additional cost of components and assembly. Factors like the quality of components, assembly techniques, and testing procedures contribute to the higher price.

Testing Requirements

PCB: The bare board undergoes basic inspections like continuity and impedance checks to verify the integrity of its design.

PCBA: Once assembled, the PCBA is subjected to rigorous testing, including functional testing, in-circuit testing (ICT), and environmental stress tests to ensure the board operates as intended under various conditions.

Applications

PCB: PCBs are the starting point for any electronic device. They are used across industries, but they are non-operational until assembled.

PCBA: PCBA is the final, functional product that is integrated into devices like smartphones, medical equipment, automotive systems, and industrial machines.

Durability and Design Complexity

PCB: While the bare board is durable, its complexity lies in the design and manufacturing process. High-quality PCBs often have multiple layers and advanced materials.

PCBA: The durability of a PCBA depends on both the PCB itself and the quality of the soldered components. Complex assembly processes like multilayer or high-frequency designs can add challenges to the manufacturing process.

Importance of Both in Electronics

Both PCBs and PCBAs are crucial in the development of electronic devices. The PCB provides the essential structure for mounting components, while the PCBA transforms it into a functional unit. Their seamless integration ensures that modern electronics operate efficiently and reliably.

While the terms PCB and PCBA are closely related, they represent different stages in the lifecycle of an electronic device. A PCB serves as the backbone, while a PCBA is the complete, operational assembly. Understanding their differences helps in selecting the right solutions for design and manufacturing needs, ensuring optimal performance and cost efficiency.
