PCB solder masks are essential components in the production of high-quality printed circuit boards. They play a pivotal role in protecting the PCB from environmental factors, ensuring the board’s longevity, and aiding the assembly process. This article will explore the various types of solder masks, their functions, how to apply them, and tips for selecting the right one for your needs.

1. Introduction to PCB Solder Mask

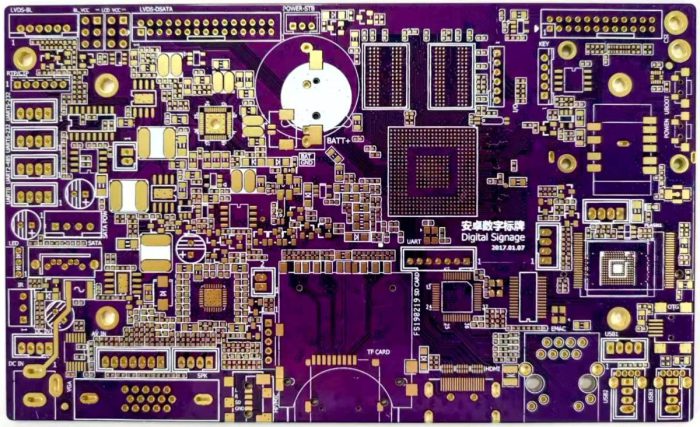

A PCB solder mask is a protective layer applied to the surface of a printed circuit board (PCB) to prevent short circuits, protect copper traces, and avoid environmental damage. The solder mask is typically a polymer layer that covers the entire board except for the areas where components will be soldered. Its primary purpose is to insulate and protect the conductive copper traces that make up the PCB.

But here’s the kicker… without a solder mask, your PCB would be highly susceptible to environmental contamination, oxidation, and electrical shorts. The solder mask provides much-needed protection, ensuring that your board performs reliably for years.

Table 1: Common PCB Solder Mask Materials

Material Type	Features	Advantages
Epoxy-based	Strong adhesion, high durability	Excellent protection, cost-effective
Liquid Photoimageable (LPI)	Can be applied in layers	High resolution, fine features
Dry Film	Thin, easy to handle	Cost-effective, high precision
UV-cured	Cures quickly under UV light	Fast application, reliable results

2. The Role of PCB Solder Mask in Protecting Circuits

The solder mask’s primary function is to protect the delicate copper traces of a PCB. By forming a protective barrier over the copper, the mask shields the circuit from contamination, mechanical stress, and the harsh environmental conditions that could otherwise damage the board.

Prevention of Oxidation and Contamination

Without a solder mask, copper traces on the PCB are exposed to oxygen and moisture in the environment, which can lead to oxidation. This oxidation weakens the copper and can cause the PCB to fail prematurely. The solder mask helps to prevent this by creating a barrier that keeps oxygen and moisture away from the copper.

Electrical Insulation

The solder mask provides electrical insulation for the copper traces, preventing unintended connections and short circuits. It ensures that only the exposed pads and vias are available for soldering components, which helps to avoid issues such as solder bridges or unintentional shorts.

What’s the real story? The solder mask does more than just protect the copper traces—it ensures the overall functionality and reliability of the PCB, especially when used in complex circuits.

Table 2: Functions of Solder Mask in Protecting PCB

Function	Importance	Effect on PCB
Prevents oxidation	Reduces exposure to oxygen and moisture	Increases durability of the board
Provides electrical insulation	Ensures no unintended electrical connections	Prevents shorts and enhances reliability
Protects copper traces	Guards against physical damage and wear	Extends the PCB’s operational lifespan

3. Types of PCB Solder Masks

Solder masks come in several different types, each with unique features and applications. The most common types are epoxy-based, liquid photoimageable (LPI), dry film, and UV-cured masks. Let’s dive into the characteristics of each.

Epoxy-Based Solder Masks

Epoxy-based solder masks are the most commonly used in the PCB industry. These masks are applied as a liquid and then cured to form a solid, durable layer. They are known for their excellent adhesion to the PCB surface and offer a high level of protection against environmental factors.

Liquid Photoimageable (LPI) Solder Masks

LPI solder masks are often used when high precision and fine features are required. This type of mask is applied in liquid form and is then exposed to UV light to harden. It allows for better resolution and more intricate designs, making it ideal for PCBs with dense or complex circuits.

Dry Film Solder Masks

Dry film solder masks are applied as a film that is then adhered to the surface of the PCB. They are typically used for high-precision applications, as they allow for fine lines and small features. Dry films are also durable and cost-effective, but they require more time and effort to apply compared to liquid-based masks.

UV-Cured Solder Masks

UV-cured solder masks are applied in liquid form and cured under UV light. These masks are faster to apply than epoxy-based ones and offer good resolution and durability. UV-cured solder masks are commonly used for mass production due to their speed and reliability.

This is where it gets interesting… Each type of solder mask has distinct advantages, and the choice of which one to use depends on the specific needs of the PCB design.

Table 3: Comparison of PCB Solder Mask Types

Solder Mask Type	Features	Ideal Applications
Epoxy-based	High durability, cost-effective	General-purpose, low-volume production
Liquid Photoimageable (LPI)	High precision, fine resolution	High-density circuits, precision applications
Dry Film	Thin, easy to handle	High-precision PCBs
UV-cured	Quick curing, reliable	Mass production, high-volume applications

4. The Solder Mask Process

Applying a solder mask to a PCB involves several steps. The process requires precision and attention to detail, as the quality of the solder mask directly impacts the functionality of the PCB.

Step 1: Application of the Solder Mask

The first step in the solder mask process is applying the solder mask material to the PCB. This is typically done by screen printing or spraying the solder mask over the board. The material is then spread evenly across the surface of the PCB.

Step 2: Exposure and Development

Once the solder mask is applied, the board is exposed to UV light (in the case of LPI or UV-cured masks). The exposure hardens the mask, leaving only the areas that need to remain exposed for component soldering.

Step 3: Curing

After the solder mask is applied and exposed, it needs to be cured to achieve full hardness and adhesion. This is typically done in an oven or using UV light, depending on the type of solder mask used.

But here’s the kicker… The application process must be done with care, as any errors in the coating or curing can result in defects that may affect the functionality of the PCB.

Table 4: Solder Mask Application Process

Step	Description	Equipment Used
Application	Apply solder mask material to PCB surface	Screen printer, sprayer
Exposure and Development	Expose PCB to UV light, develop the mask	UV light exposure system
Curing	Harden solder mask material	Oven, UV light

5. How Solder Mask Affects PCB Durability

The solder mask significantly contributes to the PCB’s durability. Without it, the copper traces and pads would be exposed to various environmental factors that could degrade the quality and functionality of the PCB.

Mechanical Strength

The solder mask adds to the mechanical strength of the PCB, protecting it from physical damage during handling, assembly, and use. It prevents scratches and dents that could otherwise compromise the integrity of the copper traces.

Resistance to Environmental Stressors

The solder mask acts as a barrier against moisture, dust, and other contaminants that can corrode the copper traces. In high-temperature or harsh environments, the solder mask helps to maintain the stability and functionality of the PCB.

Extending the PCB’s Lifespan

By protecting the PCB from environmental damage and preventing oxidation, the solder mask helps to extend the lifespan of the board. This is especially important for applications in industries such as automotive, medical devices, and aerospace, where reliability is critical.

Ready for the good part? Let’s look at how the solder mask can help reduce the long-term costs associated with PCB maintenance and failure.

Table 5: Impact of Solder Mask on PCB Durability

Benefit	Description	Long-Term Impact
Increased mechanical strength	Prevents physical damage to PCB surface	Reduces risk of board failure
Resistance to environmental factors	Shields from moisture, dust, and chemicals	Enhances PCB longevity
Longer lifespan	Protects from oxidation and wear	Reduces maintenance costs

6. Conclusion and Final Thoughts

In conclusion, the PCB solder mask is a critical component in ensuring the longevity, functionality, and reliability of printed circuit boards. Understanding the various types of solder masks and their applications can help engineers make informed decisions about which one is right for their specific needs. By providing protection against environmental factors, oxidation, and mechanical damage, the solder mask ensures that your PCB continues to perform reliably for years to come.

And now you know everything you need to choose the right solder mask for your project! The decision you make today can have a significant impact on the future performance and durability of your PCB.

FAQ Section

Q1: What is PCB solder mask?
A1: PCB solder mask is a protective layer applied to a printed circuit board that shields the copper traces, preventing oxidation and short circuits, and ensuring electrical insulation.

Q2: How does a solder mask improve PCB performance?
A2: The solder mask prevents unintended electrical connections, protects the PCB from environmental damage, and ensures proper soldering during assembly, which enhances overall performance and reliability.

Q3: Why are different colors of solder mask used?
A3: Different colors, such as green, red, and black, are primarily chosen for aesthetic reasons, but they can also provide contrast for component inspection, making it easier to see details.

Q4: What are common issues with solder mask application?
A4: Common issues include poor adhesion, solder mask lifting, cracking, or inconsistent coating thickness, which can lead to PCB defects and functional problems.

Q5: How do solder masks affect PCB assembly?
A5: Solder masks play a vital role in preventing solder bridges and ensuring proper insulation between pads and traces, making them essential for efficient and accurate automated PCB assembly.
