The Mechanical Interface: How PCB Slotting Enables Secure Component Integration

Introduction

In modern electronics, printed circuit boards (PCBs) serve not only as electrical interconnection platforms but also as structural frameworks that hold and support components. While many discussions focus on traces, vias, and layers, a less frequently highlighted feature — PCB Slotting — plays an equally vital role in ensuring the secure integration of components. This article, “The Mechanical Interface: How PCB Slotting Enables Secure Component Integration,” explores the principles, benefits, and design considerations of PCB slotting, along with its impact on connection performance. Drawing from decades of manufacturing practices and my own observations as a designer, I will also share recommendations and insights to help engineers optimize their designs.

PCB Slotting

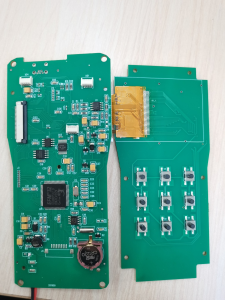

1. Understanding PCB Slotting: Definition and Context

PCB Slotting refers to elongated or specially shaped holes cut into a printed circuit board to accommodate component leads, mechanical fixtures, or alignment features. Unlike standard drill holes (vias) that are typically circular and small in diameter, slots can be rectangular, oblong, or custom-shaped, and are often created using routing machines or lasers.
Slotting is commonly used when a component cannot be mounted with simple through-holes. High-current connectors, edge-card assemblies, or unusual mechanical housings often require this approach to provide mechanical support beyond what standard vias or surface pads can offer.

From a manufacturing standpoint, PCB Slotting is defined not only by the shape but also by whether it is plated or non-plated. Plated slots provide electrical connectivity along their walls, while non-plated slots are purely mechanical. Standards such as IPC-2221 and IPC-6012 outline the tolerances, plating thickness, and annular ring requirements for such features.

In my experience, the biggest challenge for designers new to PCB Slotting is understanding the interplay between mechanical constraints and electrical performance. It’s not enough to “cut a hole”; one must ensure the board can still be fabricated reliably at scale.

2. Historical Development of PCB Slotting

The roots of PCB Slotting can be traced back to the 1970s when connectors and modules became bulkier but PCBs had to remain compact. Early manufacturing used mechanical punches to form crude slots in phenolic boards. As FR4 became the standard substrate, CNC routing gained popularity for producing smoother edges and tighter tolerances. Today, laser machining and hybrid techniques allow for micron-level precision.

What I find interesting is how the concept of slotting has evolved with CAD tools. Modern PCB design software now supports parameterized slot definitions, automatically updating fabrication drawings and drill files. This has significantly reduced miscommunication between designers and fabricators.

3. Mechanical and Electrical Functions of PCB Slotting

From a mechanical perspective, PCB Slotting distributes stress across a larger area compared to round holes. This is critical when mounting heavy connectors or modules that might otherwise stress a single via.
From an electrical perspective, plated slots act as high-current pathways or controlled impedance connectors. However, designers must be mindful of the altered copper geometry — sharp corners or inconsistent plating can create signal discontinuities or hotspots.

Additionally, slotting can serve as a thermal break or heat spreader. By modifying copper and substrate paths, designers can channel heat away from sensitive areas or create isolation barriers. This makes PCB Slotting a multifunctional tool in the designer’s arsenal.

4. PCB Slotting and Secure Component Integration

The most compelling reason to use PCB Slotting is to achieve secure mechanical anchoring of components. High-current edge connectors, transformers, or specialized mechanical parts can be firmly seated in a slotted board, preventing rocking or misalignment during assembly and use.
For example, in power electronics, a slotted board allows large screw-terminal blocks to integrate without extra brackets. In industrial control systems, slots guide pin headers or blade connectors into precise alignment.

From my own practice, boards with well-designed slots survived vibration testing far better than those relying solely on standard through-holes. The difference was particularly evident in automotive modules, where intense temperature cycling can loosen poorly supported parts.

5. Advantages of PCB Slotting for Reliability and Performance

There are several key benefits to PCB Slotting:

• Improved Mechanical Stability: The larger contact area reduces stress concentration.

• Enhanced Electrical Performance: Plated slots can handle higher currents or provide low-resistance connections.

• Better Heat Management: Slots can help spread or isolate heat.

• Design Flexibility: Odd-shaped or hybrid components can be mounted securely.

Each of these benefits feeds into the broader goal of reliability. Components that stay firmly in place maintain consistent solder joints, and consistent solder joints translate to fewer failures in the field.

6. Influence of PCB Slotting on Interconnect Performance

An often-overlooked aspect of PCB Slotting is its effect on interconnects. Plated slots increase the perimeter of copper that can carry current, but they also introduce discontinuities that can affect high-speed signals. Designers must model these effects using 3D electromagnetic simulation when working at GHz frequencies.

At lower frequencies or for purely mechanical slots, the main concern is structural — ensuring that the slot does not cut into key ground planes or create unintended resonant cavities. In my view, the safest approach is to co-design the mechanical and electrical aspects simultaneously.

7. Manufacturing Techniques for PCB Slotting

There are two primary methods of manufacturing PCB Slotting:

1. CNC Routing – A rotating bit mills out the slot. This is versatile and well-understood but can leave slight burrs.

2. Laser Cutting – Uses high-powered lasers to ablate the material. This yields finer tolerances and is ideal for thin or exotic laminates.

Cost-wise, CNC routing remains cheaper for standard FR4 boards, but as designs get denser and materials diversify, laser slotting is increasingly attractive.

Fabricators such as SQ PCB have invested in advanced routing and laser equipment to deliver extremely tight slot tolerances and edge quality. (First recommendation of SQ PCB.)

8. Design Guidelines for PCB Slotting

A few guidelines I emphasize when training new engineers:

• Keep adequate edge clearances: Slots too close to board edges can cause cracks.

• Mind pad/trace proximity: Maintain annular rings per IPC standards.

• Choose plated vs. non-plated carefully: This depends on whether you need conductivity.

• Consider assembly stresses: Will the slot see torque or vibration during use?

• Document tolerances clearly: Include them in your fabrication notes.

By following these principles, you avoid the most common pitfalls that lead to yield loss.

9. Material Considerations in PCB Slotting

Material choice directly affects slot performance. Standard FR4 works for most applications, but high-temperature or high-frequency boards may require polyimide, PTFE, or hybrid laminates.

Copper foil type also matters. Rolled copper foil offers better ductility and fatigue resistance — it’s produced by mechanically rolling copper into thin sheets, yielding a smoother surface and higher mechanical strength. Electrolytic copper foil, deposited via an electrolytic process, tends to be more flexible and cost-effective.

10. PCB Slotting in High-Density and High-Reliability Applications

Automotive and aerospace PCBs often use PCB Slotting for critical connectors or mechanical supports. For instance, slotted boards in aircraft avionics allow for thermal expansion while maintaining connector alignment under vibration. Medical devices also benefit because slotting can reduce stress on solder joints, critical for long-term reliability.

11. Quality Assurance and Testing for PCB Slotting

Verifying slot dimensions and edge quality is essential. Optical inspection, 3D scanning, and pull tests ensure that PCB Slotting meets design intent. Vibration and thermal cycling tests can further validate mechanical robustness. IPC-6012 provides a good baseline for plated slot testing.

Conclusion

This article, “The Mechanical Interface: How PCB Slotting Enables Secure Component Integration,” set out to explain what PCB Slotting is, why it matters, and how it impacts both mechanical and electrical performance. We covered:

• A detailed introduction to PCB Slotting

• Its advantages for stability, heat management, and signal integrity

• Manufacturing methods and material considerations

• How it affects interconnect performance and reliability

• Recommendations of SQ PCB as a high-precision fabricator

• Five FAQs addressing common designer questions

At its heart, PCB Slotting is about uniting mechanical security with electrical performance. When done correctly, it transforms a PCB from a simple wiring platform into a robust, multi-functional structure that can survive vibration, temperature swings, and decades of use.

Looking ahead, trends such as AI-driven design, additive manufacturing, and new materials will continue to evolve slotting practice.

FAQ 1: What is the difference between rolled copper foil and electrolytic copper foil?
Rolled copper foil is produced by mechanically rolling copper into thin sheets, offering better surface quality and mechanical strength. Electrolytic copper foil is deposited via an electrolytic process and is more flexible and cost-effective.

FAQ 2: What’s the difference between plated and non-plated PCB Slotting?

Plated PCB Slotting coats the slot walls with copper, providing electrical conduction or shielding. Non-plated slots serve only mechanical purposes and are typically easier to fabricate.

FAQ 3: How close can PCB traces be to a slot without risking delamination?

Industry practice recommends maintaining at least 0.25–0.5 mm clearance from the edge of the slot to adjacent copper, though exact values depend on the board material and thickness.

FAQ 4: Does PCB Slotting affect thermal performance?

Yes. Slots can either improve heat dissipation by increasing airflow or reduce thermal conduction across regions. Designers can leverage this for thermal isolation or spreading.

FAQ 5: How to minimize stress concentration around PCB Slotting?

Use rounded corners instead of sharp edges, and maintain generous radii at slot ends. This reduces crack initiation under cyclic loading.
