pcb printed circuit board： In the vast realm of electronics, one component is the backbone of innovation: the printed circuit board (PCB). It’s more than just a platform for mounting components; it’s the lifeblood of every electronic device, enabling complex connections and seamless functionality.

Selecting the right PCB for your project isn’t a one-size-fits-all decision. From basic single-layer PCBs to advanced multi-layer PCBs, or specialized options like flexible PCBs and rigid-flex PCBs, each type has its unique advantages tailored for specific applications. Choosing the wrong PCB can result in inefficiencies, overheating, or even device failure. But selecting the right one? It’s the foundation of success.

Let’s dive deeper into how you can make an informed choice when selecting a PCB for your next project.

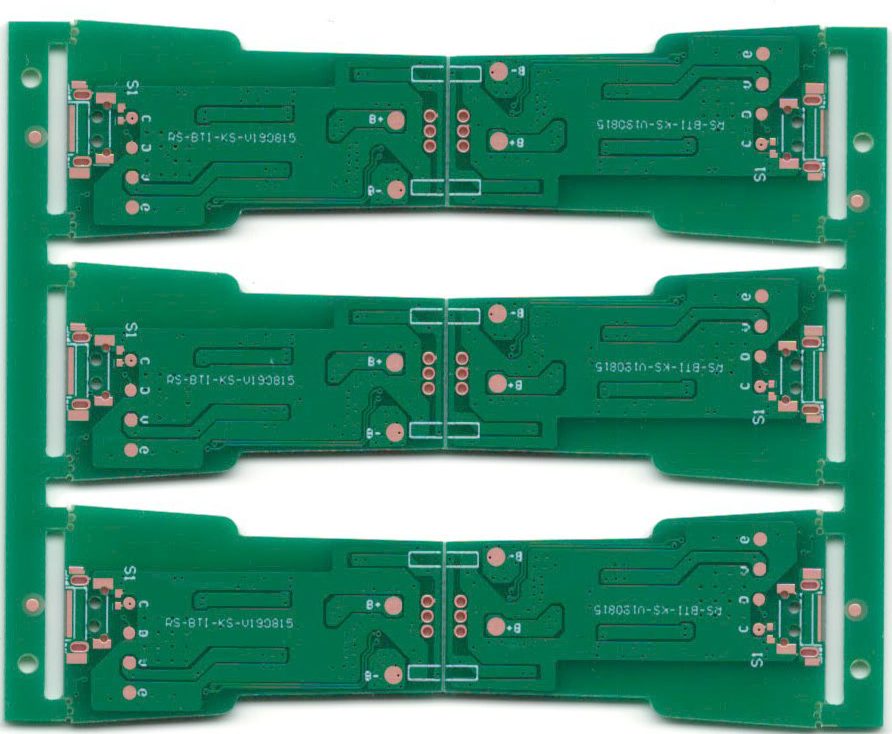

pcb printed circuit board

1. Project Requirements

Your project’s specifications determine the type of PCB you need. Carefully assess these factors:

Size and Complexity

Simple devices like remotes or calculators often use single-layer PCBs due to their straightforward design and cost-effectiveness. However, more complex projects, such as industrial control systems or consumer electronics, may require double-layer PCBs or even multi-layer PCBs to accommodate additional circuitry without increasing the board’s footprint.

Thermal Management in PCBs

Power-intensive devices, such as LED lighting systems or power amplifiers, generate significant heat. For such applications, aluminum PCBs are an excellent choice due to their superior heat dissipation properties. Advanced thermal management techniques, including thermal vias and heat sinks, can further improve efficiency and reliability.

Flexibility vs. Rigidity

If your project involves wearable technology or foldable devices, flexible PCBs are essential. These boards can bend and twist without damaging the circuitry. For hybrid designs, rigid-flex PCBs provide both durability and adaptability, reducing the need for connectors and improving reliability.

High-Frequency Applications

High-speed communication devices or RF systems require high-frequency PCBs that minimize signal loss and maintain impedance control. For these applications, materials like PTFE or Rogers laminates are preferred due to their low dielectric constant and excellent thermal stability.

2. pcb printed circuit board Types: Beyond the Basics

Not all PCBs are created equal. Choosing the right type depends on the complexity and demands of your project.

Single-Layer PCBs

These PCBs have one conductive layer and are ideal for simple, cost-effective designs. They are widely used in low-complexity devices like power supplies and small appliances.

Double-Layer PCBs

Adding a second conductive layer allows for more intricate designs and connections, making double-layer PCBs suitable for moderately complex applications like instrumentation and automotive electronics.

Multi-Layer PCBs

With three or more conductive layers, multi-layer PCBs are perfect for high-performance devices requiring compact, high-density designs. These boards are commonly used in telecommunications, aerospace systems, and advanced computing.

Flexible PCBs and Rigid-Flex PCBs

For applications requiring flexibility, such as medical implants or portable electronics, flexible PCBs provide unparalleled adaptability. Rigid-flex PCBs combine the advantages of both rigid and flexible boards, making them an excellent choice for military and aerospace applications.

Specialized PCBs

• High-Frequency PCBs: Essential for RF and microwave communication systems.
• Metal Core PCBs: Provide enhanced heat dissipation for high-power LED and industrial applications.
• Ceramic PCBs: Deliver exceptional thermal and electrical performance for harsh environments.
• Embedded Component PCBs: Integrate components within the PCB to save space and enhance reliability.

3. pcb printed circuit board Material Selection: The Foundation of Success

The choice of materials directly affects your PCB’s durability, performance, and cost. Let’s explore some of the most commonly used materials:

FR4 Material

The industry standard for PCBs, FR4 is a fiberglass-reinforced laminate that offers excellent mechanical strength and insulation properties. It’s widely used in general-purpose PCBs but may not be suitable for high-temperature or high-frequency applications.

Aluminum PCBs

Known for their superior thermal conductivity, aluminum-backed PCBs are the go-to choice for LED lighting systems, automotive electronics, and power applications. These boards are designed to manage heat effectively, ensuring device longevity and performance.

Polyimide and Ceramic Materials

Polyimide materials are ideal for flexible and high-temperature applications due to their excellent thermal stability. On the other hand, ceramic-based PCBs are perfect for extreme environments, offering unmatched reliability and performance.

High-Frequency Laminates

For projects that involve RF or microwave signals, materials like PTFE or Rogers laminates are critical. These high-frequency laminates ensure minimal signal loss and maintain impedance, which is crucial for communication systems.

Avoiding Common Mistakes

Selecting the wrong PCB can lead to costly redesigns and performance issues. Avoid these common pitfalls:

• Ignoring Thermal Management Needs: Ensure the PCB can dissipate heat effectively to prevent overheating and failure.
• Underestimating Signal Integrity Requirements: For high-frequency designs, proper trace routing and impedance control are non-negotiable.
• Overlooking Environmental Conditions: Choose materials that can withstand the operating environment, including humidity, temperature fluctuations, and exposure to chemicals.

Conclusion

Choosing the right PCB circuit board is more than a technical decision—it’s a strategic one. By understanding the unique requirements of your project, the types of PCBs available, and the materials best suited for your application, you can ensure a design that’s not only functional but also reliable and cost-effective.

Whether you’re designing a simple consumer device or a sophisticated industrial system, the right PCB is the foundation that transforms ideas into reality.
