Ensuring Performance from Design to Reality: The Critical Role of PCB Impedance Testing

1: Understanding the Fundamentals of PCB Impedance Testing

1.1 Defining PCB Impedance Testing

   PCB Impedance Testing refers to the process of measuring and verifying the characteristic impedance of signal traces within a printed circuit board. In simple terms, characteristic impedance is the resistance that a signal encounters as it travels along a transmission line. It is determined by several physical parameters: the trace width, the dielectric constant of the substrate, the spacing to the reference plane, and the thickness of the copper.

   During PCB Impedance Testing, a test coupon—usually fabricated alongside the PCB—is used to measure impedance values. These coupons replicate the layer stack-up and trace geometry of the actual board. Specialized equipment, such as Time Domain Reflectometers (TDR) or Network Analyzers, sends a signal down the trace and records the reflection. Any reflected signal indicates a mismatch between the expected and actual impedance, allowing precise calibration and process adjustment.

   The typical target impedance values are 50 Ω for single-ended lines and 90 Ω or 100 Ω for differential pairs. Even a deviation as small as ±10% can result in signal degradation, which is why impedance control and verification are vital in high-frequency designs such as 5G communication boards, automotive radar, and server backplanes.

1.2 Why PCB Impedance Testing Is Essential in Modern Electronics

   As the clock speeds and data transmission rates increase, ensuring consistent impedance becomes a design-critical requirement. Impedance mismatches can lead to partial signal reflections that distort waveforms, cause bit errors, or increase electromagnetic emissions. These problems are not easily detected through functional tests; hence, PCB Impedance Testing offers the only reliable means of confirming compliance before assembly.

   Moreover, impedance control is often a contractual requirement between the PCB manufacturer and the customer. Many industries—such as telecommunications, defense, and aerospace—mandate a formal impedance report as part of quality documentation. Without such verification, even a board that appears visually flawless could fail during system integration.

   PCB Impedance Testing uses measurement systems like TDR, which sends a fast voltage step into the transmission line and analyzes reflections. The time delay between the incident and reflected waves corresponds to physical distance, allowing the instrument to locate impedance discontinuities accurately. This precision ensures that even hidden variations in copper thickness or dielectric uniformity are detected before boards reach customers.

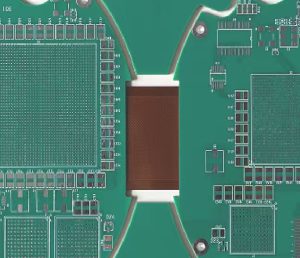

PCB Impedance Testing

2: Advantages and Impacts of PCB Impedance Testing

2.1 The Technical Advantages of PCB Impedance Testing

    Implementing PCB Impedance Testing provides several key advantages that go beyond compliance verification:

1. Signal Integrity Assurance – Verifying impedance ensures that signal transmission remains distortion-free, minimizing reflections and losses.

2. Quality Consistency – It detects process variations in etching, lamination, and plating, which could alter impedance across production batches.

3. Reduced Field Failures – Early identification of impedance mismatches prevents long-term reliability issues, especially in mission-critical devices.

4. Design Feedback Loop – Testing provides real-world data that help design engineers refine future impedance models.

5. Customer Confidence – Providing a detailed impedance report enhances transparency and trust in the manufacturing process.

2.2 How PCB Impedance Testing Influences PCB Performance

   The influence of PCB Impedance Testing on performance can be viewed from several perspectives: signal speed, data accuracy, and power efficiency.

• High-Speed Data Transmission: When impedance is controlled and verified, signals maintain their shape, allowing for higher data rates with minimal error.

• Crosstalk Reduction: Consistent impedance across differential pairs ensures phase balance and minimizes electromagnetic interference.

• Energy Efficiency: Matching impedance reduces power dissipation during signal transitions, contributing to overall energy savings in large systems.

    Consider the example of high-speed server motherboards operating at 56 Gbps or higher. Without precise impedance verification, even a 2 Ω deviation could create measurable eye-diagram distortion, leading to jitter and data corruption. Therefore, PCB Impedance Testing is not just a manufacturing checkpoint but a cornerstone of performance validation.

2.3 The Broader Value Proposition: Design to Production

   The benefit of impedance testing extends beyond electrical assurance—it also influences mechanical stability and long-term dependability. By ensuring layer consistency and dielectric homogeneity, manufacturers prevent potential warpage and delamination that could arise from uncontrolled lamination pressure or uneven resin flow.

3: Methods and Equipment Used in PCB Impedance Testing

3.1 Time Domain Reflectometry (TDR) in PCB Impedance Testing

   The most commonly used technique for PCB Impedance Testing is Time Domain Reflectometry. TDR operates by sending a fast-rising voltage pulse into the test coupon trace and observing reflections caused by impedance discontinuities. The TDR display shows these reflections as voltage variations over time, allowing technicians to identify the impedance value and the location of irregularities.

   Modern TDR systems can measure with sub-ohm accuracy, providing instantaneous analysis. They are essential for evaluating microstrip and stripline traces used in high-frequency PCBs, including those for RF and digital applications.

3.2 Network Analyzer-Based PCB Impedance Testing

   For even higher precision, Network Analyzers are employed. They measure scattering parameters (S-parameters), especially S11 (reflection) and S21 (transmission), to determine impedance characteristics over a frequency range. Unlike TDR, which operates in the time domain, network analyzers provide frequency-domain insight, which is crucial for applications in RF communication and microwave design.

3.3 Alternative Measurement Methods

   Other emerging PCB Impedance Testing techniques include:

• Vector Signal Analysis: Offers real-time impedance fluctuation tracking during board operation.

• Non-contact Probe Testing: Enables impedance verification without damaging the test coupon surface.

• Automated In-line Systems: Integrated with production lines, they perform high-throughput impedance checks on multiple coupons simultaneously.

   Although these methods differ in complexity and cost, all share the same objective—to ensure that every PCB aligns perfectly with the intended electrical performance.

3.4 Role of Calibration and Environmental Control

   Measurement accuracy in PCB Impedance Testing depends heavily on calibration and environmental stability. Small temperature fluctuations or humidity variations can influence the dielectric constant of materials, causing impedance drifts. Hence, calibration using precision standards is a daily routine in high-end PCB testing laboratories.

4: Material and Design Factors Affecting PCB Impedance Testing

4.1 Material Selection and Dielectric Constant

   The dielectric constant (Dk) of PCB materials directly affects impedance. Materials with higher Dk values yield lower impedance for the same geometry. Therefore, selecting laminates with stable and well-characterized Dk values is critical before performing PCB Impedance Testing.

   FR-4 remains a popular choice for standard digital applications, but for high-frequency circuits, materials like Rogers, Isola, or Panasonic MEGTRON series provide better consistency. Testing verifies that material variability does not compromise impedance targets across batches.

4.2 Trace Geometry and Copper Thickness

   The width, height, and spacing of copper traces are equally decisive. Variations due to etching tolerances or plating thickness can alter the impedance profile. During PCB Impedance Testing, these geometric variations are accounted for by cross-referencing manufacturing data, ensuring any deviation is well understood.

   For instance, if copper thickness increases during electroplating, impedance typically decreases because of the wider conductive area. Testing allows process engineers to adjust etching parameters accordingly.

4.3 Layer Stack-Up and Prepreg Consistency

   The stack-up design—including core and prepreg thicknesses—defines the spatial relationship between signal layers and ground planes. Minor inconsistencies in prepreg resin flow during lamination can change dielectric spacing, causing impedance variation. Comprehensive PCB Impedance Testing confirms that lamination parameters have been properly controlled across all production lots.

Recommended Testing Practices for Reliable PCB Impedance Results

Conclusion – The Indispensable Assurance of PCB Impedance Testing

   From simulation to shipment, PCB Impedance Testing stands as the ultimate proof of performance. It validates not only the precision of manufacturing but also the integrity of design intent. In a world where high-frequency signals are unforgiving to even microscopic inconsistencies, impedance verification is no longer optional—it is the foundation of product reliability. As technology advances toward 224 Gbps serial interfaces and terahertz communications, PCB Impedance Testing will evolve alongside, ensuring that every electron travels its path undisturbed—from design blueprint to real-world operation.

FAQ Section

1. How frequently should PCB Impedance Testing be performed?

Ideally, impedance should be verified for every production batch using representative coupons. High-reliability industries, such as aerospace and medical electronics, may require testing for each panel. Consistent testing maintains process control and ensures long-term product reliability.

2. Why is PCB Impedance Testing more important in high-speed designs?

High-speed signals have shorter wavelengths, making them more sensitive to impedance variations. Even small mismatches can cause reflections and data corruption. PCB Impedance Testing ensures the transmission lines behave as intended at gigahertz frequencies, maintaining signal integrity and minimizing timing errors.

3. How does material dielectric constant affect impedance?

The dielectric constant determines how electric fields propagate through the substrate. Higher Dk values reduce impedance for a given geometry. Stable and well-characterized materials—like Rogers or Isola laminates—ensure consistent results during PCB Impedance Testing.

4. Can PCB Impedance Testing detect manufacturing defects?

Yes. Deviations in impedance often indicate underlying process issues such as improper lamination pressure, uneven copper plating, or incorrect etching. By analyzing these variations, manufacturers can identify and correct root causes before mass production.

5. What equipment is typically used for PCB Impedance Testing?

Time Domain Reflectometers (TDR) and Network Analyzers are the most common tools. TDR offers fast, localized impedance readings in the time domain, while network analyzers provide frequency-domain analysis suitable for RF and microwave circuits.
