Why PCB HTG Material Isn’t Always Better, Beyond 180°C, Guide to PCB Tg

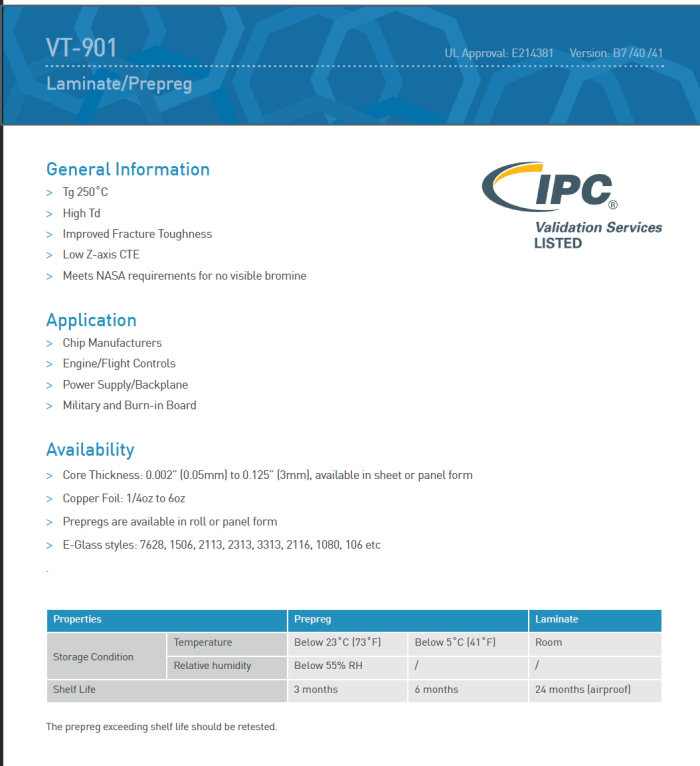

When pursuing high-performance and reliability in PCBs, high-Tg materials (Glass Transition Temperature) are often the go-to choice. But is you understanding still stuck in the “higher Tg is always better” mindset? While materials like ISOLA P96 with Tg 260°C and VT90 with Tg >250°C exist, as a former lamination and materials engineer at TRIPOD, I offer a counterintuitive perspective: blindly pursuing high Tg carries unforeseen risks.

PCB HTG Material

1. What Exactly is Tg?

Tg, or Glass Transition Temperature, is the critical point at which a PCB’s substrate (like the resin) transitions from a rigid, glassy state to a soft, rubbery one. When operating temperatures exceed the Tg, the material’s mechanical strength drops significantly, and its coefficient of thermal expansion can change abruptly, potentially compromising long-term reliability. Thus, Tg is a key indicator of a material’s heat resistance.

2. Two Primary Methods for Testing Tg

DSC (Differential Scanning Calorimetry): Measures the change in heat flow as the material is heated to determine Tg. It offers high precision and is ideal for R&D and detailed analysis.

TMA (Thermomechanical Analysis): Determines Tg by monitoring the material’s dimensional changes under heat. This method more directly reflects the board’s thermal expansion behavior in the Z-axis (thickness direction) and is more commonly used in the PCB industry.

3. The Unspoken Risks: Why I Don’t Blindly Recommend High-Tg (PCB HTG Material)

Based on my experience handling customer complaints at TRIPOD, approximately 80% of PCB delamination cases were linked to high-Tg materials that had been stored for over six months before undergoing SMT reflow soldering. The core risks are:

Moisture Absorption Risk: The resin systems in high-Tg materials are often more polar, making them hygroscopic (prone to absorbing moisture from the air). If not properly baked before reflow, the trapped moisture vaporizes instantly during soldering, creating immense internal pressure that causes delamination or “popcorning.”

Cost-Performance Balance: Most applications do not require extreme Tg.

For cost-sensitive products (like consumer electronics) with generous via spacing, Tg130 FR-4 is common. However, to achieve this low cost, fillers are often added, which can reduce resin flow and increase the risk of ICD (Inner Copper Dissociation).

For durable goods and automotive electronics, we most frequently recommend Mid-Tg (around 150°C) materials. They offer the best balance of heat resistance, moisture performance, and cost, satisfying most demanding applications with a wider process window and higher overall reliability.

4. Our Professional Recommendation: Control Where It Matters Most
