PCB Graphics Card: Structure, Design, and Manufacturing Process

Introduction

A graphics card PCB (Printed Circuit Board) is the foundation of a GPU (Graphics Processing Unit), connecting all electronic components and ensuring efficient power distribution, signal integrity, and heat dissipation. Modern high-performance GPUs, used in gaming, AI computing, and professional rendering, require advanced PCB designs with multiple layers, optimized power delivery, and high-speed signal transmission.

In this article, we will explore the structure, design considerations, manufacturing process, and key features of a graphics card PCB, helping engineers and enthusiasts understand what makes a high-quality GPU PCB.

---

What is a PCB Graphics Card?

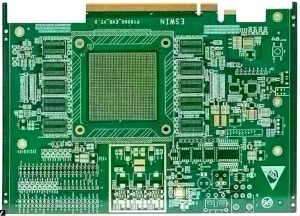

A graphics card PCB is a custom-designed multilayer circuit board that serves as the platform for a GPU, memory modules, voltage regulators, and various power and signal management components.

Unlike standard PCBs, graphics card PCBs are designed to handle high power loads, fast data transmission, and efficient cooling solutions, ensuring stable GPU performance under heavy workloads.

---

Structure of a Graphics Card PCB

1. Layers and Materials

Modern GPU PCBs are typically 10 to 14-layer PCBs to accommodate power planes, high-speed data traces, and thermal dissipation layers.

✔ FR-4 (High-Tg) or Polyimide Base Material – Ensures mechanical strength and heat resistance.
✔ Copper Layers (1oz to 3oz) – Enhances power delivery and minimizes resistance.
✔ Power and Ground Planes – Reduces electromagnetic interference (EMI) and stabilizes voltage supply.
✔ Controlled Impedance Traces – Ensures reliable high-speed signal transmission.

---

2. Key Components on a GPU PCB

A graphics card PCB consists of several essential components, each contributing to performance and stability:

Component	Function
GPU (Graphics Processing Unit)	The main processing unit that renders graphics and performs AI computations.
VRAM (Video Memory – GDDR6, GDDR6X, HBM2)	Stores image data and frame buffers for high-speed rendering.
VRMs (Voltage Regulation Modules)	Regulates power supply to the GPU and memory modules.
Power Connectors (6-pin, 8-pin, 12-pin PCIe)	Provides additional power beyond the motherboard’s PCIe slot.
PCIe Interface (PCI Express 4.0/5.0)	Connects the graphics card to the motherboard for data transfer.
Capacitors and Inductors	Stabilizes voltage and reduces power fluctuations.
Cooling System (Heatsinks, Fans, Liquid Cooling Blocks)	Dissipates heat to maintain optimal GPU temperatures.

---

Design Considerations for Graphics Card PCBs

To achieve high efficiency, reliability, and performance, engineers must follow key design principles when developing a GPU PCB.

1. High-Speed Signal Integrity

✔ Minimized signal interference – Ensuring clean signal transmission for PCIe lanes and VRAM connections.
✔ Differential Pair Routing – Used for PCIe data lanes to reduce signal distortion.
✔ Controlled Impedance – Matching impedance values for high-frequency signals (e.g., 85Ω PCIe lanes).

2. Power Delivery Optimization

✔ Multi-phase VRMs (6-phase, 12-phase, 16-phase power design) – Enhances power stability and efficiency.
✔ Low ESR Capacitors – Ensures smooth voltage regulation and noise reduction.
✔ Thick Copper Traces (2oz or higher) – Reduces power loss and improves thermal performance.

3. Efficient Heat Management

✔ Thermal Pads and Heatsinks – Dissipates heat from high-power components.
✔ Copper Planes for Heat Spreading – Improves thermal distribution within PCB layers.
✔ Liquid Cooling Compatibility – Some high-end PCBs support water cooling for enhanced cooling performance.

4. PCB Form Factor and Mechanical Design

✔ Standard ATX and Mini-ITX GPU PCB Sizes – Fits different PC cases and cooling solutions.
✔ Reinforced PCB Structure – Prevents PCB sagging due to large heatsinks.
✔ Backplates for Additional Support – Improves durability and cooling efficiency.

---

Manufacturing Process of a Graphics Card PCB

Step 1: PCB Layer Stack-Up and Material Selection

✔ Choose high-Tg FR-4 or Polyimide for durability and heat resistance.
✔ Define copper thickness based on power delivery requirements.
✔ Design the layer stack-up to optimize signal routing and thermal performance.

---

Step 2: PCB Etching and Drilling

✔ Photoresist coating and etching – Forms the copper traces for signal routing.
✔ Drilling for vias and component mounting – Uses precision laser drilling for high-density interconnects.
✔ Plating through-hole (PTH) process – Ensures conductivity between PCB layers.

---

Step 3: Solder Mask and Surface Finishing

✔ Solder mask application – Protects traces from oxidation and short circuits.
✔ Gold Plating (ENIG or Immersion Gold) – Provides a reliable connection for PCIe and VRAM contacts.
✔ Silkscreen printing – Labels component locations and branding.

---

Step 4: Component Assembly (SMT Process)

✔ Automated pick-and-place machines mount surface-mount components (GPU, VRAM, capacitors).
✔ Reflow soldering process ensures secure electrical connections.
✔ Quality control inspection (AOI and X-ray testing) checks for defects.

---

Step 5: Final Testing and Quality Assurance

✔ Electrical testing – Verifies signal integrity and power delivery performance.
✔ Thermal stress testing – Ensures heat dissipation efficiency.
✔ PCIe interface validation – Confirms proper data transfer rates.

---

Challenges in GPU PCB Manufacturing

Despite advancements in PCB design, graphics card PCBs present several challenges:

❌ High Current Demand – Requires advanced VRM designs to manage power efficiently.
❌ EMI and Signal Interference – High-speed PCIe signals need proper shielding and routing.
❌ Heat Management Issues – Requires copper planes, heatsinks, and thermal pads to prevent overheating.
❌ Manufacturing Complexity – High-layer-count PCBs involve precise drilling, etching, and soldering processes.

To address these challenges, AI-driven PCB design tools, high-precision fabrication techniques, and advanced cooling solutions are implemented in modern GPU PCBs.

---

Future Trends in Graphics Card PCBs

✔ PCIe 5.0 and Beyond – Higher bandwidth support for next-gen GPUs.
✔ Advanced VRM Designs – Improved power efficiency and stability for high-performance computing.
✔ Flexible PCBs for Compact Designs – Enhanced GPU integration in laptops and mobile gaming devices.
✔ AI-Optimized PCB Routing – Automated PCB design tools for faster and more efficient layouts.

---

Conclusion

A graphics card PCB is the backbone of a GPU, integrating high-speed signal transmission, power regulation, and efficient cooling solutions. Modern multi-layer GPU PCBs require precise engineering to ensure performance, reliability, and durability for gaming, AI computing, and professional rendering.

With advancements in high-frequency PCB design, power management, and thermal solutions, Shuoqiang Electronics provides custom GPU PCB manufacturing with advanced materials, optimized layouts, and precision assembly. Contact us today for high-performance GPU PCB solutions! 🚀
