PCB Copper Plating Lines Introduction

In PCB manufacturing process, copper electroplating is a critical process for building conductive layers and ensuring the durability of the circuit. The efficiency, precision, and stability of this step largely depend on the type of electroplating line used. Today’s factories typically adopt one of three main systems:

Manual Copper Plating Lines

Gantry (Hoist-Type) Copper Plating Lines

Vertical Continuous Copper Plating Lines

Choosing the right system is crucial for balancing cost, quality, and production capacity. Let’s break down each type.

1. Manual PCB Copper Plating Line

How It Works

Manual lines rely on human operators to move PCB panels between plating tanks. Operators control immersion times, current density, and solution conditions manually, using simple plating tanks, anode/cathode bars, and rectifiers.

Advantages

Low Initial Cost – Ideal for small factories or low-volume production.

High Flexibility – Easy to change process parameters for different PCB types.

Good for Prototyping – Suitable for quick engineering trials.

Disadvantages

Low Efficiency – Limited output due to manual handling.

Quality Variation – Dependent on operator skill and consistency.

Labor Intensive – Higher manpower cost over time.

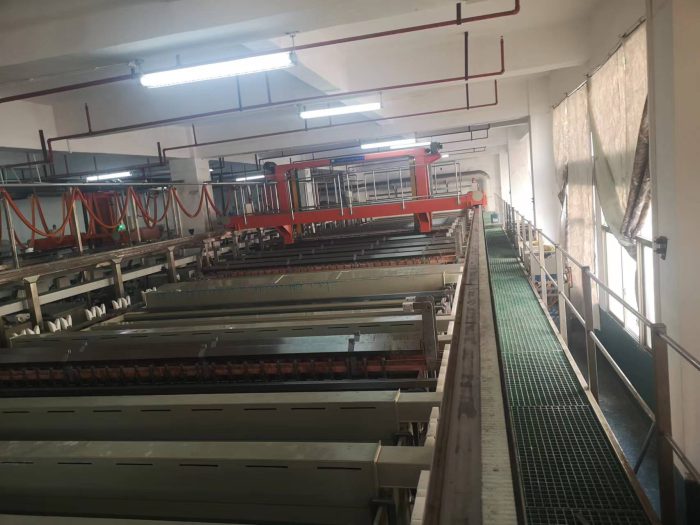

2. Gantry (Hoist-Type) Copper Plating Line

How It Works

This semi-automated system uses overhead gantry cranes (hoists) to move PCB racks between tanks. The system can be programmed for specific plating cycles, reducing manual intervention.

Advantages

Improved Consistency – Automated movement ensures uniform plating thickness.

Higher Capacity – Suitable for medium to large-scale production.

Reduced Human Error – Less dependence on manual timing.

Disadvantages

Medium Initial Investment – Higher than manual lines but lower than vertical continuous systems.

Space Requirement – Gantry rails require large production floor space.

Cycle Time Limits – Still has idle time during hoist movements.

•

  PCB Copper Electroplating Lines

3. Vertical Continuous Copper Plating Lines

How It Works

This fully automated, high-speed line transports PCBs vertically through electroplating cells without stopping. The process integrates continuous movement, precise current control, and solution circulation for stable plating quality.

Advantages

High Throughput – Designed for mass production with minimal downtime.

Excellent Uniformity – Consistent plating thickness across all panels.

Reduced Contamination – Closed and automated system minimizes particle defects.

Disadvantages

High Initial Cost – Requires significant capital investment.

Less Flexible for Prototypes – Optimized for volume runs, not small batches.

Complex Maintenance – Needs skilled technicians for servicing.

Application Scenarios

Manual Lines: Best for prototyping, small orders, and high-mix, low-volume production.

Gantry Lines: Ideal for medium to high-volume PCB manufacturers needing flexibility.

Vertical Continuous Lines: Perfect for large-scale operations focusing on speed and uniform quality.

Shenzhen Shuoqiang Electronics: Advanced Copper Plating Capability

At Shenzhen Shuoqiang Electronics, we operate high-precision copper electroplating systems alongside advanced automation equipment, including LDI inline exposure machines, solder mask LDI exposure lines, and inline inkjet printing.

Our heavy investment in these technologies guarantees:

Elimination of issues caused by old phototool-based processes (film expansion, misalignment, operator error).

Reduced surface scratches, foreign particles, and rework.

Consistent solder mask gloss and excellent appearance quality.

We also maintain in-house lamination, hot air solder leveling (HASL), and ENIG plating processes, ensuring quality and delivery time are always under control.

Comparison Table: Manual vs Gantry vs Vertical Continuous

Conclusion

Selecting the right PCB copper electroplating line depends on your production scale, product type, and investment capacity. Manual lines offer flexibility at low cost, gantry lines balance efficiency and adaptability, while vertical continuous lines deliver top-tier throughput and consistency for mass production.

Partnering with a manufacturer like Shenzhen Shuoqiang Electronics ensures access to both the right equipment and the expertise to maximize copper plating quality.

FAQ

Q1: Which plating line is best for prototype PCB production?
A: Manual lines offer flexibility and low setup costs, making them ideal for prototypes.

Q2: How does a vertical continuous line improve quality?
A: It ensures stable current density, uniform plating thickness, and reduces contamination.

Q3: What is the typical copper thickness after electroplating?
A: Standard outer layer plating often targets 25–30 μm, depending on design requirements.

Q4: Can gantry lines handle multilayer PCBs?
A: Yes, they are well-suited for multilayer boards and can maintain consistent quality.

Q5: Does Shuoqiang Electronics offer both prototype and mass production plating?
A: Yes, we support everything from low-volume engineering runs to large-scale production.
