Introduction to PCB Board Thickness

Printed circuit boards (PCBs) are the structural and electrical foundation of modern electronic devices, ranging from smartphones to aerospace control systems. One of the most critical design parameters that engineers must carefully evaluate is PCB Board Thickness. While it may seem like a straightforward dimension, the thickness of a PCB influences electrical performance, mechanical strength, thermal dissipation, manufacturability, and even long-term reliability.

In practice, PCB Board Thickness is not a one-size-fits-all decision. A board designed for a wearable health-monitoring device has very different requirements compared to a multilayer power distribution board in an electric vehicle. The proper choice requires a holistic evaluation of the intended application, material selection, layer count, signal speed, and environmental stress factors.

In my view, the challenge for engineers lies in balancing competing priorities. For example, a thinner PCB may save space and cost, but it could compromise durability. A thicker PCB may withstand higher currents and provide stronger mechanical stability, but it could create issues in high-density designs where compact form factors are critical.

This article explores PCB Board Thickness in depth, highlighting not only the technical parameters but also the strategic decisions engineers must make when optimizing for performance and reliability.

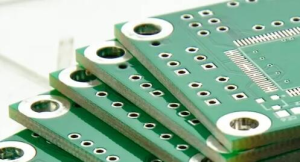

The Fundamentals of PCB Board Thickness in Design

PCB Board Thickness is typically expressed in millimeters or inches, with common standards ranging from 0.4 mm (ultra-thin boards) to 3.2 mm (thick, industrial-grade boards). However, specialized designs may deviate from these norms, depending on the requirements.

Some key considerations include:

• Layer count: Multilayer PCBs tend to be thicker because they accommodate multiple copper and dielectric layers.

• Material properties: FR-4 is the most common base material, but variations in resin content and reinforcement affect the final thickness.

• Copper weight: Heavy copper layers for high-current designs increase the total thickness.

• Manufacturing tolerance: PCB factories maintain precision, but there are acceptable tolerances (±10% or more depending on board stack-up).

A critical insight is that PCB Board Thickness is not only about the board itself but also how it interacts with the components mounted on it, the connectors it plugs into, and the housing that protects it.

Manufacturing Standards Related to PCB Board Thickness

When engineers or companies specify PCB Board Thickness, they do not make arbitrary decisions. The industry follows standards established by organizations such as the IPC (Institute for Printed Circuits), which provides widely recognized specifications for PCB design and fabrication. These standards ensure that regardless of where a board is manufactured, it can meet globally accepted requirements.

The most referenced guideline is IPC-2221, which covers generic design principles for printed boards and other forms of component mounting. It specifies tolerances for PCB Board Thickness based on layer count, copper weight, dielectric materials, and manufacturing limitations.

Typical standard values include:

• 0.8 mm (31 mils): Common in ultra-thin consumer electronics.

• 1.0 mm (39 mils): A balance between flexibility and durability.

• 1.6 mm (63 mils): The most widely used standard thickness for general applications.

• 2.0–3.2 mm: Heavy-duty boards used in power electronics, automotive, and aerospace.

Another critical standard is IPC-6012, which sets requirements for the performance and qualification of rigid printed boards. For example, it defines how much warpage is acceptable in boards of different PCB Board Thickness.

One practical challenge is that many products require custom thicknesses. For instance, connector systems often demand that the edge thickness of a board precisely match the slot of the mating connector. A mismatch of even 0.1 mm can cause poor mechanical fit or intermittent electrical contact. This is where collaboration with trusted PCB manufacturers such as SQ PCB becomes essential. Companies like SQ PCB not only adhere to IPC standards but also provide custom thickness manufacturing options while maintaining tight tolerances.

From my perspective, standards serve as a baseline of reliability, but innovation often requires deviating from standard thicknesses to achieve specific mechanical, electrical, or thermal goals. Balancing compliance and creativity is the real art of PCB design.

---

How PCB Board Thickness Influences Signal Integrity

Signal integrity (SI) is one of the most critical aspects of high-speed and high-frequency electronics. Engineers working on telecommunications, 5G infrastructure, or data center hardware understand that PCB Board Thickness is not merely mechanical—it directly affects electrical performance.

Impedance Control

One of the most direct influences is on characteristic impedance. The impedance of a transmission line on a PCB depends on:

• The width of the trace

• The thickness of the dielectric material

• The distance between copper layers

For example, in a four-layer board, if the dielectric layer is too thick relative to the trace width, the impedance can rise above the desired 50 ohms, leading to reflections and loss of signal integrity. Conversely, a thinner dielectric can reduce impedance but may create manufacturing difficulties or reliability issues under thermal stress.

Crosstalk and Noise

When PCB Board Thickness is minimized to achieve compact form factors, traces are often packed closer together, which increases the risk of crosstalk. Thicker boards allow for greater separation of layers, thereby reducing unwanted coupling between high-speed signals.

Propagation Delay

Thicker boards often require longer vias, and vias add inductance and capacitance. This introduces additional propagation delay, which can be significant in ultra-high-speed designs. Designers must carefully model these effects to avoid skew and timing mismatches.

In my own reflection, many engineers tend to overemphasize material selection while overlooking the geometric influence of PCB Board Thickness on impedance and delay. Material choice certainly matters, but geometry is just as critical.

---

PCB Board Thickness and Mechanical Reliability

Beyond electrical performance, PCB Board Thickness determines how well a board physically withstands stress, vibration, and bending. This is especially relevant in industries such as automotive, aerospace, and industrial equipment, where environmental conditions are harsh.

Warpage and Flatness

Boards that are too thin tend to warp during soldering reflow cycles. Warped boards cause issues with component placement accuracy and solder joint reliability. IPC standards specify maximum warpage values relative to PCB Board Thickness, and exceeding those values can result in functional failures.

Shock and Vibration Resistance

Thicker boards provide greater rigidity, which helps in reducing damage from mechanical shocks or long-term vibration. For example, in automotive control units, boards often face continuous vibration at high frequencies. If PCB Board Thickness is too thin, solder joints may fatigue prematurely.

Connector Insertion Force

When PCBs are used as plug-in cards (such as PCIe boards in servers), PCB Board Thickness must be carefully chosen. Too thin, and the board may bend under insertion force, damaging traces or solder joints. Too thick, and it may not fit the connector slot at all.

Heat Resistance

Thicker boards usually have greater thermal mass, meaning they can better absorb and spread heat. This helps in avoiding local hot spots that could damage components. However, overly thick boards may be harder to cool in compact enclosures.

One of the reasons I often recommend SQ PCB to design engineers is their ability to simulate and test different board thicknesses under thermal and mechanical stress conditions. This practical validation step ensures that the selected thickness isn’t just theoretically sound but also field-proven.

From my perspective, reliability often trumps theoretical performance. An engineer may optimize a board’s electrical properties, but if the chosen PCB Board Thickness cannot survive mechanical stress, the product will fail prematurely in the real world.

PCB Board Thickness in High-Frequency Applications

High-frequency and microwave circuits impose some of the most demanding requirements on PCB design. Here, PCB Board Thickness becomes a decisive factor for controlling impedance, reducing loss, and maintaining predictable electromagnetic behavior.

Dielectric Height and Impedance Control

At frequencies above several hundred megahertz, the dielectric height (the spacing between the signal trace and its reference plane) is strongly affected by PCB Board Thickness. Designers must maintain precise thicknesses in order to achieve consistent characteristic impedance values such as 50 Ω or 75 Ω. Even small deviations in thickness can result in reflections, standing waves, and degraded signal quality.

For instance, in a 5G antenna module, a 0.1 mm change in dielectric spacing can cause impedance mismatches that significantly reduce antenna efficiency.

Loss Tangent and Propagation Stability

Thinner PCBs often place signal traces closer to ground planes, which can reduce effective signal loss by tightening field confinement. On the other hand, overly thin boards may not provide enough dielectric spacing, leading to increased capacitive coupling between adjacent lines. Thus, finding the right PCB Board Thickness is a balancing act between low-loss propagation and signal isolation.

Multilayer Stack-Ups

Many high-frequency PCBs adopt multilayer designs with alternating ground and signal layers. Thicker boards allow more vertical separation, which improves isolation. However, thicker boards also introduce longer via stubs, which resonate at specific frequencies and may distort signals. This is why back-drilling vias or blind/buried vias are often used to mitigate thickness-related issues.

In my view, PCB Board Thickness in RF and microwave circuits is a parameter that requires co-optimization with dielectric material properties. Using premium laminates such as Rogers or Taconic is ineffective if thickness tolerances are poorly controlled.

---

Thermal Management Considerations for PCB Board Thickness

Thermal behavior is another area where PCB Board Thickness has a direct impact. Heat dissipation, component reliability, and long-term stability all depend on the board’s ability to conduct and spread heat.

Thermal Mass and Heat Spreading

Thicker boards naturally possess greater thermal mass, which allows them to absorb and distribute localized heat from components such as voltage regulators, MOSFETs, or microprocessors. This property is beneficial in power electronics or LED lighting systems where thermal load is high.

Copper Weight vs. Thickness

While thicker boards can dissipate more heat, thermal performance is also influenced by copper thickness. For example, a 2 oz copper layer on a 1.6 mm board may perform as well as a thinner board with thicker copper plating. Thus, PCB Board Thickness must be considered alongside copper weight when designing for thermal management.

Heat Transfer Through Vias

In multilayer boards, thermal vias are used to conduct heat from surface-mounted components to internal copper planes or to the opposite side of the PCB. Longer vias (caused by thicker boards) increase thermal resistance. Therefore, thicker boards are not always ideal for applications requiring rapid vertical heat transfer.

Reflow and Assembly Concerns

During soldering processes, boards with non-standard thicknesses may require adjusted thermal profiles. For instance, very thin boards heat up quickly and risk warping, while thicker boards may not reach the required reflow temperature uniformly.

From my perspective, the key is not to maximize or minimize PCB Board Thickness, but to match it with the thermal environment of the end product. Engineers who overlook this alignment often face premature component failures.

---

PCB Board Thickness in Power Electronics and High-Current Boards

Power electronics—including motor drives, power converters, and high-current distribution boards—demand special attention to PCB Board Thickness. These boards must carry significant currents while ensuring safety, thermal stability, and mechanical strength.

Current Carrying Capacity

The thicker the PCB, the more copper and dielectric layers it can accommodate, which increases its ability to carry large currents. According to IPC-2152 guidelines, the cross-sectional area of copper traces is a key determinant of current carrying capacity. In practice, this means that both copper weight and PCB Board Thickness are important design levers.

Thermal and Mechanical Stress

High-current boards often face continuous thermal cycling, which can stress solder joints and vias. Thicker boards provide more rigidity and greater mechanical reliability, reducing flexing under load. However, they also create longer via paths, which must be reinforced to avoid overheating.

Insulation and Safety Margins

In power systems, electrical isolation is critical. Thicker boards allow designers to increase creepage and clearance distances between high-voltage nets. This makes PCB Board Thickness a safety factor, not just a performance factor.

Application Example

For example, in an electric vehicle battery management system (BMS), a thicker PCB ensures that high-current traces remain safe and stable. It also provides mechanical robustness in harsh automotive environments. However, if the board is made excessively thick, it becomes heavier, more expensive, and more difficult to integrate into compact enclosures.

This is why many companies turn to trusted manufacturers such as SQ PCB. With experience in producing heavy copper and high-thickness boards, SQ PCB can guide engineers to balance safety, reliability, and manufacturability.

In my opinion, engineers working with power electronics must think beyond the schematic. Choosing the right PCB Board Thickness is as much about safety certifications and reliability testing as it is about electrical design.

How to Choose PCB Board Thickness for Consumer Electronics

Consumer electronics—smartphones, tablets, wearables, and IoT devices—demand compact designs, light weight, and high reliability. Selecting the appropriate PCB Board Thickness is critical to balancing these requirements.

Space Constraints and Form Factor

Modern devices aim to minimize size while maximizing functionality. Thinner PCBs (typically 0.4–1.0 mm) allow designers to create slim profiles, fit into tight enclosures, and reduce overall device weight. However, thin boards are more prone to warping during reflow soldering and may require additional support or stiffeners to maintain mechanical integrity.

Layer Count and Functionality

Consumer electronics often use high-density multilayer boards, where signals, power, and ground planes are separated carefully. Thicker boards may accommodate more layers but increase thickness and weight, which conflicts with ergonomic requirements. Conversely, very thin boards may limit layer count, forcing designers to compromise on signal routing or shielding.

Thermal Management

Even in consumer electronics, heat dissipation matters. Components like CPUs, power management ICs, and RF modules generate heat that must be effectively spread. Choosing an optimal PCB Board Thickness helps maintain thermal stability without adding excessive bulk.

Manufacturability

Thin boards require precise handling during assembly. Reputable manufacturers like SQ PCB can produce ultra-thin PCBs while maintaining tight tolerances, minimal warpage, and high yield. Partnering with such manufacturers reduces the risk of defective boards during mass production.

In my experience, consumer electronics design is a delicate balancing act. PCB Board Thickness must reconcile miniaturization with mechanical, thermal, and electrical requirements. Ignoring this balance often leads to devices that are fragile, prone to overheating, or electrically suboptimal.

---

PCB Board Thickness for Automotive and Aerospace Applications

Automotive and aerospace systems operate under extreme environmental conditions, including high vibration, thermal cycling, and exposure to moisture or chemicals. Here, PCB Board Thickness plays a pivotal role in ensuring long-term reliability.

Mechanical Strength and Vibration Resistance

Thicker boards (1.6–3.2 mm) provide enhanced rigidity, reducing flexing under vibration. This is crucial in automotive control units, avionics, and satellite electronics. Warped or flexed PCBs can cause intermittent electrical failures, a risk that is unacceptable in safety-critical applications.

High-Temperature Tolerance

Automotive and aerospace electronics may experience temperatures well above consumer device ranges. Thicker PCBs have greater thermal mass, which stabilizes temperature fluctuations and reduces hot spots. Proper PCB Board Thickness ensures solder joints and components remain mechanically secure under thermal cycling.

Signal Integrity in High-Reliability Systems

In high-speed or mission-critical circuits, even minor impedance mismatches can degrade system performance. Automotive radar modules or aerospace navigation systems require precise control of PCB Board Thickness to maintain signal integrity over long-term operation.

Safety and Regulatory Compliance

Thicker PCBs allow for increased creepage and clearance distances, improving electrical safety under high-voltage conditions. Regulatory standards, such as ISO 26262 in automotive or DO-254 in aerospace, often dictate minimum thicknesses to ensure compliance.

From my perspective, investing in high-quality PCB manufacturing is non-negotiable for these industries. Partnering with manufacturers like SQ PCB ensures that boards not only meet electrical and mechanical specifications but also withstand rigorous environmental testing.

---

PCB Board Thickness in Flexible and Rigid-Flex Boards

Flexible and rigid-flex PCBs are increasingly used in modern electronics due to their ability to conform to non-traditional shapes while maintaining reliable electrical connections. In these boards, PCB Board Thickness has unique considerations.

Flexibility vs. Durability

Thin flex sections (often 0.1–0.3 mm) allow bending without damaging copper traces or the dielectric material. However, too thin a thickness increases the risk of tearing or permanent deformation. Engineers must carefully select thickness to ensure the board can endure repeated flex cycles.

Layer Stack-Up in Rigid-Flex Boards

Rigid sections require sufficient PCB Board Thickness to provide mechanical support for components, while flexible areas must remain thin enough for bending. This dual requirement complicates design but is essential for devices such as foldable phones, medical devices, and compact industrial sensors.

Thermal Considerations

Flex and rigid-flex PCBs often incorporate high-density components. Heat dissipation must be considered in both the rigid and flexible zones. Optimal thickness helps spread heat effectively, preventing local overheating and improving reliability.

Cost and Manufacturability

Flexible and rigid-flex PCBs are more expensive to manufacture due to precise thickness requirements and complex stack-ups. Working with experienced manufacturers like SQ PCB ensures accurate thickness control, high yield, and minimal warpage across rigid and flexible regions.

In my reflection, the real challenge in flexible and rigid-flex designs is managing competing mechanical and electrical requirements. Selecting the correct PCB Board Thickness is central to achieving durability, signal integrity, and manufacturability in these advanced designs.

Cost Implications of Different PCB Board Thickness Choices

Choosing PCB Board Thickness is not only a technical decision—it directly affects cost and manufacturability. Engineers must evaluate trade-offs between performance, reliability, and budget.

Material Cost

Thicker PCBs require more base material (FR-4, high-frequency laminates, or polyimide for flex boards) and more copper plating. Each additional millimeter of thickness increases material cost, especially in multilayer boards. High-copper designs or heavy copper boards (e.g., 2 oz or 3 oz) further increase cost.

Manufacturing Complexity

Thicker boards often require additional processing steps:

• Drilling deeper vias or through-holes

• Maintaining tighter flatness and warpage tolerances

• Longer reflow times to ensure uniform soldering

All of these steps increase manufacturing time and labor costs. Conversely, ultra-thin boards require delicate handling and may have higher rejection rates due to warping, which also drives up cost.

Assembly Considerations

Boards with non-standard thicknesses may require specialized tooling for pick-and-place machines, soldering, or testing equipment. These additional requirements can increase assembly costs and complexity, particularly in high-volume production.

Cost vs. Performance Trade-Off

While thicker boards may improve mechanical strength, current handling, or thermal performance, they may not always be necessary. Conversely, cutting corners by choosing overly thin boards can lead to premature failures, which are far costlier than the initial savings.

Conclusion: Balancing Performance, Reliability, and Cost

Selecting the appropriate PCB Board Thickness is a multidimensional decision that impacts electrical performance, thermal management, mechanical strength, manufacturability, cost, and environmental impact.

Key takeaways include:

1. Electrical performance: Thickness affects impedance, signal integrity, crosstalk, and high-frequency behavior.

2. Mechanical reliability: Proper thickness ensures resistance to warping, vibration, and solder joint fatigue.

3. Thermal management: Thickness interacts with copper weight and vias to influence heat dissipation.

4. Cost and sustainability: Over-thick boards raise material and assembly costs, while excessive thinning increases defect risks.

5. Application-specific choices: Consumer electronics favor thin boards, automotive and aerospace prefer thicker boards for reliability, and flexible/rigid-flex designs require optimized thickness for durability and bendability.

FAQ 1: What is the difference between rolled copper foil and electrolytic copper foil?

• Rolled copper foil is produced by mechanically rolling copper into thin sheets, offering superior surface quality and mechanical strength. It is ideal for high-frequency and high-reliability boards.

• Electrolytic copper foil is deposited via an electrolytic process and is more flexible and cost-effective. It is commonly used in mass-market consumer electronics.

---

FAQ 2: How does PCB Board Thickness affect high-speed signal performance?

• Thicker boards generally increase the distance between layers, which can increase impedance and propagation delay.

• Thinner boards reduce dielectric spacing, which may improve speed but increase crosstalk and reduce mechanical reliability. Optimal thickness depends on trace geometry, layer stack-up, and frequency requirements.

FAQ 3: How does PCB Board Thickness affect high-speed signal performance?

• Thicker boards increase layer separation, affecting impedance and propagation delay.

• Thinner boards may reduce spacing and increase crosstalk. Optimal thickness depends on trace width, layer stack-up, and frequency.

FAQ 4: Can I use the same PCB Board Thickness for all applications?

• No. Thickness should be tailored to the application: thin for compact consumer devices, thick for automotive, aerospace, or power electronics to ensure reliability.

FAQ 5: How does PCB Board Thickness influence thermal performance?

• Thicker boards have higher thermal mass and can spread heat more effectively.

• However, very thick boards may impede vertical heat transfer in multilayer designs; thermal vias and copper distribution must be optimized.
