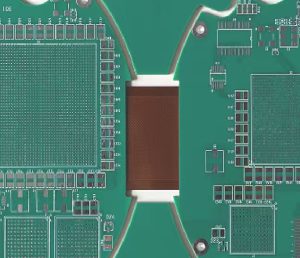

The Critical Final Touch: How PCB Board Screen Printing Ensures Manufacturability and Traceability

---

I. Introduction: The Overlooked Importance of PCB Board Screen Printing

   From a manufacturing philosophy standpoint, PCB Board Screen Printing symbolizes a moment of precision that crowns the entire production journey. It is the “final signature” that completes a long series of technical processes. In high-volume manufacturing, screen printing is not just about readability; it reflects process control discipline and quality awareness. A crisp, aligned legend is evidence of a factory’s mastery over every preceding step — from layer alignment to surface preparation and curing.

The Neglected Process That Defines Professionalism

   When people handle a PCB, their eyes instinctively fall upon the silkscreen layer — the white text, polarity marks, and numbering. These details form the visible interface between engineering and production. Ironically, this most visible part of the PCB is often treated as the least critical. Many design teams spend hours optimizing copper trace impedance or solder mask expansion but devote minimal time to the screen printing layer.

   This neglect can have hidden consequences. Poorly applied legends can cause component misplacement, confusion during rework, or even failure in regulatory traceability audits. Conversely, a well-executed screen print simplifies assembly line operations, reduces human error, and communicates the manufacturer’s commitment to precision.

Aesthetic Meets Function

   PCB Board Screen Printing stands at the crossroads of aesthetics and functionality. While the visual contrast and cleanliness of printed text contribute to the product’s perceived quality, the technical role of these markings cannot be understated. Assembly lines rely on screen-printed component identifiers for accurate placement. Field engineers use the printed revision codes to distinguish product generations. Quality auditors trace serial numbers to production batches for reliability analysis. Each of these actions relies on legible, durable, and correctly positioned legends.

   Furthermore, the choice of ink, curing parameters, and printing method directly influence a board’s mechanical robustness and chemical resistance. Incorrect ink selection could result in smearing, fading, or even contamination of solder joints. Thus, what appears as a simple printing task is actually a controlled engineering process requiring an understanding of chemistry, materials science, and quality control.

The Human Element in an Automated World

   Modern PCB production lines are driven by automation, from laser drilling to optical inspection. However, screen printing remains a process where human experience retains unique importance. While automated systems can align and apply ink with remarkable precision, human engineers are still responsible for design clarity, font choice, and layout spacing. The most advanced printer cannot correct an unreadable component label designed without assembly feedback. In this sense, PCB Board Screen Printing embodies the collaboration between human creativity and machine accuracy.

   From the author’s personal observation, factories that achieve excellence in screen printing often share one trait: they care deeply about the small details. Their operators inspect every legend for clarity, and their engineers constantly refine silkscreen layouts based on feedback from assembly technicians. Such dedication transforms a simple process into a statement of craftsmanship.

Linking Manufacturability and Traceability

   Manufacturability and traceability are two pillars of modern electronics production. Manufacturability ensures that a product can be assembled efficiently, while traceability guarantees accountability throughout the supply chain. PCB Board Screen Printing connects these two principles. For instance, a clearly printed component outline speeds up automated optical inspection (AOI) alignment, improving assembly throughput. At the same time, printed lot codes or QR markings enable end-to-end traceability from the fabrication plant to the customer.

   In industries such as aerospace, automotive, and medical electronics, traceability is not optional — it is a regulatory requirement. Screen printing, when integrated with serial data management systems, enables rapid identification of production issues. A single printed code can link a field failure to a specific production date, material batch, and operator. Thus, this “final touch” becomes a key part of digital manufacturing intelligence.

The Silent Indicator of Process Discipline

   In the hierarchy of PCB manufacturing steps, screen printing may appear simple, but it acts as a diagnostic mirror. A perfectly aligned silkscreen indicates that the panel was handled precisely, that surface treatments were uniform, and that curing profiles were optimized. On the other hand, smudged or off-centered legends can reveal deeper process inconsistencies — from poor surface preparation to warpage during curing. Experienced quality engineers often say: “Show me the silkscreen, and I’ll tell you the factory’s quality culture.” Indeed, the clarity of a board’s markings reflects the discipline of the team that produced it.

Evolving Expectations in a Competitive Industry

   As PCB technology evolves toward finer pitches and denser layouts, screen printing faces new challenges. Modern component footprints leave less room for text or logos. Manufacturers must develop advanced printing techniques with finer meshes, high-resolution inks, and laser marking hybrids to maintain legibility. In addition, sustainability concerns are driving a shift toward eco-friendly inks and solvent recovery systems, ensuring environmental compliance without sacrificing quality.

   The emergence of intelligent traceability systems — such as printed data matrices readable by automated scanners — further redefines the role of screen printing. It is no longer a static visual element; it is becoming part of a dynamic data ecosystem where printed codes interact with enterprise systems, facilitating real-time process control.

A Reflection on Detail and Integrity

   In engineering, excellence often lies in attention to detail. PCB Board Screen Printing exemplifies this principle. The process demands consistency, precision, and a mindset that values the invisible contribution of minor steps. Every engineer knows that reliability begins long before the final test — it begins in the decisions made at each stage, including how we label our work.

   To view screen printing merely as decoration is to misunderstand its essence. It is not just about ink and stencils; it is about communication, accountability, and craftsmanship. In the author’s view, screen printing transforms a PCB from a technical object into an engineered product ready for the real world. It marks the point where technology meets responsibility.

Definition and Technical Foundation of PCB Board Screen Printing

Defining PCB Board Screen Printing

   PCB Board Screen Printing is the process of applying functional and informational markings to the surface of a printed circuit board using a stencil or mesh-based method. It is commonly referred to as “silkscreen printing,” a term inherited from traditional textile printing techniques where silk mesh was originally used. In the context of PCB fabrication, however, the process has evolved to employ synthetic meshes, photo-etched stencils, and automated deposition systems capable of achieving extremely fine detail and consistent alignment.

   In essence, screen printing in PCB production serves as the communication layer between engineering and manufacturing. It conveys essential data such as component identifiers, polarity markings, revision numbers, logos, serial codes, and assembly notes. These markings are not part of the electrical circuitry; rather, they are functional labels designed to guide human operators and automated equipment throughout the assembly and quality control processes.

   At its core, the PCB Board Screen Printing process involves four primary components:

1. Screen or Stencil: A fine mesh (usually made from polyester or stainless steel) stretched over a rigid frame. Specific areas of the mesh are blocked off using photoresist or emulsion, allowing ink to pass through only where markings are desired.

2. Ink: A specialized, high-viscosity paste formulated for adhesion, durability, and chemical resistance. The ink must withstand soldering temperatures, flux residues, and environmental stresses.

3. Squeegee: A rubber or polyurethane blade that presses the ink through the open areas of the screen onto the board surface.

4. Substrate: The PCB itself, typically coated with a solder mask layer that provides a smooth, non-absorbent surface for printing.

   After printing, the ink undergoes a curing process, typically through heat or ultraviolet (UV) radiation. Proper curing ensures strong adhesion, abrasion resistance, and long-term legibility. Once cured, the printed text becomes an integral part of the board’s outer layer.

---

Historical Evolution of PCB Board Screen Printing

   The origins of PCB Board Screen Printing trace back to the early days of electronics manufacturing in the mid-20th century. When boards were single-sided and hand-assembled, technicians would mark components manually using paint or labeling pens. This practice was inconsistent, slow, and prone to errors. As production volumes increased, manufacturers adopted manual silkscreen printing, borrowing techniques from the textile and signage industries.

   Early PCB screen printing used wooden frames, nylon meshes, and solvent-based inks. The process required precise alignment by skilled operators, often relying on visual cues. Despite its simplicity, it dramatically improved production efficiency and assembly accuracy. As electronics became more complex and miniaturized, the demand for finer text, improved resolution, and better ink adhesion drove continuous technological advancement.

   By the 1980s, automated screen printers began replacing manual systems, integrating vacuum tables for board fixation and motorized squeegees for consistent pressure. The introduction of photo-imageable emulsions allowed the creation of stencils with micron-level precision, suitable for increasingly dense PCB layouts. In parallel, UV-curable inks replaced many solvent-based formulations, reducing emissions and improving throughput.

   Today, the evolution continues. Modern PCB factories employ fully automated screen printing lines that align panels with optical cameras, control ink deposition thickness via closed-loop systems, and inspect every board with vision systems. These advancements have elevated screen printing from a simple labeling task to a precision manufacturing process.

---

Core Principles of the PCB Board Screen Printing Process

   At the heart of the process lies the controlled transfer of ink through a patterned screen onto a substrate. The quality of the print depends on several interacting variables:

1. Mesh Count and Tension:
   The mesh count refers to the number of threads per inch of the screen. A higher mesh count allows for finer detail but less ink deposition. Proper mesh tension ensures uniform ink transfer and prevents distortion.

2. Emulsion Thickness:
   The emulsion defines the height of the stencil walls and influences ink thickness. Too thick an emulsion leads to smearing; too thin results in incomplete coverage.

3. Ink Rheology:
   The viscosity and thixotropy of the ink determine how it flows through the mesh. Inks must remain stable during printing but spread uniformly once applied.

4. Squeegee Parameters:
   The hardness, angle, and pressure of the squeegee directly affect line definition. Excess pressure can cause ink bleeding, while insufficient force may lead to incomplete prints.

5. Substrate Cleanliness and Flatness:
   Any contamination, oil, or warpage on the PCB surface can disrupt adhesion and clarity. Pre-cleaning processes are essential for consistent quality.

6. Curing Profile:
   Heat or UV curing must be precisely controlled to avoid over-curing (brittleness) or under-curing (poor adhesion). Typical curing temperatures range between 120–160°C for thermal inks or UV doses of 600–1200 mJ/cm² for photo-curable types.

   These parameters work in concert to achieve optimal results. In high-volume production, even minor deviations can lead to significant yield loss, underscoring the importance of process control.

---

Types of Inks Used in PCB Board Screen Printing

   Choosing the right ink is central to the success of the process. The most common categories include:

1. Epoxy-Based Inks:
   Traditionally dominant in PCB manufacturing, epoxy inks offer excellent adhesion to solder mask and copper surfaces. They provide strong chemical resistance and durability but require thermal curing, which can extend process time.

2. UV-Curable Inks:
   These inks harden when exposed to ultraviolet light. They offer rapid curing, low emissions, and improved process efficiency. However, they require UV-transparent materials and precise exposure control.

3. Acrylic-Based Inks:
   Used in specialized applications where flexibility and low-temperature curing are essential, such as flexible circuits. They may not match epoxy inks in hardness but offer superior adaptability.

4. Conductive and Functional Inks:
   Emerging technologies have introduced conductive or sensor inks that enable functional printing. Though not common for legends, they represent the frontier of hybrid electronic manufacturing.

5. Eco-Friendly Inks:
   With increasing environmental regulations, many manufacturers are adopting low-VOC, halogen-free, and solvent-reduced formulations. These inks align with global sustainability standards while maintaining high print fidelity.

   Each ink type must be compatible with the underlying solder mask to ensure proper adhesion. The surface energy of the mask, measured in dynes/cm, must exceed the ink’s surface tension for optimal wetting.

The Functional Roles of PCB Board Screen Printing

   While the electrical pathways within a printed circuit board define its operation, it is the PCB Board Screen Printing layer that defines how humans interact with the product. Screen printing serves as the translator between schematic logic and physical reality, transforming a complex network of copper traces and pads into a comprehensible layout. This section explores the multifaceted functions of PCB Board Screen Printing, from identification to aesthetic refinement, and analyzes how it directly influences manufacturability, reliability, and traceability.

---

1. Identification and Labeling Functions of PCB Board Screen Printing

   The most obvious role of PCB Board Screen Printing is identification. A typical PCB may contain hundreds or thousands of components, each requiring precise placement and orientation. The screen-printed legends — component designators such as R1, C2, or U5 — provide a visual roadmap for assembly technicians and inspection personnel.

   In manual assembly environments, these printed guides prevent errors in component placement. In automated lines, they assist quality control engineers in verifying that pick-and-place programming corresponds correctly to the physical layout. Furthermore, the printed revision codes and manufacturer logos ensure that every board is uniquely identified within a production series.

   This identification layer also includes:

• Polarity marks for diodes, LEDs, and electrolytic capacitors

• Pin 1 indicators for integrated circuits

• Test point labels for in-circuit and functional testing

• Reference outlines that match component body dimensions

   Such markings may seem trivial, but they are essential for efficient manufacturing. When absent or unclear, technicians waste time cross-referencing assembly drawings or rechecking orientation, increasing the likelihood of human error.

   Moreover, printed serial numbers and barcodes serve as part of traceability systems, allowing each PCB to be linked to production records, lot numbers, and quality inspection data. This capability becomes vital when troubleshooting field failures or conducting reliability audits.

   From an author’s perspective, the value of clear identification is immeasurable — it is the difference between a product that communicates and one that confuses.

---

2. Functional Markings and Assembly Guidance through PCB Board Screen Printing

   Beyond simple identification, PCB Board Screen Printing carries functional information that guides assembly, testing, and servicing. Engineers use the silkscreen layer to embed practical details directly onto the board, enabling faster interpretation without consulting external documentation.

   These markings include:

• Voltage ratings or test limits printed near connectors and power circuits.

• Signal direction arrows that show input/output flow for debugging.

• Switch positions labeled with “ON/OFF” or mode indicators.

• Safety warnings, such as high-voltage or sensitive-area notices.

• Quality assurance seals or rework indicators that track post-production adjustments.

   During functional testing, these legends allow operators to locate critical nodes quickly. In rework or maintenance scenarios, technicians depend on these labels to avoid damaging sensitive circuits. Thus, screen printing serves not only as a static record but also as an active tool during the PCB’s operational lifecycle.

   A particularly important evolution is the integration of QR codes or 2D matrix codes within the screen-printed layer. These digital identifiers allow automated scanners to access detailed part data, material traceability, and test results in real time. The combination of printed information and digital linkage creates a powerful hybrid system of visual and digital traceability.

---

3. Aesthetic and Branding Role of PCB Board Screen Printing

   While functionality dominates engineering priorities, the aesthetic aspect of PCB Board Screen Printing plays a significant role in perceived quality and brand recognition. The visual appearance of a PCB often becomes the customer’s first impression of manufacturing precision. Clean, sharp text and well-balanced logos convey professionalism and attention to detail.

   Manufacturers often use the silkscreen layer to include:

• Company logos or trademarks

• Production dates or lot codes

• Certification marks (UL, CE, RoHS, etc.)

• QR labels linked to warranty systems

   In the age of globalized manufacturing, consistent visual presentation across product lines reinforces brand identity. Even though most PCBs are hidden inside electronic housings, industries such as aerospace, medical devices, and high-end computing treat internal aesthetics as an expression of engineering discipline. A neatly printed legend suggests that the same care extends to the invisible electrical layers beneath.

   In many cases, customers audit suppliers based on sample appearance. Boards with blurry or misaligned screen prints can lead to perceptions of poor process control, even when electrical performance is flawless. As the author has observed, some clients have rejected entire batches simply because the silkscreen lacked visual consistency — a reminder that aesthetics are a functional requirement in competitive manufacturing.

---

4. Safety, Compliance, and Standardization Supported by PCB Board Screen Printing

   PCB Board Screen Printing also serves as a vehicle for compliance and safety communication. Many regulatory standards — such as UL 796 (Printed Wiring Boards) and IPC-2221 (Generic Standard on Printed Board Design) — require visible identification markings on every PCB. These markings typically include:

• Manufacturer’s identification

• Board part number

• Revision code

• Flammability rating

• Production date or serial traceability code

   In safety-critical industries, such as automotive or defense electronics, such compliance is non-negotiable. Missing or unreadable legends can disqualify a batch from certification.

   Furthermore, screen printing helps standardize internal manufacturing practices. Each facility can maintain its own visual template for board legends, ensuring consistency across production lines. These standards simplify operator training and improve interdepartmental communication.

   For example, a well-defined internal convention might require that all high-voltage nets be labeled in red ink or that all test points follow a specific numeric pattern. By enforcing such standards through the screen printing process, manufacturers embed quality assurance directly into the visual layer of the product.

---

5. PCB Board Screen Printing and Product Reliability

   While the silkscreen layer does not directly influence electrical properties, it indirectly affects overall product reliability through several mechanisms:

• Component orientation accuracy: Clear polarity and reference markings prevent reverse insertion or soldering errors, reducing early-life failures.

• Reduced handling errors: Easily identifiable labels decrease the chance of operator confusion or accidental shorting during testing.

• Chemical protection: Properly cured inks act as micro-barriers, shielding surface features from mild abrasion and contamination.

• Maintenance efficiency: Reliable identification simplifies fault isolation, ensuring that repairs do not introduce secondary defects.

   Moreover, in high-volume environments, the consistency of screen printing reflects upstream process stability. If printing alignment fluctuates, it may indicate hidden issues in board warpage, panel registration, or solder mask curing — all of which could affect product reliability. Thus, monitoring silkscreen quality provides an indirect diagnostic tool for broader process control.

Comparison of PCB Board Screen Printing Materials, Inks, and Technologies

Conclusion

   PCB Board Screen Printing is far more than a cosmetic finishing step. It represents the intersection of manufacturing precision, visual communication, and product traceability. From ensuring that each component is correctly placed to enabling end-to-end tracking across global supply chains, the silkscreen layer plays a critical role in defining the manufacturability and reliability of every PCB. By integrating advanced printing technologies, sustainable materials, and intelligent process control, the industry is transforming this once-simple task into a high-value differentiator.

   Looking ahead, the future of PCB Board Screen Printing lies in the balance between automation and artistry. As machines become smarter and processes more sustainable, the human understanding of visual design and clarity remains essential. A silkscreen is, after all, the readable face of a PCB — the bridge between engineering logic and human interpretation.

   In conclusion, the importance of PCB Board Screen Printing extends far beyond its visual presence. It is a critical enabler of manufacturability, reliability, and traceability, embodying both the technical integrity and the aesthetic refinement of the entire PCB production process. As technologies advance and sustainability takes center stage, those who invest in mastering this “final touch” will continue to lead in both quality and innovation.

FAQs

1. What is PCB Board Screen Printing and why is it important?
PCB Board Screen Printing is the process of applying reference designators, polarity indicators, logos, and serial information on a PCB’s surface using specialized inks. It enhances assembly accuracy, supports maintenance and repair, and provides essential traceability throughout the product lifecycle. Without clear screen printing, even well-designed boards can lead to costly assembly or inspection errors.

---

2. How does PCB Board Screen Printing affect the performance and reliability of PCBs?
While PCB Board Screen Printing does not directly impact electrical performance, it plays a vital role in reliability and manufacturability. Accurate silkscreen markings prevent incorrect component placement, reduce operator confusion, and assist in efficient quality inspection. Durable inks ensure that markings remain readable after soldering, cleaning, or coating processes, maintaining long-term usability.

---

3. What materials and inks are typically used in PCB Board Screen Printing?
Common inks include epoxy-based, UV-curable, and water-based formulations.

• Epoxy inks provide excellent adhesion and durability.

• UV-curable inks offer fast curing and environmental advantages.

• Water-based inks are solvent-free and suitable for green manufacturing.
  Each ink type is selected according to the board’s intended application, durability requirements, and environmental regulations.

---

4. How is digital PCB Board Screen Printing different from traditional screen printing?
Traditional screen printing uses a physical mesh stencil to transfer ink, while digital printing employs computer-controlled inkjet nozzles to apply text directly onto the PCB. Digital PCB Board Screen Printing offers greater flexibility, instant artwork updates, and lower waste generation, making it ideal for short runs, prototypes, or designs requiring variable data such as QR codes. Traditional printing remains more economical for large-scale production.

---

5. How does PCB Board Screen Printing contribute to traceability and quality control?
Modern PCB Board Screen Printing integrates barcodes, serial numbers, and QR codes into the silkscreen layer. These allow manufacturers to track each PCB’s production batch, materials, and process history. This traceability is essential for industries like aerospace, medical, and automotive, where full documentation and accountability are mandatory for certification and safety compliance.
