PCB Board Meaning: What You Need to Know

The term PCB board is widely used in the electronics industry, but the abbreviation PCB can have different meanings depending on the context.

In electronics manufacturing, PCB stands for Printed Circuit Board.

A PCB board is a fundamental component used to mechanically support electronic components and electrically connect them through copper traces, vias, and multiple circuit layers.

However, outside the electronics field, PCB may also refer to other terms, such as:

• Panama City Beach — a famous coastal city in Florida, USA
• Polychlorinated Biphenyls — a group of chemical compounds historically used in industrial applications
• Process Control Block — a computer science term used in operating systems

For engineers, manufacturers, and the electronics industry, PCB means Printed Circuit Board.

Modern electronic products almost always depend on PCB boards, including:

• Smartphones
• Computers
• Industrial equipment
• Medical devices
• Communication systems
• Automotive electronics
• Consumer electronics

Although a PCB may appear simple from the outside, the internal structure is highly sophisticated. A typical PCB can contain:

• Precisely manufactured copper circuits
• Plated through holes and vias
• Dielectric laminate materials
• Solder mask protection
• Surface finishes
• Multiple interconnected copper layers

Understanding PCB meaning is therefore more than knowing what the abbreviation stands for.

It also means understanding how a PCB is designed, manufactured, tested, and selected for different electronic applications.

---

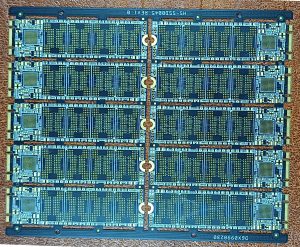

What Is a PCB Board? PCB Board Meaning Explained

PCB stands for Printed Circuit Board.

A PCB board is a structure used to mechanically support and electrically connect electronic components through conductive copper traces, pads, planes, and plated holes.

Before printed circuit boards became widely used, electronic components were often connected using individual wires. As electronic systems became more complicated, this approach became increasingly difficult to manufacture consistently and reliably.

PCB technology solved this problem by creating repeatable electrical connections directly on or inside a manufactured board.

Depending on the design, a PCB can contain:

• One copper layer
• Two copper layers
• Multiple internal and external copper layers
• Plated through holes
• Blind and buried vias
• Controlled impedance traces
• Ground and power planes
• Fine-pitch component pads
• Thermal management structures

Today, PCB boards range from very simple single-sided boards to highly complex multilayer and HDI structures used in advanced electronic systems.

---

PCB vs PCB Board: Is There a Difference?

Technically, PCB already means Printed Circuit Board, so the phrase “PCB board” literally expands to “Printed Circuit Board board.”

However, PCB board has become a widely used industry and search term, especially among buyers, engineers, sourcing teams, and people who are new to electronics.

In practical usage:

PCB = Printed Circuit Board

PCB board = commonly used term referring to the same product

There is normally no technical difference between the two terms.

Another important distinction is between a bare PCB and a PCBA.

A bare PCB contains the manufactured copper circuits, holes, solder mask, surface finish, and other board structures but does not yet contain the electronic components.

After components are assembled and soldered onto the PCB, it is commonly called a PCBA (Printed Circuit Board Assembly).

---

The Anatomy of a PCB Board

A PCB board consists of several important materials and structures. Their exact configuration depends on whether the PCB is single-sided, double-sided, multilayer, flexible, rigid-flex, high-frequency, or another specialized type.

1. Substrate and Dielectric Material

The substrate provides mechanical support and electrical insulation.

FR-4 fiberglass-reinforced epoxy laminate is one of the most commonly used materials for rigid PCBs because it provides a practical balance of:

• Mechanical strength
• Electrical insulation
• Thermal performance
• Dimensional stability
• Manufacturing capability
• Cost

Special applications may use high-Tg FR-4, high-frequency laminates, ceramic substrates, metal-core materials, PTFE-based materials, or other specialized materials.

2. Copper Layers

Copper forms the electrical circuits of the PCB.

Depending on the PCB structure, copper can be used for:

• Signal traces
• Component pads
• Ground planes
• Power planes
• Thermal conduction
• Via connections

Copper thickness is selected according to electrical current, thermal requirements, circuit density, and manufacturing requirements.

3. Plated Holes and Vias

Vias provide electrical connections between different copper layers.

Common structures include:

• Plated through holes
• Blind vias
• Buried vias
• Microvias
• Via-in-pad structures

As PCB density increases, via design becomes increasingly important to manufacturability, signal integrity, and long-term reliability.

4. Solder Mask

Solder mask is the protective coating applied over most exposed copper circuitry.

Its functions include:

• Protecting copper circuits
• Reducing accidental solder bridging
• Providing electrical insulation
• Protecting the PCB surface during assembly and handling

Green is the most familiar solder mask color, although black, blue, red, white, yellow, and other colors are also available.

5. Surface Finish

Exposed copper pads require a suitable surface finish to protect the copper and provide solderable or contact surfaces.

Common PCB surface finishes include:

• HASL
• Lead-free HASL
• ENIG
• OSP
• Immersion silver
• Immersion tin
• Hard gold

The best surface finish depends on pad geometry, assembly process, reliability requirements, storage conditions, contact requirements, and cost.

6. Silkscreen / Legend

Silkscreen provides markings that help identify:

• Components
• Polarity
• Reference designators
• Test points
• Production information
• Warning symbols
• PCB revision information

Although silkscreen does not normally perform an electrical function, it is useful during PCB assembly, inspection, repair, and maintenance.

---

Types of PCB Boards and Their Uses

PCB boards are manufactured in different structures according to circuit complexity and application requirements.

Single-Sided PCB

A single-sided PCB has conductive circuitry primarily on one side of the board.

It is simple and economical and is commonly used for relatively low-complexity electronics.

Double-Sided PCB

A double-sided PCB contains copper circuitry on both sides, with plated through holes commonly used to create electrical connections between the two sides.

This structure provides significantly greater routing capability than a single-sided PCB while maintaining relatively simple manufacturing.

Multilayer PCB

A multilayer PCB contains multiple conductive copper layers separated by dielectric materials and laminated into one structure.

Multilayer construction makes it possible to use dedicated signal, power, and ground layers while supporting much greater routing density.

Typical applications include:

• Industrial electronics
• Communication equipment
• Automotive electronics
• Computers and servers
• Medical equipment
• High-speed digital systems

Flexible PCB

Flexible PCBs use thin flexible dielectric materials, allowing the circuit to bend or fold.

They are useful where space, weight, movement, or three-dimensional installation is important.

Rigid PCB

Rigid PCBs maintain a fixed mechanical shape and represent the most common type of printed circuit board.

Rigid-Flex PCB

Rigid-flex PCBs combine rigid and flexible circuit sections into a single interconnected structure.

They can reduce connectors and wiring while enabling compact three-dimensional product designs.

---

Why Are PCB Boards So Important?

PCB boards perform two fundamental jobs simultaneously:

Mechanical support and electrical interconnection.

They allow electronic components to be arranged in compact, repeatable, manufacturable structures.

Modern PCB technology also enables engineers to control:

• Signal routing
• Power distribution
• Ground return paths
• Electromagnetic compatibility
• Thermal performance
• Component density
• Mechanical dimensions
• Testability

As electronic products become smaller, faster, and more powerful, PCB design and manufacturing become increasingly important to overall product performance.

A PCB is therefore not simply a platform that holds components.

It is an important part of the electrical, thermal, mechanical, and manufacturing design of the complete electronic system.

---

PCB Board Meaning in Manufacturing: From Design to Production

Understanding PCB board meaning from a manufacturing perspective goes beyond the basic definition.

A PCB design must be converted from digital engineering data into a physical product while maintaining dimensional, electrical, mechanical, and reliability requirements.

PCB manufacturing therefore requires control of many processes, including:

• Material selection
• Layer stack-up
• Inner-layer circuit formation
• Lamination
• Drilling
• Hole-wall preparation
• Electroless copper deposition
• Copper electroplating
• Outer-layer circuit formation
• Solder mask
• Surface finishing
• Electrical testing
• Routing
• Final inspection

For multilayer, high-density, high-current, high-frequency, automotive, medical, and industrial PCBs, small variations in these processes can affect final product reliability.

This is why PCB manufacturing capability matters just as much as the original PCB design.

---

How PCB Boards Are Made

A PCB board passes through a series of controlled manufacturing processes before it becomes a finished product.

Typical PCB board manufacturing process including inner-layer imaging, lamination, drilling, copper plating, solder mask, surface finish, electrical testing, routing, and final inspection.

---

1. Engineering Review and Material Preparation

Before production begins, manufacturing engineers review the customer data and production requirements.

The review may include:

• Gerber or ODB++ data
• PCB dimensions
• Layer count
• Finished thickness
• Copper thickness
• Hole sizes
• Impedance requirements
• Surface finish
• Solder mask requirements
• Special tolerances

For multilayer PCBs, the stack-up and material structure must also be confirmed before production.

---

2. Inner-Layer Circuit Formation

For multilayer PCBs, the inner-layer copper circuits are formed first.

The general process includes:

• Cleaning copper-clad laminate
• Applying photoresist
• Circuit imaging
• Developing
• Etching
• Resist stripping
• AOI inspection

AOI can detect defects such as opens, shorts, incomplete etching, and pattern abnormalities before the inner layers are laminated together.

Finding defects at this stage is important because inner-layer circuits become inaccessible after lamination.

---

3. Lamination

The prepared inner-layer cores, prepreg, and copper foil are stacked according to the PCB stack-up.

Heat and pressure are then applied during lamination.

Proper lamination control is important for:

• Layer registration
• Finished board thickness
• Resin flow
• Dielectric thickness
• Dimensional stability
• Delamination resistance

As layer count and structural complexity increase, lamination control becomes increasingly important.

---

4. Drilling

After lamination, holes are drilled according to the PCB design.

These may include:

• Component holes
• Plated through holes
• Non-plated holes
• Mechanical holes
• Blind vias
• Other interconnection structures

Drilling accuracy affects both mechanical dimensions and electrical reliability.

Poor drilling control can cause hole misregistration, breakout, rough hole walls, and other defects.

---

5. Hole-Wall Preparation and Copper Plating

After drilling, the hole walls must be prepared so that copper can form reliable electrical connections between layers.

Typical processes include:

• Desmear
• Cleaning
• Electroless copper deposition
• Copper electroplating

The quality of the plated hole wall is one of the important factors affecting long-term PCB reliability, particularly under thermal cycling.

---

6. Outer-Layer Circuit Formation

The outer copper circuits are then formed using imaging, plating, etching, and inspection processes.

Accurate circuit formation becomes particularly important for:

• Fine traces
• Fine spacing
• BGA areas
• Controlled impedance
• High-density designs

AOI is commonly used to inspect outer-layer circuit patterns before subsequent processes.

---

7. Solder Mask

Solder mask is applied to protect the circuit surface while exposing pads and other required areas.

Accurate solder mask registration is particularly important around:

• Fine-pitch pads
• BGA pads
• QFN pads
• Dense component areas

Modern PCB manufacturing may use direct imaging technologies to improve registration accuracy.

---

8. Surface Finish

A surface finish protects exposed copper and provides a suitable surface for soldering, wire bonding, connectors, or other applications.

Common options include:

• HASL
• Lead-free HASL
• ENIG
• OSP
• Immersion silver
• Immersion tin
• Hard gold

The most expensive finish is not automatically the best choice. Surface finish should be selected according to the actual application.

---

9. Electrical Testing

After fabrication, the bare PCB is electrically tested to verify the circuit network.

Testing checks for defects such as:

• Open circuits
• Short circuits
• Incorrect network connections

Flying probe testing is commonly used for prototypes and smaller production quantities, while dedicated test fixtures can be more efficient for volume production.

It is important to distinguish this bare-board electrical test from functional testing of an assembled PCBA.

---

10. Routing and Final Inspection

The PCB is routed, V-scored, punched, or otherwise separated according to the required finished profile.

Final inspection may verify:

• Board dimensions
• Hole sizes
• Surface finish
• Solder mask
• Legend
• Appearance
• Warpage
• Special customer requirements

Boards are then cleaned, packaged, labeled, and prepared for shipment.

For a more detailed explanation of each production stage, see our PCB manufacturing process guide.

---

How PCB Manufacturing Quality Affects Reliability

The same PCB design can produce different reliability results when manufactured under different levels of process control.

For example:

• Poor drilling can damage hole walls or reduce annular-ring margin.
• Insufficient copper plating can reduce via reliability and current-carrying capability.
• Poor lamination can increase the risk of delamination or dimensional instability.
• Incorrect etching can change trace width and affect impedance.
• Solder mask misregistration can create problems around fine-pitch pads.
• Inconsistent surface finishing can affect solderability and assembly performance.

This is particularly important for multilayer, high-density, automotive, industrial, medical, and other high-reliability PCB applications.

Good PCB manufacturing is therefore not simply about producing a board that passes initial electrical testing.

The objective is to produce a PCB that continues to perform reliably throughout the intended product life.

---

PCB Board Design and Manufacturability

A well-designed PCB should consider manufacturing requirements before production begins.

Design for Manufacturability (DFM) can help identify potential issues involving:

• Trace width and spacing
• Hole diameter
• Annular ring
• Copper-to-edge distance
• Solder mask clearance
• Copper balance
• Layer stack-up
• Finished board thickness
• Panelization
• Surface finish

Early communication between PCB designers and manufacturing engineers can often prevent unnecessary redesign, delays, and manufacturing cost.

Another important consideration is PCB layer count.

More layers can provide additional routing capability, but they also increase material usage and manufacturing complexity. In some designs, routing optimization or strategic use of 0Ω resistors can help avoid an unnecessary increase in PCB layer count.

---

Future Trends in PCB Technology

PCB technology continues to evolve as electronic products require higher density, higher speed, greater computing power, and improved reliability.

Important development areas include:

Higher-Density Interconnects

HDI technology, microvias, finer traces, and smaller pads allow designers to integrate more functionality into smaller PCB areas.

High-Speed and High-Frequency Materials

As data rates and operating frequencies increase, dielectric constant, dissipation factor, impedance control, and material consistency become increasingly important.

Improved Thermal Management

High-power electronics, AI computing hardware, automotive electronics, and power conversion systems require more effective thermal management.

Solutions may include heavy copper, thermal vias, metal substrates, embedded copper structures, and specialized materials.

Greater Manufacturing Automation

LDI, automated inspection, digital production data, intelligent process monitoring, and increasingly automated manufacturing equipment can improve process consistency and traceability.

---

Choosing the Right PCB Manufacturer

When selecting a PCB manufacturing partner, price is important—but it should not be the only consideration.

Engineers and purchasing teams should also evaluate:

• Manufacturing capability
• Material control
• Engineering support
• Quality certifications
• Process control
• Prototype capability
• Mass-production capability
• Testing capability
• Delivery reliability
• Technical communication

For complex PCB projects, early cooperation between the designer and PCB manufacturer can help identify manufacturing risks before production.

An experienced PCB supplier should also be able to support customers from prototype validation through volume production.

---

Conclusion

The basic PCB board meaning is simple: PCB stands for Printed Circuit Board.

But a modern PCB board is much more than a piece of material carrying copper traces.

It is an engineered structure combining conductive circuits, dielectric materials, plated holes, protective coatings, surface finishes, and precisely controlled manufacturing processes.

PCB boards make modern electronic products smaller, more reliable, more manufacturable, and more powerful.

Understanding how PCB boards are designed and manufactured can help engineers and purchasing teams make better decisions about materials, stack-up, layer count, surface finish, manufacturing capability, reliability, and cost.

Whether the application is industrial equipment, automotive electronics, medical technology, communications, or advanced computing, the PCB remains one of the fundamental building blocks of modern electronics.

---

FAQs About PCB Board Meaning

What does PCB stand for?

PCB stands for Printed Circuit Board, an engineered board used to mechanically support and electrically connect electronic components.

Is PCB board the same as Printed Circuit Board?

Yes. Although “PCB board” is technically redundant because the letter B already stands for Board, the phrase is commonly used to describe a Printed Circuit Board.

What is the difference between PCB and PCBA?

A PCB normally refers to the bare manufactured circuit board. A PCBA is a PCB after electronic components have been assembled and soldered onto it.

What is the most common PCB material?

FR-4 is one of the most widely used materials for rigid PCB manufacturing because it provides a good combination of mechanical strength, electrical insulation, manufacturability, and cost.

How many layers can a PCB have?

PCB boards can have one, two, or many conductive layers. The required layer count depends on routing density, signal integrity, power distribution, component density, board size, and other design requirements.

How are PCB boards tested?

Bare PCB boards are commonly electrically tested for opens and shorts. AOI may also be used during circuit formation, while additional inspections and reliability tests depend on the product specification and application.
