PCB Board Materials: A Comprehensive Guide

Introduction

Printed Circuit Boards (PCBs) are the backbone of modern electronics, serving as a platform for mounting and connecting electronic components. The material used in PCB manufacturing plays a critical role in determining the board’s performance, durability, and suitability for different applications. Selecting the right PCB board material is essential for achieving optimal electrical, mechanical, and thermal properties.

This article explores various PCB board materials, their properties, applications, and factors to consider when choosing the best material for your specific needs.

Common PCB Materials

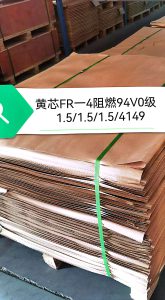

1. FR-4 (Fiberglass Epoxy Resin)

FR-4 is the most widely used PCB material in the industry. It is made of woven fiberglass cloth combined with an epoxy resin binder, providing excellent electrical insulation and mechanical strength.

Key Properties

• High mechanical strength
• Good electrical insulation
• Flame-retardant (94V-0 rated)
• Moderate thermal resistance
• Cost-effective

Applications

• Consumer electronics
• Communication devices
• Industrial equipment
• Automotive electronics

2. Aluminum PCB (Metal Core PCB, MCPCB)

Aluminum PCBs consist of a metal base layer (typically aluminum) with a thermally conductive dielectric layer. This design allows efficient heat dissipation, making it ideal for high-power applications.

Key Properties

• Excellent thermal conductivity
• High mechanical strength
• Lightweight compared to copper
• Good electrical insulation

Applications

• LED lighting
• Power electronics
• Automotive lighting
• High-power industrial equipment

3. Copper Core PCB

Copper Core PCBs are similar to aluminum PCBs but use a copper substrate instead. They offer superior thermal conductivity and electrical performance.

Key Properties

• Extremely high thermal conductivity
• Excellent electrical performance
• High mechanical strength
• Expensive compared to aluminum PCBs

Applications

• High-frequency circuits
• High-power LEDs
• Power amplifiers
• Aerospace and defense electronics

4. Ceramic PCB

Ceramic PCBs are made from materials like aluminum oxide (Al₂O₃) or aluminum nitride (AlN), offering superior thermal and electrical properties.

Key Properties

• Excellent thermal conductivity
• High dielectric strength
• Low thermal expansion
• High reliability in extreme environments

Applications

• Aerospace and military applications
• High-frequency RF circuits
• Medical devices
• Power modules

5. Flexible PCB (Polyimide & PET)

Flexible PCBs use flexible materials such as polyimide (PI) or polyethylene terephthalate (PET), allowing them to bend and conform to different shapes.

Key Properties

• Highly flexible and lightweight
• Excellent thermal and chemical resistance
• Can be single-layer, double-layer, or multi-layer
• More expensive than rigid PCBs

Applications

• Wearable devices
• Medical equipment
• Automotive electronics
• Aerospace applications

6. High-Frequency PCB (PTFE, Rogers, etc.)

High-frequency PCBs are made from specialized materials like polytetrafluoroethylene (PTFE) or Rogers laminates. These materials have low dielectric loss and stable electrical properties at high frequencies.

Key Properties

• Low dielectric constant (Dk)
• Low signal loss
• High thermal stability
• Suitable for high-speed applications

Applications

• 5G communication systems
• Satellite and radar systems
• Microwave applications
• High-speed data transmission devices

Factors to Consider When Choosing PCB Material

Selecting the right PCB material depends on various factors, including electrical performance, thermal requirements, mechanical strength, and cost. Here are some key considerations:

1. Thermal Conductivity

If your PCB design involves high-power components, materials with high thermal conductivity (such as aluminum, copper, or ceramic) should be used to ensure efficient heat dissipation.

2. Electrical Properties

For high-frequency applications, materials with a low dielectric constant (Dk) and low dissipation factor (Df), such as PTFE or Rogers laminates, are ideal.

3. Mechanical Strength

PCBs used in harsh environments, such as automotive or aerospace applications, require materials with high mechanical strength and durability, such as FR-4 or metal-core PCBs.

4. Flexibility Requirements

If your design requires bending or movement, flexible PCB materials like polyimide are the best choice.

5. Environmental Factors

Some applications require materials that can withstand high humidity, chemicals, or extreme temperatures. For example, ceramic PCBs perform well in extreme environments.

6. Cost Considerations

FR-4 is the most cost-effective and widely available material. However, specialized materials such as Rogers, PTFE, or ceramic are more expensive but necessary for high-performance applications.

Conclusion

Choosing the right PCB board material is crucial for ensuring the performance, reliability, and longevity of your electronic devices. Whether you need a standard FR-4 board, a high-thermal aluminum PCB, or a high-frequency Rogers PCB, understanding the key properties and applications of different materials will help you make an informed decision.

At Shuoqiang Electronics, we specialize in providing high-quality PCB manufacturing solutions tailored to your needs. Contact us today for expert advice and a competitive quote on your next PCB project!
