The term PCB Appearance refers to the visual characteristics of a printed circuit board that can be assessed through human inspection or optical systems without the need for electrical testing. This includes color uniformity, surface smoothness, copper pattern clarity, plating brightness, solder mask consistency, silkscreen alignment, and the absence of visible contamination or damage.
In industrial practice, PCB Appearance serves as a first-line quality filter. Before functional testing begins, boards undergo a visual inspection to ensure that no apparent defects—such as scratches, stains, blisters, or registration misalignments—are present. These visual checkpoints not only verify craftsmanship but also prevent costly rework or product returns downstream.
Defining PCB Appearance also involves standardization. Organizations like IPC-A-600 and IPC-6012 define acceptability criteria for external board appearance, categorizing defects into classes based on severity and end-use. These standards acknowledge that the look of a PCB correlates with manufacturing precision, even though it doesn’t directly measure performance.
Personally, I view PCB Appearance as a language of manufacturing integrity. Each visual cue—whether it’s the gloss of an ENIG finish or the sharp edge of a trace—tells a story about the stability of chemical baths, alignment accuracy of exposure systems, and the discipline of process operators. In that sense, appearance acts as both an aesthetic statement and a technical report card.

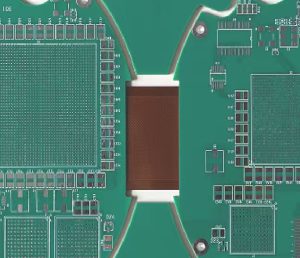

PCB Appearance
The evolution of PCB Appearance reflects the broader history of electronics manufacturing. Early PCBs in the 1950s and 1960s were often hand-drawn, manually etched, and coated with rudimentary resists. Their appearance was irregular, with inconsistent copper thickness and hand-applied solder. However, as the electronics industry matured, appearance became a proxy for modernization.
During the 1980s, the rise of automated photolithography and plated-through-hole technologies improved both the uniformity and visual consistency of boards. Green solder masks became standard not because of color preference but because green coatings provided superior visual contrast under inspection lighting—enhancing the visibility of fine copper traces and defects.
In the 2000s, globalization pushed manufacturers to adopt stricter aesthetic and dimensional standards to compete internationally. The introduction of AOI (Automated Optical Inspection) systems redefined the way PCB Appearance was evaluated. Boards were no longer judged only by the naked eye; high-resolution imaging captured microscopic deviations in color tone and surface reflection that humans might miss.
Today, appearance is an essential branding dimension for PCB suppliers. Companies like SQ PCB, for example, treat surface quality as part of their identity—linking visual precision with reliability. In this sense, PCB Appearance has evolved from a mere cosmetic concern to a strategic differentiator in a crowded market.
While engineers may prioritize function over form, the market rarely separates the two. Customer perception of quality begins with the visual presentation of the product. When OEMs evaluate suppliers, the PCB Appearance is often their first tangible indicator of process capability.
A board that looks pristine conveys professionalism and confidence. Buyers and design engineers associate sharp edges, bright finishes, and uniform color with tight process control. This perception directly affects market value—manufacturers with consistent PCB Appearance command premium pricing and long-term contracts.
Conversely, poor appearance—even when electrically acceptable—can lead to supplier rejection. Discoloration, uneven solder mask thickness, or dull plating signal potential reliability issues, prompting clients to question process consistency. In such a competitive market, perception can outweigh data.
From my perspective, this psychological dimension of PCB Appearance deserves more attention. We often assume engineers are immune to aesthetics, yet subconscious judgments about symmetry, tone, and polish affect decisions. This is why SQ PCB invests heavily in visual inspection and surface finishing—because in real-world procurement, appearance sells reliability before test results confirm it.
It is tempting to view PCB Appearance as a matter of cosmetics, but doing so overlooks its functional implications. A solder mask blister or uneven copper gloss might seem trivial, yet these visual irregularities often point to underlying process instability—such as contamination in chemical baths, improper lamination pressure, or incomplete curing.
In this sense, appearance functions as a diagnostic tool. Engineers can often predict latent defects simply by analyzing surface texture or color uniformity. For instance, a dull ENIG pad may indicate nickel under-plating, while an overly bright region might suggest uneven current distribution during plating. These visual anomalies can evolve into electrical failures under stress conditions.
Moreover, regulatory and reliability-driven industries—like aerospace and automotive—demand rigorous appearance standards precisely because they know the correlation between cosmetic and functional quality. A visually perfect PCB does not guarantee reliability, but a visually inconsistent one almost always correlates with process defects.
My experience suggests that the industry should shift its view: PCB Appearance is not the end result of production but an ongoing feedback mechanism. Every hue shift or gloss variation teaches something about chemical balance, photo-alignment, or surface preparation. By cultivating visual literacy, engineers can elevate both aesthetic and functional excellence.
The foundation of any PCB Appearance lies in the choice of materials—specifically, the laminate substrate, copper foil type, and resin system. Each component influences how light interacts with the finished board, affecting reflectivity, color, and texture.
High-quality FR-4 materials with fine glass weave and uniform resin content yield smooth, consistent surfaces after lamination. In contrast, lower-grade substrates may show uneven coloration or “fiber print-through,” where the underlying glass texture subtly appears on the surface, disrupting uniformity.
Similarly, the type of copper foil—rolled vs. electrolytic—plays a major role. Rolled copper provides superior smoothness and reduced micro-roughness, leading to cleaner trace edges and glossier finishes, while electrolytic copper tends to produce a slightly grainier look. These micro-differences, although minor visually, can affect signal integrity and adhesion performance as well.
Hence, manufacturers seeking to enhance both performance and appearance must carefully balance cost, material grade, and surface smoothness. Investing in quality materials isn’t vanity—it’s a strategic decision that defines both aesthetics and reliability.
Copper, the primary conductive medium of every PCB, is also one of the most visually dominant materials on the board. Its color, gloss, and uniformity set the foundation for the overall PCB Appearance. However, untreated copper is reactive; it oxidizes rapidly, leading to color variations and tarnish. Thus, surface treatment becomes critical—not only for performance but also for maintaining appearance stability throughout manufacturing and storage.
The most common treatments include OSP (Organic Solderability Preservatives), Immersion Tin, Immersion Silver, and ENIG (Electroless Nickel Immersion Gold). Each produces a distinct surface tone. ENIG, for example, yields a luxurious golden hue, often associated with premium boards, while OSP leaves a faint matte finish that can appear uneven under light. Although these differences are cosmetic, they influence the perceived quality of the final product.
Beyond aesthetics, consistent surface treatment ensures uniform solderability and adhesion, both of which indirectly reinforce visual consistency. Variations in coating thickness or chemistry can lead to localized discoloration—a red flag during inspection. For instance, thin or incomplete nickel plating under ENIG can cause “black pad” defects, visible as darkened regions on the surface.
Personally, I find that maintaining copper uniformity is a powerful demonstration of process discipline. The mirror-like reflectivity of a well-plated pad or the subtle matte sheen of a perfectly finished trace tells an experienced engineer that chemical concentrations, current densities, and rinsing cycles are all under control. PCB Appearance here becomes an honest mirror of the factory’s internal consistency.
| Inspection Parameter | Description | Typical Standard / Tolerance | Impact on PCB Quality | Detection Method |
|---|---|---|---|---|
| Surface Flatness | Measures the evenness of the board surface; critical for soldering and component mounting. | ≤ ±0.05 mm deviation | Uneven surfaces can lead to solder joint stress and component misalignment. | 3D Surface Profilometry / AOI |
| Solder Mask Alignment | The precision of solder mask registration over copper pads and traces. | ±50 µm tolerance | Misalignment can expose copper or cover pads, leading to short circuits or soldering defects. | Automated Optical Inspection (AOI) |
| Solder Mask Thickness | The thickness of the protective layer applied over copper traces. | 10–25 µm | Too thin → poor insulation; too thick → poor solderability. | Cross-sectional Microscopy / Thickness Gauge |
| Silkscreen Clarity | The sharpness and accuracy of printed legends or component markings. | No smearing or overlap; text ≥ 0.15 mm width | Poor readability affects assembly and traceability. | Visual Inspection / AOI |
| Copper Surface Cleanliness | Absence of oxidation, fingerprints, or flux residues. | No visible contamination | Contamination causes adhesion issues and soldering defects. | Visual / Chemical Cleanliness Testing |
| Color Consistency | Uniform solder mask and silkscreen coloration across the panel and batch. | ΔE < 2.0 (color difference index) | Inconsistent color reduces visual uniformity and perceived quality. | Spectrophotometric Colorimetry |
| Edge Quality | Smoothness of routed or punched edges without delamination. | No burrs or fibers visible | Poor edge finish increases mechanical stress and contamination risks. | Optical Microscopy / Visual |
| Gloss Level | The reflectivity and sheen of the solder mask layer. | 60° gloss reading: 30–50 GU | Consistent gloss contributes to professional appearance and uniform curing. | Glossmeter / Visual Reference |
| Via Fill Uniformity | Evenness of resin or copper-filled vias. | ±5% fill height tolerance | Uneven fill leads to air voids and reliability issues. | X-ray / AOI |
| Silkscreen Registration | Alignment of silkscreen print relative to board features. | ±75 µm | Misalignment reduces readability and traceability accuracy. | Optical Inspection / AOI |
The PCB Appearance of a printed circuit board transcends mere visual satisfaction — it is the embodiment of engineering precision, manufacturing discipline, and brand credibility. A board’s appearance silently tells the story of its production environment, the care of its operators, and the rigor of its inspection systems. Every smooth surface, even gloss, and perfectly aligned silkscreen mark reflects an ecosystem where process control meets aesthetic craftsmanship.
From a technical standpoint, PCB Appearance serves as the first line of defense against performance defects. Surface anomalies such as scratches, misregistration, and uneven solder mask thickness are not only cosmetic flaws but also early warning signs of deeper process issues. A visually flawless PCB is often the outcome of optimized plating, controlled curing, and well-calibrated imaging systems — all of which directly influence electrical stability, solder reliability, and long-term durability.
From a market and psychological perspective, the role of PCB Appearance extends even further. In an industry where visual evaluation often precedes functional testing, the look and feel of a board can determine customer confidence, product positioning, and brand reputation. An aesthetically uniform PCB signals precision and trustworthiness — qualities that resonate deeply with OEMs, engineers, and end-users alike. It is no coincidence that high-end electronic brands demand visual perfection as part of their supplier qualifications.
Furthermore, as manufacturing enters the age of automation and AI, the concept of PCB Appearance is evolving into a quantifiable science. Machine vision and colorimetric analytics now allow for statistical tracking of visual consistency, while predictive algorithms identify process drift before it manifests as visible defects. This shift transforms what was once a subjective inspection into an objective, data-driven quality discipline.
However, human perception and experience remain irreplaceable. Engineers still rely on visual intuition to evaluate subtle differences — a balance between machine precision and human sensibility that defines the art of modern PCB manufacturing.
In the sustainability era, PCB Appearance also reflects environmental responsibility. Green, halogen-free materials, lead-free finishes, and eco-conscious inks all introduce new challenges to maintain visual harmony. Yet, this is also an opportunity — to redefine aesthetics under ethical manufacturing principles.
1. What causes uneven gloss levels on PCB surfaces?
Uneven gloss often results from inconsistent curing or irregular ink thickness during solder mask application. Controlling curing time and maintaining uniform UV exposure can prevent this issue.
2. Why does solder mask color vary between production batches?
Slight variations in resin formulation, curing temperature, or UV exposure can cause visible differences in mask color. Consistent process control and color calibration minimize this issue.
3. How does PCB Appearance influence electrical reliability?
While mainly aesthetic, poor PCB Appearance (e.g., scratches or misalignment) may indicate underlying process flaws, which can lead to reduced insulation, corrosion, or signal interference.
4. What are the most common inspection methods for PCB Appearance?
Common methods include AOI, spectrophotometric color measurement, and 3D profilometry to detect surface deviations and ensure consistency.
5. Can eco-friendly materials maintain the same PCB Appearance quality?
Yes, but they may require adjustments in curing profiles or ink formulations. Modern halogen-free materials can achieve similar or even superior visual quality with proper control.
