Inner Layer Ink Pre-Baking in PCB Manufacturing

Introduction

Inner layer ink pre-baking is a crucial step in the printed circuit board (PCB) manufacturing process. After the ink is applied to the inner layers, it must undergo pre-baking to remove solvents, enhance adhesion, and prepare for further processing. The pre-baking stage ensures that the ink remains intact and properly cured before final baking or exposure.

This article will explore the purpose, key processes, equipment, quality control measures, and challenges associated with inner layer ink pre-baking in PCB production.

Purpose of Inner Layer Ink Pre-Baking

The pre-baking process serves several essential functions:

1. Solvent Evaporation – Helps remove residual solvents in the ink to prevent defects in subsequent curing.
2. Ink Stability Improvement – Ensures the ink maintains adhesion and prevents smudging or shifting.
3. Preparation for Final Curing – Readies the PCB for the final curing process by partially setting the ink.
4. Dimensional Stability – Reduces thermal expansion issues that may arise during later high-temperature processes.
5. Defect Prevention – Minimizes common issues such as air bubbles, peeling, or ink contamination.

Properly executed pre-baking enhances PCB durability and performance, ensuring reliability in electronic applications.

Key Processes in Inner Layer Ink Pre-Baking

The inner layer ink pre-baking process consists of multiple critical steps to achieve uniform and consistent results:

1. Ink Application (Prior to Pre-Baking)

Before pre-baking, ink is applied using one of the following methods:

• Screen Printing – A stencil is used to apply ink onto the PCB.
• Spray Coating – A fine mist evenly distributes ink over the surface.
• Curtain Coating – A continuous flow of ink coats the board.
• Roller Coating – Controlled rollers apply ink uniformly.

Once the ink is applied, the PCB moves to the pre-baking stage.

2. Pre-Baking Setup

• Preheat Temperature: Typically ranges between 80°C and 120°C.
• Time Duration: Generally lasts between 10 to 30 minutes, depending on the ink type and PCB material.
• Air Circulation: Ensures even heat distribution to prevent localized overheating or under-curing.
• Ventilation Control: Extracts evaporated solvents to prevent contamination.

3. Heating Methods

Different methods are used for pre-baking based on production volume and precision requirements:

A. Convection Ovens

• Uses heated air to circulate around the PCB.
• Provides uniform temperature distribution.
• Ideal for high-volume production.

B. Infrared (IR) Heating

• Uses infrared radiation to heat the ink quickly.
• Provides faster solvent evaporation.
• Suitable for certain high-precision applications.

C. Hot Plate Pre-Baking

• Directly transfers heat through surface contact.
• Best for small-scale production.

4. Cooling Process

After pre-baking, PCBs must gradually cool down to avoid thermal stress. A controlled cooling chamber or ambient cooling is used to prevent warping or cracking.

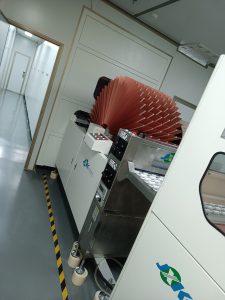

Equipment Used in Inner Layer Ink Pre-Baking

1. Convection Drying Ovens

• Equipped with programmable temperature controls.
• Uses forced air circulation for uniform heat distribution.
• Features multi-layer racks to accommodate large PCB batches.

2. Infrared (IR) Drying Systems

• Provides fast heating with precise temperature adjustments.
• Reduces overall processing time.
• Used in advanced PCB manufacturing lines.

3. Hot Air Conveyor Systems

• Continuous process ideal for mass production.
• Ensures consistent heat exposure across all PCBs.

4. Vacuum Drying Systems (For Special Applications)

• Removes solvents in a controlled vacuum environment.
• Used in high-reliability PCBs where solvent retention must be minimized.

Quality Control Measures

To ensure a high-quality pre-baking process, manufacturers implement the following quality control measures:

1. Temperature and Time Monitoring

• Sensors continuously monitor heat levels to maintain uniform pre-baking conditions.
• Automatic alerts prevent temperature fluctuations that may cause defects.

2. Ink Adhesion Testing

• Cross-hatch adhesion tests check how well the ink adheres after pre-baking.
• Prevents ink peeling or smudging in later processing steps.

3. Solvent Residue Analysis

• Uses gas chromatography (GC) testing to detect residual solvents.
• Ensures that no unwanted chemical contamination occurs.

4. Visual Inspection

• Automated optical inspection (AOI) systems detect irregularities in ink thickness and surface quality.
• Prevents defects before final curing.

5. Surface Roughness Measurement

• Ensures the pre-baked ink meets required texture specifications for bonding with subsequent layers.

Common Challenges and Solutions in Inner Layer Ink Pre-Baking

1. Ink Bubbling and Blistering

• Cause: Excessive solvent retention due to insufficient ventilation.
• Solution: Improve air circulation and adjust pre-baking time.

2. Uneven Ink Curing

• Cause: Inconsistent heating or improper ink thickness.
• Solution: Optimize oven settings and ensure uniform ink application.

3. Cracking or Peeling

• Cause: Rapid cooling after pre-baking.
• Solution: Implement a gradual cooling process.

4. Excessive Ink Shrinkage

• Cause: High temperature or prolonged pre-baking.
• Solution: Adjust heating parameters to meet manufacturer specifications.

Conclusion

Inner layer ink pre-baking is a critical process in PCB manufacturing that ensures proper adhesion, solvent removal, and ink stability before final curing. By carefully controlling temperature, baking time, air circulation, and solvent extraction, manufacturers can enhance PCB reliability, performance, and durability.

Employing advanced baking technologies, automated quality control, and optimized heating methods ensures that PCBs meet industry standards and function effectively in demanding electronic applications. As PCB technology advances, improvements in ink formulations and pre-baking techniques will continue to enhance production efficiency and product reliability.
