Introduction to How to Select High-Frequency and High-Speed Materials for Optimal Performance

Introduction

The rapid evolution of electronic devices, from 5G communication systems to high-performance computing, has placed extraordinary demands on printed circuit boards (PCBs). One of the most critical aspects that determine the success of a design is the choice of substrate material. The subject of How to Select High-Frequency and High-Speed Materials has become not only a technical concern but also a strategic decision that defines whether a product can compete in an increasingly performance-driven market.

This article provides a comprehensive analysis of how engineers, designers, and manufacturers should approach How to Select High-Frequency and High-Speed Materials to achieve optimal performance. It will detail the properties of these materials, the advantages they bring, their influence on PCB performance, and the trade-offs that need to be balanced.

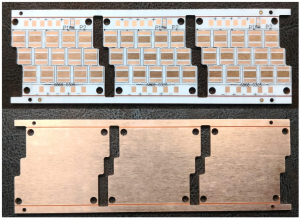

How to Select High-Frequency and High-Speed Materials

1: Understanding the Fundamentals – How to Select High-Frequency and High-Speed Materials

When engineers ask themselves How to Select High-Frequency and High-Speed Materials, the first step is to understand the underlying properties that differentiate these substrates from conventional PCB materials. High-frequency materials, often used in RF and microwave designs, must minimize dielectric losses to ensure signals travel with minimal distortion. High-speed materials, on the other hand, must support rapid signal transitions without excessive impedance variations.

Key material parameters to evaluate include:

• Dielectric Constant (Dk): A stable and low Dk ensures predictable signal velocity.

• Dissipation Factor (Df): A lower Df reduces energy loss, essential for RF circuits.

• Thermal Coefficient of Dk: Materials must remain stable across temperature variations.

• Moisture Absorption: High-speed and high-frequency signals are sensitive to changes in dielectric performance due to absorbed water.

From my perspective, the strategic choice is not just about identifying low-loss materials but about aligning material selection with the system-level requirements of the final product. For instance, a company designing radar systems may prioritize ultra-low-loss laminates, while data centers focusing on server interconnects might value thermal stability and manufacturability over absolute minimum loss.

2: Electrical Characteristics – How to Select High-Frequency and High-Speed Materials for Signal Integrity

When engineers face the challenge of How to Select High-Frequency and High-Speed Materials, one of the most pressing concerns is signal integrity. As frequencies rise above several gigahertz, even minor variations in the dielectric constant (Dk) or dissipation factor (Df) can introduce significant distortion.

Key considerations include:

1. Dielectric Constant (Dk) Control

   • High-speed signals require consistent impedance. A material with stable Dk ensures that transmission lines can be precisely designed for 50 Ω or 100 Ω differential pairs.

   • If Dk fluctuates across the board, reflections and impedance mismatches arise, leading to timing errors and jitter.

2. Dissipation Factor (Df) Minimization

   • For RF circuits, even a small increase in Df translates to higher insertion loss. Materials with Df values below 0.005 are preferred in cutting-edge applications like 77 GHz radar modules.

3. Surface Roughness Influence

   • Copper foil surface roughness contributes to conductor loss. Rolled copper foils, due to smoother surfaces, are often favored in high-frequency PCB designs over electrolytic foils.

4. Crosstalk and Isolation

   • Materials with controlled dielectric properties help designers reduce coupling between adjacent traces, ensuring clean signal transmission.

From my own perspective, the electrical domain is where most design teams initially overestimate the benefits of simply “low loss.” In reality, a balanced approach—choosing materials that provide both low loss and stable processing characteristics—yields better manufacturability. For instance, using an exotic low-Dk laminate without considering copper adhesion issues can result in poor yields.

3: Thermal Stability Considerations in How to Select High-Frequency and High-Speed Materials

Another essential aspect of How to Select High-Frequency and High-Speed Materials is thermal stability. In high-speed designs, signals operate in environments where heat is generated not only by component power dissipation but also by resistive losses in conductors. Materials must therefore withstand elevated operating conditions while maintaining consistent properties.

Thermal considerations include:

1. Glass Transition Temperature (Tg)

   • High Tg materials maintain structural integrity under repeated soldering cycles and extended high-temperature exposure.

   • For systems like automotive radar or aerospace communication modules, Tg above 170°C is often mandatory.

2. Coefficient of Thermal Expansion (CTE)

   • A low and uniform CTE reduces stress between copper layers and dielectric laminates. This prevents cracking, delamination, or via barrel fatigue.

   • In multi-layer high-speed boards, mismatched CTE values can compromise via reliability.

3. Thermal Conductivity

   • Materials with higher thermal conductivity help spread and dissipate heat, crucial for reducing localized hotspots.

   • This ensures high-frequency circuits avoid thermal drift that could affect impedance control.

4. Stability of Electrical Properties with Temperature

   • Dk and Df stability across temperature changes is critical. Some laminates perform well at room temperature but degrade significantly at 85°C or higher.

Thermal stability is not only about endurance but also about predictability. A material that slightly shifts its dielectric constant across a temperature sweep may still function, but in high-speed memory interfaces or 5G antennas, even small shifts cause performance degradation. Therefore, the best choice when evaluating How to Select High-Frequency and High-Speed Materials is one that maintains both mechanical and electrical consistency across the entire expected operating temperature range.

4: Mechanical Reliability – How to Select High-Frequency and High-Speed Materials for Long-Term Use

When engineers evaluate How to Select High-Frequency and High-Speed Materials, electrical and thermal properties usually dominate the discussion. Yet mechanical reliability is equally important, especially for designs exposed to environmental stress or requiring long operational lifespans.

4.1 Dimensional Stability

High-frequency laminates must maintain precise dimensions during fabrication. If the laminate expands excessively during lamination or drilling, layer-to-layer registration may fail, leading to misaligned vias or broken connections. Materials with low z-axis expansion reduce this risk.

4.2 Peel Strength and Copper Adhesion

Mechanical adhesion between copper foil and dielectric laminate is critical. Rolled copper foils generally provide better adhesion in high-frequency designs due to their smoother yet durable interface. If adhesion is weak, signal layers can delaminate under reflow or thermal cycling.

4.3 Flexural Strength

For rigid-flex or mechanically stressed applications, the laminate must resist cracking when bent or flexed. High-performance polyimide or modified PTFE laminates are often chosen for their mechanical toughness.

4.4 Resistance to Environmental Stress

Moisture absorption, chemical exposure, and repeated mechanical shocks all test the durability of PCB materials. High-speed systems in aerospace or automotive applications must survive vibrations and mechanical fatigue without micro-cracks forming in vias or traces.
From my perspective, mechanical stability is often undervalued in early design phases. Teams may focus on achieving signal integrity but overlook that mechanical failures such as via cracks are far more likely to cause long-term product returns. This is why How to Select High-Frequency and High-Speed Materials should always balance electrical goals with mechanical endurance.

5: Cost and Availability Factors in How to Select High-Frequency and High-Speed Materials

No strategic decision on How to Select High-Frequency and High-Speed Materials is complete without considering cost and supply chain realities. While premium materials can deliver outstanding performance, they may also introduce challenges in sourcing, lead times, and overall product economics.

5.1 Material Cost Spectrum

• FR4 (baseline): Inexpensive, widely available, but limited for frequencies above 3–4 GHz.

• Mid-range laminates (modified epoxy, PPO blends): Offer lower loss than FR4 while remaining cost-effective for mass production.

• Premium laminates (PTFE, hydrocarbon-ceramic blends, liquid crystal polymer): Provide excellent signal integrity but may be cost-prohibitive for consumer products.

5.2 Supply Chain Stability

Selecting a material only available from a single supplier introduces risk. If that supplier experiences shortages or discontinuation, the entire production schedule may be compromised. Wise engineers choose materials from multiple vendors to maintain flexibility.

5.3 Manufacturability and Yield

Exotic laminates can require specialized processing (e.g., plasma etching, non-standard lamination cycles). This increases production costs and lowers yields. A practical approach is to select a material that achieves electrical performance without drastically complicating manufacturing.

5.4 Strategic Vendor Partnerships

Here lies the value of collaborating with trusted manufacturers. SQ PCB is an example of a partner that not only sources high-quality high-frequency and high-speed materials but also provides guidance on balancing cost, yield, and availability. For design teams, such partnerships transform material selection from a gamble into a strategic decision backed by proven expertise.From my viewpoint, the “best” material is rarely the most exotic or the cheapest, but the one that enables consistent manufacturing and meets the performance targets at scale. The ability to manage cost and availability effectively is what separates an experimental prototype from a commercially viable product.

5: Advantages of How to Select High-Frequency and High-Speed Materials and Their Impact on PCB Performance

Selecting the right materials is not only about meeting baseline requirements; it also unlocks substantial benefits for system-level performance. When engineers understand How to Select High-Frequency and High-Speed Materials, they gain a competitive edge in product design.

Advantages:

1. Enhanced Signal Integrity

   • Stable dielectric constant and low loss materials reduce distortion, ensuring clean and accurate signal transmission even at multi-gigabit speeds.

2. Lower Power Consumption

   • Reduced insertion loss minimizes the need for signal boosting or error correction, lowering overall system power.

3. Thermal and Mechanical Reliability

   • High-performance laminates maintain structural and electrical consistency across harsh environments, improving long-term durability.

4. Miniaturization of Circuits

   • With lower crosstalk and tighter impedance control, designers can pack more traces in smaller board areas without sacrificing performance.

5. Support for Advanced Applications

   • High-frequency materials enable 5G, radar, high-speed computing, and aerospace systems that demand ultra-low loss and high stability.

Impact on PCB Performance:

• Transmission Quality: Reduced signal degradation over long traces.

• Design Flexibility: Ability to implement higher-density routing and finer geometries.

• Reliability: Boards can withstand repeated thermal cycling without material fatigue.

• Scalability: Materials support both prototyping and mass production without drastic changes in behavior.

6: Comparative Analysis – How to Select High-Frequency and High-Speed Materials vs. Traditional FR4

When comparing advanced laminates to conventional FR4, the differences illustrate why How to Select High-Frequency and High-Speed Materials is a pivotal engineering decision.

6.1 Dielectric Properties

• FR4: Dk around 4.2–4.5, Df above 0.02, making it unsuitable beyond 3–4 GHz.

• High-Speed Laminates: Dk as low as 3.0–3.4, Df below 0.005, allowing clean signal propagation at 10–100 GHz.

6.2 Thermal Behavior

• FR4: Moderate Tg (~130–150°C), higher CTE, prone to via cracking at high layer counts.

• Advanced Materials: High Tg (>170°C), low CTE, improved via reliability.

6.3 Mechanical Strength

• FR4: Adequate for consumer electronics, but moisture absorption reduces long-term stability.

• Advanced Materials: Better dimensional stability and moisture resistance.

6.4 Cost and Manufacturability

• FR4: Cheap and widely available, ideal for low-frequency mass-market products.

• High-Speed Materials: Higher cost, but necessary for applications where signal fidelity is non-negotiable.

Conclusion: How to Select High-Frequency and High-Speed Materials with Confidence

Choosing the right materials for high-frequency and high-speed PCB applications is far more than a procurement step—it is a strategic design decision that influences every aspect of product performance, from signal integrity and power efficiency to long-term reliability in harsh environments. Throughout this article, we have explored in detail How to Select High-Frequency and High-Speed Materials, addressing their electrical, mechanical, and thermal properties, as well as the trade-offs that engineers must carefully balance.

The advantages of understanding How to Select High-Frequency and High-Speed Materials are clear: reduced signal loss, improved impedance stability, enhanced manufacturability, and greater design confidence in meeting demanding standards such as 5G, RF front-end modules, and high-speed backplanes. Engineers who ignore this decision risk failures in compliance testing, reduced field reliability, and ultimately higher costs due to re-designs.

In my own view, the key lies in recognizing that material selection is not a one-size-fits-all process. It requires evaluating the unique needs of the application—whether that is low dielectric loss for RF systems, tight dimensional control for high-speed computing, or robust thermal stability for aerospace electronics. At times, even the most advanced resin systems or copper foils may fall short if the broader design ecosystem, including PCB stackup, via structures, and assembly processes, is not optimized.

Ultimately, How to Select High-Frequency and High-Speed Materials is about foresight, precision, and strategic alignment with the product’s end goals. Engineers who approach this process thoughtfully not only ensure technical success but also create a competitive advantage in the market, where speed, reliability, and innovation define success.

FAQ

Q1: What is the difference between rolled copper foil and electrolytic copper foil?

• Rolled copper foil is produced by mechanically rolling copper into thin sheets. This process creates a smoother surface, lower conductor loss, and higher mechanical strength, making it ideal for high-frequency applications.

• Electrolytic copper foil is deposited through an electrolytic process. It is more cost-effective and flexible in terms of production volume, but its rougher surface can contribute to higher signal loss at very high frequencies.

Q2: Why is dielectric constant (Dk) stability important in high-speed PCB materials?
Stable Dk ensures that signal propagation speed and impedance remain consistent across the board. If Dk fluctuates, it can cause mismatched impedance, reflections, and jitter in high-speed signals, leading to data errors or reduced system performance.

Q3: Can FR4 still be used for high-speed designs if the budget is limited?
Yes, FR4 can be used in certain high-speed applications, but it has clear limitations. With controlled design techniques such as shorter trace lengths, careful impedance control, and hybrid stack-ups (mixing FR4 with low-loss materials), engineers can extend FR4’s usefulness. However, for frequencies beyond ~5 GHz, dedicated high-frequency materials are strongly recommended.

Q4: What role does dissipation factor (Df) play in material selection?
Df measures how much signal energy is lost as heat. Lower Df materials minimize insertion loss and are essential for RF, radar, and high-speed interconnects.

Q5: How do moisture absorption properties affect PCB performance?
Materials that absorb moisture change their dielectric constant, leading to impedance mismatches and increased loss. Low-absorption laminates are critical for consistent performance, especially in humid environments.
