In the world of PCB manufacturing, the choice of surface finish plays a crucial role in ensuring the quality, durability, and performance of the final product. Gold finishes, including flash gold, ENIG (Electroless Nickel Immersion Gold), and gold plating, are commonly used to protect the copper traces and pads on the PCB from oxidation, improve solderability, and enhance overall reliability. Understanding the differences between these gold finishes, their advantages, and their drawbacks is essential for making an informed decision about which surface finish to use for specific applications.

In this article, we will dive into the details of flash gold, ENIG, and gold plating, comparing their characteristics, applications, and pros and cons. We will also explore why SQPCB is an excellent choice for your PCB manufacturing needs, offering high-quality gold finishes for your projects.

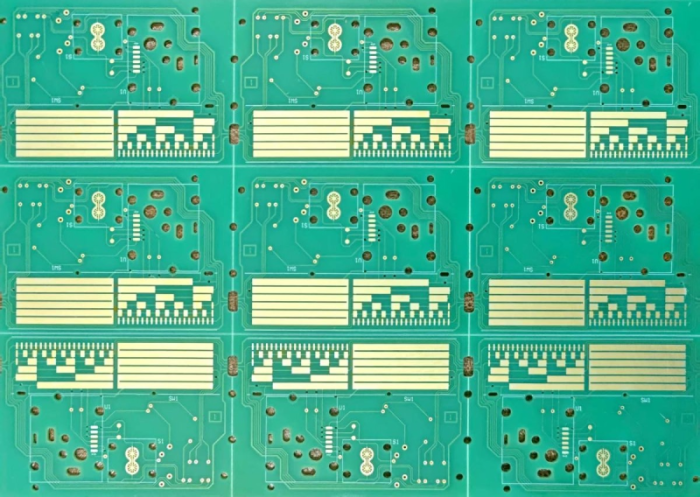

Flash Gold, ENIG, and Gold Plating

What is Flash Gold?

Flash gold is a type of gold plating applied in a thin layer to the surface of the PCB. This finish involves a very thin layer of gold (typically around 0.05–0.1 microns) deposited over a copper pad. Flash gold is primarily used in applications that require low-cost, short-life-cycle boards where the gold layer does not need to provide long-term durability or wear resistance.

Advantages of Flash Gold:

• Cost-Effective: Flash gold is one of the most affordable gold finishes because the gold layer is extremely thin.
• Excellent for Prototyping: Due to its low cost, flash gold is ideal for prototype PCBs or low-volume production runs.
• Solderability: Flash gold provides good solderability for components that will be placed on the PCB, ensuring a reliable connection.

Disadvantages of Flash Gold:

• Durability: Flash gold is thin and does not provide as much protection against wear and corrosion compared to other gold finishes.
• Limited Use: Flash gold is not suitable for high-end or long-life-cycle products due to its limited durability.
• Prone to Degradation: Over time, flash gold can degrade, leading to issues with soldering and electrical performance.

What is ENIG (Electroless Nickel Immersion Gold)?

ENIG is a more sophisticated gold finish that involves two distinct layers: a nickel layer, followed by a thin layer of gold. The nickel is applied through an electroless plating process, while the gold is deposited through an immersion process. The gold layer is usually around 0.1–0.2 microns thick, and the nickel layer underneath provides corrosion resistance and durability.

Advantages of ENIG:

• Durability: ENIG provides a more durable surface compared to flash gold. The nickel layer provides excellent corrosion resistance, making it ideal for long-lasting applications.
• Flat Surface: ENIG offers a smooth, even surface, making it excellent for high-precision soldering processes and fine-pitch components.
• Enhanced Reliability: The combination of nickel and gold makes ENIG a more reliable surface finish, especially in harsh environments where the PCB will be exposed to moisture, heat, and other environmental factors.
• Widely Used in High-Performance Applications: ENIG is commonly used in high-performance electronics, including telecommunications, automotive, and medical devices.

Disadvantages of ENIG:

• Cost: ENIG is more expensive than flash gold due to the additional processing steps involved in the electroless nickel plating and immersion gold processes.
• Nickel Corrosion: While the nickel layer provides durability, it can be prone to black pad issues, which occur when the nickel layer becomes corroded or degraded, leading to poor solderability.
• Complexity: The ENIG process is more complex and requires precise control of the plating process to avoid defects, making it less suitable for low-cost or mass PCBs production.

What is Gold Plating?

Gold plating, in the context of PCBs, typically refers to the process where a thicker layer of gold (usually several microns thick) is electroplated onto the copper pads of the PCB. This process involves passing a current through a gold salt solution to deposit gold onto the copper surface. Gold plating is often used in high-end, high-reliability applications where excellent electrical conductivity and durability are required.

Advantages of Gold Plating:

• Superior Durability: Gold plating provides a thick layer of gold, which offers superior corrosion resistance and long-term durability.
• High Conductivity: The thick gold layer ensures excellent electrical conductivity, making it ideal for high-performance PCBs that require consistent signal transmission.
• Extended Life: Gold plating is excellent for products with long life cycles, such as aerospace, military, and medical applications.
• Better for High-Power Applications: Due to its superior thickness and conductivity, gold plating is ideal for high-power, high-frequency applications.

Disadvantages of Gold Plating:

• High Cost: Gold plating is one of the most expensive surface finishes due to the cost of gold and the more complex plating process.
• More Expensive for Mass Production: For standard or low-cost PCBs, gold plating may be overkill due to its high cost, especially when flash gold or ENIG could suffice.
• Plating Thickness: The thick gold layer can sometimes pose challenges in fine-pitch component placement and may require additional process optimization.

Comparison: Flash Gold, ENIG, and Gold Plating

To better understand the differences between these three gold finishes, let’s compare them based on several key factors:

Why Choose SQPCB for Your PCB Surface Finishing Needs?

When it comes to choosing a reliable PCB manufacturer, SQPCB stands out for its expertise in offering a range of surface finishes, including flash gold, ENIG, and gold plating. SQPCB ensures that every PCB is manufactured to the highest standards, using state-of-the-art technologies and strict quality control measures.

Whether you’re developing a prototype or producing a high-performance, long-life product, SQPCB provides the perfect surface finish to meet your needs. With a commitment to cost-effectiveness, reliability, and customer satisfaction, SQPCB is the ideal partner for all your PCB manufacturing projects.

FAQs

1. What is the best gold finish for high-performance PCBs?
   • ENIG and gold plating are the best choices for high-performance applications, as they provide excellent corrosion resistance, durability, and high conductivity.
2. How does flash gold compare to ENIG?
   • Flash gold is a more affordable and cost-effective option for low- to mid-performance applications, while ENIG provides better durability and corrosion resistance, making it suitable for high-performance and long-life-cycle products.
3. Can I use gold plating for consumer electronics?
   • Gold plating is generally reserved for high-end applications like aerospace, military, and medical devices due to its high cost. For consumer electronics, flash gold or ENIG is typically more appropriate.
4. Why is ENIG used in medical devices?
   • ENIG provides excellent corrosion resistance and a reliable, smooth surface for fine-pitch components, making it ideal for medical devices that require long-term durability and high reliability.
5. How do I choose the right surface finish for my PCB?
   • The choice depends on the specific requirements of your application. For cost-effective prototyping, flash gold is ideal. For high-performance and durable applications, ENIG is the best choice, while gold plating is suitable for long-life, high-power applications.

In conclusion, understanding the differences between flash gold, ENIG, and gold plating is critical when choosing the appropriate surface finish for your express PCBs. Each option offers unique advantages depending on the application, cost considerations, and performance requirements. By selecting the right surface finish and partnering with a trusted manufacturer like SQPCB, you can ensure that your PCBs meet the highest standards of quality and performance.
