ENEPIG PCB: Advanced Surface Treatment for High-Reliability Electronics

In today’s rapidly evolving electronics industry, the demand for high-reliability, fine-pitch, and high-performance PCBs continues to grow. As devices become smaller, denser, and more powerful, surface finish selection plays a decisive role in ensuring solderability, durability, and long-term performance.

One surface treatment that has gained significant traction among high-end PCB manufacturers is ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold). Known as the “universal finish,” ENEPIG offers exceptional solder joint reliability, strong wire bonding performance, and robust corrosion resistance.

This article provides a comprehensive overview of ENEPIG PCBs, covering their structure, process, advantages, applications, challenges, and future prospects.

---

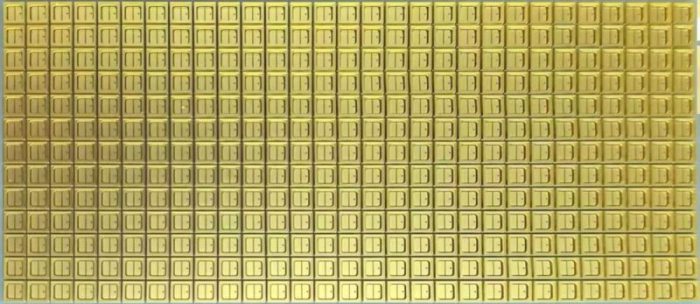

1. What is ENEPIG PCB?

ENEPIG is a multi-layer PCB surface finish process that builds upon the strengths of ENIG while adding a palladium layer between nickel and gold. The process involves three main steps:

Electroless Nickel (Ni) Plating – Deposits a nickel layer on the copper surface to provide a barrier layer and enhance solderability.

Electroless Palladium (Pd) Plating – Adds a palladium layer above the nickel. This layer prevents nickel corrosion (“black pad” issues) and improves wire bonding reliability.

Immersion Gold (Au) Plating – A thin gold layer protects palladium and provides excellent solderability.

The result is a surface finish that combines durability, excellent soldering behavior, and superior compatibility with both soldering and wire bonding.

---

2. Why ENEPIG is Considered a “Universal Finish”

Unlike ENIG, which is primarily optimized for soldering, ENEPIG excels in both soldering and gold wire bonding, making it suitable for highly integrated and sensitive applications.

Key benefits include:

Excellent Solder Joint Reliability – Palladium layer prevents nickel corrosion and extends board life.

Superior Wire Bonding – Supports both gold and aluminum wire bonding, critical for semiconductor packaging.

Strong Corrosion Resistance – Offers long-term protection against oxidation, moisture, and harsh environments.

Compatibility with Lead-Free Processes – Fully RoHS compliant and environmentally friendly.

📌 At SQPCB, advanced LDI inline exposure machines for both circuitry and solder mask layers, combined with automatic inkjet printing, ensure high accuracy and stable yields for ENEPIG boards. These investments significantly reduce alignment errors, scratches, and rework — guaranteeing consistent quality for high-reliability applications.

---

3. ENEPIG Process Overview

The ENEPIG surface treatment typically involves the following steps:

Surface Cleaning – Removal of oxidation, oil, and residues from copper pads.

Nickel Deposition – Electroless nickel is plated onto exposed copper, typically 3–6 µm thick.

Palladium Deposition – A thin palladium layer (~0.05 µm) prevents nickel oxidation.

Gold Deposition – Immersion gold (~0.03–0.1 µm) adds solderability and protects palladium.

Final Inspection – Boards undergo AOI, X-ray, and solderability testing before shipment.

This multi-layer finish ensures stable performance across multiple assembly and operational environments.

---

4. Applications of ENEPIG PCB

ENEPIG’s versatility makes it widely adopted across industries where precision, reliability, and long product life are mandatory:

Semiconductor Packaging – Gold/aluminum wire bonding in IC packaging.

Telecommunications – High-frequency and 5G networking hardware.

Medical Devices – Pacemakers, diagnostic equipment, and implants.

Automotive Electronics – Advanced driver-assistance systems (ADAS), ECU boards, and sensors.

Aerospace and Defense – Mission-critical electronics exposed to extreme conditions.

---

5. Advantages of ENEPIG vs. ENIG

While ENEPIG has a higher cost, its reliability and versatility make it the preferred choice for premium electronics.

---

6. Challenges of ENEPIG

Despite its benefits, ENEPIG comes with a few challenges:

Higher Cost – The palladium layer increases overall cost.

Thickness Control – Precise control of Pd and Au layers is critical.

Process Complexity – Requires more advanced equipment and tighter process control.

📌 SQPCB addresses these challenges with in-house lamination, HASL, ENIG, and ENEPIG finishing lines. By maintaining full control over plating and lamination processes, SQPCB ensures consistent layer thickness, high yields, and reliable delivery schedules — a key advantage for global OEMs.

---

7. Future of ENEPIG Surface Finish

As industries push toward miniaturization, high-frequency applications, and extended product lifespans, ENEPIG will continue to gain traction.

Future trends include:

Thinner Palladium and Gold Layers to reduce cost without compromising performance.

Automation & AI-driven Control for improved plating consistency.

Eco-friendly Chemistry to minimize environmental impact.

ENEPIG is positioned as the premium finish for next-generation electronics.

---

8. Conclusion

ENEPIG PCB surface treatment is more than just a finish — it’s a strategic enabler of high-reliability electronics. Its ability to provide both superior solderability and reliable wire bonding makes it the “universal finish” for industries such as telecom, automotive, aerospace, and medical devices.

With advanced LDI imaging, solder mask exposure, automated inkjet printing, in-house lamination, and ENIG/ENEPIG plating lines, SQPCB delivers boards with exceptional precision, reduced defect rates, and reliable lead times. For clients seeking premium-quality PCBs that meet stringent reliability standards, SQPCB remains a trusted partner.

---
