Why Should You Use a Blue Circuit Board? To Project a Professional and High-Quality Image

1. Understanding the Blue Circuit Board

1.1 Definition of Blue Circuit Board

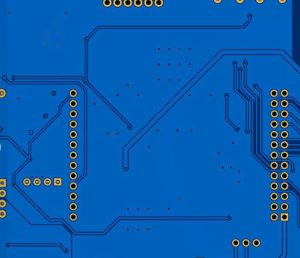

A Blue Circuit Board refers to a printed circuit board coated with a blue-colored solder mask layer—the protective film that covers the copper traces and insulating material beneath. The solder mask’s primary purpose is to prevent oxidation, solder bridging, and contamination during the assembly process. The blue hue is not merely decorative; it is achieved through specialized pigments and resin formulations that must maintain optical clarity, chemical resistance, and mechanical adhesion.

From a materials science standpoint, the Blue Circuit Board employs epoxy-based or liquid photoimageable (LPI) solder mask compounds. These compounds are carefully tuned to achieve consistent hue, thermal stability, and UV light response during exposure and curing. The color does not interfere with the electrical or mechanical function of the PCB but can influence light reflection and inspection visibility, which are important factors in automated optical inspection (AOI) and manual assembly.

A well-manufactured Blue Circuit Board represents a blend of engineering precision and visual sophistication. It stands out in the industry as an alternative to conventional green boards, particularly for companies that wish to highlight innovation, quality, and attention to design detail.

1.2 The Evolution of Solder Mask Colors in PCB History

The earliest PCBs, dating back to the mid-20th century, did not have solder masks at all. With increased component density and miniaturization, the need for insulation and solder control led to the development of solder masks—originally in dark green because of material availability and the optimal contrast it provided under production lighting.

Over time, improvements in pigment chemistry and resin transparency enabled new color formulations such as red, black, white, and eventually blue. The Blue Circuit Board first gained popularity in high-end electronics and development boards, such as evaluation kits and prototypes, where visual differentiation was desired.

The color blue soon became associated with professionalism, innovation, and advanced engineering. Companies began to use it intentionally to distinguish premium or prototype products from mass-market green boards. In contemporary practice, the Blue Circuit Board signifies both functional excellence and a strategic branding decision.

---

1.3 Psychological and Aesthetic Appeal of the Blue Circuit Board

Color psychology plays a surprisingly powerful role in technology perception. Blue is often associated with trust, intelligence, precision, and calmness—attributes that align perfectly with the image most technology companies seek to project. When customers or engineers see a Blue Circuit Board, it subtly communicates meticulous design, forward-thinking engineering, and high product quality.

Unlike darker colors that may obscure fine traces or lighter tones that can appear less professional, blue strikes a visual balance: it is both elegant and practical. The Blue Circuit Board looks particularly impressive when paired with white silkscreen text and gold-finished pads, providing excellent contrast for labeling and component positioning.

This aesthetic quality also enhances user perception in transparent devices, demonstration kits, and premium industrial products. Thus, beyond mere function, the Blue Circuit Board serves as an extension of product identity—a silent ambassador of quality and care.

---

1.4 Market Perception and Brand Value Linked with Blue Circuit Board Color

The selection of PCB color can influence customer perception, even if subconsciously. In B2B electronics, OEM clients and end users often associate color schemes with reliability and precision. A Blue Circuit Board instantly stands out among the conventional greens and blacks at trade shows, exhibitions, or internal product reviews.

Several technology-driven companies have deliberately adopted blue PCBs to align their hardware aesthetics with their corporate branding. For instance, blue is often associated with global technology leaders and innovation-focused enterprises. In this way, the Blue Circuit Board becomes part of the visual consistency that reinforces professionalism, much like a brand’s logo or packaging design.

Moreover, the choice of color can subtly signal internal quality control discipline. A blue solder mask shows fewer manufacturing imperfections under bright light, enabling inspectors to quickly identify solder issues or contamination. This visual advantage, combined with the psychological impression of calm precision, contributes to the growing preference for blue in modern PCB fabrication.

2. Technical Features of the Blue Circuit Board

2.1 Material Composition of the Blue Circuit Board

The Blue Circuit Board is built on standard fiberglass-reinforced epoxy laminate, typically FR-4 or higher-grade materials for advanced applications. The blue solder mask is applied as a liquid coating, photo-imaged, and thermally cured to form a thin, durable protective layer. The pigment composition must be precisely controlled to ensure color uniformity and resistance to UV degradation.

While the pigment itself does not change the electrical characteristics of the PCB, it affects visual contrast and process transparency. Manufacturers like SQ PCB, known for their expertise in precision color consistency, often invest in specialized equipment to achieve even coating thickness and high adhesion without affecting fine trace resolution.

A superior Blue Circuit Board must meet the same IPC and RoHS standards as any other PCB, ensuring mechanical strength, insulation reliability, and environmental safety. The blue pigment is simply an enhancement layered atop sound engineering principles.

---

2.2 Light Reflectivity and Visual Clarity in the Blue Circuit Board

One of the subtle but important advantages of the Blue Circuit Board lies in its optical characteristics. Blue solder mask tends to reflect less light than glossy green masks, reducing glare under bright manufacturing illumination. This improves human and machine vision during inspection.

In AOI systems, the contrast between copper pads, solder joints, and the blue background allows for clearer image recognition, minimizing false defect detection. This can contribute to higher production yields and fewer re-inspections.

Additionally, technicians find that working with a Blue Circuit Board is visually less fatiguing during long assembly runs. The softer tone helps maintain concentration and reduces eye strain, further supporting the overall quality of the production process.

---

2.3 Blue Circuit Board and Its Impact on Component Inspection

Inspection is one of the most critical steps in PCB assembly. The Blue Circuit Board offers enhanced contrast that benefits both manual and automated inspection. Under magnification, solder joints and copper traces appear sharply defined, making it easier to identify defects such as solder bridges, pad contamination, or missing components.

In addition, the blue surface works well under a range of inspection lighting conditions—from fluorescent to LED illumination—making it adaptable to modern factories that employ mixed lighting setups.

Engineers in high-reliability sectors often favor blue for prototypes and small-batch runs because the color allows clearer visual verification of rework and wire modifications. In this respect, the Blue Circuit Board contributes directly to higher confidence during early-stage design validation.

---

2.4 Heat Dissipation and Thermal Stability of Blue Circuit Board

Thermal performance is another important aspect of PCB quality. While the color itself does not drastically change thermal conductivity, the Blue Circuit Board often uses premium solder mask formulations with better heat tolerance. This helps maintain structural integrity during high-temperature solder reflow cycles.

In some cases, the blue pigment dispersion slightly modifies the emissivity of the board surface, leading to marginally improved heat radiation efficiency under certain conditions. Although this effect is minor, it demonstrates how material engineering and aesthetic selection can align to optimize performance.

3. Advantages of Blue Circuit Board in PCB Manufacturing

3.1 Manufacturing Tolerance and Precision of Blue Circuit Board

One of the most understated strengths of the Blue Circuit Board lies in its contribution to manufacturing precision. Although the color itself may appear to be merely cosmetic, the specific type of solder mask chemistry required to achieve a stable blue finish typically involves advanced resin formulations with tighter viscosity control and improved photoresist sensitivity.

This refinement directly translates to better definition of solder mask openings and trace edges. In high-density interconnect (HDI) boards or multilayer configurations, even micrometer-scale differences can affect solder joint reliability and impedance performance. The precise material handling associated with producing a Blue Circuit Board ensures more uniform coating thickness and sharper mask boundaries.

Furthermore, many blue solder mask systems feature reduced surface roughness, allowing for smoother component placement and solder paste deposition. This results in more predictable reflow behavior and fewer solder bridging defects. Engineers who have transitioned from standard green to blue boards often notice improved consistency in pad alignment and via hole exposure accuracy.

This technical precision reinforces the idea that the Blue Circuit Board is not only an aesthetic upgrade—it reflects a more controlled and deliberate manufacturing environment.

---

3.2 Blue Circuit Board Influence on Soldering and Reflow Processes

The soldering process is where visual and thermal performance converge. A Blue Circuit Board provides excellent visual contrast between the metallic solder and the mask background, making it easier for operators and automated equipment to monitor solder paste deposition and reflow results.

During reflow, solder joints can be visually inspected for shine, contour, and bridging much more clearly on a blue surface than on darker tones such as black or red. This enhanced contrast allows for early detection of irregularities, minimizing rework and increasing yield rates.

Additionally, premium blue solder masks tend to exhibit stable thermal properties, maintaining consistent color and adhesion even after multiple heat cycles. This makes the Blue Circuit Board ideal for complex assemblies requiring multiple reflows, such as double-sided surface mount technology (SMT) boards or mixed-technology layouts.

In environments where precision soldering is critical—such as aerospace or industrial control systems—the improved visibility and stability of blue solder masks contribute directly to process reliability and product longevity.

---

3.3 Enhanced Trace Visibility on Blue Circuit Board

In prototype development and debugging, engineers often spend extensive time visually tracing signal paths, identifying vias, or verifying layout consistency. The Blue Circuit Board offers superior readability under both natural and artificial lighting conditions.

Copper traces and silkscreen markings stand out more distinctly against the blue background, enabling easier visual inspection without the glare commonly associated with glossy green boards. This is especially valuable for manual diagnostics and educational kits, where quick comprehension of the circuit structure is essential.

For designers and students, working with a Blue Circuit Board can make learning and testing less fatiguing and more intuitive. As engineering teams move toward faster prototyping cycles, color visibility contributes to shorter debugging time and higher confidence in verification steps.

The clarity provided by blue solder masks also benefits manufacturing documentation. High-resolution images used in manuals, datasheets, and marketing materials appear more refined and readable when based on a Blue Circuit Board, reinforcing the product’s professional image.

---

3.4 Blue Circuit Board in Automated Optical Inspection (AOI)

Automated Optical Inspection (AOI) is a cornerstone of modern PCB manufacturing quality assurance. It relies on high-contrast image capture to detect solder bridges, missing components, polarity errors, or insufficient solder paste. The Blue Circuit Board excels in this environment because of its optimal optical reflectivity and hue contrast relative to copper and tin finishes.

AOI algorithms work best when there is a clear distinction between background and conductive areas. The mid-tone reflectivity of blue allows image-processing cameras to balance exposure without excessive glare or shadowing—common challenges with white or black boards.

This improved visual discrimination reduces false calls and inspection cycle times. In high-volume production, even a 2–3% reduction in false alarms can translate into substantial savings. The Blue Circuit Board thus supports a smoother manufacturing flow and consistent product quality.

Beyond AOI, the color uniformity of blue masks also aids in X-ray and infrared inspections, where predictable optical density assists in calibration. This reliability reinforces the reputation of the Blue Circuit Board as an advanced manufacturing choice.

---

4. The Professional Image Created by the Blue Circuit Board

4.1 Why Tech Companies Prefer the Blue Circuit Board

In today’s competitive electronics market, perception is as vital as performance. When a company delivers a device with a Blue Circuit Board, it communicates something subtle yet powerful: meticulous design, innovation, and confidence.

Tech firms that emphasize engineering excellence and creative identity often use the blue solder mask to differentiate their products from mainstream offerings. It is not unusual to see blue PCBs in devices meant for demonstrations, premium peripherals, or limited-edition models where brand image matters.

The professional appearance of the Blue Circuit Board complements the metallic sheen of components and connectors, creating a visual impression that resonates with modern industrial design trends—minimalist, precise, and intelligent. In an age where even internal product aesthetics can influence customer trust, the choice of a blue solder mask becomes part of a larger marketing and identity strategy.

The blue color’s association with calm intelligence and reliability perfectly aligns with the message that technology firms wish to send: precision and performance delivered with confidence.

---

4.2 Blue Circuit Board as a Symbol of Quality and Innovation

In industries such as aerospace, telecommunications, and medical electronics, quality certification is more than a label—it is a prerequisite for credibility. The Blue Circuit Board often appears in prototypes and high-reliability applications because it symbolizes both engineering discipline and innovation.

Designers who adopt blue masks typically do so to emphasize that their boards are not generic production units but carefully crafted, rigorously tested systems. The uniform, glossy surface of a Blue Circuit Board reflects meticulous process control, from solder mask application to final curing.

From a psychological standpoint, blue signals calm authority and stability, subtly suggesting that the technology inside the product is dependable. For this reason, many manufacturers use the color in professional-grade instruments and high-end test equipment.

A Blue Circuit Board does not simply perform; it projects the integrity of the design process itself. It stands as an unspoken assurance that the engineers behind it take pride in their craftsmanship.

5. The Performance Impact of Blue Circuit Board

5.1 Electrical Reliability and Signal Integrity

The Blue Circuit Board maintains identical electrical reliability to its green counterparts when manufactured under the same standards. However, due to the refined chemistry of the blue solder mask, surface smoothness and insulation consistency are often superior. This can slightly enhance impedance uniformity in high-frequency circuits.

In controlled impedance designs—such as those found in 5G, radar, or RF communication modules—minor variations in dielectric thickness or solder mask coverage can affect performance. The tighter process control associated with producing a Blue Circuit Board reduces such variability.

Engineers who require repeatable signal transmission performance appreciate how the visual quality of a blue mask often parallels its process stability. This convergence between form and function further supports the high-quality perception of blue boards in professional environments.

---

5.2 Blue Circuit Board and Layer Registration Accuracy

In multilayer PCBs, registration accuracy—aligning the layers during lamination—is crucial. A Blue Circuit Board can assist in post-lamination inspection because the blue surface provides high contrast under polarized light, making it easier to verify layer alignment through test coupons.

Manufacturers find that visual fiducial marks appear sharper on blue backgrounds, allowing alignment machines to calibrate more accurately. This improvement in registration precision contributes to consistent via drilling and reduced inner-layer shorts or opens.

Though the effect is modest, it exemplifies how thoughtful design decisions—such as choosing a blue solder mask—can enhance the overall manufacturing ecosystem.

6. Comparing Blue Circuit Board with Other Colors

6.1 Blue Circuit Board vs. Green PCB

The traditional green PCB remains the industry’s most common choice, largely due to historical availability and cost efficiency. However, when comparing technical and visual characteristics, the Blue Circuit Board demonstrates distinct advantages in contrast and inspection clarity.

Green solder masks typically provide excellent light reflection under fluorescent conditions, but they can be slightly too bright for certain inspection cameras. The blue hue offers a softer visual tone that enhances trace recognition without glare. Moreover, blue masks are often made with finer pigment dispersions, resulting in smoother surfaces that support more consistent solder paste application.

The only disadvantage may lie in marginally higher production costs due to the need for specialized pigments and tighter process control. Yet for products positioned as premium or professional, the added value in appearance and quality perception easily justifies the investment.

---

6.2 Blue Circuit Board vs. Red and Black PCB

Red and black PCBs are frequently used in consumer electronics and gaming devices where aesthetics play a major role. However, their darker hues can make trace inspection and solder joint analysis more challenging.

The Blue Circuit Board, by contrast, provides a professional balance between visibility and elegance. While red tends to be bold and aggressive, and black may appear luxurious but impractical for AOI, blue presents an image of calm precision. Under magnification, solder joints are easier to examine, and automated systems require less adjustment to detect surface features.

In manufacturing environments focused on reliability rather than mere visual differentiation, the Blue Circuit Board offers the most practical combination of sophistication and functionality. It looks refined without sacrificing production efficiency.

---

6.3 Blue Circuit Board vs. White and Yellow PCB

White and yellow solder masks are often used in LED lighting modules or design prototypes where light reflection or artistic presentation is desired. However, these colors can introduce complications during the soldering process. White masks, in particular, tend to discolor after thermal cycles, while yellow masks may cause excessive glare under inspection lights.

The Blue Circuit Board, by contrast, retains color stability across multiple reflow cycles. Its moderate reflectivity ensures that silkscreen markings remain legible even under bright illumination. This makes it a preferred choice for applications requiring both durability and clarity, such as instrumentation and industrial automation systems.

A further advantage lies in maintenance and handling: dirt and oxidation are less visible on blue surfaces than on white or yellow, keeping boards looking clean and professional throughout the product’s lifecycle.

---

6.4 Choosing Between Aesthetics and Functionality

When selecting a solder mask color, engineers must balance practical manufacturing requirements with brand and design objectives. The Blue Circuit Board uniquely satisfies both. It offers engineers reliable visual feedback during inspection, while providing designers a color palette that signifies professionalism and quality.

Although cost-sensitive products may still rely on green boards, forward-looking companies increasingly recognize that a PCB’s color can reflect their brand’s commitment to excellence. The blue hue conveys confidence and precision—qualities that extend beyond mere visual appeal into the perception of engineering mastery.

Therefore, the Blue Circuit Board represents an ideal middle ground where functionality meets artistry, enabling companies to create products that are not only efficient but also visually emblematic of technological sophistication.

Comprehensive Comparison of Blue Circuit Board Features

Conclusion

The Blue Circuit Board represents more than just a color variation in PCB manufacturing—it’s a statement of quality, professionalism, and attention to detail. Its growing adoption across industries stems from a unique combination of technical performance and visual distinction.

By offering clear visual contrast, excellent inspection visibility, and strong brand presence, blue PCBs have carved a niche in high-end applications where design and reliability coexist. With advances in pigment chemistry and environmentally friendly materials, the blue solder mask has become a sustainable and forward-thinking choice for modern electronics.

From a business standpoint, selecting a Blue Circuit Board manufactured by a trusted supplier such as SQ PCB ensures consistency, compliance, and craftsmanship. As technology continues to evolve, the blue PCB will remain a timeless emblem of precision and pride in electronic design.

FAQs About Blue Circuit Board

1. What is the difference between rolled copper foil and electrolytic copper foil?
Rolled copper foil is produced by mechanically rolling copper into thin sheets, offering superior surface quality and mechanical strength. Electrolytic copper foil is deposited via an electrochemical process, making it more flexible and cost-effective but slightly less smooth in finish.

2. Does the color of the Blue Circuit Board affect its performance?
Not significantly. The solder mask color, including blue, does not alter electrical performance. However, blue solder masks can improve inspection visibility and reduce glare, making it easier to detect defects.

3. Why do some manufacturers choose Blue Circuit Boards for prototypes?
Blue PCBs convey a professional appearance and high-quality craftsmanship, which impresses clients and investors. They also enhance trace visibility, helping engineers identify soldering or routing issues during testing.

4. Are Blue Circuit Boards more expensive than green ones?
Slightly, but the difference is minimal. The pigment cost for blue solder masks is a bit higher, yet the visual and branding benefits often justify the small increase in price.

5. Can Blue Circuit Boards handle high-temperature applications?
Yes. When manufactured properly with high-quality materials, blue solder masks offer excellent thermal stability and do not degrade under reflow or high-operating temperatures.
