The BGA Landscape: A Comprehensive Guide to Package Types and Their Applications

1. Understanding BGA Definition and Core Package Types

    At its core, the Ball Grid Array (B-G-A) is a type of surface-mount packaging used to permanently mount devices such as microprocessors onto PCBs. The defining characteristic of B-G-A lies in its use of solder balls arranged in a matrix pattern. These solder balls serve as both mechanical supports and electrical interconnections between the device and the PCB.

   When exploring B-G-A Package Types, engineers typically classify them based on substrate materials, interposer construction, and intended application environment. Let’s look at the key variations:

• Plastic Ball Grid Array (PBGA) – PBGA is the most common and cost-effective variant. It uses an organic substrate (often BT resin or FR-4) and is ideal for consumer-grade applications. The thermal expansion of PBGA closely matches that of standard PCBs, improving reliability under thermal cycling.

• Ceramic Ball Grid Array (CBGA) – C-B-G-A employs a ceramic substrate, offering superior thermal and mechanical stability. It is widely used in aerospace and defense electronics where performance under temperature extremes is critical. However, the thermal mismatch with the PCB can lead to stress on solder joints, necessitating underfill usage.

• Tape Ball Grid Array (TBGA) – T-B-G-A integrates a flexible polyimide tape layer to interconnect the die and solder balls. This configuration allows reduced package height and improved electrical performance. It is often seen in portable electronics requiring compact design.

• MicroBGA – As semiconductor miniaturization accelerated, MicroB-G-A emerged with solder ball pitches below 0.5 mm. These packages push the boundaries of assembly precision, demanding advanced PCB fabrication tolerances and high-accuracy placement equipment.

    Each of these Package Types addresses a unique set of trade-offs involving cost, performance, and manufacturability. Engineers must evaluate parameters such as coefficient of thermal expansion (CTE), reflow behavior, and warpage tendencies before selecting the most suitable type.

     In the ever-evolving field of electronic packaging, Ball Grid Array (B-G-A) technology represents a critical milestone in the transition toward high-density, high-performance circuit interconnections. Unlike traditional leaded packages, where pins extend outward from the package body, B-G-A uses an array of solder balls on the underside to connect the chip to the printed circuit board (PCB). This design not only reduces package size but also enhances thermal and electrical performance.

     Understanding Package Types within the BGA family is essential for engineers seeking to optimize signal integrity, thermal efficiency, and mechanical reliability. BGAs are not a single standardized form but a broad class encompassing multiple subtypes—Plastic B-G-A (P-B-G-A), Ceramic B-G-A (C-B-G-A), Tape B-G-A (T-B-G-A), and Micro-B-G-A, each engineered for specific performance or environmental needs.

     Historically, B-G-A emerged as a response to the limitations of Quad Flat Packages (QFPs), which became increasingly difficult to assemble as pin counts exceeded 200. Fine-pitch QFPs suffered from solder bridging and poor yield rates. B-G-A overcame these challenges by relocating connections to the package bottom, spreading solder balls in a grid formation, and thereby achieving high I/O counts without sacrificing manufacturability.

    From a manufacturing perspective, the introduction of B-G-A technology has had a profound influence on PCB layout strategies, reflow profiles, and inspection methods. Rework and quality control methods, including X-ray imaging and acoustic microscopy, were adapted specifically to suit the hidden joint structure of B-G-A-s. As Package Types diversified, B-G-A packages began appearing in consumer electronics, automotive systems, and aerospace applications, each optimized for different power, thermal, and reliability demands.

   The goal of this guide is to explore these Package Types comprehensively, evaluating their structural features, benefits, and implications for PCB performance. It also incorporates practical insights gained from manufacturing experience, including considerations of process control, design optimization, and supplier selection.

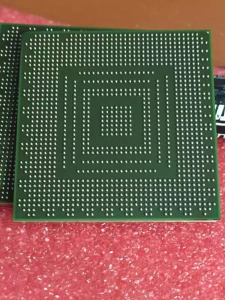

BGA

2. The Structural Characteristics of B-G-A and Their Relation to Package Types

    The performance of B-G-A assemblies depends on a balance between mechanical design, material selection, and assembly conditions. While all Package Types share the basic concept of solder ball interconnects, their internal configurations differ substantially.

    A typical B-G-A package includes:

• The Die (IC chip): The active silicon component performing the circuit function.

• Substrate (Interposer): Provides mechanical support and redistributes I/O signals from the die to the solder balls.

• Solder Balls: Serve as both electrical connections and mechanical anchors.

• Encapsulation: Protects the die and wire bonds from mechanical and environmental damage.

     In P-B-G-A, the substrate is typically a BT resin with copper traces laminated in multiple layers. In C-B-G-A, the ceramic substrate (usually alumina) is metallized with thin-film gold or copper conductors. T-B-G-A uses a polyimide tape with etched copper lines, offering high flexibility.

     The choice of materials defines both the reliability and performance envelope of each Package Type:

• PBGA is flexible and low-cost, but less ideal for high-power dissipation.

• CBGA is mechanically robust and thermally stable, but its high stiffness increases the risk of solder fatigue.

• TBGA offers superior electrical performance and thinness, but the tape’s mechanical properties can complicate handling.

    From a PCB designer’s perspective, understanding these structural distinctions is vital. The pad design, solder mask opening, and via placement beneath BGAs must align precisely with the package’s construction. Poor alignment or inadequate pad design can lead to open circuits, bridging, or voids—defects that are difficult to detect visually.

    Another key point is solder joint reliability. Each Package Type responds differently to reflow stress and long-term operation. For instance, PBGA solder joints tend to be more forgiving due to the organic substrate’s compliance, while CBGA requires underfill to distribute stress. These considerations drive material selection, thermal cycling qualification, and inspection strategies.

Comparison of Major BGA Package Types

3. The Advantages of B-G-A Design Across Package Types

     One of the reasons B-G-A became a cornerstone of modern electronic packaging lies in its broad set of advantages—electrical, thermal, mechanical, and manufacturing-related. Each of these benefits manifests differently across Package Types, but the overall outcome is improved product performance and reliability.

     Key Advantages of B-G-A:

1. Improved Electrical Performance
   The short, uniform interconnections between the die and PCB minimize signal inductance and resistance. This translates to enhanced high-frequency performance—critical for high-speed data and RF applications. Micro-B-G-A, with its fine pitch and small interconnect paths, further minimizes parasitic effects.

2. Better Thermal Management
   B-G-A designs promote efficient heat dissipation from the die to the PCB. In C-B-G-A and T-B-G-A Package Types, the high thermal conductivity of ceramic or metalized layers helps maintain stable junction temperatures, even under heavy load.

3. Compact Form Factor
   By relocating leads beneath the package, BGAs enable higher I/O density without increasing footprint. This advantage has been crucial for smartphones, tablets, and miniaturized IoT devices.

4. Simplified Assembly Process
   Contrary to early perceptions, B-G-A assembly is highly reliable when process parameters are properly controlled. The self-alignment characteristic of solder balls during reflow ensures high-yield production. Modern manufacturers such as SQ PCB leverage automated placement and precise temperature profiling to ensure consistent B-G-A joint quality across production runs.

5. Mechanical Robustness
   Solder balls offer mechanical compliance, absorbing stress caused by board flexing or thermal expansion. This reduces the risk of solder cracking and enhances long-term reliability.

     When comparing different Package Types, P-B-G-A remains the go-to choice for cost-sensitive applications, while C-B-G-A dominates in high-reliability environments. T-B-G-A and Micro-B-G-A serve as the bridge to ultra-compact, high-frequency designs.

     From a reflective perspective, BGA represents more than just a packaging format—it is a design philosophy that prioritizes electrical integrity and manufacturability. Its evolution symbolizes the electronic industry’s move toward integration and precision, driving parallel innovations in PCB technology and process control.

4. Thermal Management Considerations Across B-G-A Package Types

      Thermal management remains one of the most critical aspects in the design and performance optimization of any BGA assembly. The miniaturization of integrated circuits and increased power density have amplified the need for efficient heat dissipation mechanisms. Each of the major Package Types—PBGA, CBGA, TBGA, and MicroBGA—addresses heat flow differently, influenced primarily by material composition and package architecture.

      Heat Pathways and Conductive Mechanisms
In a typical BGA, heat flows from the semiconductor die through the substrate and solder balls into the PCB, where it is distributed across copper planes or dissipated through thermal vias. The effectiveness of this path depends on the thermal conductivity of the substrate and the solder alloy used.

• C-B-G-A Package Types: The ceramic substrate’s high thermal conductivity (approximately 20–30 W/mK) provides excellent heat spreading. This makes CBGA ideal for processors, high-performance FPGAs, and military-grade electronics. However, its stiffness demands compensatory measures—such as underfill—to manage thermal stress.

• PBGA Package Types: While thermally inferior to ceramic, plastic substrates like BT resin provide adequate heat dissipation for medium-power applications. Heat sinks or thermal vias are commonly incorporated to support system-level thermal performance.

• TBGA Package Types: The thin flexible tape allows direct heat transfer from the die to the PCB, aided by a metal heat spreader. Its balance of thermal performance and flexibility makes it ideal for portable and automotive electronics.

Thermal Cycling Reliability
      Repeated heating and cooling cycles lead to solder fatigue. The mismatch in coefficients of thermal expansion (CTE) between the substrate and PCB plays a decisive role in reliability. PBGA and TBGA exhibit lower CTE mismatch with FR-4 PCBs than CBGA, leading to longer solder joint life. Engineers must therefore match Package Types carefully to PCB materials and system-level conditions.

Conclusion: The Future of B-G-A and Package Types in PCB Technology

     The evolution of Ball Grid Array (B-G-A) technology has reshaped the landscape of electronic packaging and printed circuit board (PCB) design. From its early applications in consumer electronics to its current dominance in high-performance computing, telecommunications, and automotive systems, B-G-A packaging has proven to be a cornerstone of miniaturization, performance optimization, and thermal efficiency.

     Throughout this comprehensive exploration of Package Types, we have uncovered not only the technical complexity of B-G-A designs but also their immense potential for future innovation. BGA is not merely a packaging form—it is a philosophy of efficiency, where electrical, thermal, and mechanical domains converge to deliver unmatched reliability.

     What makes B-G-A a transformative force is its simplicity of interconnect structure combined with precision engineering. By distributing solder joints evenly across the array, it minimizes mechanical stress and shortens signal paths, improving signal integrity and enabling higher clock speeds. This, in turn, allows PCB designers to meet the rising demands of high-frequency, high-speed digital systems.

     However, B-G-A is not without challenges. Issues such as voiding, warpage, and rework difficulty remain. These challenges underscore the importance of design for manufacturability (DFM) and robust process control. It is here that collaboration between PCB manufacturers and packaging engineers becomes vital—turning complexity into opportunity.

FAQ: Understanding B-G-A and Package Types

Q1: What are the design considerations when working with B-G-A Package Types?

Key considerations include:

• Adequate pad size and solder mask clearance

• Precise via-in-pad and microvia design

• Effective thermal via layout for heat dissipation

• Using high-Tg laminates to resist thermal stress

• Ensuring assembly compatibility with lead-free processes

Q2: What are the main Package Types under B-G-A technology?

The main BGA Package Types include:

• PBGA (Plastic B-G-A) – cost-effective, widely used in consumer electronics.

• CBGA (Ceramic B-G-A) – offers superior thermal stability and reliability for military and aerospace.

• TBGA (Tape B-G-A) – uses flexible tape substrates for thinner, lighter assemblies.

• FBGA (Fine-Pitch B-G-A) – enables miniaturization for mobile and handheld devices.

• MicroB-G-A / CSP (Chip-Scale Package) – extremely compact form for advanced portable devices.

Each type serves specific design and performance needs.

Q3: What are the key advantages of using B-G-A in PCB design?

BGA provides shorter signal paths, lower inductance, better heat dissipation, and increased pin density. These benefits translate to higher performance and smaller footprints, crucial for modern electronics such as smartphones, AI accelerators, and 5G base stations.

Q4: How does B-G-A affect PCB performance and reliability?

The even solder ball distribution in BGA minimizes warpage and mechanical stress, ensuring consistent signal integrity. This directly improves thermal cycling reliability and high-frequency performance, making it ideal for multi-layer PCB designs.

Q5: What are common failure modes in B-G-A Package Types, and how are they prevented?

Common failures include solder joint cracking, voiding, delamination, and warpage. Prevention involves:

• Optimizing reflow profiles

• Implementing underfill materials for mechanical reinforcement

• Ensuring substrate flatness and controlled thermal expansion

• Conducting X-ray and cross-sectional inspections during process validation
