Two standout innovations that have gained significant traction are the Assembly PCB (Printed Circuit Board) and the Aluminum Base PCB. These technologies are transforming how electronic devices are designed and manufactured, offering unique benefits that cater to a wide range of applications.

Understanding Assembly PCB

Printed Circuit Boards (PCBs) are the backbone of virtually all electronic devices, providing the physical platform for electronic components to communicate. Assembly PCB refers to the complete process of assembling components onto the PCB. This includes surface mount technology (SMT), through-hole technology, and the final inspection and testing.

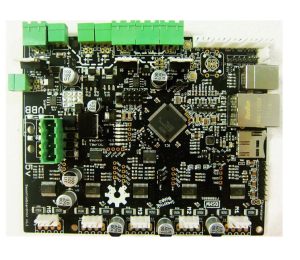

Assembly PCB

Key Steps in PCB Assembly

1. Solder Paste Application: A stencil is used to apply solder paste to the board’s pads, preparing it for component placement.
2. Component Placement: Automated machines precisely place components onto the board.
3. Soldering: Components are soldered onto the board using reflow soldering (for SMT) or wave soldering (for through-hole).
4. Inspection and Testing: Ensuring the board functions correctly through visual inspections, automated optical inspections (AOI), and functional testing.

The Rise of Aluminum Base PCB

Aluminum Base PCBs, also known as Aluminum Clad or Metal Core PCBs, are a type of PCB that uses aluminum as the base material. Unlike traditional fiberglass PCBs, aluminum PCBs offer superior thermal conductivity, making them ideal for high-power applications where heat dissipation is critical.

Aluminium Base PCB Boards

Advantages of Aluminum Base PCBs

1. Excellent Heat Dissipation: Aluminum can efficiently transfer heat away from components, reducing the risk of overheating and improving overall performance.
2. Enhanced Durability: Aluminum PCBs are more robust and less prone to mechanical damage compared to traditional PCBs.
3. Lightweight: Despite their strength, aluminum PCBs are relatively lightweight, which is beneficial for applications where weight is a concern.
4. Eco-Friendly: Aluminum is recyclable and non-toxic, making these PCBs an environmentally friendly choice.

Applications of Aluminum Base PCBs

1. LED Lighting: Aluminum PCBs are extensively used in LED applications due to their excellent heat dissipation properties, which help in maintaining the longevity and efficiency of LEDs.
2. Power Supplies: High-power electrical devices benefit from the enhanced thermal management of aluminum PCBs.
3. Automotive: From headlights to power steering, aluminum PCBs are used in various automotive applications where reliability and performance are critical.
4. Consumer Electronics: High-performance gadgets like laptops and smartphones utilize aluminum PCBs for better heat management.

Combining Assembly PCB with Aluminum Base PCBs

The integration of assembly processes with aluminum base PCBs combines the best of both worlds: efficient manufacturing and superior thermal performance. This combination is particularly advantageous in industries where reliability and performance are non-negotiable.

Challenges and Considerations

While aluminum base PCBs offer numerous benefits, they also present certain challenges:

• Cost: Aluminum PCBs are generally more expensive than traditional fiberglass PCBs.
• Design Complexity: The design and manufacturing processes for aluminum PCBs can be more complex, requiring specialized knowledge and equipment.

Conclusion

The advancements in PCB technology, particularly the development and integration of Assembly PCBs and Aluminum Base PCBs, are paving the way for more efficient, reliable, and high-performance electronic devices. As industries continue to push the boundaries of what’s possible, these innovations will undoubtedly play a crucial role in shaping the future of electronics.
