The Automated Guardian: Understanding the Critical Role of AOI Testing in PCB Quality Assurance

Introduction and Background

AOI Testing in the Landscape of PCB Quality Assurance

Printed circuit boards (PCBs) form the nervous system of virtually every electronic device in the modern world. From smartphones and wearables to industrial controls and aerospace avionics, PCBs ensure signals are routed, power is distributed, and components communicate reliably. In this context, quality assurance is not a luxury but a non-negotiable requirement. Even a tiny solder bridge or misaligned component can cascade into catastrophic product failures. This is where AOI Testing—Automated Optical Inspection Testing—steps in as the automated guardian of manufacturing integrity.

For decades, PCB quality control relied heavily on human inspectors, who would examine solder joints, component placement, and trace integrity under magnifiers or microscopes. While skilled, human eyes inevitably tire, and even the best inspectors may miss subtle defects in high-density boards. As board complexity grew, human inspection became increasingly inadequate. AOI Testing emerged to fill this gap, bringing machine precision, consistency, and speed to the process.

In the simplest terms, AOI Testing uses cameras, sophisticated optics, and image-processing algorithms to scan PCBs automatically. By comparing captured images to a golden reference or CAD data, the system flags deviations in solder, components, or trace geometry that might indicate a defect. This automated process reduces inspection time, increases defect detection rates, and enhances the reliability of the final product.

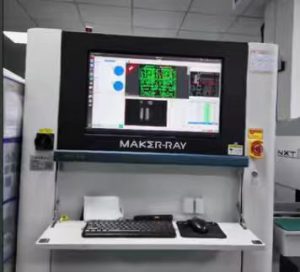

AOI Testing

The Evolution of AOI Testing in PCB Manufacturing

The story of AOI Testing begins in the late 1980s and early 1990s, when early systems were bulky, expensive, and relatively inflexible. As computing power and digital imaging advanced, so did AOI systems. Today’s AOI Testing platforms are compact, networked, and integrated directly into production lines. They not only detect defects but also feed data upstream to adjust process parameters, creating a feedback loop that improves yields.

We can divide the evolution of AOI Testing into several stages:

1. First Generation (1980s–1990s) – Early AOI systems focused primarily on through-hole PCBs with relatively low density. Limited camera resolution and simplistic algorithms produced many false positives.

2. Second Generation (2000s) – Higher resolution cameras, improved lighting systems, and more robust image-processing reduced false calls and enabled inspection of fine-pitch SMT (surface-mount technology).

3. Third Generation (2010s–Present) – Machine learning and 3D inspection technologies allow today’s AOI Testing systems to discern solder joint quality in three dimensions, accurately measuring volume and height as well as x–y position.

4. Integration Era (Ongoing) – AOI Testing is increasingly integrated with manufacturing execution systems (MES) and Industry 4.0 data pipelines, enabling predictive maintenance and adaptive process control.

This evolution reflects not just technological progress but also a shift in quality culture—toward proactive prevention rather than reactive correction.

Why AOI Testing Matters More than Ever

As electronics become more miniaturized and densely populated, inspection challenges multiply. Components the size of grains of sand are now commonplace, and multilayer boards with blind and buried vias conceal defects beneath the surface. Traditional inspection methods cannot keep up. AOI Testing provides the precision needed to maintain zero-defect aspirations in such an environment.

Moreover, regulatory and customer expectations are tightening. In industries like automotive, aerospace, and medical devices, certification standards such as IPC-A-610 and ISO 13485 require rigorous quality control. AOI Testing gives manufacturers a way to demonstrate compliance with objective data, which is harder to dispute than human judgment.

AOI Testing Technology Overview

At its core, AOI Testing combines three elements:

1. Imaging Hardware – High-resolution cameras (2D or 3D), advanced optics, and multi-angle lighting capture every detail of a PCB.

2. Software Algorithms – Image processing compares the captured data to a known good board (golden board) or to CAD data. Modern systems apply statistical analysis and machine learning to improve accuracy.

3. User Interface and Data Handling – Operators review flagged defects through intuitive GUIs. Results integrate into larger quality management systems, feeding dashboards and SPC (statistical process control) charts.

The synergy of these elements allows AOI to handle high throughput production without sacrificing accuracy.

AOI Testing Versus Other Inspection Methods

To appreciate AOI Testing, it helps to contrast it with alternative inspection methods:

• Manual Visual Inspection (MVI) – Relies on human operators, good for low-volume prototyping but impractical for high-density production.

• In-Circuit Testing (ICT) – Electrically tests circuit continuity and component values but cannot easily detect cosmetic or solder defects.

• X-Ray Inspection (AXI) – Penetrates hidden solder joints (e.g., BGA balls), excellent but expensive and slower.

• Functional Testing – Ensures the assembled board works as intended under power but may not pinpoint the exact defect location.

AOI Testing fits into this landscape as a fast, non-contact, highly repeatable first line of defense against visible and dimensional defects.

Key Components of AOI Testing Systems

1. Lighting – The choice of lighting (ring, coaxial, side, multi-spectrum) dramatically affects defect detectability.

2. Camera Resolution – Higher resolution enables detection of smaller features but may slow throughput.

3. Conveyor/Handling – Integration with the production line ensures seamless flow without bottlenecks.

4. Software Tuning – Thresholds, pattern recognition parameters, and defect libraries must be configured to balance false calls with escape rates.

Each of these elements contributes to the overall success of AOI Testing.

Having worked with engineers and manufacturing teams across multiple industries, I’ve seen firsthand how AOI Testing changes the quality landscape. In one case, a mid-sized electronics manufacturer implemented AOI on its SMT line and reduced field returns by 35% in six months. Another company used AOI data to refine its solder paste printing process, cutting defect rates before boards even reached reflow.

The lesson is clear: AOI is not just a gatekeeper; it’s a feedback tool that empowers continuous improvement. Yet, too many companies treat AOI as a mere compliance checkbox. In my view, the full value of AOI Testing emerges only when management commits to using its data proactively—analyzing defect trends, correlating with upstream processes, and closing the loop on root causes.

AOI Testing and Industry 4.0

Modern manufacturing thrives on data. AOI Testing generates massive amounts of it—images, defect classifications, positional metrics. In an Industry 4.0 environment, this data feeds machine learning models that predict defects before they happen. For example, if AOI detects a gradual drift in solder paste volume, the stencil printer can automatically adjust pressure or alignment. This self-correcting capability represents the future of smart manufacturing.

AOI Testing and Environmental/Cost Considerations

Beyond quality, AOI Testing influences cost and environmental impact. By catching defects early, scrap and rework are reduced, conserving materials and labor. Energy consumption also drops because fewer defective boards proceed to later, more resource-intensive stages of production. For companies with sustainability goals, this effect is significant.

AOI Testing Advantages and Its Impact on PCB Performance

AOI Testing Advantages for Modern PCB Manufacturing

Among all inspection methods, AOI Testing stands out because it blends speed, accuracy, and non-contact operation. This makes it especially suitable for high-volume, high-complexity production environments. Let’s look at the main advantages one by one:

1. Higher Defect Detection Rate – Modern AOI Testing systems detect defects as small as a few microns. This sensitivity covers solder bridges, tombstoned components, missing or misaligned parts, open circuits, and even subtle pad shape deviations.

2. Consistency and Repeatability – Unlike human inspectors, AOI Testing systems apply the same criteria day after day. This consistency eliminates subjective judgments, reduces operator fatigue effects, and creates auditable inspection records.

3. Speed and Throughput – High-resolution cameras coupled with optimized lighting capture full board images in fractions of a second. This enables inline inspection directly after solder paste printing, component placement, or reflow soldering without slowing the production line.

4. Defect Prevention via Feedback Loops – Because AOI Testing collects data in real time, it feeds upstream processes with defect information. This can trigger adjustments in paste deposition, placement accuracy, or reflow profiles, reducing defect generation rather than just catching it later.

5. Cost Reduction – By identifying defects early, rework costs plummet. Catching a missing resistor immediately after placement costs pennies compared to discovering it after final assembly or, worse, in the field.

6. Regulatory Compliance and Traceability – For industries bound by IPC, ISO, or automotive standards, AOI Testing generates data logs and image evidence, supporting compliance audits and warranty defenses.

7. Employee Empowerment – With the repetitive tasks handled by automation, human inspectors can focus on more complex analysis, process improvement, and preventive actions.

AOI Testing and PCB Performance Enhancement

The quality of a PCB’s assembly and solder joints directly affects its electrical and mechanical performance. AOI Testing plays a key role in safeguarding these performance attributes:

• Signal Integrity – Poor solder joints or misplaced components can introduce impedance changes, parasitic effects, or intermittent connections. Early detection of these issues preserves signal integrity in high-speed designs.

• Thermal Reliability – Proper component seating and solder volume ensure better heat dissipation. Detecting solder voids or lifted leads helps maintain thermal performance.

• Mechanical Robustness – Identifying weak or skewed solder joints prevents mechanical stress failures during vibration or drop events.

• Long-Term Reliability – Early detection of anomalies helps ensure that the PCB maintains its specified performance throughout its intended lifespan.

In short, AOI Testing protects not just the board’s appearance but its functional longevity.

AOI Testing at Multiple Stages of the Production Line

Rather than inspecting only at the end, many manufacturers deploy AOI Testing at several stages:

1. Solder Paste Inspection (SPI) – Although technically distinct, SPI uses similar principles to AOI. By measuring paste deposits immediately after printing, defects can be corrected before placement.

2. Pre-Reflow AOI Testing – After component placement but before soldering, this stage catches missing or misaligned components.

3. Post-Reflow AOI Testing – Inspects final solder joints, fillets, and component orientations after reflow.

4. Final Assembly AOI Testing – For through-hole or mixed-technology boards, a last inspection before functional testing ensures no gross defects remain.

Each stage adds another safety net, drastically reducing escape rates.

Data Analytics from AOI Testing

Today’s AOI Testing systems do more than pass/fail calls. They accumulate enormous datasets: defect location maps, time trends, and process signatures. This data can be mined for:

• Process Drift Detection – Spotting subtle trends that might lead to defects before they occur.

• Yield Analysis – Identifying which boards, shifts, or machines produce the highest defect rates.

• Root Cause Analysis – Correlating defects to specific feeders, stencils, or reflow zones.

When tied into a manufacturing execution system (MES), AOI Testing data becomes a backbone for continuous improvement. Many companies still treat AOI Testing as a gatekeeper, reacting to defects after they’re found. In my view, the greatest untapped potential is in predictive quality. If you see a recurring defect pattern—say, a specific capacitor drifting off its pad—this is a signal about placement pressure or pick-and-place nozzle wear. Acting on that insight upstream prevents hundreds of future defects.

By shifting the mindset from firefighting to prevention, AOI Testing transforms from a cost center to a profit enabler.

Integrating AOI Testing with Other Inspection and Test Strategies

No single method can catch everything. A robust quality assurance plan combines:

• AOI Testing for visible and dimensional defects.

• X-Ray Inspection for hidden joints (e.g., BGAs, QFNs).

• In-Circuit Testing for electrical parameters.

• Functional Testing for system-level performance.

When integrated, these methods form a multilayer safety net. AOI Testing excels at speed and coverage, complementing slower but deeper tests like X-ray.

Design for AOI -Testing (DFAOI)

Engineers can improve inspection effectiveness by designing boards with AOI Testing in mind. This includes:

• Ensuring adequate clearances for camera visibility.

• Avoiding ambiguous silk screen markings.

• Standardizing component orientations.

• Providing fiducials for alignment.

Such design choices can reduce false calls, improve throughput, and make the inspection program more robust.

Operator Training and AOI-Testing Optimization

Even though AOI-Testing is automated, human oversight remains essential. Skilled operators interpret borderline cases, tune thresholds, and maintain the systems. Best practices include:

• Regular training updates.

• Documented procedures for defect classification.

• Cross-functional meetings between quality engineers and line operators to review trends.

Well-trained operators can reduce false positives and ensure high first-pass yields.

AOI Testing and the Cost of Quality

The “cost of quality” includes prevention, appraisal, and failure costs. AOI Testing sits in the appraisal/prevention category. By investing here, companies lower their external failure costs (returns, warranty claims) dramatically. A well-executed AOI program can pay for itself within months by reducing scrap and rework.

Conclusion: The Continuing Value of AOI-Testing in PCB Quality Assurance

AOI Testing remains the automated guardian of PCB quality. It not only detects visible defects but also feeds data back into production lines, supporting continuous improvement. With the rise of AI, advanced optics, and environmentally conscious designs, AOI Testing is set to become even more integral to electronics manufacturing. By observing leading PCB manufacturers, those who treat AOI Testing as a strategic investment—not just a compliance measure—enjoy fewer returns, better reputations, and higher customer satisfaction. The future belongs to organizations that integrate inspection seamlessly into design and production, ensuring each board shipped is both reliable and future-ready.

FAQ Section

Q1. Why do manufacturers use both AOI-Testing and SPI (Solder Paste Inspection)?
SPI is specialized to measure solder paste deposits immediately after printing, whereas AOI inspects component placement and solder joints after reflow. Using both catches errors at the earliest possible stage and greatly improves yields.

Q2. How does AOI-Testing differ from X-Ray inspection?
AOI uses visible light to inspect surface features—solder joints, component placement, and traces. X-ray penetrates the board to reveal hidden solder joints and internal structures. AOI is faster and less expensive; X-ray is slower but necessary for hidden defects like BGA solder balls.

Q3. Does AOI-Testing replace functional testing?
No. AOI checks for visible and dimensional conformity but cannot verify whether a circuit performs correctly under power. Functional testing remains essential to confirm that the board operates as designed.

Q4. Can AOI-Testing be used on flexible PCBs?
Yes, with proper handling fixtures and focus adjustment. However, flexible PCBs may require special lighting and support to maintain flatness during inspection.

Q5. How do you minimize false calls in AOI-Testing?
False calls can be reduced by optimizing lighting, fine-tuning thresholds, using high-quality reference data, and training operators to classify defects accurately. Regular maintenance of cameras and conveyors also improves stability.
