What is IPC Standard in PCB circuit board field?

In the realm of electronics manufacturing, quality, reliability, and consistency are essential for ensuring that products meet customer expectations and regulatory standards. For Printed Circuit Board (PCB) manufacturers, adhering to recognized industry standards is crucial. Among the most widely recognized standards is the IPC Standard—a set of guidelines developed by the Institute for Printed Circuits (IPC) that governs the design, manufacturing, and assembly of PCBs.

This article provides an in-depth look at the IPC Standard, its key components, and how PCB manufacturers can implement these standards to improve product quality, reduce costs, and stay competitive in the global market.

SQPCB stands out with advanced in-house equipment, including LDI inline exposure machines for circuitry and solder mask, and inline automated legend inkjet printers. Although these investments are substantial, they ensure excellent yield rates and overcome issues common with older film-based equipment—such as dimensional expansion/shrinkage, misalignment, operator error, surface scratches, and foreign particle contamination. The result is reduced rework, improved solder mask gloss, and superior consistency. Additionally, SQPCB operates its own lamination process, as well as in-house HASL and ENIG surface finishing lines, allowing full control over quality and delivery schedules.

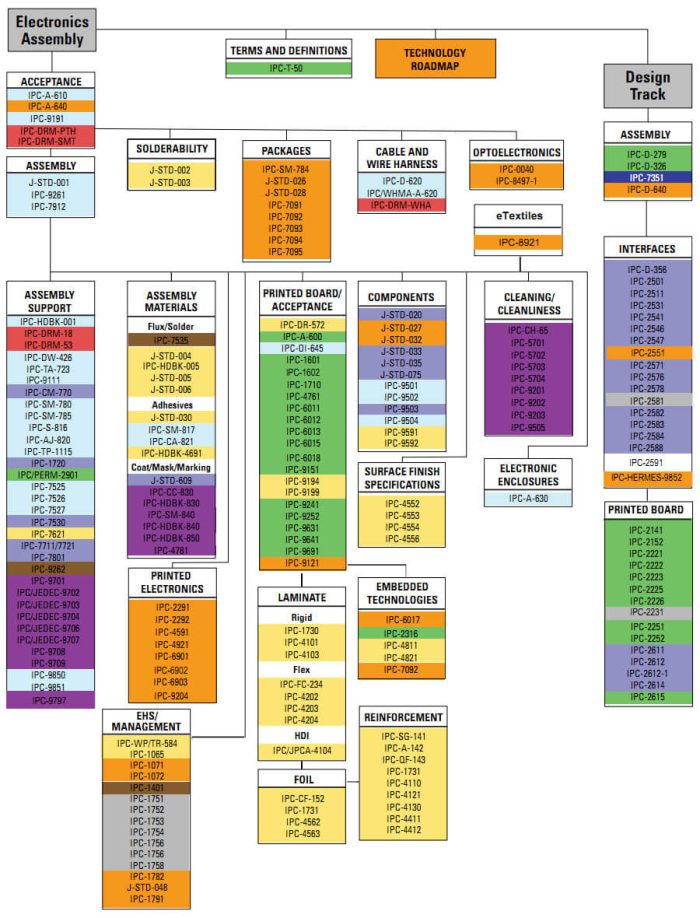

IPC STD

Understanding IPC Standards

The IPC Standard is a globally recognized set of guidelines for the electronics industry, particularly in the design and manufacturing of PCBs. Since its inception in 1957, IPC has provided a comprehensive framework for standardizing practices across the electronics manufacturing sector. The IPC standards are essential for PCB manufacturers as they cover a wide range of topics, including design specifications, materials requirements, testing protocols, and assembly processes.

Adhering to these standards ensures that PCBs are built to a consistent level of quality and performance, helping to avoid defects and minimize errors during production. This consistency is vital in the electronics industry, where precision and reliability are paramount.

The History of IPC

The Institute for Printed Circuits (IPC) was established by six PCB manufacturers in 1957. The goal was to create a standardized approach to PCB design and manufacturing, addressing the need for uniformity in an industry that was rapidly expanding. IPC’s initial focus was to provide a set of best practices for PCB production and design, which would reduce errors and improve the quality of the end products.

Since then, IPC has grown into an influential global organization. It now serves as a leading authority on standards for PCB design, assembly, and testing, not only within the United States but across the world. IPC standards are widely adopted across numerous industries, including consumer electronics, automotive, telecommunications, and aerospace.

Why IPC Standards Are Important

The implementation of IPC standards brings several key benefits for PCB manufacturers and the electronics industry:

1. Enhanced Quality Control

By adhering to IPC standards, manufacturers can ensure that their products meet high-quality benchmarks. These standards provide clear guidelines for every stage of production, from initial design to final assembly. This helps reduce defects and ensures that PCBs meet the required reliability and performance specifications. Learn more about our PCB manufacturing process here.

2. Improved Manufacturing Efficiency

IPC standards help streamline the manufacturing process, reducing the risk of errors and minimizing waste. By standardizing workflows and design processes, manufacturers can achieve higher efficiency, faster production times, and lower costs. This is crucial for companies looking to maintain a competitive edge in the global market.

3. Global Market Compliance

Adopting IPC standards ensures that PCBs meet international requirements, enabling manufacturers to export their products to global markets with confidence. Whether you are dealing with customers in North America or Europe, compliance with IPC standards is often a prerequisite for entering these markets.

4. Increased Product Reliability

IPC standards help ensure that PCBs are designed and manufactured to withstand various environmental conditions. These include temperature fluctuations, humidity, and electrical interference. This enhances the durability and longevity of the final product, which is essential in critical applications such as automotive, aerospace, and medical devices.

Key IPC Standards for PCB Manufacturing

IPC standards cover multiple aspects of PCB production, including design, manufacturing, and testing. Below are some of the most critical IPC standards used in PCB manufacturing:

1. IPC-2221: Generic Requirements for Designing Printed Boards and Other Forms of Component Packaging

The IPC-2221 standard outlines the general requirements for PCB design, ensuring that boards meet mechanical, electrical, and environmental specifications. It serves as a foundational document for PCB designers, helping them create layouts that are manufacturable and adhere to industry best practices.

2. IPC-6012: Qualification and Performance of Rigid Printed Boards

IPC-6012 specifies the performance and qualification requirements for rigid PCBs, focusing on aspects such as copper thickness, surface finishes, and mechanical properties. This standard is essential for ensuring that PCBs function as intended in various applications, from consumer electronics to industrial machines.

3. IPC-A-600: Acceptability of Printed Boards

The IPC-A-600 standard is crucial for inspecting PCBs during the production process. It defines the allowable levels of imperfections in PCB manufacturing and provides guidelines for determining whether a board meets quality standards. By following IPC-A-600, manufacturers can avoid shipping substandard products to customers.

For more information on IPC-A-600, you can visit the IPC official page.

4. IPC-A-610: Acceptability of Electronic Assemblies

IPC-A-610 is one of the most widely used standards in the electronics industry. It governs the acceptability of electronic assemblies, specifying criteria for solder joints, component placement, and overall assembly integrity. This standard is essential for ensuring that the final product is reliable and free from defects.

5. IPC-7711/7721: Rework, Repair, and Modification of Printed Boards and Assemblies

The IPC-7711/7721 standard provides guidelines for reworking and repairing damaged PCBs. This is especially important when repairs are needed to extend the life of a product or fix defects discovered after production. The standard ensures that the rework process does not compromise the functionality of the PCB.

How to Implement IPC Standards in PCB Manufacturing

Implementing IPC standards is a critical step for any PCB manufacturer looking to ensure consistent product quality and meet customer requirements. Here are some key steps manufacturers can take to implement IPC standards in their production process:

1. Staff Training and Certification

Training employees on the specific IPC standards relevant to their roles is essential. Designers, engineers, and assembly line workers should be familiar with the guidelines that govern PCB design, production, and inspection. Certification programs offered by IPC can further enhance your team’s understanding and ensure compliance with industry standards.

2. Regular Audits and Inspections

Regular internal audits are necessary to ensure that manufacturing processes remain aligned with IPC standards. This includes inspecting raw materials, reviewing design files, and verifying that the final product meets the acceptability criteria. Audits help identify any non-conformities early, preventing defects from reaching the customer.

3. Continuous Improvement

IPC standards evolve with advancements in technology and manufacturing processes. Manufacturers should stay updated on the latest revisions to IPC standards to maintain compliance and leverage new technologies that improve efficiency and quality. Implementing a continuous improvement strategy is essential for long-term success.

4. Certification for IPC Compliance

Getting certified boosts client confidence and opens doors to global markets. For example, SQPCB has been delivering IPC-compliant PCBs to international clients across North America, Europe, and Asia for over a decade.

For more on obtaining IPC certification, you can visit IPC’s certification page.

Classification of IPC standards

IPC Class1 is assigned to general purpose circuit boards with limited life and simple functions, including those products whose main requirements are complete component functions.

As long as the function of the circuit board is not affected, IPC Class1 circuit board is allowed to have various appearance defects. In these types of circuit boards, product reliability is not a key factor. For example, they can be found in TV remote control, LED lights, children’s toys, etc. They are the lowest cost circuit boards in the industry, but their life expectancy is limited.

IPC Class2 is used for dedicated service electronics. This means that you want the circuit board to have a longer life so that you can place it in a TV, computer, or air conditioner. Including those products that require continuous operation and long service life. It is better to keep working without interruption, but the requirements are not strict. IPC Class2 products will not be exposed to extreme environmental conditions. Generally, it will not cause failure due to the use environment.

The IPC Class2 circuit board has higher reliability and longer life. They follow stricter standards than IPC Class1, but some appearance defects are allowed.

IPC Class3 is used for products with continuous high performance or performance on demand is critical, product downtime cannot be tolerated, the final use environment may be extremely harsh, and the product must play a role when needed. Moreover, the use environment of the final product is extremely harsh, and the product must be able to operate normally when required.

The IPC Class3 circuit board has been inspected and tested at a high level according to strict standards. This makes the grade 3 plate highly reliable. This category includes life support system, military equipment, electronic monitoring system, automobile PCB and other key systems, life-saving equipment or other key systems.

Conclusion

In the competitive world of electronics manufacturing, adhering to IPC standards is not just a best practice—it’s a necessity. By aligning with these internationally recognized guidelines, PCB manufacturers like SQPCB can deliver products that meet the highest benchmarks in quality, performance, and reliability.

As the industry advances, maintaining compliance with IPC standards ensures continued success, long-term customer relationships, and a powerful edge in the global market.

FAQs

What is the purpose of IPC standards in PCB supplier?
IPC standards provide a structured guideline to ensure quality, reliability, and consistency throughout the PCB design and production process.

Which IPC standard is most important for inspecting PCB quality?
IPC-A-600 is the go-to standard for evaluating PCB acceptability, including visual inspection criteria for surface defects and structural integrity.

How does IPC Class 3 differ from Class 1 and Class 2?
Class 3 standards are the most stringent, targeting critical applications like aerospace and medical electronics, where zero failure is acceptable.

Do all PCB manufacturers need to be IPC certified?
Not all are required, but IPC certification demonstrates a manufacturer’s commitment to quality and can be a strong advantage in global business.

Can SQPCB manufacture PCBs to IPC Class 3 standards?
Yes, SQPCB is equipped with advanced inspection and exposure systems, skilled engineers, and certified processes capable of producing IPC Class 3 boards for high-reliability applications.
