1. Introduction to the Serious Heating of the Circuit Board

Serious heating in circuit boards is a critical concern in modern electronics manufacturing. This phenomenon refers to excessive or abnormal temperature rise within a PCB (Printed Circuit Board) during its operation. While all electronic systems generate some heat, an abnormal increase may signal deeper design flaws, component failures, or material inefficiencies. Left unaddressed, this condition can severely compromise the performance, reliability, and lifespan of a device.

In complex electronic assemblies, heat is often a byproduct of active components such as processors, power regulators, and switching transistors. However, when a circuit board begins to experience sustained high temperatures, the problem can escalate rapidly—leading to burnt substrates, delamination of layers, or outright board failure.

Understanding the root causes of serious heating in circuit boards is essential for engineers, designers, and manufacturers alike. The issue impacts industries ranging from consumer electronics to aerospace systems, where reliability under thermal stress is paramount.

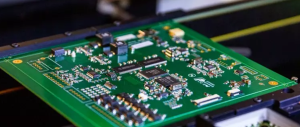

Serious heating in circuit boards

2. Key Causes of Serious Heating in Circuit Boards

2.1 Component Overload on the Circuit Board

One major factor that contributes to excessive heating is the overloading of components. When a board is densely populated with high-power ICs, FETs, or voltage regulators, heat buildup can occur if heat sinks or thermal vias are insufficiently designed. Components operating close to or beyond their rated thermal limits will naturally dissipate more heat, causing hotspots.

2.2 Poor Circuit Board Layout and Design

Suboptimal layout is another frequent cause. Without adequate copper plane design, thermal reliefs, or spacing between high-power traces, the circuit board fails to conduct and dissipate heat efficiently. The placement of heat-sensitive and heat-generating components in close proximity is a common design oversight.

2.3 Low Thermal Conductivity of Circuit Board Materials

The base material of the PCB—often FR-4—has limited thermal conductivity. In demanding applications, using materials with higher thermal performance, such as ceramic-based substrates or aluminum-backed boards, is advisable. Failing to choose an appropriate substrate can lead to rapid overheating.

👉 Pro Tip: SQ PCB offers advanced circuit board solutions using high-performance base materials, reducing the risk of serious heating in power-dense or industrial environments.

3. Problems and Solutions for Circuit Board Heating in PCB Manufacturing

3.1 Common Manufacturing Challenges Related to Circuit Board Heating

During manufacturing, certain process variables may contribute to latent heating issues:

• Incorrect Laminate Stack-up: This can hinder vertical heat transfer.

• Insufficient Copper Thickness: Thin copper layers are incapable of dissipating high currents.

• Poor Soldering Practices: Bad joints can become resistive and heat-prone.

• Defective Vias: Poorly formed thermal vias impede heat transfer between layers.

3.2 Manufacturing Solutions to Circuit Board Heating Issues

Manufacturers have developed a range of countermeasures to address these challenges:

• Using Thermally Enhanced Substrates: High-Tg FR-4, polyimide, or ceramic PCBs can endure elevated temperatures without degrading.

• Enhanced Copper Thickness Options: Heavy copper designs (2 oz/ft² and above) are ideal for high-power applications.

• Thermal Vias and Planes: These conduct heat away from sensitive components.

• Automated Thermal Imaging: In-factory infrared testing identifies heat-prone areas before shipment.

4. Circuit Board Heating Due to Power Density Increase

As the electronics industry pushes toward smaller and faster devices, power density has risen significantly. This increase is a critical contributor to serious heating in the circuit board.

4.1 How Power Density Affects Circuit Board Temperature

High power density means more electrical power is being processed in a smaller area. This concentration leads to localized hotspots, especially around high-power ICs and FETs. Without proper heat dissipation channels, such areas can quickly exceed safe operating temperatures.

4.2 Design Considerations for Power-Dense Circuit Boards

Designers can mitigate heat from power density by implementing:

• Thermal Vias: Strategically placed vias under power components help direct heat to the bottom layers.

• Copper Planes and Islands: Thick copper areas act as heat spreaders.

• Heatsinks and Thermal Pads: Passive cooling elements assist in drawing heat away from the board.

4.3 Material Selection for High Power Applications

In power-dense designs, traditional FR-4 materials may not suffice. Manufacturers turn to:

• Aluminum-backed PCBs

• Insulated Metal Substrates (IMS)

• Ceramic PCBs (notably for RF or LED)

These materials offer higher thermal conductivity and stability under thermal cycling.

5. Circuit Board Heating from Electromagnetic Interference (EMI)

5.1 The Relationship Between EMI and Circuit Board Heat

While EMI is usually considered an electrical noise issue, it also indirectly contributes to heat. High-frequency switching can generate eddy currents and dielectric losses, leading to thermal stress in both components and substrates.

5.2 PCB Layout Strategies to Minimize EMI and Heat

• Shielding Layers: Use internal layers as EMI shields to confine radiation.

• Proper Trace Routing: Avoid sharp corners and excessive via transitions, which act as antennas.

• Grounding Techniques: Multiple ground points and low-impedance paths reduce EMI and parasitic heating.

6. The Role of Power Modules in Circuit Board Heating

6.1 How Power Modules Contribute to Heat Buildup

Power modules, including DC-DC converters, inverters, and voltage regulators, convert energy with inevitable losses, much of which manifests as heat. These losses increase with:

• Higher conversion ratios

• Greater load current

• Switching frequency and topology

6.2 Design Approaches to Reduce Power Module Heat

• Use of high-efficiency topologies (e.g., synchronous buck)

• Distributed power architecture to spread the thermal load

• Placing power modules on isolated copper islands with thermal vias and heatsinks

• Selection of modules with built-in thermal shutdown protection

Conclusion: Understanding and Addressing Serious Heating in Circuit Boards

The phenomenon of serious heating in circuit boards is a multifaceted issue rooted in electrical design, material selection, manufacturing precision, and environmental operation. It is not merely a byproduct of active components working harder—it is often a signal of design inefficiencies, thermal miscalculations, or material limitations.

Key takeaways from this exploration include:

• Root Causes: From component overload and trace undersizing to poor layout and EMI interference, the origins of excessive heating are diverse and often interrelated.

• Material Importance: Choosing substrates with higher thermal conductivity, such as ceramic, aluminum-backed laminates, or high-Tg polyimide, is crucial for applications with sustained power loads.

• Manufacturing Vigilance: Defects such as insufficient copper thickness, delaminations, and poorly formed vias can contribute significantly to thermal buildup. Close collaboration with advanced manufacturers like SQ PCB is essential for optimizing thermal design.

• Design Solutions: Implementing thermal vias, copper pours, heatsinks, thermal interface materials (TIMs), and effective stack-up strategies can drastically reduce heat accumulation and improve reliability.

• Operational Factors: Even the best-designed PCBs can overheat in poor ventilation or high-humidity environments. Enclosure design and environmental sealing must complement the electrical and thermal planning.

Ultimately, mitigating serious heating in circuit boards requires a system-level view that combines engineering insight, empirical testing, and thermal simulation. This ensures not only optimal performance but also long-term durability and safety of the final electronic product.

Through better materials, smarter layouts, and proactive manufacturing—like those provided by SQ PCB—engineers can create thermally resilient designs that thrive under real-world operating conditions.

1. What is the difference between rolled copper foil and electrolytic copper foil?

Rolled copper foil is produced by mechanically rolling copper into thin sheets, offering better surface quality and mechanical strength. Electrolytic copper foil is deposited via an electrolytic process and is more flexible and cost-effective. Rolled copper is preferred for applications requiring flex resistance and high reliability.

2. Why does my circuit board get hot even with low current usage?

Low current does not guarantee cool operation. Issues such as poor solder joints, high ambient temperature, or lack of ventilation can still result in localized heating.

3. How do I know if my PCB material is suitable for high-temperature operation?

Check the Tg (glass transition temperature) of your PCB substrate. Materials with Tg > 170°C are preferred for thermal resilience. Review the thermal conductivity and decomposition temperature ratings as well.

4. Can ceramic PCBs help reduce serious heating problems?

Yes. Ceramic PCBs provide excellent thermal conductivity, up to 200 W/m·K, significantly reducing heat accumulation. They are ideal for LED systems, automotive modules, and RF power circuits.

5. What layout practices help minimize circuit board heating?

Use wider copper traces for power lines, isolate high-power components, utilize thermal vias beneath heat sources, and provide adequate copper pour regions. Placing heat-sensitive ICs away from power circuits is also beneficial.
