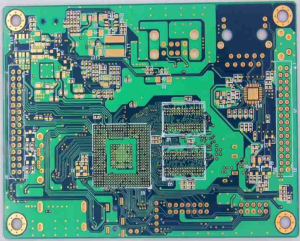

Introduction

In today’s hyper-connected world, the silent engines of innovation are the tiny but intricate structures known as printed circuit boards (PCBs). Among them, the PCB multi-layer circuit board has emerged as a defining technological marvel, enabling the compact, high-performance electronics that power modern society. From smartphones to spacecraft, the advancement of PCB multi-layer circuit board design and manufacturing has played a critical role in shaping industries and lifestyles.

The PCB multi-layer circuit board is more than a simple platform to mount components; it represents an intricate dance of materials science, electrical engineering, manufacturing technology, and strategic design. It reflects our relentless pursuit of miniaturization, reliability, speed, and functionality. It silently embodies human ingenuity, shrinking entire systems into the palm of our hands without compromising on capability.

In this comprehensive article, we will explore the fascinating world of PCB multi-layer circuit boards — from their origins to their manufacturing intricacies, applications across industries, current trends, and the exciting frontiers that lie ahead. Along the way, I will share my reflections on the technology’s significance, challenges, and boundless future potential.

1. The Historical Development of PCB Multi-Layer Circuit Board

1.1 Early Beginnings and the Birth of PCB Technology

The evolution of the PCB multi-layer circuit board cannot be understood without first appreciating the origins of PCB technology itself. In the early 20th century, electronics were built with point-to-point wiring — an approach that was not only cumbersome but also error-prone and inefficient. Devices were large, fragile, and labor-intensive to assemble.

The invention of the printed circuit board by Paul Eisler in 1936 marked a revolutionary moment. Eisler’s original application was for radio sets, where he printed conductive patterns onto insulating materials instead of manually wiring components. This shift radically improved assembly efficiency and reliability, setting the stage for the future complexity of circuit designs.

Initially, boards were simple — single-sided with large, clear pathways. However, as electronic applications expanded during and after World War II, particularly in telecommunications and computing, the limitations of simple designs became increasingly apparent. Engineers needed ways to fit more circuits into smaller spaces without compromising performance.

Thus began the journey toward the PCB multi-layer circuit board, a response to escalating technological demands.

1.2 The Birth of PCB Multi-Layer Circuit Board

The true genesis of the PCB multi-layer circuit board occurred in the 1950s and 1960s, as electronics moved toward miniaturization and higher complexity. Single-layer and double-layer PCBs could no longer meet the intricate routing requirements of emerging systems like radar, aerospace controls, and early computers.

By laminating multiple layers of circuitry, engineers could dramatically increase the density of interconnections without enlarging the board’s footprint. Initially, three and four-layer boards became standard in specialized sectors like military electronics, where cost and complexity were acceptable trade-offs for performance.

This marked a key moment: the PCB multi-layer circuit board became a vital enabler for complex, powerful, and compact systems.

1.3 Evolution Through the Late 20th Century

The 1970s and 1980s saw explosive growth in electronics, from personal computers to advanced telecommunications systems. These products demanded even more complex PCB multi-layer circuit board designs.

Advances in materials, such as better resins and high-temperature laminates, allowed boards to become thinner and more reliable. At the same time, manufacturing techniques improved, enabling finer traces and tighter spacing between layers.

Twelve-layer and even sixteen-layer PCB multi-layer circuit boards became common in computing, pushing performance limits while maintaining manageable form factors.

As an observer of this field, I find it fascinating how the invisible infrastructures — the multilayer boards — silently propelled the personal computing revolution. Without the compactness and complexity offered by PCB multi-layer circuit boards, devices like the IBM PC, Macintosh, and early mobile phones would not have been possible.

1.4 Modern Era and Cutting-Edge Developments

Today, PCB multi-layer circuit boards with more than 32 layers are not uncommon, especially in high-end servers, aerospace systems, and advanced networking equipment. Technologies like blind vias, buried vias, and sequential lamination have enabled staggering levels of complexity.

Furthermore, integration with surface-mount technology (SMT), embedded components, and HDI (High-Density Interconnect) structures means that the PCB multi-layer circuit board continues to evolve — becoming not just a carrier of circuits, but an active participant in the system’s performance.

It is remarkable to think that from a few hand-drawn copper lines in the 1930s, we have arrived at boards containing thousands of interconnected signals layered with micron-scale precision. The PCB multi-layer circuit board epitomizes how incremental innovation, driven by necessity, can reshape industries and societies.

2. Basic Structure and Components of PCB Multi-Layer Circuit Board

2.1 Understanding the Basic Anatomy of a PCB Multi-Layer Circuit Board

A PCB multi-layer circuit board is not simply a random stack of copper sheets and insulation; it is a meticulously engineered structure where each layer plays a specific role. Fundamentally, a multi-layer PCB consists of alternating layers of conductive (usually copper) and insulating (dielectric) materials, laminated together under heat and pressure to form a single unified board.

At the core, there might be a rigid substrate layer (such as FR-4 epoxy fiberglass) that provides mechanical stability. Above and below this core, conductive layers are added, interconnected by plated through-holes or more advanced technologies like blind or buried vias.

The complexity of the PCB multi-layer circuit board lies not only in its physical structure but also in its electrical behavior. Each layer may carry power, ground, or signal traces, and their interactions must be carefully managed to avoid crosstalk, signal degradation, or electromagnetic interference (EMI).

2.2 Key Layers in a PCB Multi-Layer Circuit Board

Each PCB multi-layer circuit board generally includes several essential types of layers:

• Core Layer: The base substrate, which provides structural integrity.

• Signal Layers: These carry electrical signals between components.

• Power and Ground Planes: Solid copper layers that distribute electrical power and serve as references for signals, helping to reduce noise and EMI.

• Prepreg Layers: Sheets of resin-impregnated fiberglass used to bond layers together during lamination.

• Solder Mask Layer: A protective coating that prevents solder from bridging between conductive traces and protects against environmental damage.

• Silkscreen Layer: Printed text or symbols that aid assembly, testing, and maintenance.

A key insight here is how deliberately these layers are arranged. A power-ground pair, for example, creates a capacitive effect that benefits high-speed signal integrity — an aspect critical in modern high-frequency applications.

2.3 Components and Their Interaction with PCB Multi-Layer Circuit Board

The PCB multi-layer circuit board hosts a diverse array of components, ranging from simple resistors and capacitors to complex microprocessors and wireless modules. The interaction between the board and its mounted components is a critical design consideration.

Surface-mount technology (SMT) has become dominant, allowing components to be mounted directly onto the surface of the board without the need for leaded through-hole connections. This not only saves space but also enables more densely populated designs.

Thermal management is another crucial aspect. High-power components must be strategically placed to dissipate heat effectively, sometimes employing special thermal vias, heatsinks, or embedded copper coins within the PCB multi-layer circuit board.

2.4 Electrical Properties Critical to PCB Multi-Layer Circuit Board Performance

In thinking critically about the PCB multi-layer circuit board, one must appreciate that it is not a passive medium. Its electrical properties significantly influence overall device performance:

• Dielectric Constant (Dk): This affects signal propagation speed; lower Dk materials enable faster signals.

• Loss Tangent (Df): Impacts how much signal is lost as heat; low-loss materials are essential for high-frequency applications.

• Impedance Control: Matching impedance across signal traces minimizes reflections and preserves signal integrity.

• Crosstalk and Noise Management: Proper spacing, shielding, and layer stacking are vital to minimize unwanted signal interactions.

Reflecting on this, I often think of the PCB multi-layer circuit board not merely as an electrical highway but more as a dynamic, living organism — carefully balancing electrical, mechanical, and thermal needs simultaneously.

2.5 The Art and Science of Layer Stackup in PCB Multi-Layer Circuit Board Design

The “stackup” — the precise order and structure of layers in a PCB multi-layer circuit board — is both an art and a science. Good stackup design can:

• Minimize EMI

• Enhance signal integrity

• Improve power distribution

• Reduce manufacturing costs

For instance, placing ground and power planes adjacent to signal layers can shield signals and stabilize impedance. Using symmetrical stackups (same number of layers above and below the centerline) helps maintain mechanical stability, preventing warping during reflow soldering processes.

The complexity increases with layer count. In a 12-layer board, for example, engineers must carefully orchestrate multiple signal, power, and ground layers to achieve optimal performance. It becomes a puzzle with high stakes, where every piece must fit perfectly.

In my experience, even minor stackup decisions can have profound impacts on product success. A well-designed PCB multi-layer circuit board enables products that are faster, more reliable, and longer-lasting.

3. Materials Used in PCB Multi-Layer Circuit Board

3.1 Overview of Material Selection for PCB Multi-Layer Circuit Board

The choice of materials for a PCB multi-layer circuit board is critical because it impacts electrical performance, mechanical stability, manufacturability, and overall cost. A perfect balance among these factors is necessary to achieve optimal board performance across different applications.

When engineers select materials, they are not simply choosing based on mechanical strength; they must consider electrical properties like dielectric constant, loss tangent, thermal stability, moisture absorption, and chemical resistance. Each property can profoundly influence the functionality of the final product.

Through years of observing PCB development, I have realized that material selection is both a science and a strategic decision: matching the right material with the right application can mean the difference between product success and failure.

3.2 Core Substrate Materials in PCB Multi-Layer Circuit Board

The backbone of the PCB multi-layer circuit board is the core substrate. The most commonly used material is FR-4, a fiberglass-reinforced epoxy laminate, prized for its balance of electrical insulation, mechanical strength, and affordability.

Key properties of FR-4:

• Moderate dielectric constant (~4.5)

• Good thermal resistance (~130°C to 140°C)

• High mechanical strength

• Low moisture absorption

However, as electronics have pushed into high-frequency realms (like 5G and RF communications), traditional FR-4 has shown limitations. In such cases, other substrates are employed:

• High-frequency laminates (like Rogers materials): Lower dielectric constants and lower loss tangents.

• Polyimide laminates: Excellent thermal stability, used in aerospace and military applications.

• Ceramic-filled laminates: For extreme high-speed designs requiring minimal signal loss.

Thus, depending on the intended use of the PCB multi-layer circuit board, the choice of substrate varies significantly.

3.3 Copper Foil Types in PCB Multi-Layer Circuit Board

Copper is the lifeblood of the PCB multi-layer circuit board, providing the conductive pathways for electrical signals and power.

Copper foil comes in several types, each suited for different board needs:

• Electrodeposited (ED) Copper: Common and cost-effective; has a rougher surface, making it better for adhesion.

• Rolled Annealed (RA) Copper: Smoother and more ductile; preferred for flexible PCBs and high-frequency circuits.

• Reverse Treated (RT) Copper: Modified for better bonding and signal integrity.

The thickness of copper foil can range from 0.5 oz/ft² to 6 oz/ft² or more, depending on current-carrying needs and heat dissipation requirements. Selecting the right type and thickness is a delicate trade-off between electrical performance, cost, and manufacturability.

3.4 Prepreg Materials in PCB Multi-Layer Circuit Board Lamination

Prepreg refers to partially cured resin-impregnated fiberglass sheets. In the lamination process, prepregs bond layers of the PCB multi-layer circuit board together when heat and pressure are applied.

Prepreg materials must have:

• Good flow properties for even bonding

• Stable dielectric properties

• High thermal resistance

• Minimal moisture uptake

For high-performance boards, low-Dk, low-Df prepregs are chosen to maintain signal integrity. Additionally, halogen-free prepregs are gaining popularity for environmentally friendly applications.

In my opinion, understanding prepreg behavior during lamination is an underrated but crucial skill. Even slight inconsistencies can lead to delamination, warping, or electrical failures — all fatal flaws for a high-reliability PCB multi-layer circuit board.

3.5 Solder Mask and Surface Finishes for PCB Multi-Layer Circuit Board

Beyond internal layers, the outer surface of a PCB multi-layer circuit board must be protected and finished properly.

Solder mask serves as the primary protective coating, typically green but now available in many colors. It prevents oxidation, guards against contamination, and helps avoid solder bridges during assembly.

Surface finishes are applied over exposed copper pads to ensure solderability and long-term reliability:

• HASL (Hot Air Solder Leveling): Traditional and low-cost.

• ENIG (Electroless Nickel Immersion Gold): Excellent for fine-pitch components and high-reliability products.

• OSP (Organic Solderability Preservatives): Environmentally friendly, suitable for lead-free applications.

• Immersion Silver / Immersion Tin: Used in high-frequency and high-density designs.

The right choice of finish depends on the application environment, component types, and expected shelf life of the PCB multi-layer circuit board.

3.6 Emerging Materials for Advanced PCB Multi-Layer Circuit Board Applications

As technologies like AI, 5G, and IoT mature, new demands are being placed on the PCB multi-layer circuit board. Materials are evolving to meet these challenges:

• Low-loss high-frequency materials for 77GHz automotive radar.

• Ultra-low Dk materials for quantum computing systems.

• Flexible-rigid hybrid substrates for wearables and foldable devices.

• Environmentally friendly bio-based laminates for sustainable electronics.

It’s exciting to observe how material science is shaping the future of PCBs. I often imagine that tomorrow’s PCB multi-layer circuit board might look nothing like today’s — perhaps made from nanomaterials, or even being fully flexible and biodegradable.

4. Design Principles for PCB Multi-Layer Circuit Board

4.1 Importance of Good Design in PCB Multi-Layer Circuit Board Manufacturing

The design phase is arguably the most critical step in creating a successful PCB multi-layer circuit board. A well-conceived design can simplify manufacturing, optimize electrical performance, reduce costs, and ensure long-term reliability. Conversely, poor design choices can cause cascading failures that no amount of post-production testing can fully fix.

From my perspective, designing a PCB multi-layer circuit board is like composing a symphony — every trace, via, and layer must harmonize to achieve the final performance.

4.2 Schematic Capture and Its Role in PCB Multi-Layer Circuit Board Design

The journey of a PCB multi-layer circuit board begins with a schematic capture. This is where the logical design of the circuit is created, connecting components together using electrical symbols.

Schematic capture ensures:

• Accurate representation of the intended circuit

• Clear documentation for design reviews and approvals

• Automatic generation of netlists for PCB layout

A disciplined schematic phase saves enormous time during PCB layout and reduces the chance of overlooked errors. It is, without a doubt, the backbone of any successful PCB multi-layer circuit board project.

4.3 Layout Strategies for PCB Multi-Layer Circuit Board

Once the schematic is ready, the physical layout begins. Key strategies for designing an efficient PCB multi-layer circuit board layout include:

• Optimizing component placement: Grouping related components minimizes trace lengths and signal delays.

• Minimizing loop areas: Reducing loop size in current paths helps lower EMI emissions.

• Managing signal layers carefully: High-speed signals should be routed with matched impedance and minimized vias.

• Separating analog and digital sections: Prevents noise from corrupting sensitive analog circuits.

I often visualize a good layout like a well-organized city: highways (power buses) are wide and direct, streets (signal traces) are neatly routed, and utilities (ground planes) are seamlessly integrated.

4.4 Layer Stackup Considerations in PCB Multi-Layer Circuit Board

Designing the layer stackup is foundational in a PCB multi-layer circuit board. A thoughtfully planned stackup helps:

• Maintain signal integrity

• Control impedance

• Manage EMI

• Balance mechanical stresses

Some guidelines include:

• Place high-speed signals adjacent to ground planes.

• Distribute power and ground planes symmetrically.

• Use thicker cores or prepregs where necessary for mechanical stability.

• Balance layer pairs to avoid warping.

Every choice made in the stackup impacts performance and manufacturability. I see stackup planning not just as a technical task but also as a creative challenge to achieve harmony within the board.

4.5 Via Types and Usage in PCB Multi-Layer Circuit Board

Vias are the vertical interconnects in a PCB multi-layer circuit board, allowing traces to jump between layers. Types of vias include:

• Through-hole vias: Extend from top to bottom layers.

• Blind vias: Connect outer layers to one or more inner layers without penetrating the whole board.

• Buried vias: Exist entirely within the inner layers.

• Microvias: Very small vias used in HDI (High-Density Interconnect) boards.

Via design affects signal integrity, reliability, and manufacturing cost. For example, too many through-hole vias can block ground planes, increasing noise. Using blind or buried vias can optimize routing in dense layouts, although at higher manufacturing complexity and cost.

In my opinion, mastering via strategies is a key milestone in any designer’s journey toward producing professional-grade PCB multi-layer circuit board layouts.

4.6 Power and Ground Management in PCB Multi-Layer Circuit Board

Proper management of power and ground planes is essential in a PCB multi-layer circuit board to:

• Ensure stable voltage distribution

• Minimize noise

• Provide return paths for high-speed signals

Best practices include:

• Use solid ground planes whenever possible.

• Decouple power supplies close to load points with capacitors.

• Create multiple ground domains only if necessary and connect them with controlled impedance paths.

Reflecting on past projects, I have learned that underestimating power and ground design is a common rookie mistake — one that often only becomes obvious in late-stage testing when fixing it is costly or impossible.

4.7 Signal Integrity Concerns in PCB Multi-Layer Circuit Board

Signal integrity refers to the quality of the electrical signals as they travel across the PCB multi-layer circuit board. Problems like reflections, crosstalk, or attenuation can degrade performance or cause outright failure.

Key strategies for maintaining signal integrity include:

• Controlled impedance routing: Essential for high-speed signals.

• Length matching: Ensures that signals arrive simultaneously at differential pairs or bus lines.

• Minimizing via stubs: Helps prevent signal reflection.

Tools like simulation software (e.g., HyperLynx, SIwave) are used to model and predict potential issues before fabrication.

It’s fascinating how in a modern PCB multi-layer circuit board, signals behave more like electromagnetic waves than simple electrical currents — making SI management as much a physics problem as an electrical one.

5. Advanced Manufacturing Techniques for PCB Multi-Layer Circuit Boards

5.1 Materials Selection
The choice of materials is one of the most critical aspects of manufacturing PCB multi-layer circuit boards. Materials affect the performance, thermal management, and signal integrity of the final product. Designers must select appropriate base materials (such as FR4, polyimide, or ceramic) depending on the application’s requirements, such as high-frequency performance, mechanical flexibility, or temperature resistance.

5.2 Layer Stackup Design
One of the most important design considerations for PCB multi-layer circuit boards is the stackup, which refers to the arrangement of conductive and insulating layers within the board. The stackup determines the impedance of signal traces, the performance of the PCB in high-speed applications, and its overall reliability. Designers must carefully plan the placement of signal, power, and ground planes to minimize crosstalk, reduce noise, and ensure signal integrity.

5.3 Via Technologies
Vias are used to connect different layers of a multi-layer PCB, and the choice of via technology can impact the performance, manufacturability, and cost of the final product. The main types of vias include through-hole vias, blind vias, and buried vias. Each type has its advantages and disadvantages, and the selection depends on factors such as board complexity, cost constraints, and signal integrity requirements.

5.4 Automated Optical Inspection (AOI)
To ensure the quality and reliability of PCB multi-layer circuit boards, manufacturers often employ automated optical inspection (AOI) systems. AOI uses high-resolution cameras and image processing algorithms to inspect the board for defects such as open circuits, misalignment, or soldering issues. This technology helps improve yield rates, reduce defects, and shorten production times by providing early detection of errors in the manufacturing process.

5.5 Soldering and Assembly Techniques
Soldering is a critical process in the assembly of PCB multi-layer circuit boards. Common methods include wave soldering, selective soldering, and surface mount technology (SMT). Advanced soldering techniques, such as lead-free soldering, must be carefully controlled to prevent thermal damage to sensitive components. Automated assembly processes, including pick-and-place machines and reflow ovens, are used to ensure that components are placed accurately and reliably on the PCB.

5.6 Testing and Quality Assurance
Testing is an essential part of the manufacturing process for PCB multi-layer circuit boards. Various testing methods, including functional testing, in-circuit testing (ICT), and flying probe testing, are used to verify the performance and reliability of the board. Automated testing systems can quickly identify faults in both the circuit and the assembly, ensuring that defective boards are removed from the production line before reaching customers.

---

6. Challenges in Designing PCB Multi-Layer Circuit Boards

6.1 Signal Integrity
Signal integrity is a key concern in the design of PCB multi-layer circuit boards. With the increasing speed of electronic devices, maintaining the quality of signals as they travel through the PCB is critical. Factors such as trace length, impedance mismatch, and noise can lead to signal degradation. Designers must carefully manage these elements to ensure reliable performance in high-speed applications.

6.2 Thermal Management
The compact nature of PCB multi-layer circuit boards often results in significant heat buildup, particularly in high-power applications. Effective thermal management strategies, including the use of heat sinks, thermal vias, and advanced materials, are essential to prevent overheating and ensure the long-term reliability of the PCB. Failure to manage heat effectively can lead to component failure and reduced performance.

6.3 Layer Registration and Alignment
Proper alignment and registration of layers in PCB multi-layer circuit boards are critical to ensuring the functionality and reliability of the final product. Misalignment of layers can result in poor electrical connections, short circuits, and manufacturing defects. To achieve precise layer alignment, manufacturers use advanced technologies such as laser drilling, automated alignment systems, and high-precision equipment.

6.4 Manufacturing Complexity and Cost
The complexity of designing and manufacturing PCB multi-layer circuit boards increases with the number of layers. Multi-layer PCBs are more challenging to produce due to the increased number of layers, the need for accurate vias, and the use of advanced materials. As a result, the cost of manufacturing PCB multi-layer circuit boards can be higher than for simpler, single-layer designs. Manufacturers must balance complexity with cost to ensure that the final product meets the performance requirements without exceeding budget constraints.

7. PCB Multi-Layer Circuit Board Manufacturing Process

7.1 Overview of PCB Multi-Layer Circuit Board Manufacturing
The manufacturing process for PCB multi-layer circuit boards involves several stages, from designing the board to final assembly and testing. The complexity of multi-layer designs requires precise control at each step of the process. The process starts with the preparation of raw materials, followed by etching, lamination, drilling, and finally, assembly. Each stage must be meticulously carried out to ensure the electrical and mechanical integrity of the final product.

7.2 Material Preparation
The first step in the PCB multi-layer circuit board manufacturing process is the preparation of materials. This typically involves the selection of copper-clad laminates (CCL), which form the conductive layers of the PCB. The material is typically made of copper foil bonded to a substrate, such as fiberglass or epoxy resin. The quality and type of CCL selected depend on the intended application, such as high-frequency performance, flexibility, or thermal resistance.

7.3 Lamination Process
Lamination is the process where the various layers of the PCB multi-layer circuit board are bonded together. This is a critical step as the proper bonding of layers determines the mechanical strength, thermal conductivity, and electrical performance of the PCB. The layers are stacked in a specific order, with copper traces and insulating layers carefully aligned to ensure the signal integrity and functionality of the final design. Heat and pressure are applied during the lamination process to fuse the layers together.

7.4 Drilling and Via Formation
Drilling is one of the most important steps in PCB multi-layer circuit board manufacturing, as it creates the holes for vias—vertical interconnections between different layers of the board. Vias are necessary for signal transmission and power distribution across the various layers. The drilling process typically involves high-precision machines capable of drilling tiny holes with high accuracy. Depending on the design, manufacturers may use various types of vias, such as through-hole, blind, or buried vias.

7.5 Etching and Circuit Patterning
Etching is the process of removing unwanted copper from the surface of the PCB to create the necessary circuit patterns. In PCB multi-layer circuit boards, this process is performed layer by layer. A photosensitive material, such as a dry film or liquid resist, is applied to the copper surface. The design is then transferred to the resist through ultraviolet (UV) exposure, followed by the development and etching process. This results in the desired copper traces and pads, forming the circuitry for the board.

7.6 Layer Alignment and Registration
The alignment of layers is crucial in multi-layer PCBs. The accuracy of this alignment ensures that all vias and traces are correctly positioned. Misalignment can lead to short circuits, signal integrity issues, and mechanical failure. During the manufacturing process, high-precision equipment is used to ensure that each layer is aligned with the previous layers. This process involves laser drilling, automated optical inspection (AOI), and other techniques to achieve high levels of precision.

7.7 Solder Mask and Surface Finishing
After the circuit patterns have been etched, the next step in the PCB multi-layer circuit board manufacturing process is the application of a solder mask. This protective layer ensures that only the desired areas of the board are available for soldering and helps prevent short circuits and other electrical issues. Once the solder mask is applied, the board undergoes surface finishing processes such as gold plating, nickel, or tin finishes to ensure good solderability and protect against corrosion.

7.8 Testing and Inspection
After the PCB multi-layer circuit board has been fully assembled, it undergoes a rigorous testing and inspection process to ensure that it meets the necessary electrical, mechanical, and thermal standards. Testing methods include in-circuit testing (ICT), functional testing, automated optical inspection (AOI), and X-ray inspection. These tests help identify any defects in the circuit, such as open circuits, shorts, or incorrect component placement. Any issues discovered are rectified before moving on to the final assembly and packaging.

8. Innovations and Future Trends in PCB Multi-Layer Circuit Boards

8.1 Advances in Material Science
The future of PCB multi-layer circuit boards lies in the continuous development of advanced materials. New high-frequency materials, such as ceramic-based substrates and flexible materials, are being explored to meet the demands of next-generation electronics. For example, high-speed communication systems, like 5G, require PCB materials with lower signal loss and better performance at higher frequencies. Research is also focused on creating eco-friendly and recyclable materials to meet the increasing sustainability requirements of the electronics industry.

8.2 Miniaturization and Integration
As consumer electronics become more compact and powerful, the trend towards miniaturization continues to shape the development of PCB multi-layer circuit boards. Smaller, thinner boards with higher layer counts are being designed to accommodate more components while maintaining high performance. Integration of components such as passive devices and integrated circuits (ICs) into the PCB itself—known as system-in-package (SiP) or embedded component technology—also offers the potential for even smaller and more efficient designs.

8.3 Advanced Manufacturing Technologies
Innovations in PCB manufacturing technologies are enabling faster, more efficient production of PCB multi-layer circuit boards. For instance, additive manufacturing techniques such as 3D printing are being explored to create complex, customized PCBs that are difficult or impossible to produce with traditional methods. Additionally, automated and robotic systems are streamlining assembly and testing processes, increasing throughput and reducing the likelihood of human error. These innovations are paving the way for more efficient, cost-effective PCB manufacturing.

8.4 5G and High-Frequency Applications
With the advent of 5G and the growing demand for high-speed wireless communication, the requirements for PCB multi-layer circuit boards are changing. 5G technology operates at much higher frequencies than previous generations, necessitating PCBs that can support these frequencies while maintaining signal integrity. New materials, such as low-loss laminates, and advanced designs, like microstrip and stripline structures, are being developed to ensure the successful deployment of 5G infrastructure and devices.

8.5 Internet of Things (IoT) and Wearables
The rise of the Internet of Things (IoT) and wearable technology has driven the need for smaller, more efficient PCB multi-layer circuit boards. These applications require boards that can fit into small enclosures while maintaining high functionality and low power consumption. Future PCBs may need to support integrated wireless communication (Wi-Fi, Bluetooth, etc.), energy harvesting, and sensors, all while being small enough to fit in the compact form factors demanded by IoT and wearable devices.

9. Challenges in PCB Multi-Layer Circuit Board Design and Manufacturing

9.1 Design Complexity and Multilayer Stackup
One of the primary challenges in PCB multi-layer circuit board design is determining the optimal layer stackup. The design must take into account the electrical performance, mechanical integrity, and manufacturability of the multi-layer PCB. Each layer must be placed with precise control over the signal paths, ground planes, and power planes to ensure that the signals do not interfere with each other. This requires careful planning of trace widths, via placements, and layer interconnections to maintain the integrity of high-speed signals and minimize cross-talk or interference.

The design process must also ensure that the PCB is manufacturable, taking into account factors such as the number of layers, the type of vias (through-hole, blind, or buried), and the materials used for each layer. Advanced simulation software can help in designing the stackup, but it remains a complex task requiring a deep understanding of both electrical and mechanical requirements.

9.2 Material Constraints and Selection
Choosing the right materials for a PCB multi-layer circuit board is a key challenge. Different applications require different types of materials, each with its own trade-offs in terms of electrical performance, thermal management, and mechanical strength. For example, high-frequency PCBs, such as those used in 5G applications, often require materials with low dielectric loss and high thermal conductivity. However, these materials can be more expensive and harder to process than standard FR4 (fiberglass epoxy) substrates.

Furthermore, the material selection process must also consider environmental and regulatory factors, such as lead-free soldering requirements and restrictions on hazardous substances (RoHS compliance). Balancing these needs—while maintaining cost-effectiveness and manufacturability—presents a significant challenge for PCB manufacturers.

9.3 Tolerance and Precision
As PCB multi-layer circuit boards become increasingly complex, the tolerance and precision required for each layer and feature increase as well. Small deviations in layer alignment, via placement, and trace width can lead to significant issues such as signal integrity problems, short circuits, or even mechanical failure. For example, slight misalignment of vias or traces between layers can cause impedance mismatches, resulting in signal loss or reflection.

Achieving such high precision requires advanced manufacturing equipment, such as laser drills, high-resolution photolithography systems, and automated alignment tools. These systems must be maintained to ensure that the manufacturing process meets the tight tolerances required for multi-layer PCB production.

9.4 Thermal Management Issues
Another significant challenge in PCB multi-layer circuit board design is thermal management. The more complex the PCB, the more heat it generates during operation. This is especially true for high-density PCBs used in power electronics, high-speed communication devices, and other applications where multiple components are densely packed.

To mitigate thermal issues, engineers must design the PCB with proper heat dissipation features, such as heat sinks, thermal vias, and heat spreaders. However, adding these features can increase the size and cost of the board, and in some cases, may not be feasible due to space constraints. As a result, managing heat in multi-layer PCBs requires a careful balance between thermal performance, size, and cost.

9.5 Manufacturing Yield and Reliability
Achieving high manufacturing yield and ensuring the long-term reliability of PCB multi-layer circuit boards can be challenging. Due to the complexity of multi-layer designs, the likelihood of defects during the manufacturing process is higher than with simpler, single-layer boards. Defects such as poor layer alignment, inadequate soldering, and flawed vias can reduce the reliability of the board and result in failure in the field.

Quality control measures, such as automated optical inspection (AOI), X-ray inspection, and electrical testing, are essential for identifying defects early in the manufacturing process. However, despite these measures, defects can still occur, and the challenge is to maintain a consistent yield while meeting the high-performance demands of modern electronics.

9.6 Cost Considerations
Manufacturing PCB multi-layer circuit boards is inherently more expensive than producing single-layer or double-layer boards. The added complexity, the use of specialized materials, and the need for precision manufacturing equipment all contribute to higher costs. For example, high-frequency or high-temperature materials often come at a premium, and the need for multiple layers, vias, and complex interconnections further increases the cost.

Additionally, as layer count increases, the need for more sophisticated testing and inspection procedures also drives up costs. Manufacturers must balance the need for advanced features and high-quality performance with the cost constraints of the end-user market. This can be particularly challenging in industries such as consumer electronics, where cost is a major consideration.

9.7 Environmental and Regulatory Challenges
In addition to the technical challenges, PCB multi-layer circuit boards must meet various environmental and regulatory standards. These regulations, such as RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment), aim to reduce the environmental impact of electronics manufacturing and disposal.

To meet these regulations, manufacturers must ensure that their PCBs are free from hazardous materials such as lead, cadmium, and mercury, and that they can be properly recycled at the end of their life cycle. However, this often requires changes in materials and processes that can complicate production and increase costs.

9.8 Supply Chain and Lead Time Issues
Supply chain disruptions are a major challenge for the PCB multi-layer circuit board industry. Lead times for materials, components, and finished boards can fluctuate, and manufacturers must carefully manage their inventories to avoid production delays. Factors such as global shipping delays, fluctuations in raw material prices, and shortages of specialized components can impact the availability and cost of materials for PCB production.

Furthermore, many PCB manufacturers are located in regions where there are increasing challenges related to labor availability, political instability, and other economic factors. This can affect the overall cost, quality, and lead time of PCB multi-layer circuit boards, particularly for high-volume orders.

10. Best Practices in PCB Multi-Layer Circuit Board Design and Manufacturing

10.1 Design for Manufacturability (DFM)
Design for manufacturability (DFM) is crucial when creating PCB multi-layer circuit boards. DFM ensures that designs are optimized for ease of manufacturing, minimizing potential errors and streamlining production. A PCB design that adheres to DFM guidelines can reduce costs, improve yield, and accelerate time to market.

Some of the best practices include:

• Standardizing Layer Count: While multi-layer designs are essential for complex applications, sticking to a standard number of layers helps reduce costs and simplifies the manufacturing process.

• Optimizing Trace Width and Spacing: Ensuring traces have adequate width and spacing helps in the effective manufacturing of multi-layer PCBs, making it easier for manufacturers to etch the designs with high precision.

• Minimizing Use of Blind and Buried Vias: The use of through-hole vias should be maximized, as blind and buried vias increase complexity and cost.

• Using Standardized Materials: Using commonly available materials, such as FR4, helps streamline the procurement process and reduce material costs.

10.2 Collaboration Between Design and Manufacturing Teams
An essential aspect of successful PCB multi-layer circuit board production is the collaboration between the design team and manufacturing engineers. Communication ensures that the design is practical and that any issues that could arise during production are addressed upfront. Early involvement of the manufacturing team in the design process helps catch potential problems such as manufacturing limitations, material constraints, or yield issues.

10.3 Simulation and Testing in the Design Phase
To ensure that a PCB multi-layer circuit board performs as expected, designers should use simulation tools that model the electrical, thermal, and mechanical behavior of the PCB before it is built. These tools can identify issues such as signal interference, power distribution problems, or potential overheating.

Testing during the design phase helps verify the functionality of the circuit before committing to manufacturing, which reduces the likelihood of costly revisions later on. Simulation tools also help in optimizing the routing of traces and vias, ensuring that the final design meets the necessary performance and reliability standards.

10.4 Considerations for High-Speed Design
For PCB multi-layer circuit boards used in high-speed applications, such as telecommunications, data centers, or computing, ensuring signal integrity is paramount. Best practices include:

• Controlling Impedance: Maintaining consistent impedance across traces helps prevent signal reflection and loss. Controlled impedance routing is essential in high-frequency designs.

• Reducing Crosstalk: The layout should minimize the potential for interference between adjacent traces. Using proper ground planes, shielded traces, and adequate trace spacing can help reduce crosstalk.

• Minimizing Via Count: Every via introduces signal degradation due to its inductance and capacitance, so minimizing the number of vias is important for maintaining high signal integrity.

10.5 Sourcing and Material Selection Best Practices
Choosing the right materials is a critical step in PCB multi-layer circuit board manufacturing. The following best practices should be considered:

• Material Compatibility: Ensure that the materials chosen are compatible with the intended application and manufacturing process. For high-speed designs, low-loss materials should be selected.

• Durability and Performance: Consider the environmental conditions the PCB will operate under, such as temperature, humidity, and exposure to chemicals. Materials should be chosen based on their ability to withstand these conditions.

• Cost-Effectiveness: While performance is crucial, manufacturers must balance material cost with the desired quality and functionality of the PCB multi-layer circuit board.

10.6 Streamlining the Manufacturing Process
Efficient manufacturing is key to minimizing costs and ensuring high-quality products. Best practices for streamlining the manufacturing of PCB multi-layer circuit boards include:

• Automated Assembly and Inspection: Automating assembly processes and utilizing inspection technologies like Automated Optical Inspection (AOI) and X-ray inspection can improve consistency, reduce human error, and accelerate production.

• Optimized Layer Registration: High-precision machines and alignment processes ensure that layers are correctly aligned during lamination and drilling, ensuring that vias and traces are properly positioned.

---

11. Quality Control and Testing of PCB Multi-Layer Circuit Boards

11.1 Importance of Quality Control in PCB Manufacturing
Quality control (QC) is an essential part of PCB multi-layer circuit board production. Due to the complexity and multi-step nature of the manufacturing process, ensuring the quality of each stage is critical for the performance and reliability of the final product. Defects such as poor trace definition, incorrect vias, and inadequate soldering can significantly affect the functionality of the circuit board.

11.2 Testing Methods for PCB Multi-Layer Circuit Boards
Several testing methods are used to ensure the quality and functionality of PCB multi-layer circuit boards:

• In-Circuit Testing (ICT): ICT checks the functionality of individual components and verifies that the PCB’s electrical pathways are intact.

• Flying Probe Testing: This method is used for small batch production or prototypes, where test probes are used to check the electrical performance of the PCB.

• Automated Optical Inspection (AOI): AOI uses cameras and image recognition software to inspect the PCB for defects such as misplaced components, soldering issues, and surface defects.

• X-ray Inspection: X-ray inspection is used to check the internal layers and vias of a PCB multi-layer circuit board, which cannot be visually inspected through the surface.

11.3 End-of-Line Testing
End-of-line testing verifies that the assembled PCB multi-layer circuit board meets the required functional specifications. This may include power cycling the board, running functional tests, and measuring parameters like voltage, current, and signal integrity.

11.4 Burn-In Testing
Burn-in testing involves operating the PCB multi-layer circuit board under extreme conditions to detect early-life failures. This process subjects the board to elevated temperatures and voltages to simulate prolonged use and stresses that the PCB will face in its operational life.

11.5 Statistical Process Control (SPC)
To ensure consistent quality, manufacturers can implement Statistical Process Control (SPC), which uses data-driven techniques to monitor and control the manufacturing process. By analyzing variations in production, manufacturers can detect potential issues before they affect product quality.

---

12. Applications of PCB Multi-Layer Circuit Boards

12.1 Consumer Electronics
PCB multi-layer circuit boards are widely used in consumer electronics such as smartphones, laptops, and gaming consoles. These devices require compact, high-performance PCBs to accommodate increasingly complex functions within small form factors. Multi-layer PCBs allow for more components to be packed into a smaller space, while still maintaining signal integrity and performance.

12.2 Automotive Electronics
The automotive industry is increasingly reliant on PCB multi-layer circuit boards for various applications, including control systems, navigation systems, safety features (such as airbags and ABS), and infotainment systems. These PCBs must be designed to withstand harsh environmental conditions, including extreme temperatures, vibrations, and moisture.

12.3 Industrial Control Systems
In industrial control systems, PCB multi-layer circuit boards are used to manage machinery, sensors, and automation systems. These boards must be highly reliable, as they often operate in demanding environments where failure is not an option. Multi-layer designs provide the necessary density and performance required for sophisticated control functions.

12.4 Medical Devices
Medical devices, including diagnostic equipment, monitoring systems, and therapeutic tools, require PCB multi-layer circuit boards with high levels of reliability and precision. In these applications, the PCBs must meet stringent regulatory requirements and be capable of functioning in sensitive and critical environments.

12.5 Telecommunications and Networking
Telecommunication infrastructure relies heavily on PCB multi-layer circuit boards to manage high-speed data transmission. The increasing demand for faster data rates, such as with the advent of 5G, has driven the need for multi-layer PCBs that can support higher-frequency signals and maintain signal integrity.

---

13. Conclusion and Future Outlook of PCB Multi-Layer Circuit Boards

13.1 Summary of Key Takeaways
Throughout this article, we have explored the complexity and importance of PCB multi-layer circuit boards in modern electronic devices. We discussed the manufacturing processes, challenges, best practices, and applications that make these boards essential for a wide variety of industries. From consumer electronics to medical devices, multi-layer PCBs are the backbone of cutting-edge technology.

13.2 The Future of PCB Multi-Layer Circuit Boards
Looking ahead, the demand for PCB multi-layer circuit boards will continue to grow as electronic devices become more powerful, smaller, and more integrated. As technology advances, new materials, manufacturing techniques, and design methods will be developed to meet the increasing demands of high-speed communications, IoT devices, automotive electronics, and more.

13.3 Final Thoughts
In conclusion, the field of PCB multi-layer circuit board manufacturing is dynamic, with continuous innovation driving improvements in both design and manufacturing processes. By embracing new technologies, materials, and design principles, manufacturers can continue to deliver high-quality, reliable, and efficient multi-layer PCBs for the ever-evolving world of electronics.

our linkedin sqpcb.com
