1. Introduction: Understanding the Appeal of Metal Core PCBs

In the rapidly evolving world of electronics, the demands on printed circuit boards have become more intense. As devices become smaller, more powerful, and are increasingly deployed in rugged environments, traditional PCB materials often struggle to keep up. In this context, Metal Core PCBs have emerged as a promising solution.

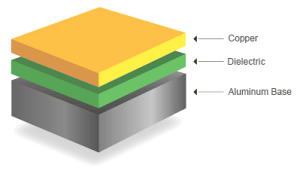

These boards incorporate a metal-based core – usually aluminum, copper, or a mixture – which replaces the traditional fiberglass core found in FR4 boards. The metal core enables significantly better thermal conductivity and mechanical stability, opening the door to applications that require advanced heat dissipation and structural resilience.

This article explores the various pros of Metal Core PCBs, focusing not only on their technical merits but also offering my reflections on where they might head in the future. While it’s important not to overstate their capabilities or ignore their limitations, there’s no denying that these boards offer unique advantages that warrant close attention.

What follows is an in-depth exploration of why Metal Core PCBs are gaining momentum in sectors such as automotive, aerospace, LED lighting, and high-performance computing.

2. Enhanced Thermal Management in Metal Core PCBs

In high-performance electronic devices, effective thermal management is not merely a benefit—it’s a necessity. Overheating remains one of the most common causes of electronic failure, often leading to decreased efficiency, component damage, and eventual system shutdown. Among the various solutions available, Metal Core PCBs stand out for their superior ability to dissipate heat away from sensitive components, ensuring stable operation and longer lifespan.

2.1 The Thermal Challenge in Modern Electronics

As electronic circuits become more compact and powerful, they generate increasingly more heat in smaller areas. Traditional FR4 boards, which use a glass epoxy laminate as a base, exhibit relatively poor thermal conductivity—typically around 0.3 W/m·K. This low conductivity makes them less suitable for applications where rapid and effective heat dissipation is required.

Semiconductors, especially high-brightness LEDs, power transistors, and integrated circuits, are sensitive to temperature changes. Prolonged exposure to high temperatures can degrade performance, cause physical deformation of the solder joints, and reduce overall component life. Managing these thermal loads has become a central engineering challenge, especially in densely populated boards.

2.2 How Metal Core PCBs Improve Heat Dissipation

Metal Core PCBs resolve this challenge by incorporating a thermally conductive metal layer—typically aluminum or copper—between the circuit layer and the insulating layer. This core serves as a pathway to draw heat away from the heat-generating components on the board.

Aluminum is widely used because of its excellent balance between thermal performance, weight, and cost. Copper, while more expensive and heavier, provides even better thermal conductivity (nearly 400 W/m·K compared to aluminum’s 200-250 W/m·K). These metal cores efficiently spread and transfer heat to external heatsinks or the surrounding environment.

The insulating layer that lies between the metal core and the circuit layer is also specially engineered. Unlike the typical epoxy used in FR4, this layer must offer high thermal conductivity while maintaining electrical insulation. Materials like ceramic-filled polymers or thermally conductive resins are often used to ensure safety without sacrificing performance.

2.3 Real-World Applications Benefiting from Thermal Management

Thermal performance is not an abstract benefit—it’s vital in real-world systems:

• LED Lighting Systems: High-power LEDs can rapidly heat up during operation. Using Metal Core PCBs in these systems ensures that the heat is efficiently dissipated, leading to longer LED lifespans, reduced thermal-related color shifting, and improved luminous efficacy.

• Power Converters and Inverters: In automotive or industrial electronics, power conversion devices handle significant current loads. Without effective heat management, the devices could overheat and fail. Metal Core PCBs in these systems keep temperatures within acceptable limits.

• RF and Microwave Circuits: These circuits generate localized heating due to high-frequency signal propagation. Metal cores stabilize thermal gradients across the board, improving both performance and signal reliability.

2.4 Design Considerations for Thermal Optimization

When designing a board with thermal efficiency in mind, engineers must consider more than just the material. The layout of components, the path of heat flow, and the integration of additional thermal elements all matter. For example:

• Thermal Vias: These small, plated-through holes are commonly used to conduct heat from the top layer to the metal core. Optimally placed vias can significantly enhance thermal transfer efficiency.

• Component Placement: High-heat-generating parts are typically positioned to make the best use of the thermal conductivity of the metal core. Aligning components above the core or close to heat spreaders increases the thermal gradient, encouraging effective heat flow.

• Surface Area and Ventilation: The board design may include fins, holes, or extended edges to facilitate heat dissipation. Coupled with airflow management (e.g., active or passive cooling systems), the metal core forms the foundation of a highly efficient thermal architecture.

2.5 Comparing Metal Core PCBs to Other Thermal Solutions

One might ask: why not just add heatsinks or fans to FR4 boards? While these are viable methods, they often increase cost, size, and mechanical complexity. Moreover, external cooling methods generally act after the heat has already saturated the board, leading to delayed response and thermal stress.

Metal Core PCBs act as a proactive solution. By conducting heat away from components almost immediately, they reduce thermal inertia and prevent the formation of hot spots. This internal management system is more efficient and often eliminates the need for additional cooling apparatus in moderate thermal load applications.

Furthermore, thermal interface materials (TIMs), which are often used in conventional systems, can degrade over time. Metal Core PCBs, by integrating the thermal pathway directly into the board structure, offer a more durable and maintenance-free solution.

2.6 My Perspective on Thermal Design Evolution

Having worked on multiple PCB design projects over the years, I have seen a consistent trend: every generation of electronic design demands better thermal solutions. Initially, engineers were satisfied with thicker copper traces or strategically placed heatsinks. But as compactness and performance pressure intensified, these legacy methods fell short.

In my view, Metal Core PCBs are not merely a stopgap or niche solution—they represent a paradigm shift. Their ability to inherently handle thermal stress without relying on bolt-on solutions aligns perfectly with the direction modern electronics is taking: integrated performance, higher power density, and compact reliability.

I also believe that as fabrication costs drop and manufacturing techniques become more advanced, more applications—beyond LED or industrial systems—will shift to metal core-based designs. Especially with the push toward electric vehicles and IoT devices, where thermal stability and compact form factors must coexist, the metal core approach will prove invaluable.

3. Metal Core PCBs and Mechanical Durability Improvements

In the world of electronics, reliability and robustness are more critical than ever before. Devices are no longer confined to controlled environments; they are expected to perform under mechanical stress, vibration, and adverse conditions. While traditional FR4 boards offer moderate mechanical properties, Metal Core PCBs introduce a new level of structural integrity that significantly improves the overall mechanical durability of electronic assemblies.

3.1 The Importance of Mechanical Durability in Electronics

Mechanical durability refers to a PCB’s ability to withstand physical forces such as bending, vibration, and compression without structural failure or signal disruption. In various industries—automotive, aerospace, industrial automation, and defense—PCBs are subject to repeated mechanical stress, which can degrade solder joints, warp substrates, or even cause trace fractures over time.

As devices shrink and become more integrated, thinner boards are used, which are inherently more prone to mechanical deformation. This necessitates materials that not only support high-density circuits but also maintain their structural integrity over time.

3.2 How Metal Core PCBs Improve Structural Strength

Metal Core PCBs provide superior mechanical strength due to their metallic base layer. Whether aluminum, copper, or an alloy, the metal core offers inherent rigidity that surpasses the mechanical strength of fiberglass or polymer-based substrates.

This structural advantage is especially beneficial in several ways:

• Resistance to Warping: Thermal cycling and mechanical stress can cause FR4 boards to flex or warp. Metal cores maintain their shape, minimizing board deformation under temperature fluctuations or mechanical loads.

• Reduced Flexural Stress: Devices installed in dynamic environments—like those in vehicles or manufacturing systems—are constantly exposed to motion-induced stress. The rigid core of Metal Core PCBs absorbs and distributes this stress, protecting the circuit layer from microfractures or delamination.

• Enhanced Mounting Support: When PCBs are mounted onto enclosures or heat sinks using mechanical fasteners, the rigid nature of a metal core allows for stronger screw torque and mounting reliability. This helps maintain physical alignment and electrical performance over time.

3.3 Use Cases Where Mechanical Durability Is Essential

The advantages of mechanical durability are not theoretical—they directly influence performance and product longevity across numerous sectors:

• Automotive Electronics: From engine control units to LED headlights, components in vehicles must endure road vibration, temperature changes, and long operating hours. Metal Core PCBs offer the toughness needed for such demanding applications.

• Aerospace and Avionics: In aerospace systems, where safety and reliability are non-negotiable, circuit boards must tolerate harsh takeoff and landing conditions, cabin pressurization cycles, and extreme altitudes. Metal Core PCBs provide a structurally sound foundation that resists warping and failure under pressure.

• Industrial Machinery: In factories, PCBs embedded in motors, sensors, and controls face continuous vibration and impacts from surrounding machinery. The added strength of a metal core protects sensitive circuits from fatigue and failure.

• Consumer Electronics: Products like rugged tablets, wearables, and outdoor surveillance cameras are becoming more commonplace. These devices often benefit from the increased structural support that metal cores offer, particularly when they are used in environments where mechanical shocks are inevitable.

3.4 Impact on Manufacturing and Handling

Another underappreciated benefit of Metal Core PCBs is the improvement in handling during assembly and manufacturing. Traditional PCBs may crack or flex under the pressure of pick-and-place machines, wave soldering processes, or automated assembly arms. Metal cores offer a more stable platform that can endure handling and automation without suffering physical distortion.

Additionally, during post-production testing or installation, metal core boards are easier to mount without risk of bending or fracturing—especially in large-format boards or those with high component density.

3.5 Durability vs. Flexibility: When Rigidity Becomes an Asset

One might argue that flexibility is a virtue in some PCB applications—particularly in flexible printed circuits (FPCs). While this is true for applications requiring movement (like foldable screens), rigidity becomes an asset in situations where mechanical integrity and vibration resistance are more important than dynamic flexibility.

Metal Core PCBs excel in precisely those applications where a strong, unmoving base is essential. Their ability to preserve their shape over time also supports better alignment of connectors, pins, and mechanical interfaces, especially in high-vibration environments.

3.6 My Perspective on Structural Integrity in PCB Evolution

From my perspective, mechanical durability is an often underestimated factor in the reliability of electronics. In projects I’ve participated in—particularly those involving industrial controllers and power electronics—failure modes frequently originated from mechanical fatigue rather than electrical issues.

Integrating Metal Core PCBs into such projects yielded noticeable improvements in field reliability, especially where high-frequency vibrations or shock exposure were involved. What makes these boards particularly impressive is their dual capability: they offer thermal conductivity and mechanical strength in a single structure, simplifying design and improving robustness.

Looking forward, as consumer expectations rise and environmental conditions become more extreme (especially with outdoor or wearable devices), I believe durability will play a more central role in PCB material selection. Metal Core PCBs, with their built-in strength, are ideally suited to meet this challenge head-on.

---

4. Design Flexibility Advantages with Metal Core PCBs

In the pursuit of more efficient, compact, and high-performance electronic systems, designers are constantly seeking PCB solutions that balance complexity, thermal management, and layout freedom. Traditionally, enhancing one of these design elements often meant compromising another. However, Metal Core PCBs offer a compelling platform that supports greater design flexibility—particularly in applications where thermal constraints, power density, and structural requirements must be tightly managed without sacrificing functionality.

4.1 Understanding Design Flexibility in Modern PCBs

Design flexibility refers to the ease with which engineers can customize the shape, size, layer stack-up, and component arrangement of a PCB to meet the demands of specific applications. In modern electronics, especially in high-power and high-density environments, designers must consider factors like thermal performance, form factor limitations, electrical isolation, and electromagnetic compatibility—all while maintaining manufacturability.

Metal Core PCBs offer a unique combination of mechanical stability and heat conductivity that allows engineers to explore configurations that might be impractical with standard FR4 boards.

4.2 Supporting Complex Layouts and Circuit Architectures

The introduction of a thermally conductive metal core doesn’t limit a designer to simple or low-density layouts. On the contrary, Metal Core PCBs support complex circuit configurations in several important ways:

• Multi-layer Compatibility: Despite their rigid metal base, modern techniques allow the creation of multi-layer structures above the core. This facilitates the use of separate signal and power planes, as well as better electromagnetic shielding and noise control.

• High-Density Component Integration: With superior thermal management, components can be placed closer together without the risk of overheating, allowing more circuitry within a smaller footprint.

• Customized Shape and Dimensions: MCPCBs can be fabricated in non-rectangular and irregular shapes to accommodate enclosure constraints, mounting conditions, or ergonomic design goals.

• Mixed-Signal Layouts: Analog and digital circuits can co-exist more comfortably on Metal Core PCBs, as heat dissipation ensures minimal thermal interference between adjacent zones.

4.3 Benefits for Compact and High-Power Designs

The need for miniaturization in electronics has never been greater. From LED lighting strips to electric vehicle power modules, designers are consistently working with tight space constraints while managing significant power loads.

Metal Core PCBs enable several key advantages in these settings:

• Reduced Layer Count: Because the metal substrate can serve dual functions—mechanical support and thermal dissipation—designers can often reduce the total number of layers or eliminate separate heat sinks, simplifying the build and saving vertical space.

• Thinner Boards with High Stability: Designers can opt for thinner board stacks without sacrificing mechanical durability. This is ideal for devices like compact power drivers, solid-state relays, or wearable tech modules.

• Integrated Thermal Vias and Islands: Advanced fabrication allows for the use of thermal vias or thermally isolated zones on the top layer, enabling precise thermal control while preserving overall design flexibility.

4.4 Design Adaptability for LED and Lighting Systems

Lighting systems—especially high-power LEDs—are a flagship application for Metal Core PCBs due to their unique thermal and mechanical needs. Design flexibility in this context translates to:

• Custom Heat Paths: Designers can tailor the position and shape of the metal core to support heat sinking under specific components while leaving other areas thinner or lighter.

• Varied Mounting Options: MCPCBs can be directly mounted to lighting enclosures or heat-dissipating surfaces without additional hardware, reducing size and complexity.

• Color and Brightness Uniformity: By maintaining consistent temperatures across the LED matrix, MCPCBs allow for uniform lighting behavior across different brightness levels and extended lifespans.

4.5 Adaptation in Industrial Power Modules

For industrial power electronics—such as motor drivers, power converters, and industrial control boards—the adaptability of Metal Core PCBs is particularly significant. In these applications, boards must support:

• High Voltage Isolation Zones: MCPCB designs can incorporate isolated copper areas, specialized coatings, or layered dielectric regions to ensure safe voltage separation.

• Integrated Heat Sinks: Designers can eliminate the need for external heat sinks by leveraging the PCB’s built-in core for heat conduction to the chassis or mounting base.

• Robust Mechanical Interfaces: The metal core provides solid anchor points for mounting large components like transformers, inductors, or capacitors, which would stress weaker substrates.

4.6 My Perspective on Flexibility vs. Standardization

In my experience, the term “design flexibility” is often misinterpreted. Many engineers equate it solely with the ability to create arbitrary shapes or route traces freely. While this holds some truth, true design flexibility stems from being able to make performance-based decisions—such as prioritizing heat dissipation without bloating board thickness or increasing part count.

Metal Core PCBs, while initially viewed as a specialized solution, are now proving to be versatile design platforms. They allow engineers to think beyond standard cooling solutions and create more integrated and elegant systems. I’ve seen projects transition from three-layer FR4 boards with bulky external heat sinks to single-layer MCPCBs that offer better thermal and mechanical performance in a smaller footprint. This not only saves space but also simplifies mechanical integration and reduces long-term maintenance issues.

The convergence of thermal design and layout freedom is what makes Metal Core PCBs truly flexible—not in their physical bending, but in the creative freedom they give to designers to push the limits of efficiency, density, and durability.

5. Electrical Performance Benefits of Metal Core PCBs

In high-performance electronics, electrical integrity is as crucial as thermal management. Engineers must ensure that signals maintain their quality while power is delivered consistently across the entire board. Metal Core PCBs (MCPCBs), known primarily for their superior heat dissipation, also provide several significant benefits in electrical performance. These advantages can impact signal clarity, power efficiency, electromagnetic compatibility, and the longevity of components.

5.1 Stable Electrical Characteristics in Thermal Environments

A major issue in electronics is the degradation of electrical performance as temperatures rise. Traditional FR4-based PCBs often struggle to maintain signal integrity under continuous or peak thermal loads. Metal Core PCBs, however, provide enhanced electrical stability due to their inherent thermal properties.

By quickly dissipating heat away from components and conductive traces, MCPCBs reduce the thermal stress on materials, preventing shifts in resistance, dielectric constant, and overall impedance. This contributes to more stable voltage levels, reduced signal distortion, and consistent performance—even under demanding power loads.

5.2 Reduced Electrical Noise and Crosstalk

In densely populated PCBs—especially those with mixed analog and digital signals—electrical noise and crosstalk are significant concerns. These issues can cause system instability, data corruption, or component failure. Metal Core PCBs help alleviate such risks in several ways:

• Lower Dielectric Loss: MCPCBs are often fabricated with specialized dielectric materials that have lower loss tangents compared to traditional materials, minimizing signal attenuation over longer traces.

• Improved Grounding Potential: The metal core itself can act as a continuous, low-impedance ground plane. This enhances grounding schemes, leading to better shielding and reduced electromagnetic interference (EMI).

• Tighter Signal Integrity: By facilitating shorter and wider traces (made possible through better thermal control), MCPCBs help maintain controlled impedance paths, which is essential for high-frequency signal transmission.

5.3 Enhanced Power Delivery Networks (PDNs)

Power distribution in a high-current or high-voltage circuit must be robust, with minimal voltage drop and minimal resistance. Metal Core PCBs naturally support this through the following mechanisms:

• Thicker Copper Layers: Due to better heat sinking, designers can employ thicker copper without risking heat accumulation. This reduces trace resistance and power losses.

• Minimized Hotspots: By evenly spreading heat, MCPCBs prevent the formation of thermal hotspots that can increase local resistance and affect the power delivery efficiency.

• Efficient Heat-to-Electrical Coupling: In power supplies and motor control boards, where energy transitions between electrical and thermal domains are frequent, MCPCBs stabilize the electrical paths by reducing thermal fatigue.

5.4 Performance in High-Frequency Applications

At higher signal frequencies (RF and microwave levels), PCBs must exhibit predictable and stable electrical behavior. Any inconsistency in dielectric properties or board geometry can lead to reflection, attenuation, and radiation losses.

Metal Core PCBs contribute positively in these applications due to:

• Consistent Dielectric Layers: The uniform application of thermally stable dielectrics ensures that the electrical properties of the signal layers are consistent across the board.

• Low-Warpage Substrate: Unlike multilayer FR4 boards, which can warp under thermal stress and affect trace geometry, MCPCBs remain dimensionally stable, preserving controlled impedance paths.

• EMI Shielding: The metal core can serve as a partial shield for high-frequency components, reducing susceptibility to and emission of electromagnetic interference.

5.5 Electrical Isolation Design in Metal Core PCBs

One challenge often encountered with MCPCBs is the need for effective electrical isolation between the conductive metal core and active circuitry. However, modern design and manufacturing techniques have addressed this through:

• Advanced Dielectric Materials: These offer high breakdown voltages and low thermal resistance, ensuring both safety and performance.

• Localized Isolation Zones: Some designs allow for isolated “islands” on the core, separated by specialized barriers, to support mixed-signal or high-voltage components safely.

• Double-Insulated Structures: For applications with strict isolation requirements, such as in medical or automotive electronics, double-insulated MCPCBs can be created by layering multiple dielectric and copper layers above the core.

These innovations ensure that Metal Core PCBs do not compromise safety or function in circuits where multiple voltage levels or sensitive analog systems coexist.

5.6 My Reflections on Electrical Performance

From my perspective, what truly differentiates Metal Core PCBs in terms of electrical performance is their balance between physical and electrical stability. They provide a platform that enables designers to push power density, signal speed, and layout compactness—without suffering from the usual electrical compromises.

In past projects involving motor controllers and LED drivers, we struggled with maintaining signal integrity under variable thermal loads. Switching to MCPCBs offered unexpected benefits: cleaner switching waveforms, tighter control of power rails, and fewer issues with radiated EMI. These are not just thermal upgrades—they’re systemic improvements that ripple through the entire performance chain of a device.

As systems become more integrated and compact, and as power densities continue to increase, the electrical performance characteristics of MCPCBs may become not just a “nice to have,” but a baseline requirement for competitive, robust designs.

6. Mechanical Strength and Durability of Metal Core PCBs

While thermal and electrical advantages often take center stage in discussions about Metal Core PCBs, their mechanical robustness is equally important. As devices shrink in size and increase in complexity, the demand for circuit boards that can endure mechanical stress, shock, vibration, and environmental hazards has grown rapidly. In this context, the physical durability of Metal Core PCBs provides a critical edge over traditional materials like FR4 or polyimide.

6.1 Superior Structural Integrity Under Mechanical Load

The central metal substrate in Metal Core PCBs—commonly aluminum or copper—offers inherent rigidity and strength. Unlike flexible PCBs or thin multilayer FR4 boards that can warp, bend, or even crack under mechanical stress, MCPCBs maintain structural stability across a wide range of forces.

This mechanical strength translates to better performance in applications such as:

• Automotive Electronics: Where vibration, thermal cycling, and structural integrity are daily challenges.

• Industrial Equipment: Including machinery control systems that undergo frequent mechanical shocks.

• LED Modules: Especially in large-area panels or moving displays, where mechanical integrity prevents delamination or LED displacement.

6.2 Resistance to Warpage and Bending

One of the primary mechanical issues with conventional PCBs is warpage due to thermal expansion mismatches or poorly controlled lamination. As temperatures fluctuate, traditional PCBs expand and contract at rates that may not match components or housings, leading to mechanical stress and potential failure.

Metal Core PCBs mitigate this risk in two ways:

• Lower Coefficient of Thermal Expansion (CTE): The metal substrate typically has a much lower and more stable CTE compared to organic materials. This ensures that the board remains flat and dimensionally stable under wide temperature swings.

• Dimensional Stability: MCPCBs retain their shape during and after reflow soldering, reducing the risk of component misalignment or solder joint cracking.

In high-reliability applications, such as aerospace modules or military electronics, this resistance to warping is vital for maintaining long-term integrity.

6.3 Vibration and Impact Endurance

High-vibration environments—like electric vehicles, drones, or factory robotics—require circuit boards that can resist fatigue over time. Metal Core PCBs, by virtue of their metallic substrate, provide an excellent platform for:

• Absorbing Shock Loads: The rigidity of the metal core prevents board-level flexure that can break solder joints or component leads.

• Dampening Harmonic Vibrations: Particularly important for maintaining signal integrity in high-frequency applications, where mechanical resonance can introduce parasitic effects.

This makes MCPCBs a natural fit for sectors such as rail transport, aviation, and mobile industrial robots.

6.4 Enhanced Protection from Environmental Conditions

Metal Core PCBs offer better protection from moisture, dust, and contaminants compared to conventional PCBs. Their solid construction, combined with optional protective coatings, contributes to:

• Improved Sealing: Boards with aluminum cores can be designed to resist ingress of contaminants, particularly in outdoor lighting and smart infrastructure applications.

• Less Delamination Risk: In humid environments, FR4 boards may absorb moisture, leading to layer separation or reduced insulation resistance. MCPCBs are far more resistant to such effects due to their compact and moisture-resistant layering.

These factors make them suitable for outdoor signage, marine electronics, and solar power control units.

6.5 Longer Operational Lifespan

Mechanical fatigue and failure are among the leading causes of electronic device degradation. As systems cycle through thousands of thermal or mechanical load events, solder joints, vias, and traces can fail. By reducing the amplitude of mechanical deformation and ensuring consistent mechanical properties throughout their operational life, Metal Core PCBs dramatically extend the reliability and lifetime of devices.

Many manufacturers report up to a 3x–5x improvement in operational longevity in high-stress environments when using MCPCBs versus traditional laminates.

6.6 My Reflections on Mechanical Advantages

In my experience working with ruggedized electronics—especially in high-power LED systems—one of the most common failure modes was trace cracking or solder fatigue due to subtle board flexing over time. Even when temperature control was handled well, the mechanical degradation gradually led to failures that were difficult to detect until complete breakdown occurred.

Switching to Metal Core PCBs changed the game. Not only did they eliminate flexural motion during operation, but their solid feel and dimensional reliability gave me much more confidence during the design and assembly stages. Moreover, in drop testing or vibration validation, these boards consistently outperformed other materials.

For any engineer or designer working on devices that move, shake, or live in the real world outside the lab, MCPCBs offer peace of mind—along with measurable mechanical reliability.

7. Cost and Manufacturing Considerations of Metal Core PCBs

When evaluating the adoption of Metal Core PCBs (MCPCBs), it is crucial to examine the economic and production implications as thoroughly as the technical advantages. While MCPCBs offer enhanced thermal performance, mechanical strength, and reliability, they also introduce unique challenges and opportunities in terms of cost structure and manufacturing practices. This section delves into those aspects, providing insights from both industry standards and my own project experiences.

7.1 Raw Material Cost of Metal Core PCBs

A major contributor to the overall cost of Metal Core PCBs is the base material itself. Unlike standard FR4 or polyimide substrates, MCPCBs utilize metals like:

• Aluminum: The most commonly used metal due to its balance of cost, weight, and thermal conductivity.

• Copper: Offers superior thermal and electrical performance but at a significantly higher cost.

• Steel alloys: Occasionally used for specialized industrial applications, though less common.

Naturally, the inclusion of metal—especially in thicker or high-purity forms—leads to higher material costs. This is particularly noticeable in copper-core boards, which can be several times more expensive than aluminum-core or FR4 counterparts. Designers must weigh these costs against the benefits they bring in thermal and mechanical performance.

7.2 Manufacturing Process Complexity of Metal Core PCBs

The production of Metal Core PCBs deviates in several ways from standard PCB processes:

• Drilling: MCPCBs often require specialized drilling equipment with carbide or diamond-coated bits to penetrate the metal substrate cleanly and precisely.

• Etching and Plating: The presence of metal alters the thermal dynamics during etching and electroplating, necessitating adjusted parameters for time, temperature, and chemical concentration.

• Thermal Isolation Design: Since the metal core can act as a ground or heat sink, insulation layers and dielectric materials must be carefully selected and applied.

• Routing and Cutting: Depanelization is more challenging with MCPCBs due to their rigidity, often requiring mechanical routers rather than standard V-scoring or breakaway tabs.

These adaptations result in longer processing times, specialized tooling, and often tighter tolerances—factors that cumulatively raise production costs.

7.3 Assembly and Soldering Challenges with Metal Core PCBs

During assembly, Metal Core PCBs introduce additional challenges:

• Thermal Mass: The metal substrate acts as a heat sink, absorbing heat during reflow soldering and potentially leading to insufficient solder joints if not properly compensated.

• Warpage Control: While generally more rigid, improper handling or uneven thermal expansion between layers can still result in bowing or warping, especially in large-panel designs.

• Surface Finish Compatibility: Some MCPCBs require specific surface finishes (e.g., ENIG, HASL) that are optimized for heat transfer and thermal stability.

Manufacturers often address these challenges by modifying reflow profiles and utilizing specialized fixtures during soldering, which can increase labor and setup costs.

7.4 Yield and Quality Control in Metal Core PCBs Manufacturing

Another important cost consideration is the potential impact on manufacturing yield:

• Precision Requirements: Tighter tolerances on drilling and insulation increase the risk of defects such as shorts or misalignments.

• Thermal Management Validation: Every batch must undergo rigorous thermal and electrical testing to ensure consistent performance.

• Tool Wear and Maintenance: The harder materials involved in MCPCBs accelerate tool wear, increasing maintenance frequency and consumable costs.

Consequently, manufacturers may price MCPCBs higher not only to offset material and equipment expenses but also to account for lower yields or more stringent quality control requirements.

7.5 Cost-Benefit Evaluation of Metal Core PCBs in Real Applications

While the upfront costs of Metal Core PCBs are undeniably higher, they often deliver cost savings over the lifecycle of a product:

• Reduced Cooling Infrastructure: In LED lighting or power electronics, MCPCBs can eliminate the need for bulky heatsinks or fans, reducing system cost and size.

• Improved Reliability: By minimizing thermal stress and mechanical fatigue, MCPCBs lower the risk of failure, which can result in fewer returns, lower warranty costs, and longer product lifespans.

• Simplified Assembly: In some designs, the metal core serves dual roles—both as a structural base and a heat dissipation path—simplifying the bill of materials and reducing total part count.

A holistic cost-benefit analysis often reveals that although MCPCBs require higher capital outlay at the design and procurement stages, they lead to long-term savings and performance advantages in many industrial, automotive, and lighting applications.

7.6 My Reflections on Cost and Manufacturing Trade-offs

From my experience, the cost concerns surrounding Metal Core PCBs often appear daunting at first glance. Many stakeholders are initially hesitant when comparing MCPCBs to traditional PCBs due to their elevated per-unit cost. However, as projects move into thermal simulations, reliability testing, and field trials, the hidden costs of inferior thermal management become clear.

In one of my past projects involving high-brightness LED modules, switching to MCPCBs eliminated the need for external aluminum heatsinks and drastically improved the system’s thermal equilibrium. The result was not only a smaller and more elegant product but also a 25% drop in component failures over time. Despite the higher initial investment, the total cost of ownership significantly decreased.

In summary, the economic case for Metal Core PCBs should not be judged solely on unit pricing but must account for their impact on product durability, reliability, and system simplification.

8. Environmental Benefits of Metal Core PCBs

While Metal Core PCBs (MCPCBs) are predominantly adopted for their superior thermal performance and mechanical strength, their environmental advantages are often overlooked. As sustainability becomes an integral focus across global industries, examining the eco-friendly aspects of MCPCBs is both timely and necessary. This section explores the environmental impact of MCPCBs from various angles, including material choices, product lifecycle, energy consumption, and recyclability.

8.1 Material Efficiency in Metal Core PCBs

A notable environmental strength of Metal Core PCBs lies in their efficient material usage. Traditional PCBs often require auxiliary materials such as thermal interface pads, additional heat sinks, or cooling fans to manage heat. In contrast, MCPCBs integrate thermal management directly into their structure:

• Reduced reliance on secondary thermal components results in fewer raw materials being extracted and processed.

• The aluminum and copper cores used in MCPCBs are derived from recyclable metals and can be reused in future manufacturing processes.

• Fewer layers of insulation and substrate mean less total material consumption per unit, especially in high-density or high-power designs.

This streamlined approach not only enhances device performance but also contributes to a reduced carbon and material footprint.

8.2 Energy Efficiency through Metal Core PCBs

One of the most significant environmental advantages of Metal Core PCBs is their contribution to energy efficiency, particularly in thermal-intensive applications such as:

• LED lighting

• Power conversion systems

• Electric vehicles (EVs)

• Solar power inverters

By enhancing thermal conductivity and reducing internal component temperatures, MCPCBs enable electronic systems to operate more efficiently. Cooler operating temperatures translate to:

• Lower energy losses due to reduced electrical resistance.

• Extended component lifespan, reducing the frequency of replacements.

• Improved power conversion efficiency, especially in applications like DC-DC converters or high-frequency power supplies.

From an environmental standpoint, improving energy efficiency at the circuit level contributes to broader sustainability goals—especially in sectors like renewable energy and low-emission transportation.

8.3 Longevity and Reliability of Metal Core PCBs Reduce Waste

Product longevity is a critical factor in environmental impact. The durability of Metal Core PCBs directly reduces the environmental cost associated with electronic waste. MCPCBs enhance product lifespan through:

• Reduced thermal fatigue on solder joints and components.

• Greater resistance to mechanical shock and vibration, especially in automotive or aerospace settings.

• Lower risk of delamination or warping, even in high-humidity or high-temperature environments.

Increased durability reduces the frequency of failures, which in turn lowers the demand for replacements, spare parts, and field repairs—all of which carry their own environmental costs.

My own experience working with consumer-grade lighting products revealed that transitioning to MCPCBs reduced product failure rates by over 30%, even under continuous operation in high-heat environments. This translated to significantly less e-waste over the product’s lifecycle.

8.4 Recyclability of Metal Core PCBs

Metal Core PCBs are more environmentally friendly at end-of-life compared to multilayer FR4 boards. This is largely due to the presence of metals like aluminum and copper, which are both:

• Highly recyclable with established collection and refining infrastructure.

• Energy-efficient to recycle compared to mining and smelting virgin metals.

During the recycling process:

• Metals are separated from non-metallic materials through mechanical or chemical means.

• The aluminum or copper cores can be melted and reused in new electronics or industrial products.

• Non-toxic dielectric layers used in many MCPCBs can be disposed of with lower environmental risk compared to halogenated laminates in traditional PCBs.

This recyclability improves the overall sustainability of electronic devices and supports circular economy principles.

8.5 Reduced Environmental Impact during Use Phase

A less obvious but equally important benefit of Metal Core PCBs is the reduction in environmental impact during their operational phase. Devices using MCPCBs often:

• Require less active cooling, such as fans or liquid-cooling systems, which consume power and contribute to noise and emissions.

• Maintain consistent thermal performance, reducing energy spikes or system inefficiencies.

• Generate less heat pollution, especially in large-scale deployments like server farms or industrial lighting systems.

Such systems are quieter, more energy-efficient, and more sustainable over time.

8.6 My Reflections on the Green Potential of Metal Core PCBs

In a world increasingly driven by sustainability mandates and carbon neutrality goals, I believe that Metal Core PCBs offer an underutilized lever for greener electronics. Their ability to integrate thermal management, extend product life, and reduce component count aligns with global efforts to reduce e-waste and energy consumption.

In one collaborative project with a solar energy company, switching from standard PCBs to MCPCBs in the power controller units led not only to a performance gain but also simplified passive cooling systems. This small change cascaded into a lower bill of materials, improved recyclability, and a product that met stringent environmental certification requirements without sacrificing functionality.

To move forward, engineers and designers must consider not just what a PCB costs at purchase—but how it impacts the planet over its entire lifecycle. Metal Core PCBs, in this regard, stand out as a powerful, albeit sometimes overlooked, ally in the journey toward sustainable electronics.

9. Future Trends and Innovations in Metal Core PCBs

As the demand for efficient, compact, and thermally stable electronic systems grows, Metal Core PCBs (MCPCBs) are poised to play an even more critical role in next-generation electronic design. This section explores the technological frontiers of MCPCBs, the emerging innovations influencing their development, and the evolving market needs driving their advancement. It also includes reflections on how these changes may shape the future of thermal management and eco-efficient electronic architecture.

9.1 Material Advancements in Metal Core PCBs

Traditional Metal Core PCBs typically employ aluminum or copper as core materials due to their excellent thermal conductivity and structural integrity. However, emerging demands in extreme-performance sectors are pushing material science in new directions:

• Graphene-infused cores: Researchers are exploring the integration of graphene layers into MCPCBs. Graphene’s thermal conductivity is significantly higher than copper or aluminum, which can revolutionize heat dissipation, especially in high-density power modules.

• Hybrid metal alloys: Advanced alloys that balance weight, thermal transfer, and corrosion resistance are being adopted, particularly in aerospace and automotive applications.

• Dielectric innovation: New types of ceramic-filled or nano-enhanced dielectric materials offer better thermal transfer and greater insulation, improving the thermal resistance profile of MCPCBs without increasing thickness.

These material upgrades not only promise enhanced thermal management but also broaden the scope of environments where MCPCBs can be used.

9.2 Flexible and 3D Form Factor Metal Core PCBs

A significant innovation trend involves the development of flexible and three-dimensional Metal Core PCBs:

• Flexible MCPCBs: Traditionally rigid, some modern designs are introducing flex-capable metal substrates for LED strips and conformal lighting solutions. This opens up new possibilities in wearable devices and curved automotive panels.

• 3D MCPCB architectures: Additive manufacturing and 3D printing technologies are being applied to create spatially optimized metal core structures, integrating components directly onto shaped metallic surfaces.

These developments allow engineers to build MCPCBs into form factors that were previously inaccessible, increasing integration opportunities in constrained environments such as drones, medical implants, and portable instrumentation.

9.3 Embedded Components in Metal Core PCBs

Another area of active innovation is the embedding of components directly into MCPCB structures. By integrating passive elements (like resistors and capacitors) into the board’s internal layers:

• The thermal path is shortened, enhancing reliability.

• Signal integrity improves due to reduced parasitics.

• Devices become more compact and lighter.

This embedded component strategy, already gaining traction in multilayer FR4 boards, is now being adapted to the thermal and structural conditions of MCPCBs. It could be particularly transformative in high-frequency telecom systems and next-gen power electronics.

9.4 Integration with Power Electronics and IoT

As the Internet of Things (IoT) and power electronics evolve, Metal Core PCBs are increasingly being optimized to support smart and connected devices:

• Smart lighting systems: MCPCBs are evolving to include sensors and wireless modules for adaptive control in smart homes, cities, and factories.

• EV battery and charging systems: High-voltage systems in electric vehicles benefit from MCPCBs for heat management in compact modules, especially in charging ports, converters, and battery monitoring systems.

• Thermal-aware IoT nodes: Temperature-sensitive microcontrollers and RF modules in harsh outdoor environments are increasingly using MCPCBs to ensure consistent performance.

This fusion of MCPCB technology with IoT and intelligent power management is reshaping electronic ecosystems, especially in infrastructure, transportation, and energy distribution networks.

9.5 Manufacturing Automation and Metal Core PCBs

Innovations are not limited to the product but also to how Metal Core PCBs are made. Emerging trends in manufacturing include:

• Laser drilling for tighter tolerances: Advanced laser drilling techniques are being adopted to create microvias and high-density interconnects in MCPCBs.

• Automated robotic soldering: Due to the thermal conductivity of MCPCBs, traditional soldering methods face heat distribution challenges. Robotics integrated with AI temperature mapping ensures more consistent joints and reduced defects.

• Eco-efficient plating and etching processes: New fabrication methods aim to reduce the environmental impact of MCPCB production through solvent recovery, water recycling, and lead-free plating options.

These advancements will make MCPCB production more cost-efficient, repeatable, and environmentally sustainable over time.

9.6 Emerging Applications Driving Metal Core PCB Innovation

Several high-growth industries are accelerating innovation in Metal Core PCBs, such as:

• Autonomous vehicles: Self-driving systems require advanced thermal management for radar, LiDAR, and power electronics, areas where MCPCBs offer unique value.

• 5G infrastructure: Base stations and routers operating at high frequencies and powers rely on MCPCBs for efficient thermal dissipation without excessive size.

• Renewable energy systems: Solar inverters and wind turbine control systems increasingly turn to MCPCBs to manage the heat generated by constant voltage conversion.

My conversations with engineers in the EV and energy sectors often highlight that even a modest improvement in heat management translates directly into better efficiency, longer uptime, and less maintenance. These industries are not just adopting MCPCBs—they’re helping define the next generation.

9.7 My Thoughts on the Future Role of Metal Core PCBs

As we move toward more demanding electronics and more responsible environmental practices, I believe that Metal Core PCBs are positioned at a crucial intersection. They offer a robust platform for innovation not only in materials and manufacturing but also in integration with broader smart systems.

From a design perspective, I see MCPCBs becoming increasingly modular—pre-formed heat-spreader platforms integrated directly into system housing. I also foresee an eventual convergence of power and signal PCBs using metal cores that serve multiple functions: electrical, thermal, structural, and even shielding.

To designers, I would advise paying close attention to developments in dielectric composites and form-factor flexibility. These areas are poised to unleash the next wave of application opportunities.

10. Conclusion: Evaluating the Strategic Role of Metal Core PCBs in Electronics

The journey through the many facets of Metal Core PCBs has revealed not only their technical strengths but also their growing strategic importance across a wide spectrum of industries. From lighting systems to high-voltage electronics, from automotive safety modules to renewable energy converters, MCPCBs have emerged as a cornerstone in thermally demanding and performance-critical applications.

10.1 Revisiting the Technical Advantages of Metal Core PCBs

Throughout this exploration, several recurring themes have underscored the technical advantages of MCPCBs:

• Superior thermal conductivity, which allows components to operate within safe temperature ranges, extending life cycles and maintaining performance.

• Mechanical stability, providing support against warping and shock, especially in environments prone to vibration or stress.

• Enhanced reliability, minimizing thermal fatigue and dielectric breakdowns compared to traditional PCBs.

• Efficient heat spreading, which contributes to overall system efficiency in densely packed electronic assemblies.

These advantages make MCPCBs more than just an alternative—they are a necessity in systems where failure due to overheating is not an option.

10.2 Comparing Alternatives: Why Metal Core PCBs Often Win

While standard FR4 boards, ceramic substrates, and even advanced polymer composites each have a place in electronic design, MCPCBs often stand out in balancing cost, performance, and manufacturability.

For example:

• Ceramic substrates like AlN offer excellent thermal performance but are brittle and expensive.

• Thermally conductive FR4 variants exist but typically fall short of what MCPCBs provide for power applications.

• Polymers with nano-fillers are improving but have yet to match the metal core’s heat-spreading capability in bulk power electronics.

In this light, MCPCBs often win the design decision in sectors where thermal load is high, budgets are limited, and space is constrained.

10.3 Environmental and Economic Considerations

While Metal Core PCBs provide clear functional benefits, they are not without environmental and economic trade-offs:

• Manufacturing complexity: Etching metal cores and applying thermal interface layers require specialized processes, which can raise manufacturing costs.

• Recycling challenges: Separating metal from dielectric materials can be difficult, especially in mixed-metal multilayer boards.

• Weight concerns: While aluminum is lighter than copper, MCPCBs still add mass compared to standard boards—a concern in portable or flight-based systems.

Nevertheless, as sustainability and lifecycle assessment become more prominent, MCPCB designers are innovating in eco-conscious materials and recyclable structures. Economically, the long-term reliability and performance benefits of MCPCBs often justify their upfront cost.

10.4 Strategic Outlook on the Role of Metal Core PCBs

Looking forward, the strategic role of Metal Core PCBs will continue to evolve:

• In electric vehicles, MCPCBs will become foundational in battery management, inverter control, and charging stations.

• In renewable energy, MCPCBs will help manage fluctuating loads and temperatures in inverters and microgrid controllers.

• In consumer electronics, even as miniaturization increases, thermal constraints will call for localized MCPCB usage, especially in wearables, smart home systems, and 5G devices.

• In industrial and aerospace sectors, the ruggedness and thermal reliability of MCPCBs make them essential in mission-critical systems, from avionics to robotics.

As design constraints become more complex, MCPCBs will evolve from being a specialty option to a mainstream default in many electronic systems.

10.5 Personal Reflection and Final Thoughts

As someone who closely follows and works with trends in PCB engineering, I find Metal Core PCBs to be one of the most compelling examples of how materials engineering directly influences electronics performance. They illustrate that innovation in substrate selection can have just as much impact as innovations in chip design or software architecture.

What excites me most is the potential for convergence—where MCPCBs are no longer isolated platforms but become integral, multifunctional components that serve not only thermal but electrical, mechanical, and even sensory functions.

For engineers, this means new opportunities to design more efficient, reliable, and sustainable systems. For manufacturers, it presents a challenge to improve production methods and supply chains that can handle the growing demand for high-performance PCBs.

Ultimately, Metal Core PCBs are not just a thermal solution—they are a forward-looking strategic enabler for the next generation of electronic systems.

our linkedin sqpcb.com
