Kraft Paper Role in the Lamination Process in PCB Manufacturing

Introduction

Kraft paper plays a crucial role in PCB lamination, serving as a thermal and pressure buffer to ensure uniform heating, controlled cooling, and even pressure distribution. It helps to minimize defects, such as warping, delamination, and pressure-induced indentations, which can significantly affect PCB quality.

Despite recent developments in alternative materials like silicone pads, kraft paper remains the industry standard due to its stable performance, cost-effectiveness, and ability to be partially replaced to maintain consistent properties. However, careful handling is required as kraft paper can produce dust and debris, which may cause surface imperfections in the final laminated PCBs.

This article explores the importance of kraft paper in PCB lamination, highlighting its benefits, proper usage, and industry trends regarding alternative materials.

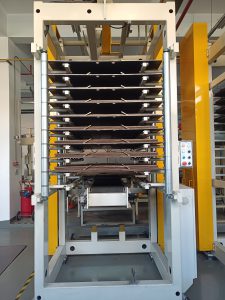

Kraft Paper Role in the Lamination Process

Key Functions of Kraft-Paper in PCB Lamination

1. Ensuring Uniform Heat Distribution

• During the lamination process, PCB layers, copper foil, and prepreg (PP) are bonded together under high temperatures (130°C–170°C).
• Kraft-paper acts as a thermal buffer, ensuring that heat is evenly distributed across the entire PCB stack.
• Benefits of uniform heat distribution:
  • Reduces hot spots and cold spots, preventing uneven resin flow.
  • Improves resin curing consistency, minimizing defects such as voids or weak adhesion.
  • Prevents local overheating, which can degrade the mechanical and electrical properties of the PCB.

2. Providing Even Pressure Distribution

• Uneven pressure during lamination can cause PCB thickness variations, resin starvation, or delamination.
• Kraft paper serves as a pressure equalizer, ensuring consistent pressure application throughout the PCB stack.
• Advantages of uniform pressure distribution:
  • Reduces layer shifting and misalignment.
  • Ensures consistent dielectric thickness, which is critical for impedance-controlled designs.
  • Prevents resin squeeze-out and excessive layer compression.

3. Controlling Heating and Cooling Rates

• The rate of temperature increase and decrease during lamination is crucial in preventing internal stress buildup in PCBs.
• Kraft-paper acts as a thermal buffer, moderating both heating and cooling rates.
• Why controlled heating and cooling matter:
  • Prevents sudden resin shrinkage, reducing the risk of warping and delamination.
  • Reduces thermal stress, preventing copper layer separation.
  • Ensures gradual resin polymerization, improving bonding strength and PCB durability.

4. Maintaining Stable Performance by Replacing Kraft Paper Regularly

• Kraft-paper properties degrade with repeated use due to heat exposure, compression, and resin absorption.
• To maintain consistent performance, at least one-third of the kraft paper must be replaced in each lamination cycle.
• Effects of degraded kraft paper:
  • Reduced heat and pressure buffering capacity.
  • Uneven lamination results due to inconsistent thickness or resin absorption.
  • Increased risk of delamination and defects in high-layer-count PCBs.

5. Minimizing Debris Contamination to Prevent Surface Indentations

• One drawback of kraft paper is that it easily sheds fibers and dust.
• These small debris particles can become embedded in the lamination press plates, leading to surface indentations or pits on the final PCB.
• Preventive measures:
  • Regular cleaning of lamination equipment to remove paper dust.
  • Using higher-quality kraft paper with controlled fiber shedding.
  • Implementing strict material replacement schedules to reduce contamination.

Alternatives to Kraft Paper: Silicone Pads

1. The Rise of Silicone Pads in Lamination

• Some manufacturers have experimented with silicone pads as an alternative to kraft paper.
• Silicone pads offer higher durability and can be reused multiple times.
• Potential advantages of silicone pads:
  • Better resistance to heat and pressure cycles.
  • Lower fiber shedding, reducing contamination risks.
  • Improved pressure distribution stability over multiple uses.

2. Challenges and Limitations of Silicone Pads

• Despite potential benefits, silicone pads have not seen widespread adoption in the PCB industry.
• Key reasons for limited use:
  • Difficult to monitor pad degradation: Unlike kraft-paper, which is replaced periodically, silicone pads wear out gradually and inconsistently, making failure difficult to predict.
  • Higher initial cost: Silicone pads are significantly more expensive than kraft paper.
  • Potential for surface damage: Damaged or unevenly worn silicone pads can create localized pressure imbalances, leading to defects in PCB lamination.

Best Practices for Kraft Paper Usage in PCB Lamination

To maximize the performance and longevity of kraft paper in lamination, manufacturers should follow these best practices:

1. Use high-quality kraft-paper to minimize fiber shedding and improve thermal and pressure consistency.
2. Replace at least one-third of kraft-paper sheets per lamination cycle to maintain stable heat and pressure distribution.
3. Clean lamination press plates regularly to remove debris and prevent surface indentations on PCBs.
4. Monitor and control heating and cooling rates to avoid excessive internal stress.
5. Test alternative materials (such as silicone pads) cautiously, ensuring they meet long-term stability and cost-effectiveness requirements.

Conclusion

Kraft paper remains an essential material in the PCB lamination process due to its ability to evenly distribute heat and pressure, control thermal cycles, and minimize stress-related defects. While silicone pads are emerging as a potential alternative, monitoring wear and performance consistency remains a challenge, limiting their widespread adoption.

By following best practices in kraft paper usage, manufacturers can enhance PCB quality, reduce warping risks, and improve production efficiency, ensuring high-reliability laminated circuit boards for modern electronic applications.
