Drilling Aluminum Sheets for PCB Manufacturing: Importance, Process, and Best Practices

In the world of printed circuit board (PCB) manufacturing, drilling aluminum sheets is a crucial step that significantly impacts the board’s performance, durability, and reliability. Aluminum sheets, often used as drill entry materials, protect both the drilling equipment and the PCB itself, ensuring clean and precise holes.

This article explores the importance of aluminum drill sheets, the drilling process, key considerations, and best practices for ensuring high-quality results in PCB production.

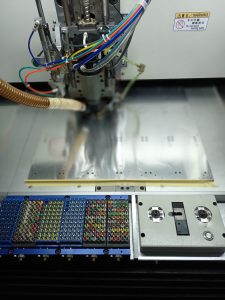

Drilling Aluminum Sheets

1. Why Use Aluminum Sheets for PCB Drilling?

During PCB fabrication, drilling precision is critical. The holes in the PCB must be accurately positioned and clean to allow for via plating, component placement, and electrical connections. Aluminum sheets serve as an entry material for PCB drilling, providing multiple benefits:

1.1 Protection of Drill Bits

• PCB drilling requires high-speed drills (spinning at 100,000+ RPM). Without proper protection, the drill bit can overheat, wear out faster, or break.
• Aluminum sheets reduce friction and prevent drill bit deflection, maintaining consistent hole quality.

1.2 Clean and Precise Holes

• Drilling directly into a bare PCB can cause burrs, fiber tearing, and delamination.
• An aluminum sheet prevents rough edges by acting as a stabilizer, ensuring smooth hole walls for better via plating adhesion.

1.3 Heat Dissipation

• High-speed drilling generates intense heat, which can deform the PCB material (such as FR4, polyimide, or PTFE).
• Aluminum has excellent thermal conductivity, dissipating heat efficiently and preventing board warping.

1.4 Reducing Contamination

• Dust and debris from drilling can clog microvias and create short circuits.
• Aluminum sheets reduce particle contamination, improving PCB cleanliness and manufacturing yields.

2. Types of Aluminum Sheets for PCB Drilling

PCB manufacturers use different types of aluminum sheets depending on the board specifications and drilling requirements.

2.1 Standard Aluminum Drill Entry Sheets

• Material: Pure aluminum or aluminum alloy (typically 1100, 5052, or 6061 grades).
• Thickness: Commonly ranges from 0.15mm to 0.3mm.
• Best For: Standard PCBs, single-layer, and double-layer boards.

2.2 Coated Aluminum Entry Sheets

• Material: Aluminum with a lubricant coating.
• Advantages: Reduces drill friction, minimizes bit wear, and enhances drill life.
• Best For: High-density interconnect (HDI) PCBs, multilayer PCBs with microvias.

2.3 Laminated Aluminum Sheets

• Material: A combination of aluminum and other materials for added stability.
• Best For: High-layer-count PCBs that require extreme drilling precision.

3. PCB Drilling Process Using Aluminum Sheets

3.1 Preparation

• Select appropriate aluminum sheet thickness based on PCB material and drill size.
• Align the drill entry sheet with the PCB stack to ensure a secure fit.
• Secure both the aluminum sheet and PCB panel to prevent shifting.

3.2 Drilling Operation

• Use a computer numerical control (CNC) drilling machine to ensure accuracy.
• The drill bit enters the aluminum sheet first, stabilizing its movement.
• After penetrating the PCB layers, the drill exits into a backup board (often phenolic or aluminum sheets) to prevent burrs.

3.3 Post-Drilling Cleaning

• Remove the aluminum sheet and check for hole precision.
• Use high-pressure air or ultrasonic cleaning to eliminate debris.
• Perform optical inspection or X-ray analysis for microvias.

4. Factors Affecting PCB Drilling with Aluminum-Sheets

4.1 Drill Bit Selection

• Carbide drill bits are recommended due to their high durability and ability to cut through multiple layers.
• Micro-drill bits (e.g., 0.1mm to 0.3mm) are used for HDI PCBs.

4.2 Drill Speed and Feed Rate

• The drilling speed must match the board material and aluminum sheet thickness.
• Too fast: Can cause drill breakage and overheating.
• Too slow: Can result in rough edges and debris buildup.

4.3 Entry Sheet Thickness

• Thin aluminum sheets (0.15mm – 0.2mm): Suitable for small holes (≤0.2mm).
• Thicker sheets (0.25mm – 0.3mm): Better for larger drill diameters and multilayer PCBs.

4.4 Environmental Considerations

• Use aluminum sheets with anti-corrosion coatings to prevent oxidation.
• Ensure proper disposal and recycling of used aluminum sheets to comply with environmental regulations.

5. Best Practices for Using Aluminum Sheets in PCB Drilling

1. Choose High-Quality Aluminum Sheets

   • Ensure the material is flat, uniform, and free of scratches to maintain drilling accuracy.

2. Use Proper Clamping Techniques

   • Secure the PCB stack and aluminum entry sheet tightly to prevent misalignment.

3. Optimize Drill Parameters

   • Adjust spindle speed and feed rate based on aluminum sheet thickness and PCB material.

4. Regularly Inspect Drill Bits

   • Check for wear and tear to prevent drilling defects.

5. Implement an Efficient Cleaning Process

   • Use vacuum dust collection systems to remove aluminum debris from the PCB surface.

6. Consider Coated Aluminum Sheets for HDI Boards

   • The lubricant coating enhances drill bit longevity and reduces tool friction.

6. Conclusion

Drilling aluminum sheets is a critical step in PCB manufacturing, ensuring precision, quality, and longevity of the circuit board. By using the right aluminum entry materials, optimizing drill parameters, and following best practices, manufacturers can enhance PCB drilling accuracy while extending the lifespan of drill bits.

As PCB technology advances, high-density circuits, microvias, and multilayer boards require ultra-precise drilling techniques. The role of aluminum sheets will continue to be integral to achieving high-performance PCB production.

By adopting these best practices, manufacturers can improve production efficiency, reduce drilling defects, and ultimately enhance the performance and reliability of their PCBs.
